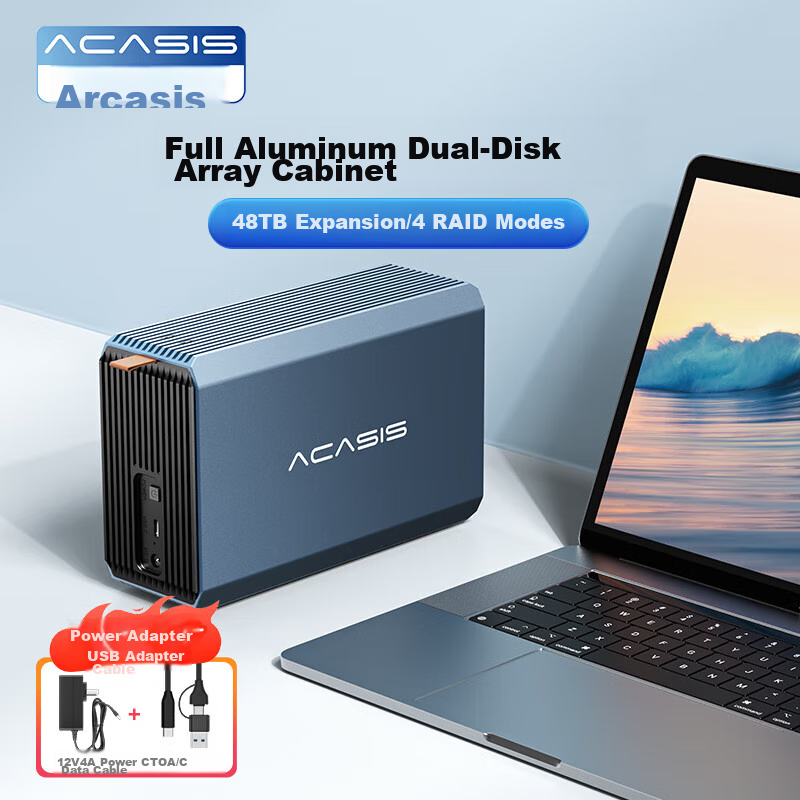

Acasis Hard Drive Enclosure, Dual-Bay 3.5-Inch USB 3.0 SATA Mechanical Hard Drive External Case, RAID Disk Array EC-7352

SKU : 100050705767

Availability : In stock
4.7
Weight : 1.18 kg
Length : 30.5 cm
Height : 9.2 cm

GHS 398.27

GHS 430.13

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** acasis

**Product Name:** 3.5" Dual-drive Array

**Model:** EC-7352

**Color:** Iron Grey

**Material:** Aluminum Alloy

**Interface:** USB-C Upstream Interface, SATA 3.0 Interface

**Weight:** 645g

**Dimensions:** 200mm x 120mm x 65mm

**Power Supply:** DC 12V/4A

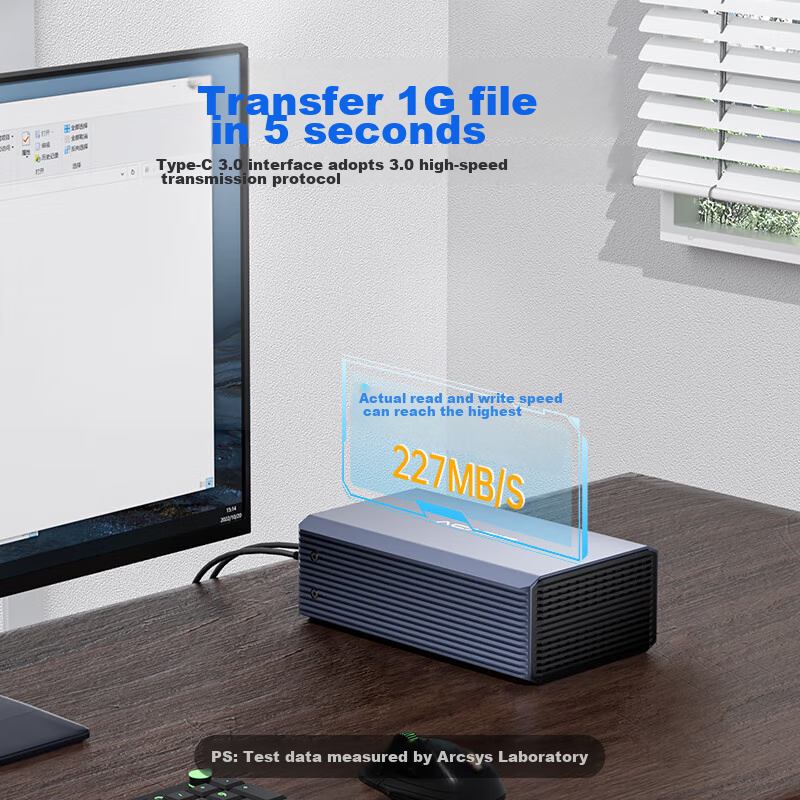

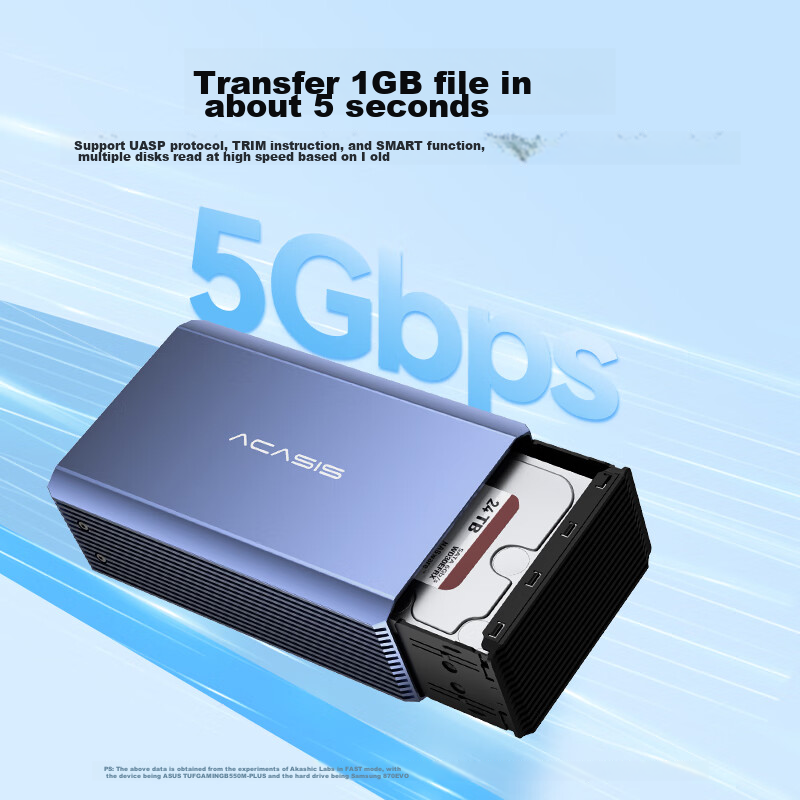

**Maximum Bandwidth:** 5Gbps

**Indicator:** Hard Drive Status Indicator Light

**Craftsmanship:** Aluminum Shell with Side Grooves, Screw Fixation

**Internal Interface:** SATA 3.0 Interface, Backward Compatible with SATA 2.0

**Physical Switch Button:** Manual Switch Operation

**Compatibility:** Supports 2.5"/3.5" SATA Hard Drives

**System Compatibility:** Windows 11/10/8.1/8/7/XP, Linux, MacOS

**Key Features:**

Intelligent Storage with Dual-drive Array Cabinet

5Gbps High-Speed Transmission, 48TB Massive Storage

Supports 4 RAID Modes for Data Protection

International Silent Standard, Aluminum Alloy Body

Triple Efficient Heat Dissipation

Plug and Play, No Driver Installation Required

Innovative Fan Design for Quiet Operation

Intelligent Sleep Mode for Extended Hard Drive Lifespan

**Certifications:**

GTG, FC, FCC, UL, CE-EMC, RoHS, 3C

**Package Contents:**

3.5" Dual-drive Array x1

12V/4A Power Adapter x1

USB-C to A/C Cable x1

Installation Screws Pack x1

User Manual with Warranty Card x1

Installation Screwdriver x1

**RAID Modes:**

1. RAID 0: Combines the capacities of two drives, but data loss if one drive fails

2. RAID 1: Mirrors data on two drives for redundancy

3. JBOD: Recognizes drives individually

4. SPAN: Combines drives into a single large volume

**Installation Steps:**

1. Open the package and insert the hard drive into the slot.

2. Align and secure the hard drive in place.

3. Adjust the RAID mode switch as per your preference.

4. Insert the hard drive into the enclosure and secure with screws.

**FAQ:**

Q: Can I switch to RAID 1 without reformatting my drive?

A: Yes, but backup your data as both drives will be formatted.

Q: What are the requirements for RAID 1 partitioning?

A: Both drives will be automatically formatted.

Q: Can I use SAS interface drives?

A: No, only SATA drives are supported.

Q: Will RAID 1 information transfer if I move the drives?

A: No, RAID information is stored in the controller.

Q: What is the speed when connected via Type-C?

A: Up to 5Gbps bandwidth for file transfer.

**Note:** Specifications and data transfer speeds are based on acasis laboratory tests. Actual performance may vary.
