Specifications:
Brand: ASUS
Design: Classy design with wooden open front grille
Fan Support: PWM fan support
High-speed front I/O interface
Graphics Card Support
Type-C 20Gbps, USB 3.0 x2
Dimensions: 315mm (L) x 105mm (W) x 18mm (H)
Wooden open front grille design for aesthetics and airflow efficiency
Environmentally friendly with FSC-certified wood materials
ProArt open grille design for improved airflow
Front panel with large perforations for maximum airflow
Deluxe fan configuration with custom dual 160*32mm front intake fans and 120*28mm rear exhaust fan
Maximum ventilation efficiency with 138CFM airflow and 58CFM rear airflow
Compatibility: ATX, MATX, Mini-ITX motherboards
Maximum CPU cooler height: 160mm
Maximum GPU length: 315mm
Tool-less HDD bays for easy installation
Cable management space with 34mm clearance and 53mm wide cable routing channel
Built-in PWM fan hub for centralized fan control
Integrated front I/O interface for easy motherboard connection
Pull-out power supply installation for convenient setup

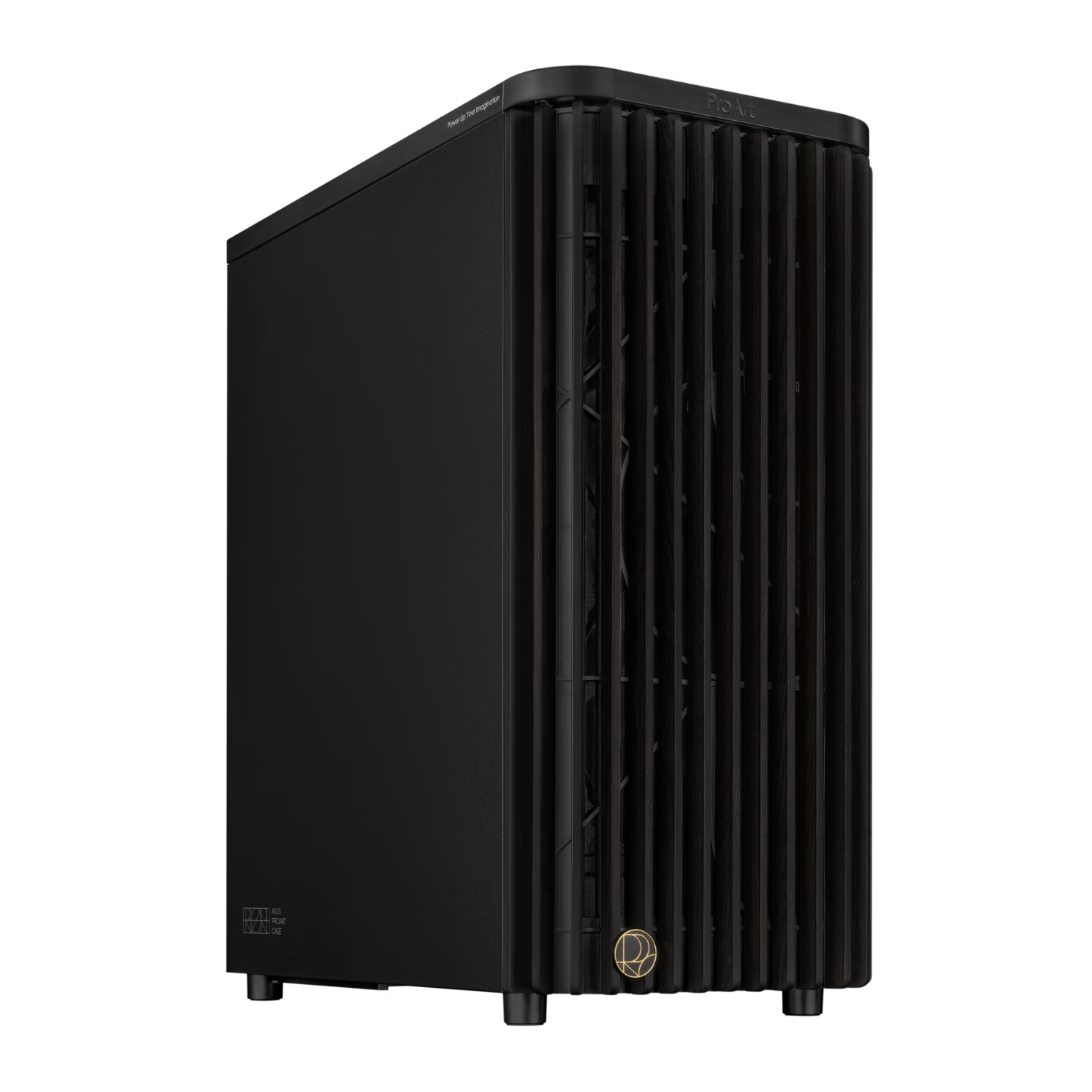

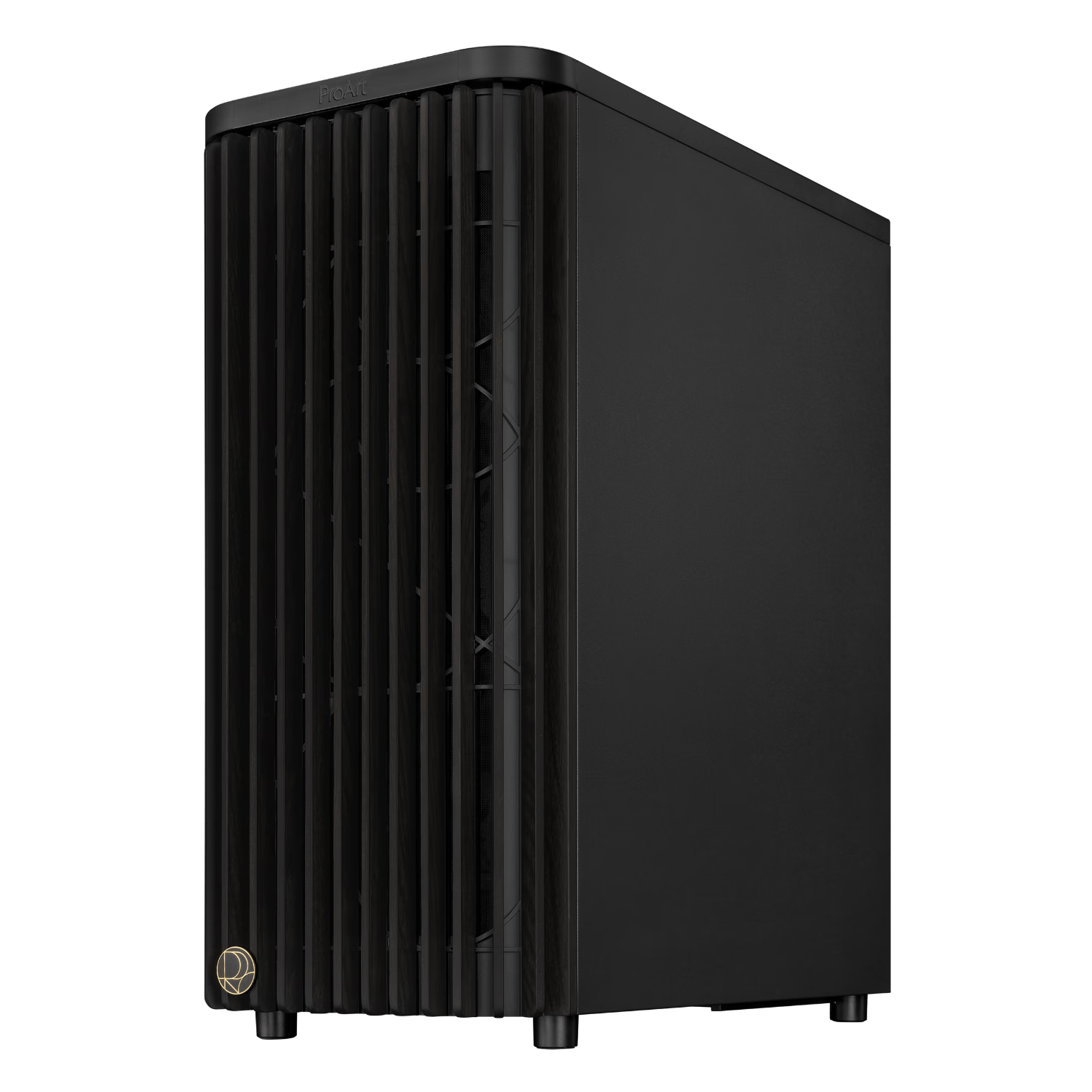

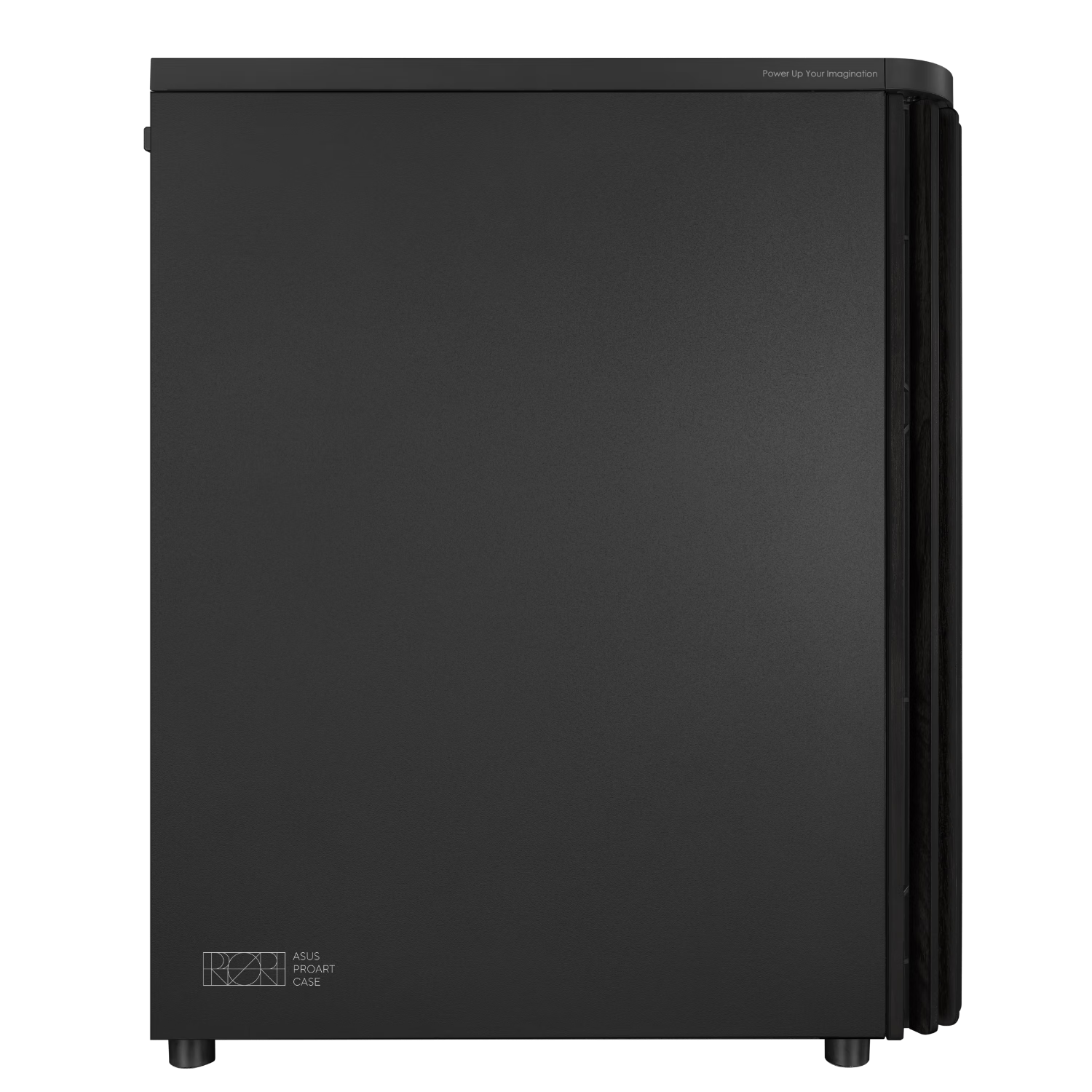

Product Name: ProArt PA401 Wood Edition
Material: Steel, ABS plastic, wood
Dimensions: 412*225*503mm (D*W*H)

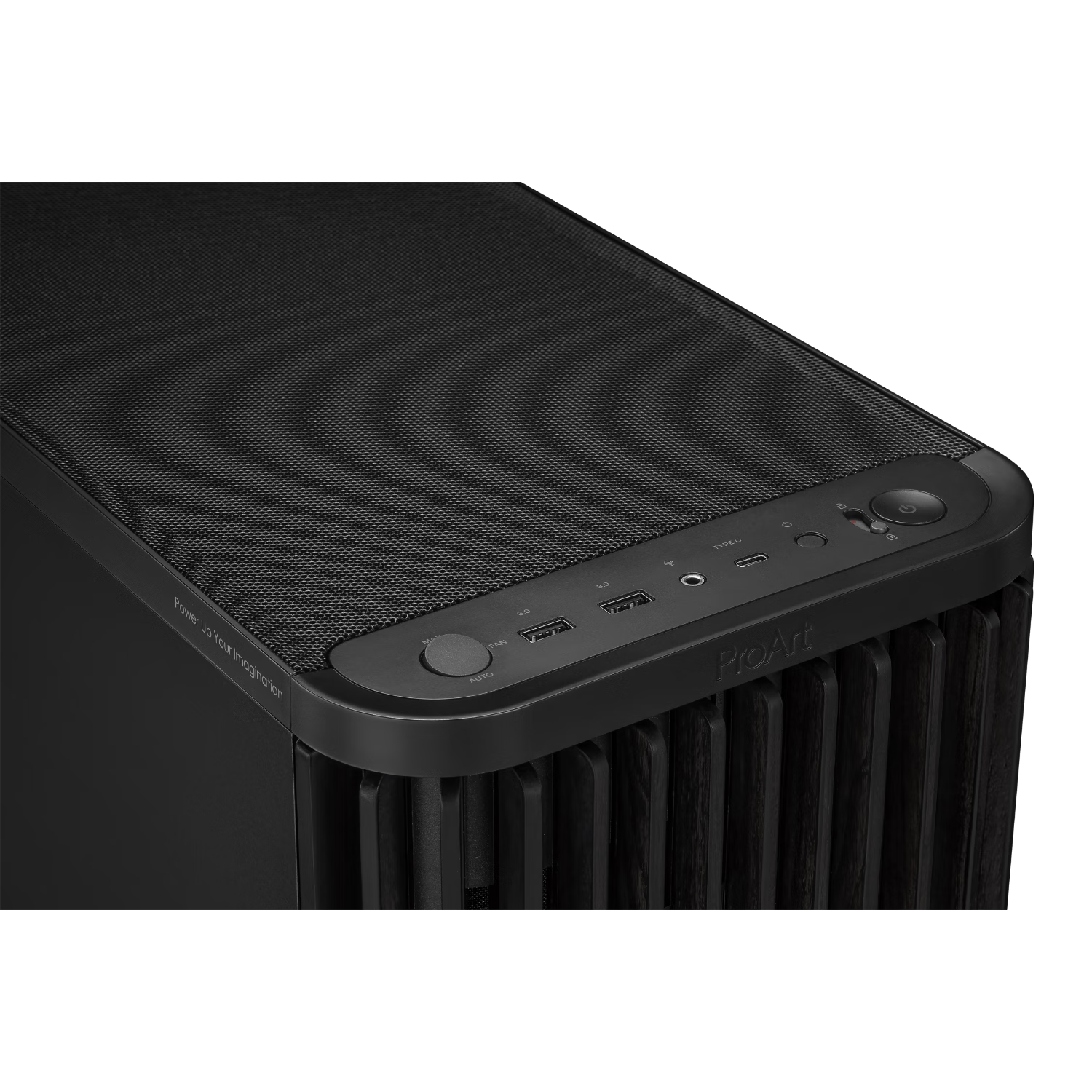

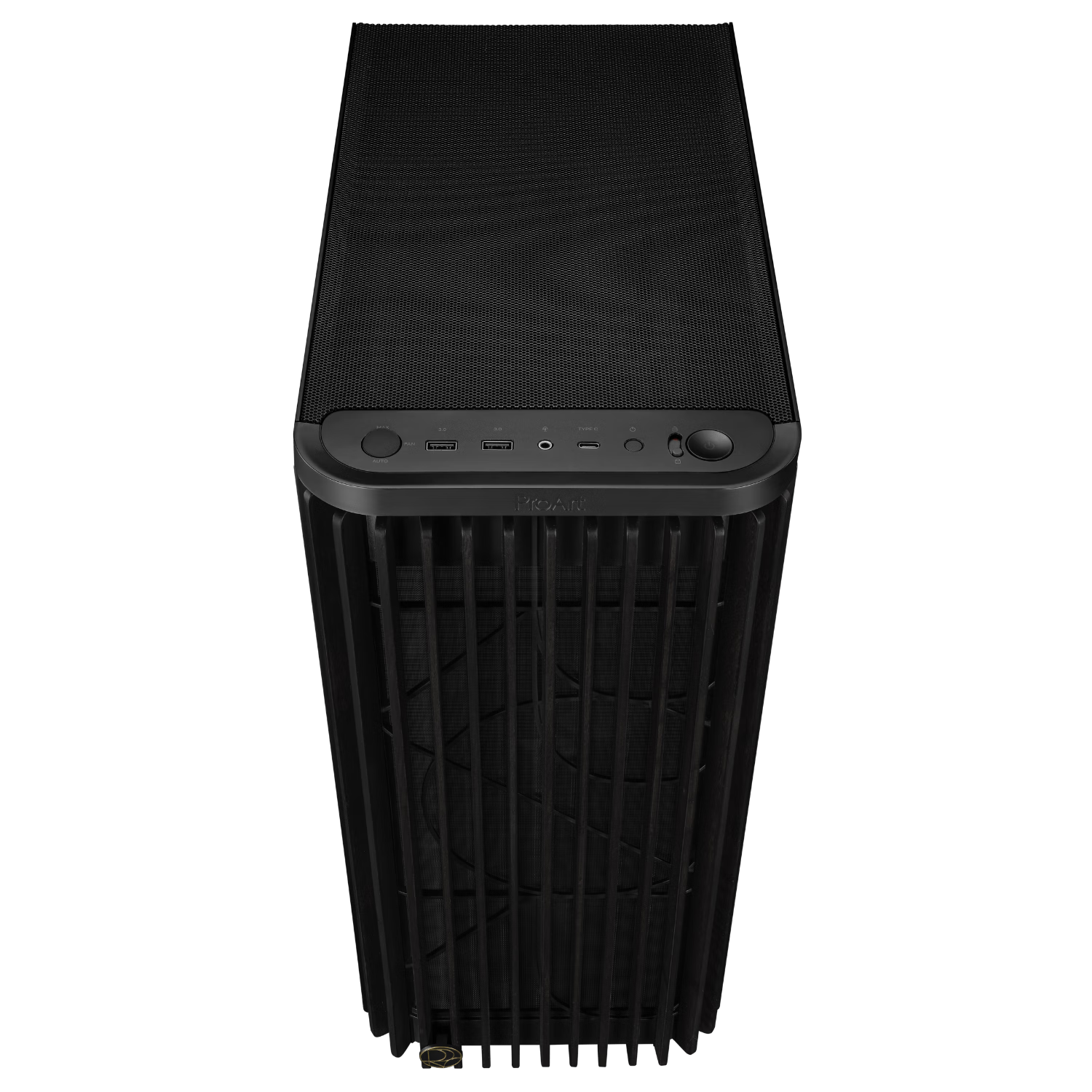

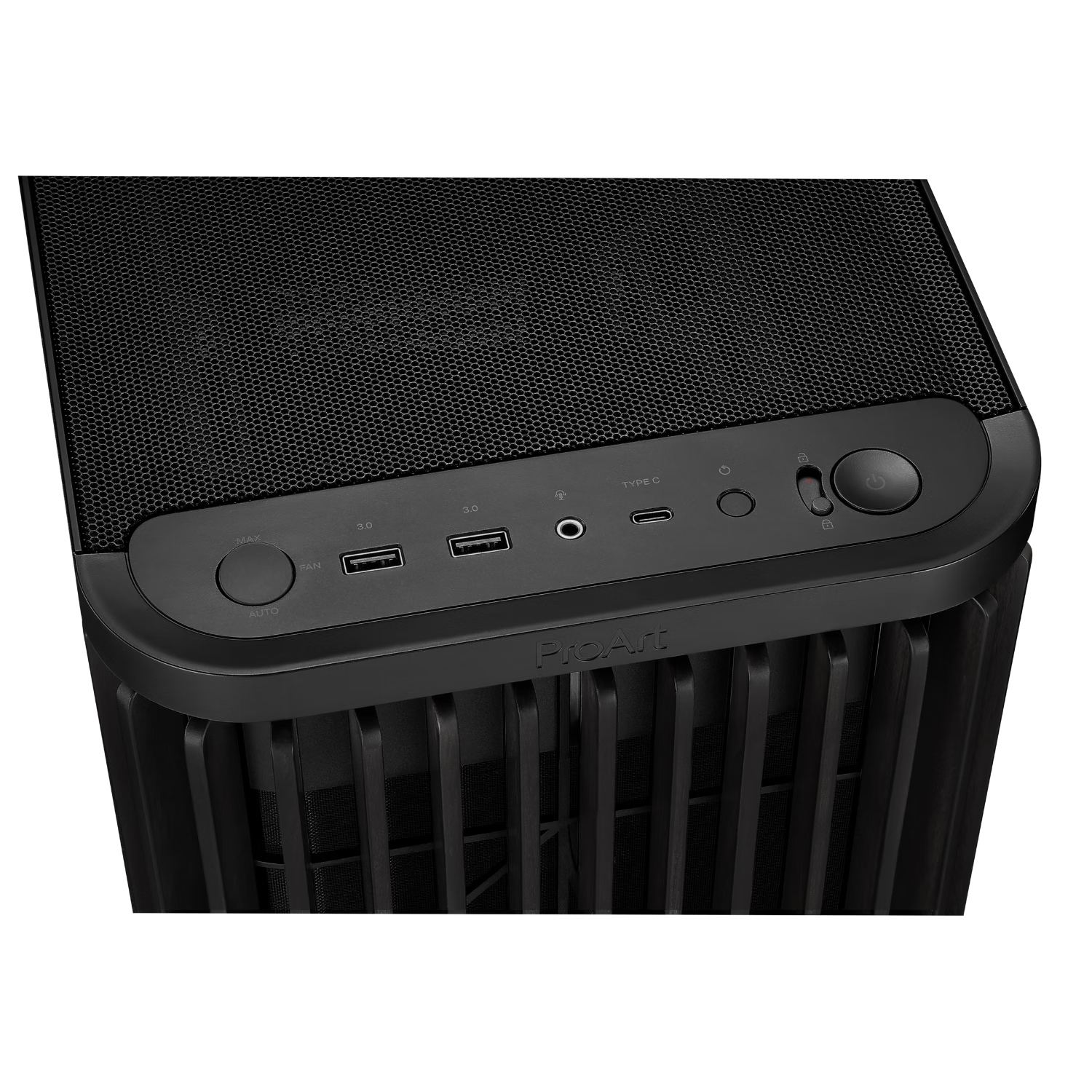

Front I/O: 2x USB 3.2 Gen 1 (Type-A), 1x USB 3.2 Gen 2x2 (Type-C), 1x Headphone+Microphone
Drive Bays: 1x 3.5” + 3x 2.5” or 3.5"/2.5” HDD bays
Expansion Slots: 2 vertical slots
Maximum GPU length: 315mm
Maximum CPU cooler height: 160mm
Maximum PSU length: 170mm
Radiator Support: Top: 120/140/240mm, Front: 2x 160mm/2x 140mm
Fan Support: Top: 2x 140mm/2x 120mm, Rear: 1x 120mm, Front: 2x 160mm PWM
Removable dust filters: Front/bottom
Cable management space: 34mm
Expansion Hub: Supports up to 5 PWM fans
