BIAZE POE Separator, Isolated 100Mbps Network Cable Power Supply Module, National Standard 48V to 12V 1.2A Fully Compatible, for Surveillance Switches, Network Cameras, Monitoring Adapter

SKU : 100089370897

Availability : In stock
4.7
Weight : 0.04 kg
Length : 16 cm
Height : 1.8 cm

GHS 26.22

GHS 28.32

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** BIAZE

**Model:** ZH235

**Product Name:** POE Splitter

**POE Protocol:** IEEE802.3AF/AT

**Transmission Rate:** 10/100Mbps

**POE Power:** 12W

**Isolation Voltage:** 1500V

**Input Voltage:** DC 48V-52V

**Output Voltage:** DC 12V-1A

**Crystal Head Output:** (1,2) +/ (3, 6)-

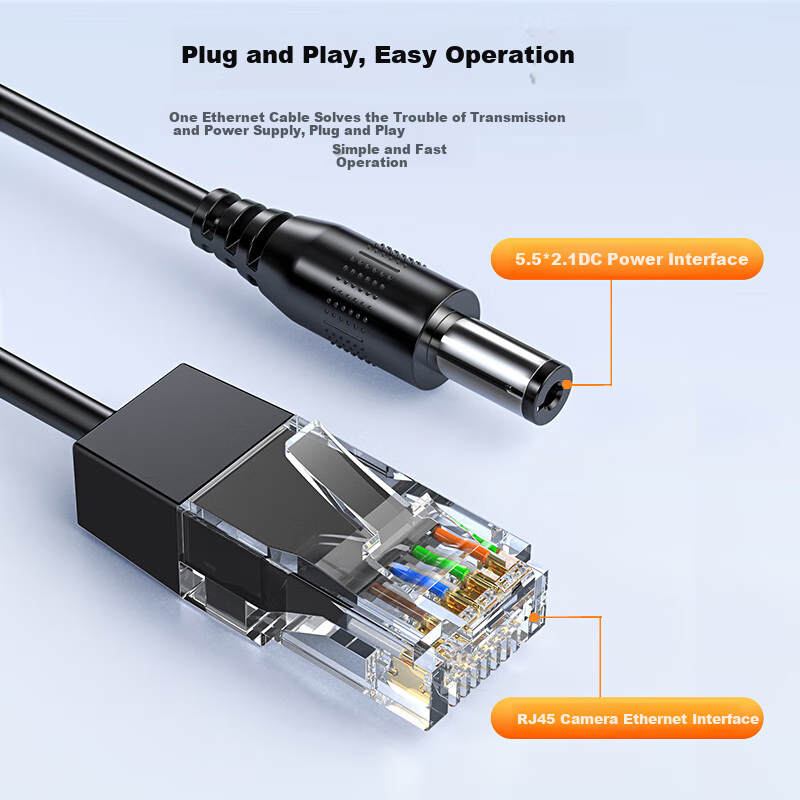

**Power Output:** 5521DC Male Head, Inner Positive Outer Negative

**Dimensions:** 23mm x 38mm x 30mm

**Features:**

Standard with isolation, POE separator

48V to 12V conversion

Isolation and anti-interference

Plug and play, stable transmission over one network cable

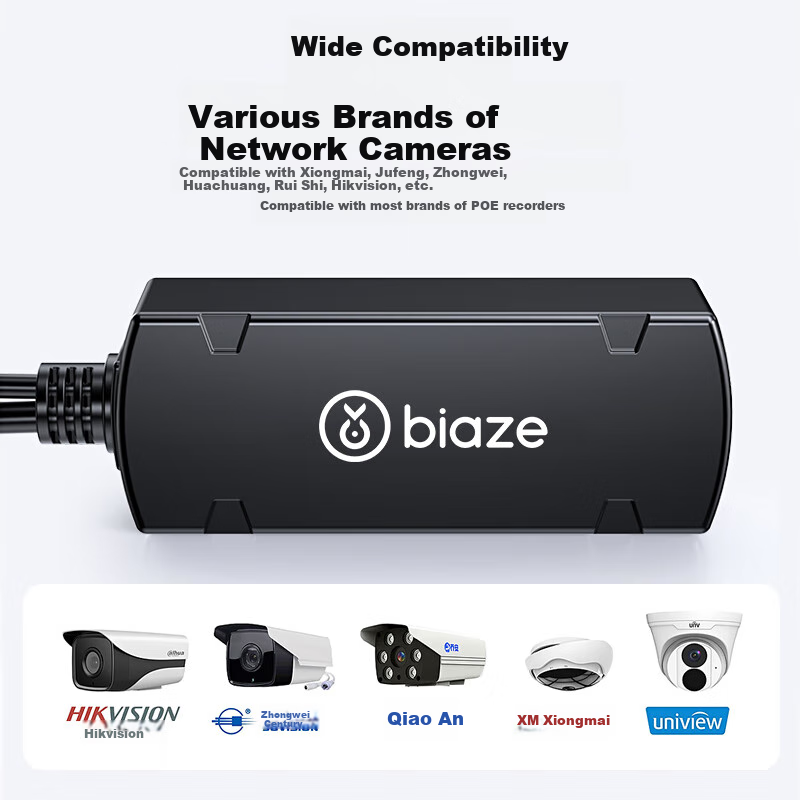

Wide compatibility with various brands of network cameras

Compatible with most brands of POE recorders such as BIAZE, HIKVISION, ZHONGWEI CENTURY, JOAN, HIKVISION, JOVISION, XM XIONGMAI, TIANDY, UNIVIEW, TIANDI WEIYE

Suitable for 100Mbps transmission, supporting up to 8 million network dome cameras

Stable and interference-resistant transmission

Low data packet loss rate

Supports up to 150 meters transmission distance

Easy to use, with automatic power detection

Overvoltage, overcurrent, short circuit, and overtemperature protection

Stable voltage and current output with voltage regulator chip

Suitable for various environments such as roads, street lamp monitoring, student dormitories, shopping malls, hotels, and offices

**Note:** The above data is manually measured and may have slight errors. Please refer to the actual product for accuracy.
