CNCOB Cat6A Toolless Crystal Head, Industrial Data Center Cat6a Network Ten Gigabit Server, Network Cable Crystal Head No Crimping Required, CN-MD2001P

SKU : 100039975019

Availability : In stock
4.7

Write your review

Weight : 0.02 kg
Length : 16.7 cm
Height : 2 cm

GHS 71.72

6.62

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** CNCOB

**Name:** Industrial Grade Cat6A RJ45 Connector

**Model Number:** CN-MD2001P-IND

**Material:** Zinc alloy shielded housing

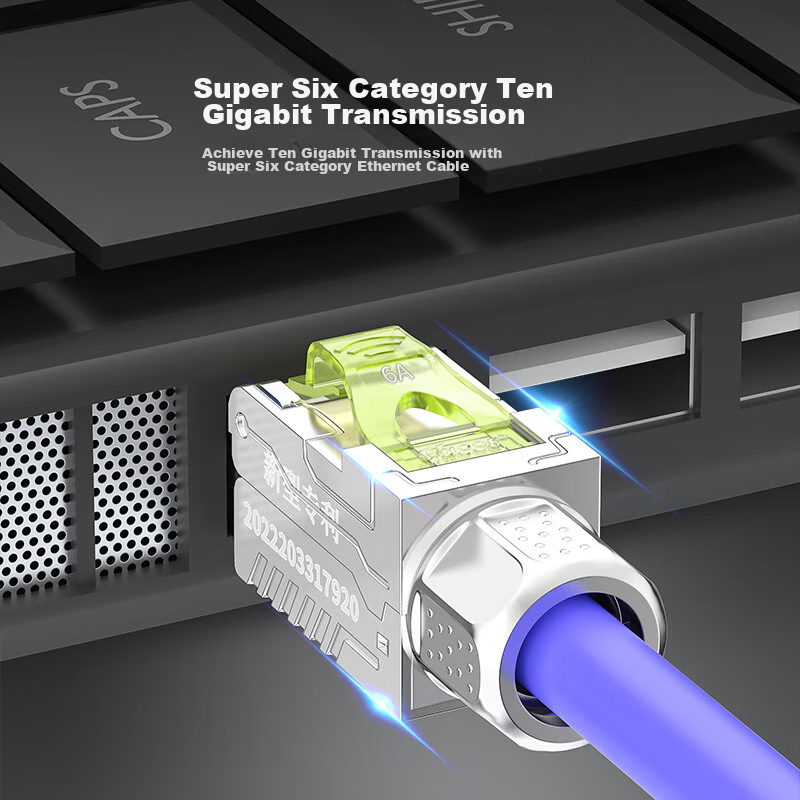

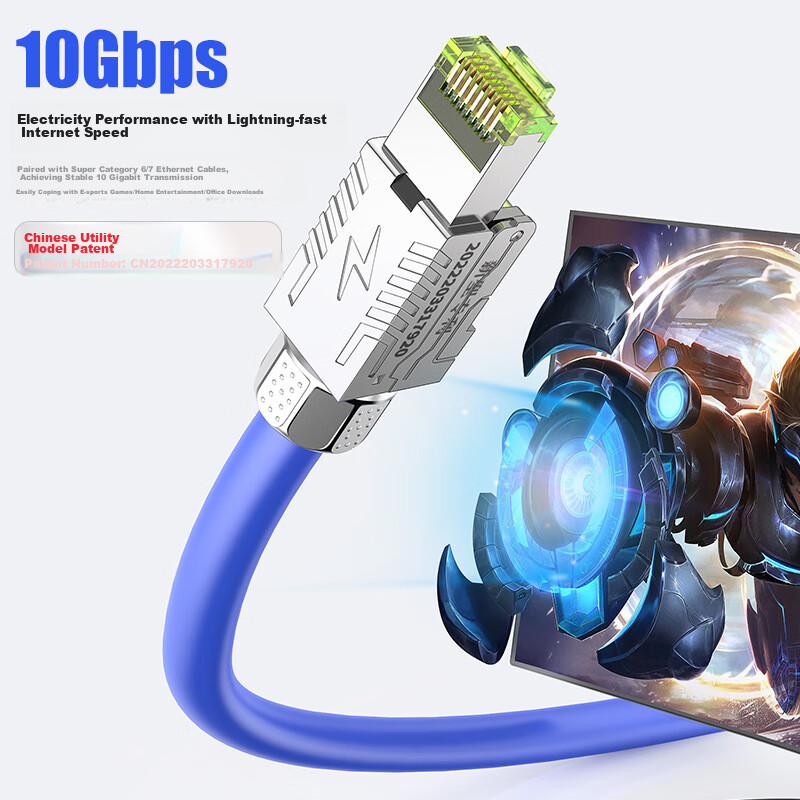

**Function:** Tool-free, reusable, 10Gbps transmission

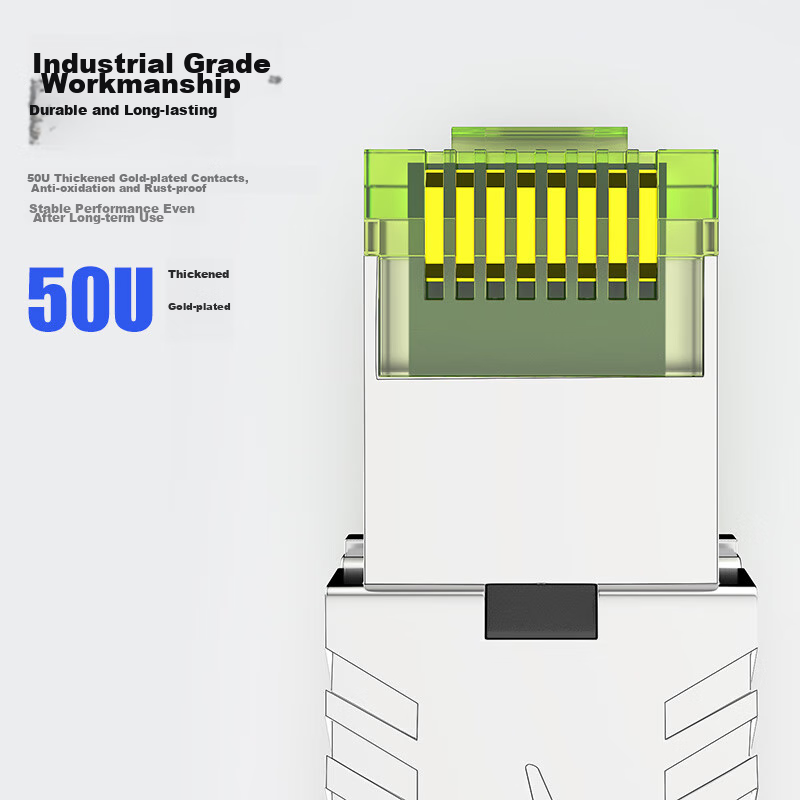

**Gold-plating:** 50U gold-plated contacts

**Dimensions:** 14mm x 49.8mm x 53mm

**Patent:** Chinese Utility Model Patent No. CN2022203317920

**Features:**

- Patented design for tool-free, repeatable use

- Supports Cat6A/7 network cables

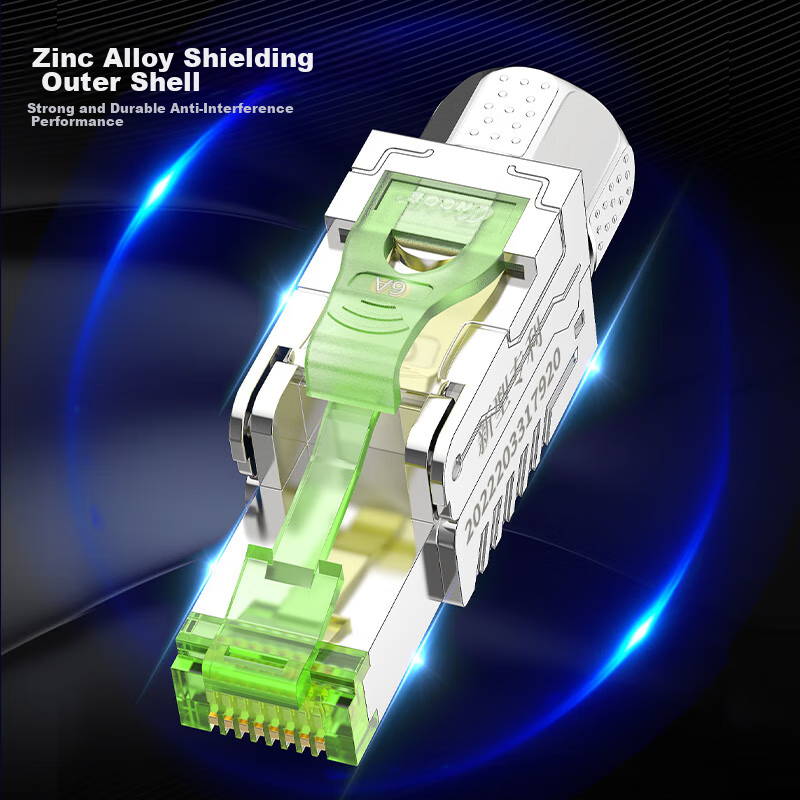

- Zinc alloy shielded housing for strong interference resistance

- Durable industrial-grade construction

- Supports wire core sizes 22-26AWG and outer cable diameters 6.5-8.5mm

- Enhanced grounding with copper foil tape

- Multiple wire diameters supported for Cat5/6/6A/7 cables

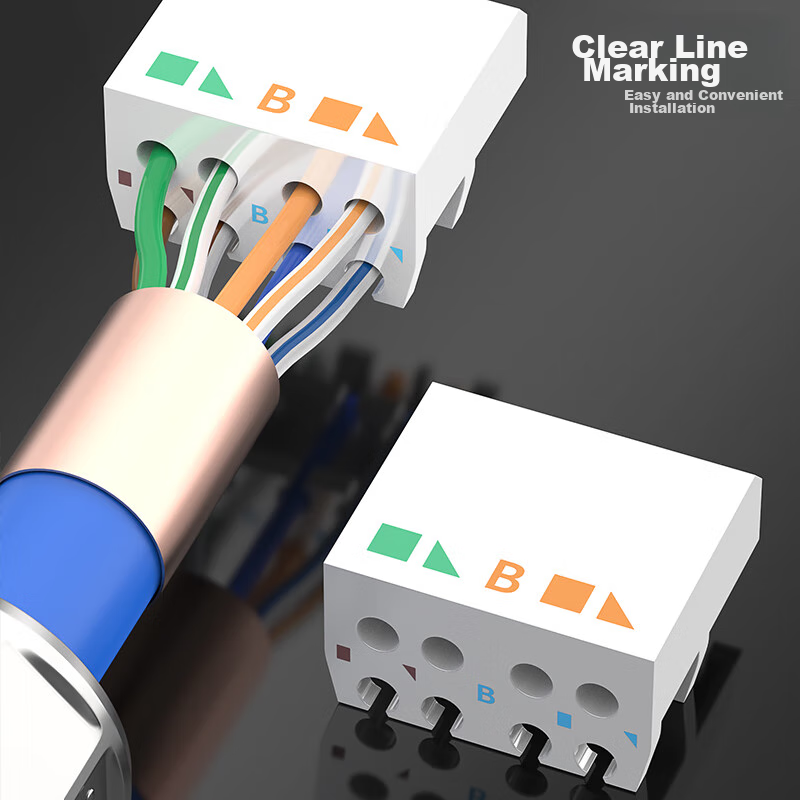

- Easy installation with clear wire labeling

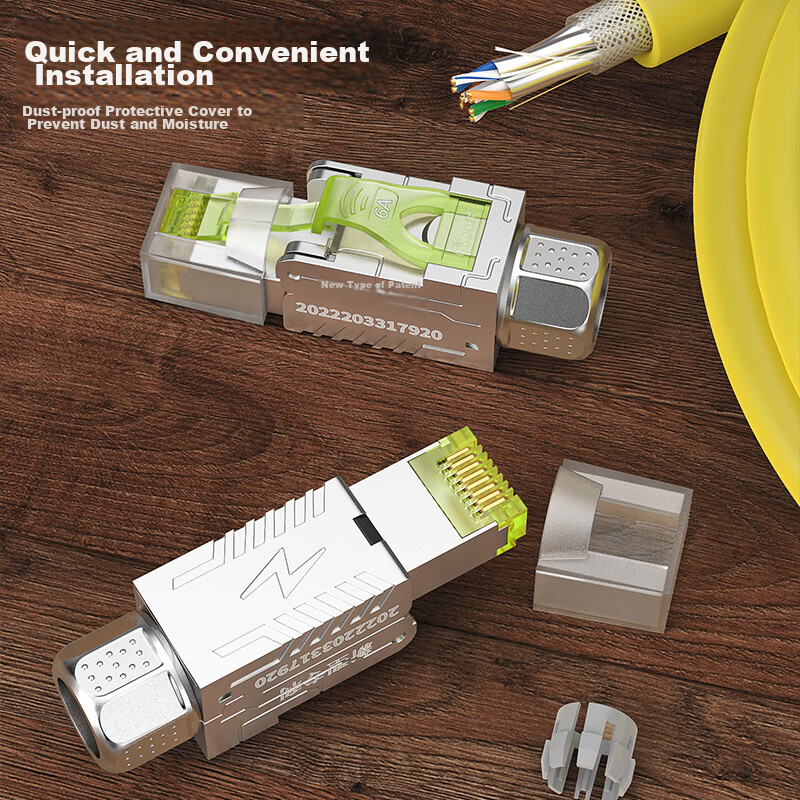

- Dust-proof and moisture-proof design with protective cover

**Applications:** Ideal for military, communication rooms, bank securities, large rooms, ocean-going vessels, mines

**Installation Steps:**

1. Strip about 40mm of the cable jacket

2. Trim the cross core

3. Wrap the ground wire 10mm (for U/FTP/UTP) or flip the braided net out 10mm (for S/FTP)

4. Wrap the cable with copper foil tape and secure the ground wire or shielded braided net

5. Thread the nut onto the cable

6. Insert the cable into the wire holder

7. Pass the cable through the wiring cover and follow the T568B wiring sequence

8. Insert the cable into the correct slot and trim the excess wire

9. Place the wiring cover with the cable into the IDC and tighten the nut to complete the installation

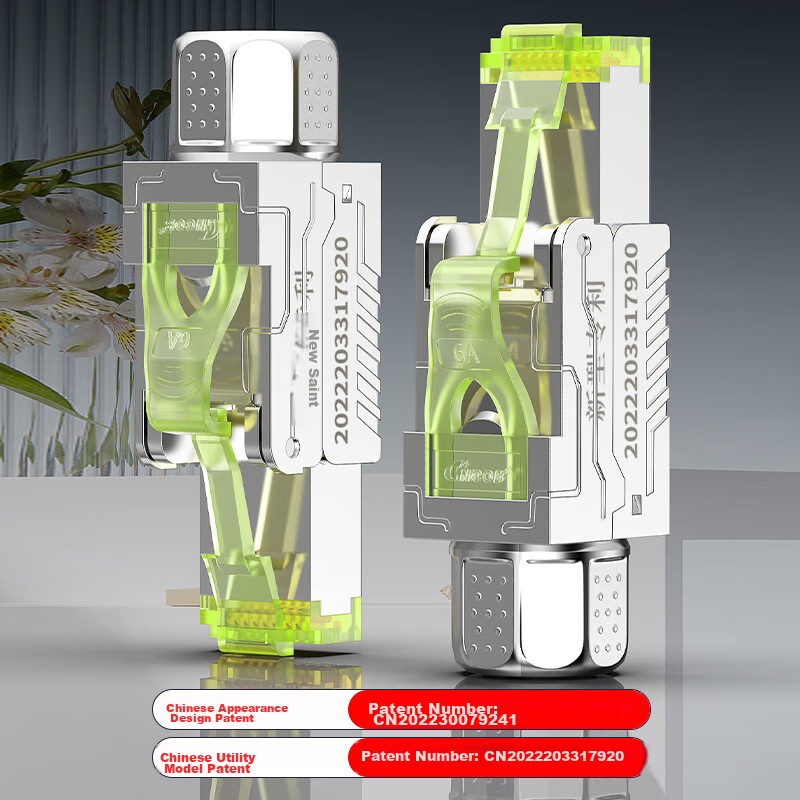

**Patents:**

- Chinese Utility Model Patent No. CN2022203317920

- Chinese Appearance Design Patent No. CN202230079241

**Product Parameters:**

- **Brand:** CNCOB

- **Name:** Industrial Grade Cat6A RJ45 Connector

- **Model Number:** CN-MD2001P-IND

- **Material:** Zinc alloy shielded housing

- **Function:** Tool-free, reusable

- **Gold-plating:** 50U gold-plated contacts

- **Dimensions:** 14mm x 49.8mm x 53mm
