CNCOB Category 8 Ethernet Cable Connector, Tool-Free Engineering Grade CAT8 10 Gigabit Network Connector, CN-MD8005

SKU : 100024056116

Availability : In stock
4.7
Weight : 0.025 kg
Length : 8 cm
Height : 2 cm

GHS 64.46

GHS 69.62

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

Brand: CNCOB

Model: CN-MD8005

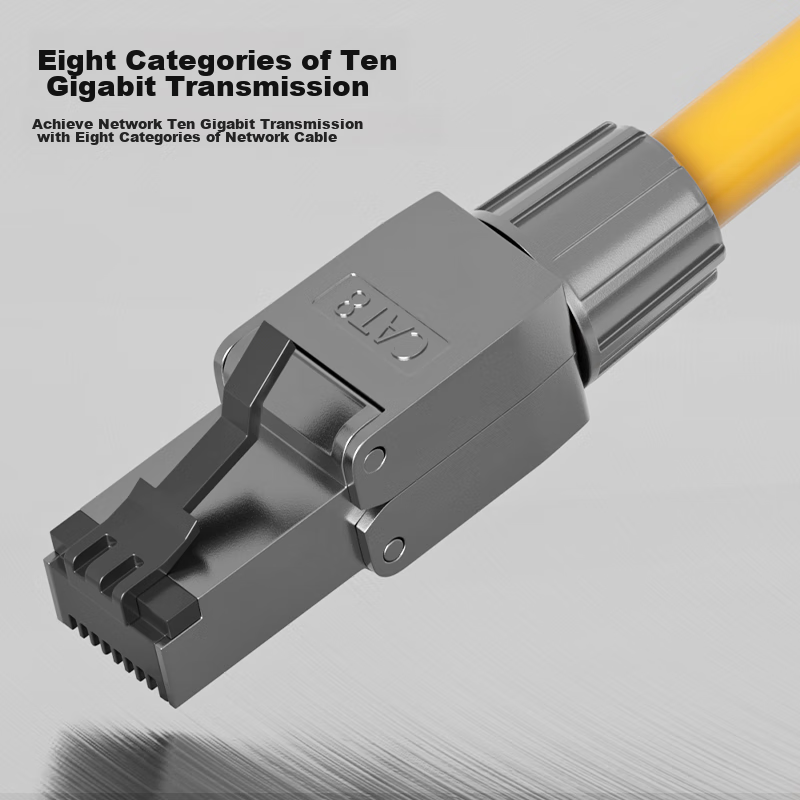

Name: Category 8 10 Gigabit Ethernet RJ45 Connector

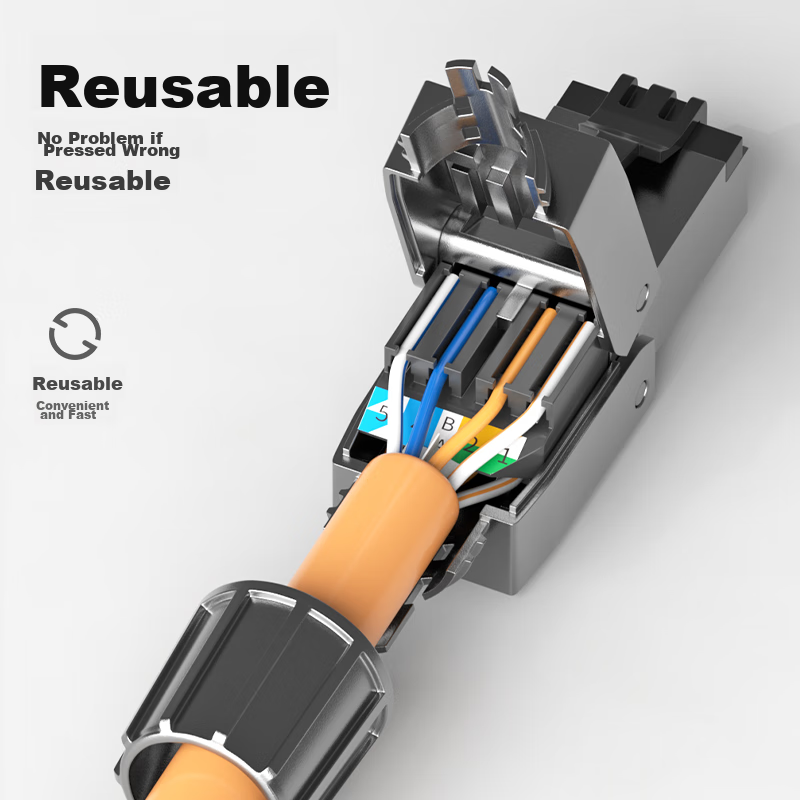

Features: Reusable, eight categories of non-screened crystal head, easy installation without network cable pliers, zinc alloy, gold-plated chip, tool-free, repeatable use, shielded shell, enhanced conduction, pressure-free design, convenient and fast.

Compatibility: Compatible with computers, laptops, smart TVs, routers, switches, set-top boxes, and more.

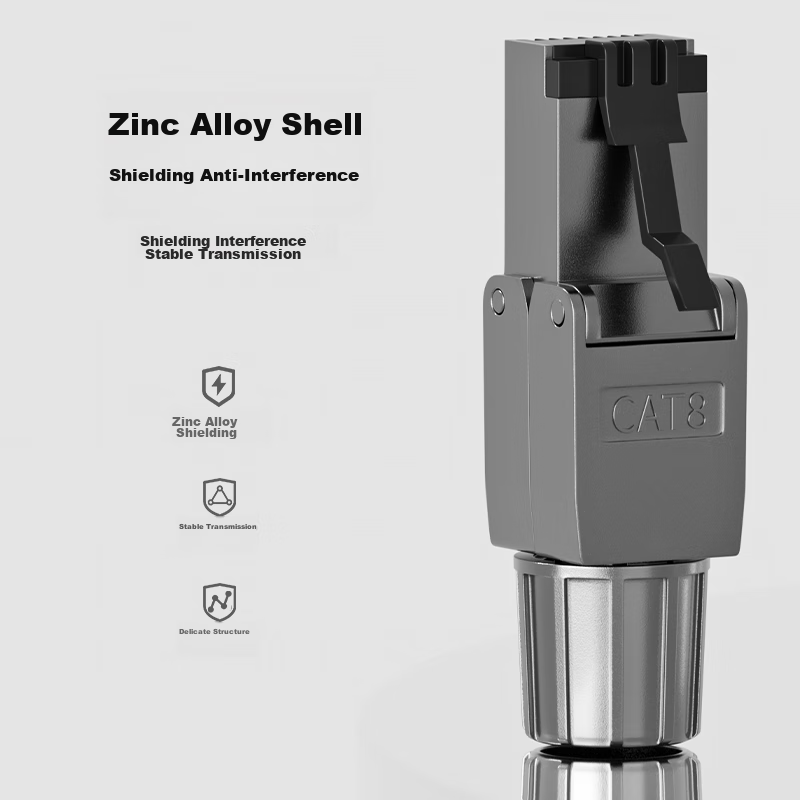

Material: Zinc alloy shielded shell + environmentally friendly PC material body/components

Performance: Meets industry standards, passed Fluke test

Application: Suitable for high-end data centers, HD surveillance, high-speed rail subways, Internet of Things, artificial intelligence, 5G, etc.

Installation Steps:

1. Place the nut on the network cable.

2. Peel off the outer layer of the network cable.

3. Insert the wire core into the slot according to the label B wire sequence (blue-white, blue, orange, orange-white on the left side; green-white, green, brown-white, brown on the right side).

4. Trim off the excess wire core along the edge.

5. Insert the wire organizer into the main body according to the label.

6. Close the shell and press to lock.

7. Screw on the nut to complete the installation.

Dimensions: 12mm x 50mm x 14.6mm

Certification: CE

Patent: Chinese Utility Model Patent No. CN202021223820.4, CN2022203317920

Package: Available in four options to suit different needs

Cable Types: Category 6 Gigabit Ethernet cable, Category 7 10 Gigabit Ethernet double-shielded cable

Copper Core: 0.57mm oxygen-free copper core, 0.58mm oxygen-free copper core

Transmission Speed: 40Gbps high-speed transmission

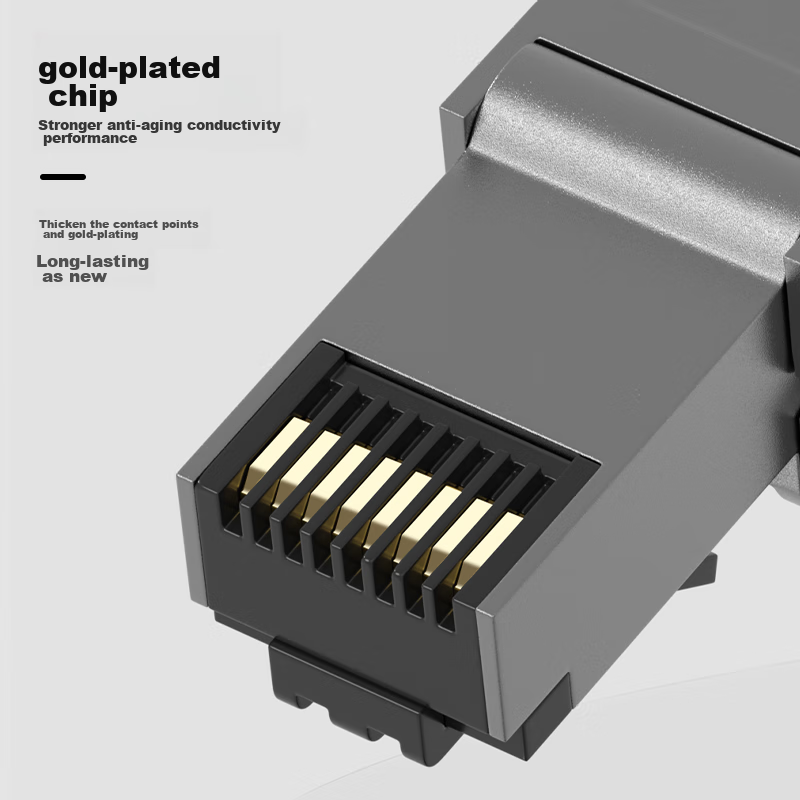

Additional Features: Gold-plated chip for enhanced conductivity, patented design for easy installation and stable connection

*Note: The above information is sourced from CNCOB laboratory testing and specifications.*
