**Product Specifications:**
**Brand:** DEEPCOOL
**Model:** Ice Cube 500S Digital Edition

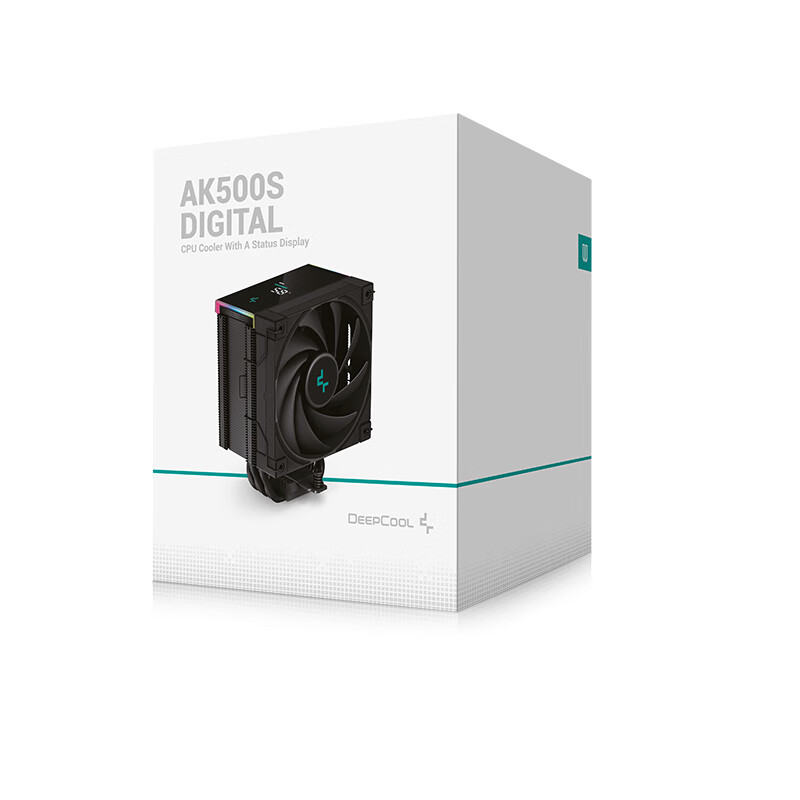

**Description:** AK500S Digital CPU Cooler with a Status Display
**Features:**

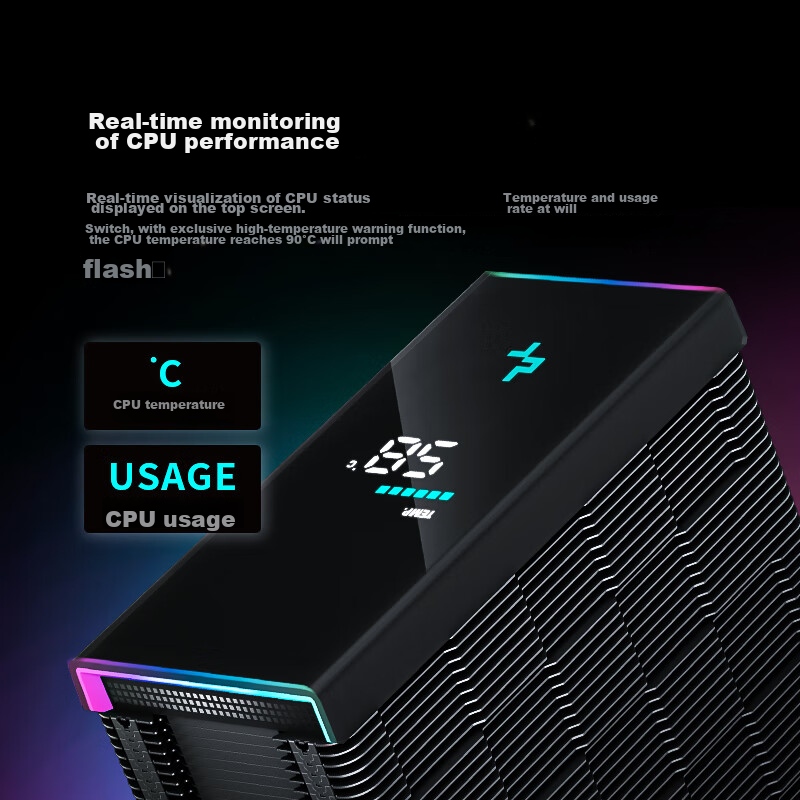

- Intelligent digital display
- High temperature warning
- Real-time visualization of CPU status
- ARGB lighting with colorful top cover
- Supports overclocking
- Maximum heat dissipation power of 240W
- Low-noise operation
- New FDB bearing cooling fan
**Compatibility:**
- Supports Intel LGA1700/1200/115X and AMD AM4/AM5 platforms
**Dimensions:**
- Product Size: 125×96×160mm
- Heat Sink Size: 120×60×155mm
**Weight:** 904g
**Heat Pipe Specification:** 6mm x 5pcs
**Bearing Type:** Fluid Dynamic Bearing
**Fan Specifications:**
- Size: 120×120×25mm
- Speed: 500~1850RPM ±10%
- Airflow: 68.99CFM
- Air Pressure: 2.19 mmAq
- Noise Level: ≤28 dB(A)
- Connector: 4-pin PWM
- Rated Voltage: 12VDC
- Rated Current: 0.12A
- Power Consumption: 1.44W
**Warranty:** 3 years
**Additional Information:**
The Ice Cube 500S Digital Edition features a sleek design with a digital display and matrix fin array.

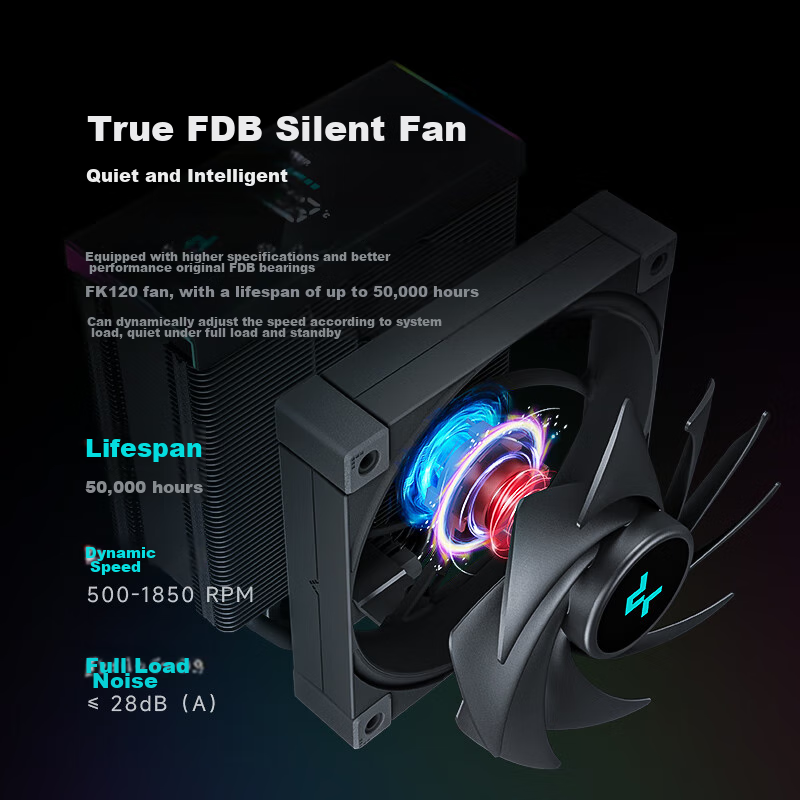

The cooler is equipped with a real FDB cooling fan for quiet and intelligent operation.
Supports high-end processors with a TDP of up to 240W.
Easy installation process with improved mounting methods for both Intel and AMD platforms.

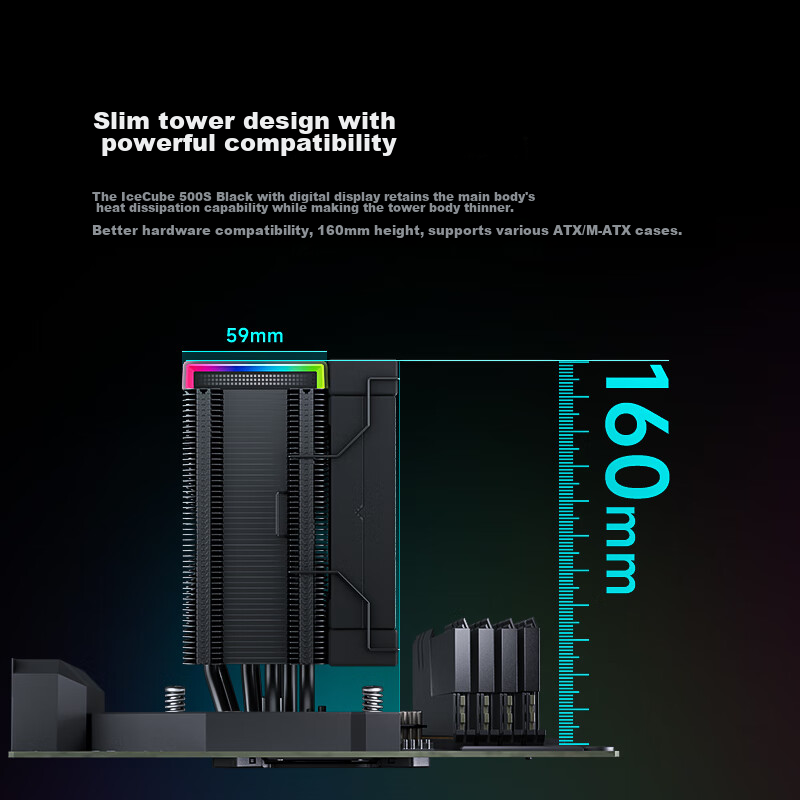

Compatible with various ATX/M-ATX cases with a height of 160mm.
Package includes necessary accessories for Intel platforms; AMD versions require the use of the original backplate provided by the motherboard.
**Disclaimer:** The above specifications are based on information provided by the manufacturer and may be subject to change without prior notice.
