Specifications:
Brand: deli
Models: 3870, 3872, 3873, 3874
Hole Type & Hole Spacing: 3*8MM & 14.3MM
Product Dimensions: 385*275*360mm, 385*270*325mm, 5400*285*335mm, 450*330*435mm
Punching Capacity: 21 holes, 21 holes, any 1-21 holes, any 1-21 holes L
Single Punch Capacity: 12 sheets, 15 sheets, 18 sheets, 25 sheets
Hole Spacing: 3-5MM, 2.5-6.5MM, 2.5-6.5MM, 2.5-6.5MM
Weight: 3.46kg, 5.0kg, 6.0kg, 10.0kg
Punching Plastic: ≤0.2MM for 1 sheet, unlimited thickness for 1 sheet, unlimited thickness for 1 sheet, unlimited thickness for 1 sheet
Cover ThicknessSpecifications:
Brand: deli
Model: 3874

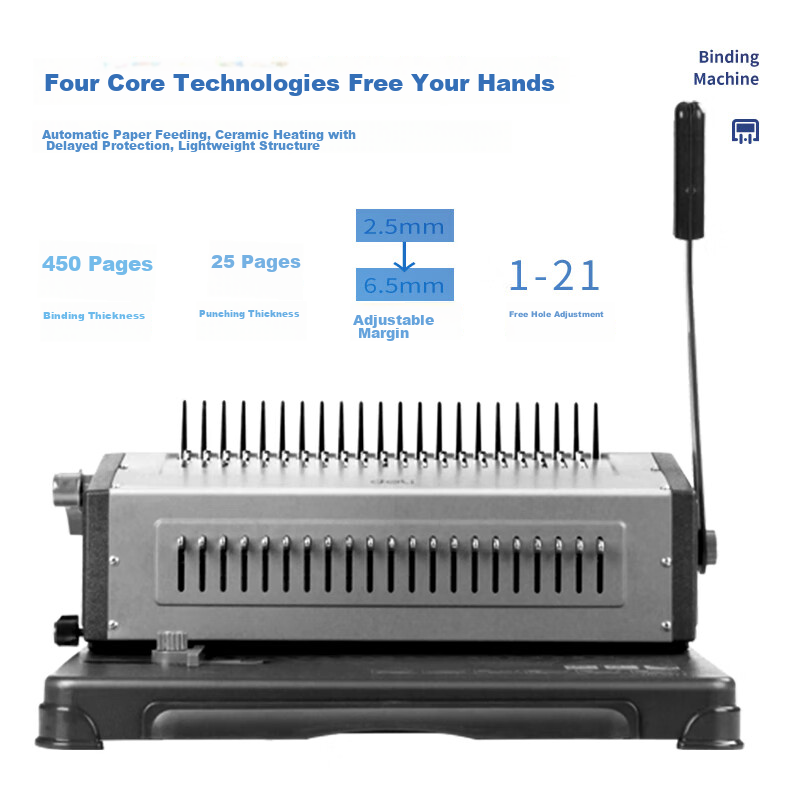

Type: Comb Binding Machine
Size: 450*330*435mm
Maximum Binding Capacity: 450 pages (70g)
Binding Hole Quantity: 1-21 holes
Punching Capacity: 25 pages (70g)
Hole Shape, Hole Spacing: 3*8mm, 14.3mm
Punching Mechanism: 21 detachable punching blades
Adjustable Margin: 2.5-6.5mm
Product Weight: 10.25kg
Features:

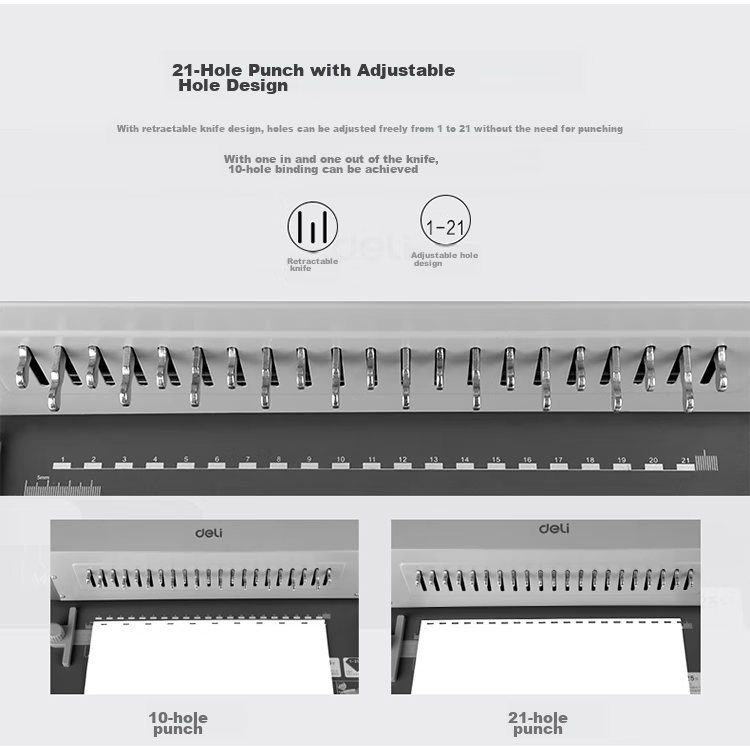

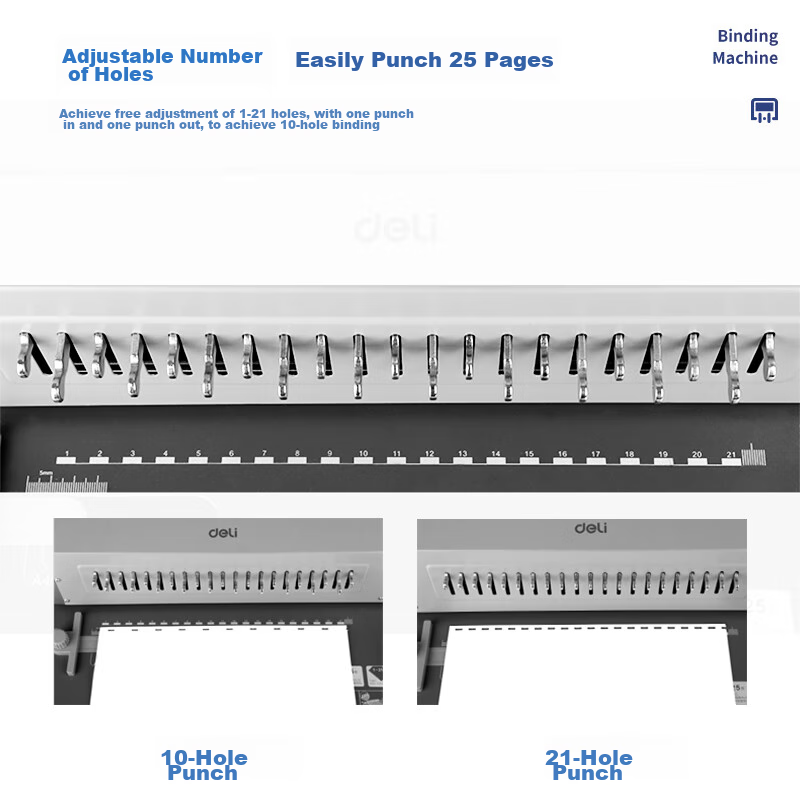

Detachable punching design allows for free adjustment of punching holes
Can bind up to 450 pages and punch through 25 sheets of 70g copy paper
Made of cold-rolled steel for durability
Suitable for binding both comb rings and strip bars

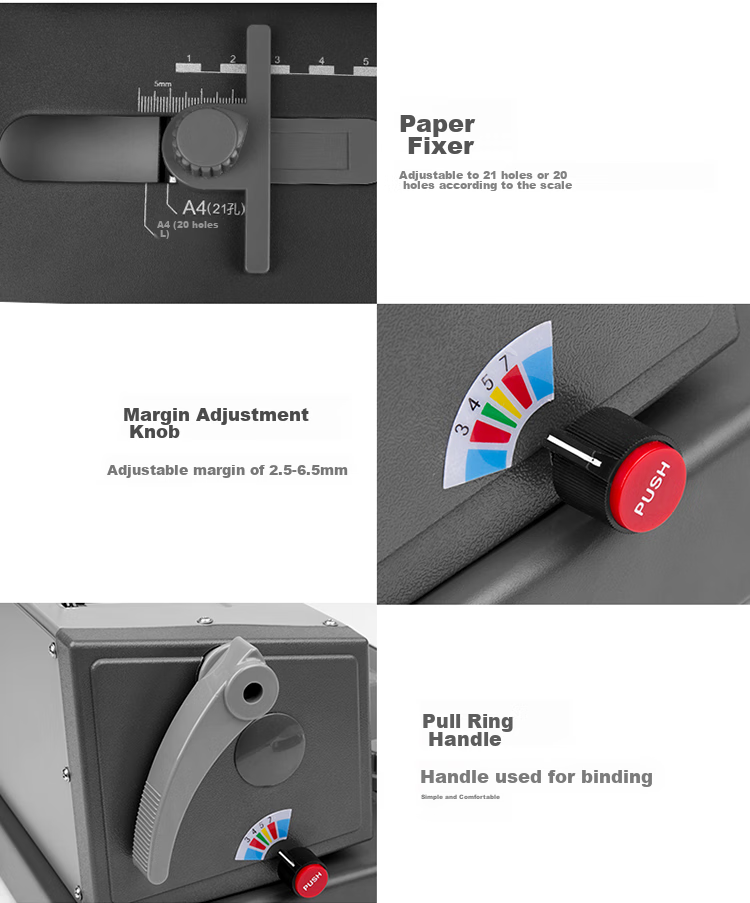

Equipped with a paper guide that can be adjusted to 21 or 20 holes for A4 paper
Margin adjustment knob allows for setting margins between 2.5-6.5mm
Easy operation with a 6-step binding process

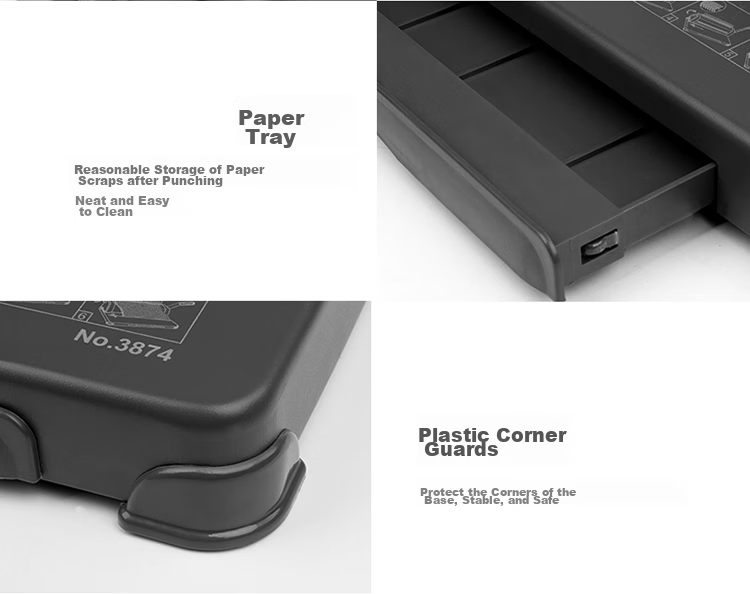

Includes a paper tray for collecting punched paper scraps
Comes with plastic corner protectors for stability and safety
Note: The data mentioned in the product description are sourced from deli's laboratory and are for reference only.
