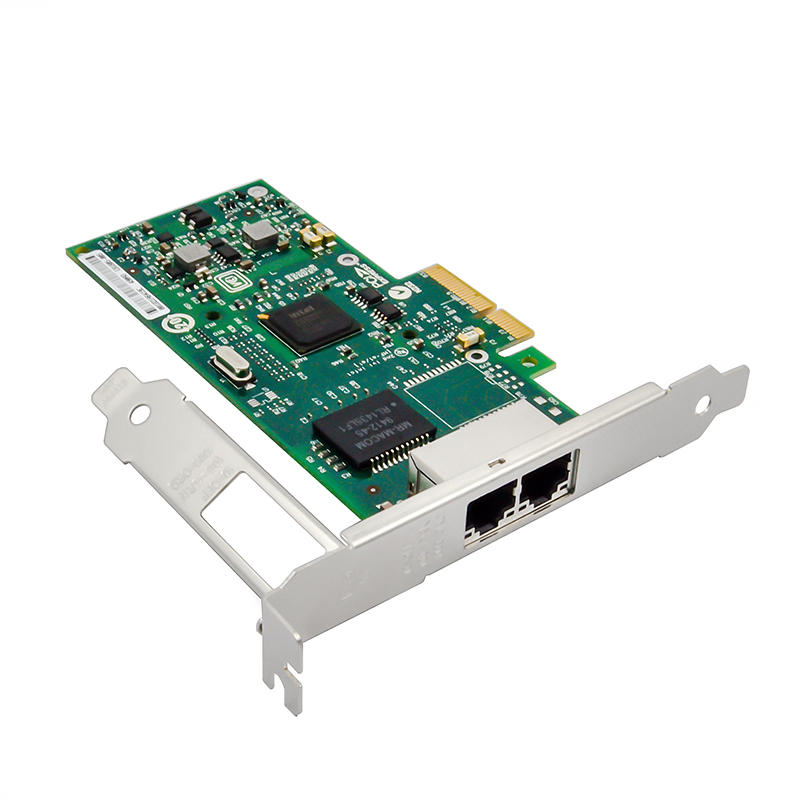

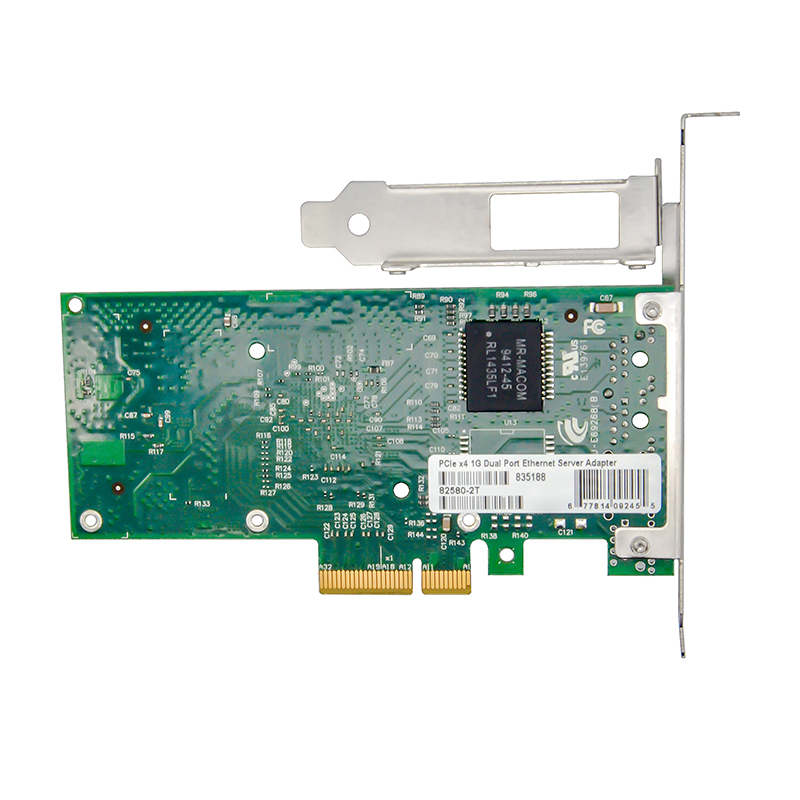

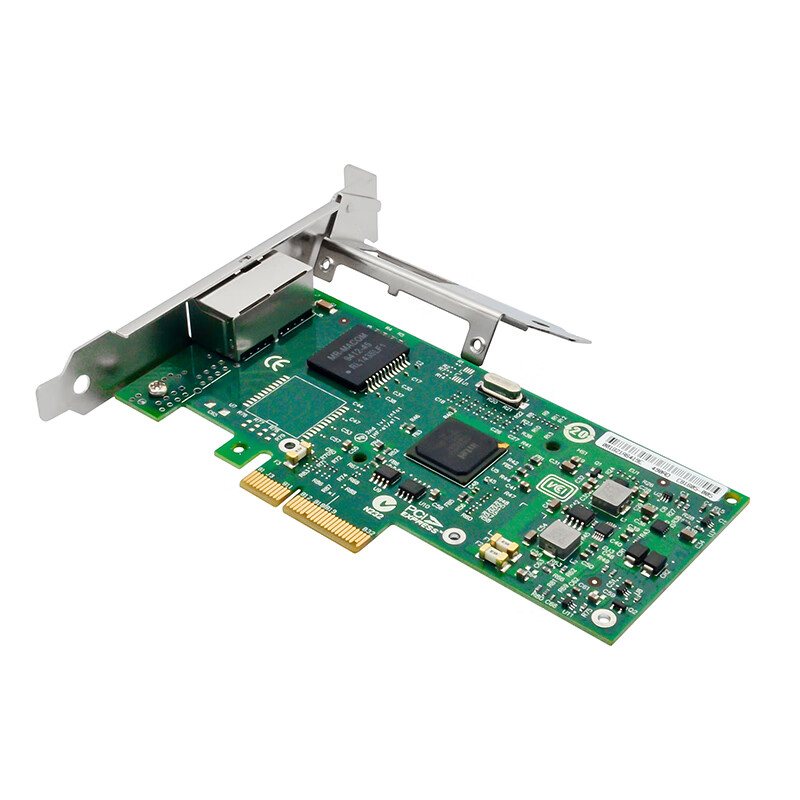

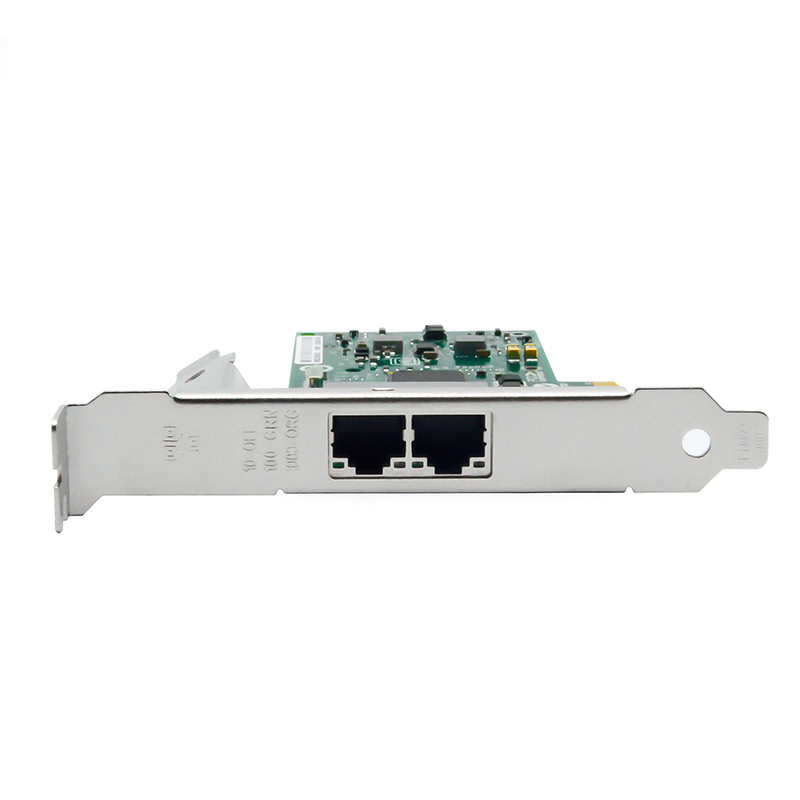

EB-LINK Intel 82580 Chip, PCI-E X4 Gigabit Dual-Port Server Network Card, I340-T2 Machine Vision Industrial Camera

EB-LINK Intel 82580 Chip, PCI-E X4 Gigabit Dual-Port Server Network Card, I340-T2 Machine Vision Industrial Camera

SKU : 100006004329

Availability : In stock

4.7

Weight : 0.18 kg

Length : 23 cm

Height : 3 cm

GHS 480.39

GHS 518.82

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

GHS 480.39

GHS 518.82

Order now and get it by 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Product Description

**Product Specifications:**

**Brand:** EB-LINK

**Product Name:** Gigabit Ethernet Server Network Card

**Description:** Experience speed beyond imagination with the EB-LINK Gigabit Ethernet Server Network Card, designed to elevate your internet speed to new heights.

**Basic Features:**

- **Controller:** Intel 1340AM4

- **Cable Medium:** Copper

- **Bracket Height:** Full-height and half-height configuration

- **Thermal Design Power:** 5W (maximum)

- **Port Type:** 2 x RJ45 interfaces

- **PCI-E Bus Support:** PCI Express v2.1 (5.0GT/S) x4; compatible with x8 and x16

- **Port Rate Support:** 10Mbps/100Mbps/1000Mbps (Copper)

- **Power Supply:** PCIE power supply +3.3V ±9%

- **Cable Types:** 10Base-Tx Cat5, Cat5E, and Cat6; 1000Base-T Cat5E and Cat6

- **Supported Operating Systems:** Windows 10, Windows 8/8.1, Windows 7, Windows Vista, Windows XP, Windows Server 2016 R2, Windows Server 2012 R2, Windows Server 2012, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003 R2, Windows Server 2003, Linux Stable Kernel version 2.6.x/3.x/4.x, RedHat Enterprise Server 10/11, FreeBSD 9/10, CentOS 5.x/6.x/7.x, VMware ESX/ESXi 5.x/6.x

**Technical Specifications:**

- **Ethernet Power Management:** Yes

- **PXE Support:** Yes

- **IEEE 802.3 Auto-negotiation:** Yes

- **iSCSI Support:** Yes

- **PCI-SIC SR-IOV Support:** Yes

- **FCOE Support:** No

- **Virtual Machine Device Queues (VMDq):** Yes

- **Wake on LAN Support:** No

- **Jumbo Frame Support:** Yes (maximum frame 9014)

- **Adaptive Rate Support:** 10BASE-T, 100BASE-TX, 1000BASE-T

- **IEEE 802.3az, IEEE 802.3u 100Base-TX Fast Ethernet

- **Supported Standards:** IEEE 802.1Q VLAN, IEEE 802.1ad, IEEE 802.3ab

**Environmental Specifications:**

- **Operating Temperature:** 0°C to 55°C (32°F to 131°F)

- **Storage Temperature:** 40°C to 70°C (-40°F to 158°F)

- **Storage Humidity:** 90% non-condensing relative humidity at 35°C

**Warranty:** 3 years

**Certifications:** FCC, CE

**LED Indicators:**

- 1000Mbps: Orange light steady on + Green light blinking

- 100Mbps: Green light steady on + Green light blinking

- 10Mbps: Green light blinking

**Product Introduction:**

- The EB-LINK Gigabit Ethernet Server Network Card features a new original chip for stable performance, utilizing the Intel 1340AM4 powerful core, suitable for most common servers. It provides 2 Ethernet ports for enhanced fault tolerance, increased bandwidth, and reliability.

**Compatibility with Multiple Systems:**

- Compatible with various operating systems including Windows 7/8/10/XP, Linux, Vista, etc.

**Purchase Instructions:**

- Computer motherboard slots are divided into PCI and PCI-E slots, with PCI-E further divided into PCI-EX1, X4, X8, X16. The larger the number, the longer the slot. Independent network cards are inserted into PCI and PCI-E slots. PCI gold fingers correspond to PCI slots, PCI-EX1 is compatible with PCI-EX4, X8, X16, and so on.

**Popular Motherboard Slot Specifications:**

- PCI, PCI, PCI, PCI-E X1, PCI-E X4, PCI-EX16

**Note:** The above specifications are subject to change without prior notice.
