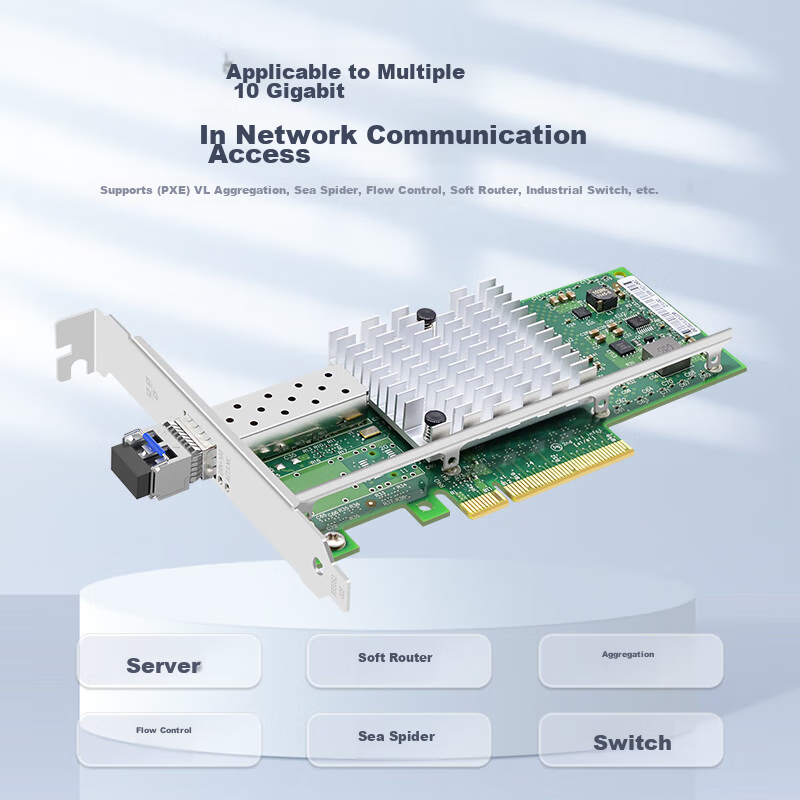

EB-LINK Intel 82599 Chip PCI-E X8 10G Gigabit Single-Port Fiber Optic Network Card X520-LR1 with SFP+ Single-Mode Optical Module Server Network Adapter

SKU : 100010808548

Availability : In stock
4.7
Weight : 0.22 kg
Length : 22.5 cm
Height : 3 cm

GHS 710.62

GHS 767.46

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** EB-LINK

**Model:** THENETWORKCARD

**Description:** 10 Gigabit Single Fiber Server Network Card

**Chipset:** Original Intel 82599 chipset with single-mode optical module

**Features:** RSS, Jumbo Frames, PXE Server, ESXi, ROS, Spider Software Router

**Chip:** Intel chipset, SFP+ optical port, offload acceleration processing

**Compatibility:** Compatible with various systems, simple installation

**Warranty:** 3-year original factory warranty

**Support:** Lifetime technical support

**Compatibility:** Plug and play, efficient and stable operation

**Systems Supported:** Windows, Windows Server, CentOS, RHEL, Ubuntu, FreeBSD, Linux, VMware

**Driver:** Available via CD included in the package or online support

**Performance:** High-performance Intel 82599 chip, low power consumption

**Cooling:** Enhanced heat dissipation for stable long-term operation

**Hardware Acceleration:** TCP/UDP/IP checksum offload and TCP segmentation offload

**Industrial Automation:** Connects to industrial cameras, sensors, and devices

**Duplex:** Supports full-duplex and half-duplex, 10000Mbps speed

**Interface:** 1x 10 Gigabit SFP+ optical port

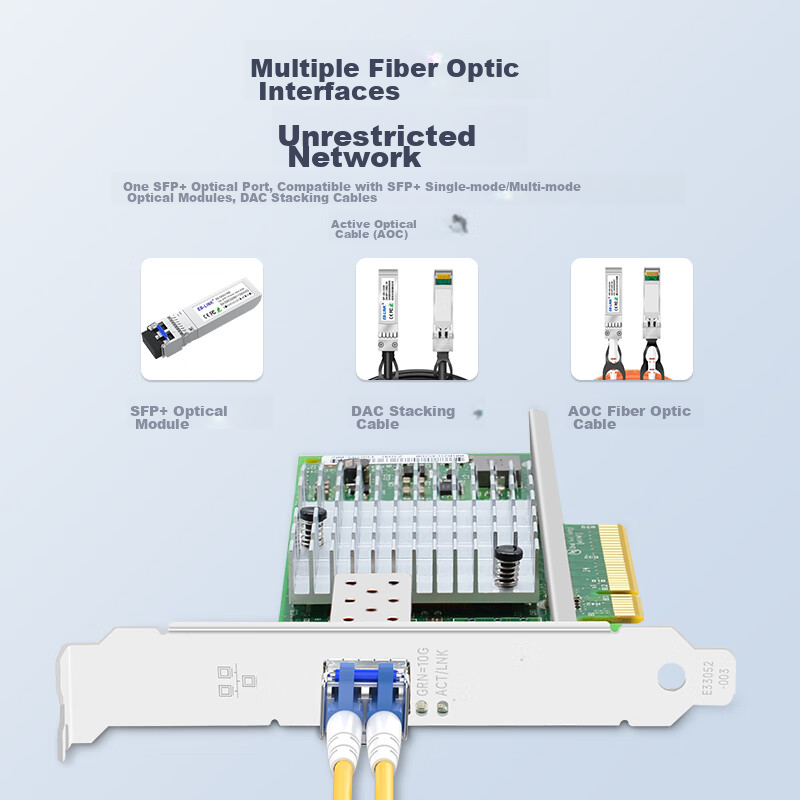

**Cable Interfaces:** Supports SFP+ single-mode/multi-mode modules, DAC, AOC

**Applications:** Suitable for PXE, aggregation, Spider, flow control, soft routing, industrial switches

**Compatibility:** PCI-EX8 interface, compatible with various slots

**Bracket:** Supports full-height and half-height brackets for different chassis

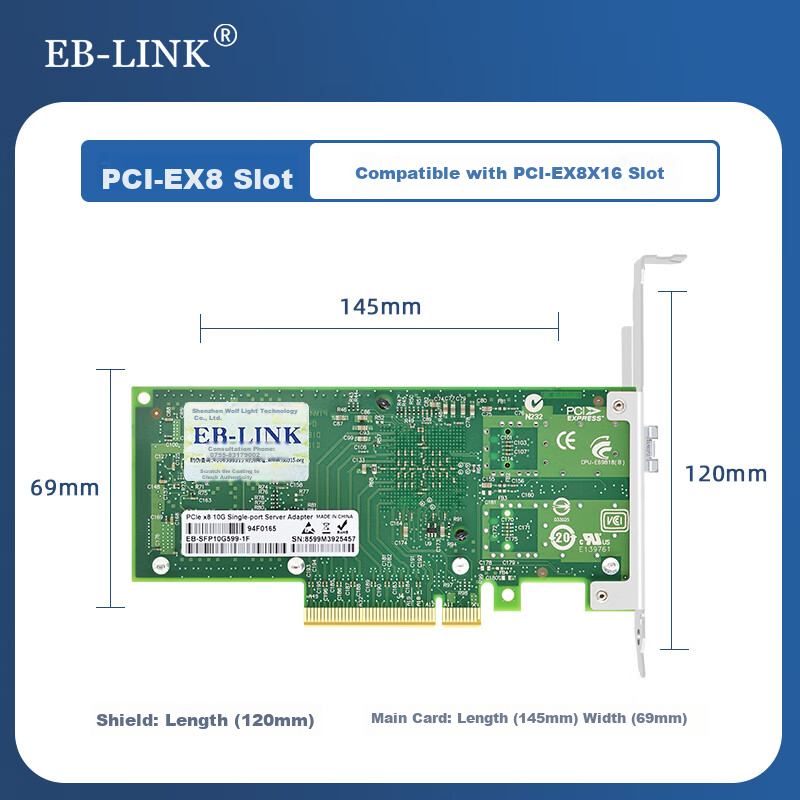

**Dimensions:** 145mm x 69mm (main card), 12cm (full-height bracket), 8cm (half-height bracket)

**Usage:** Ideal for database, smart city, industrial automation, cloud services, AI, VMware virtualization

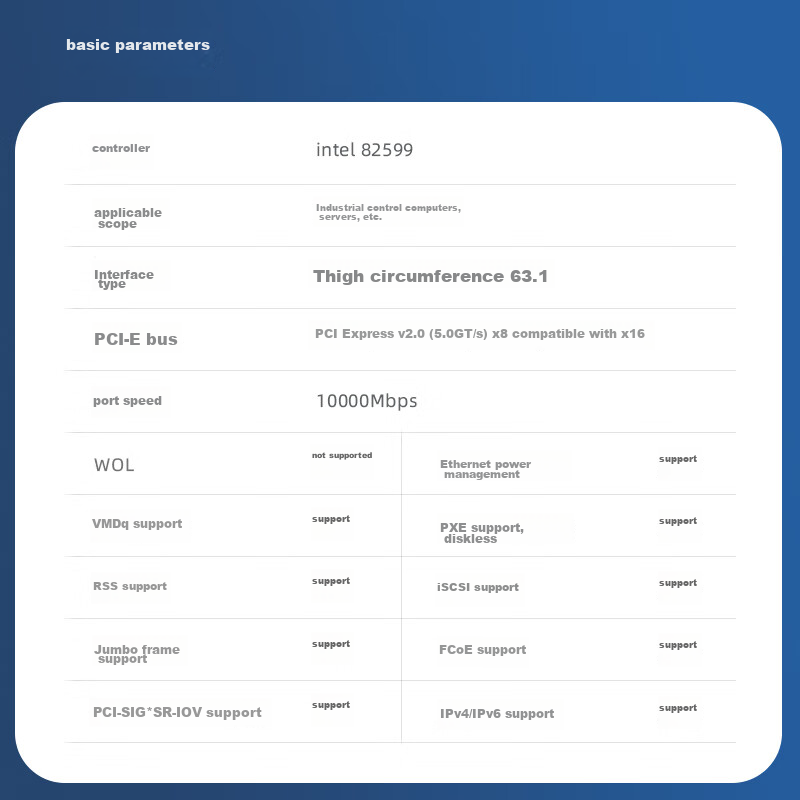

**Basic Parameters:**

- **Controller:** Intel 82599

- **Interface:** LC interface with single-mode optical module

- **Bus:** PCI Express v2.0 (5.0GT/s) x8 compatible with x16

- **Speed:** 10000Mbps

- **Power Consumption:** 8.0W

- **Fiber Types:** 10GBase-SR, 10GBase-LR, 10GBase-Cu

- **Transmission Media:** Supports single-mode/multi-mode fiber

- **Bracket Height:** Full-height and half-height

- **Certifications:** FCC, CE, RoHS

**Technical Parameters:**

- **Ethernet Power Management:** Supported

- **PXE Boot:** Supported

- **iSCSI:** Supported

- **FCoE:** Supported

- **IPv4/IPv6:** Supported

- **WOL:** Not supported

- **VMDq:** Supported

- **RSS:** Supported

- **Jumbo Frames:** Supported

- **PCI-SIG*SR-IOV:** Supported

**Manufacturer:** Shenzhen EB-LINK Technology Co., Ltd.
