EB-LINK Intel X550 Chip PCI-E X4 10G Single-Port Server Network Card X550-T1, 10G Electrical Port Copper Cable Link Aggregation Virtual Machine

SKU : 100020712289

Availability : In stock
4.7
Weight : 0.18 kg
Length : 22.4 cm
Height : 2.8 cm

GHS 1,901.40

GHS 2,053.51

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** EB-LINK

**Product Name:** 10 Gigabit Single Port Server Network Card

**Chipset:** Intel X550

**Features:** Supports 10G/5G/2.5G/1G/100M bandwidth, Intel chipset, RJ45 interface, RSS Jumbo Frame, PXE server, ESXi ROS Spider software router

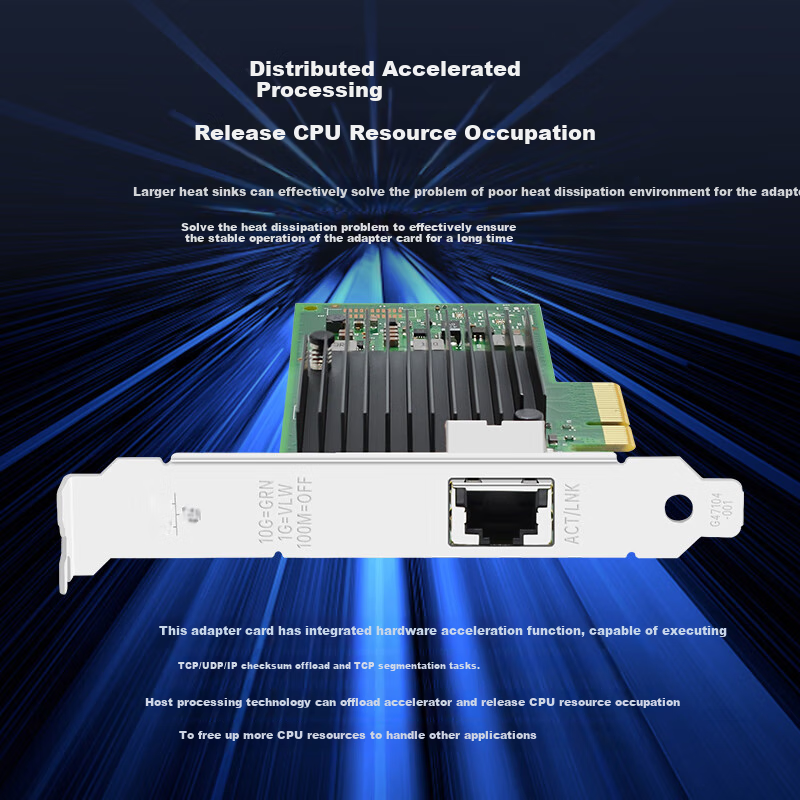

**Functionality:** Accelerated processing, offload acceleration processing, X550 main control chip, network cable interface

**Compatibility:** Compatible with various systems, simple installation, plug and play

**Technical Support:** Lifetime technical support

**Warranty:** 3-year original manufacturer warranty

**Operating Systems Compatibility:** Windows 7/8/8.1/10, Windows Server 2012 R2/R2 Core, 2008 R2/R2 Core, 2016 R2/R2 Core, WinPE, FreeBSD, Linux Stable Kernel, Vmware, RHEL (CentOS) 6.7/7.x

**Driver Installation:** Provided on CD included in the package or downloadable from Intel's official website

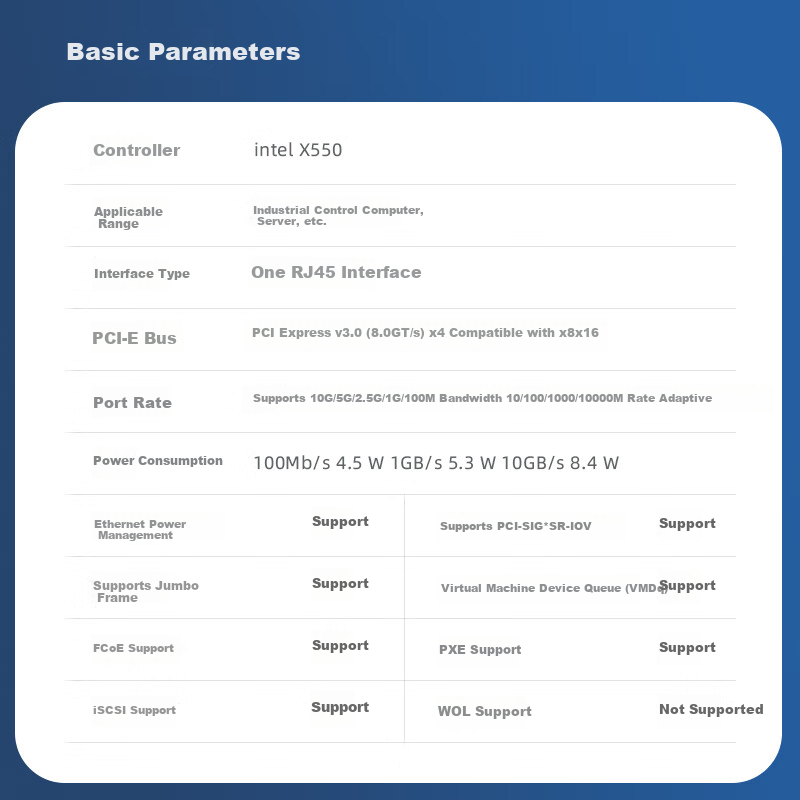

**Basic Parameters:**

- **Controller:** Intel X550

- **Power Consumption:** 100Mb/s 4.5W, 1GB/s 5.3W, 10GB/s 8.4W

- **Interface Type:** 1 x RJ45 interface, PCI-E bus

- **Port Rate:** 10/100/1000/10000M adaptive rate

- **Port Standard:** IEEE 802.3an 10GBASE-T, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.1Q VLAN, IEEE 802.1ad Double VLAN

- **Bracket Height:** Full-height and half-height

- **Product Dimensions:** Bracket 120mm, Main card 130mm x 69mm

- **Certifications:** FCC, CE, RoHS

**Technical Parameters:**

- **Ethernet Power Management:** Supported

- **PCI-SIG SR-IOV:** Supported

- **Jumbo Frame:** Supported

- **Virtual Machine Device Queues (VMDq):** Supported

- **FCoE Support:** Supported

- **PXE Support:** Supported

- **iSCSI Support:** Supported

- **WOL Support:** Not supported

**Manufacturer:** Shenzhen Wolf Light Technology Co., Ltd.

**Model Number:** 0062168-55:0:

**Coating Verification:** KC, PCI x410G Sr, glePort Server Adapter, CE, FC, MADE IN CHINA

(Note: Some information may have been omitted for brevity)
