EB-LINK PCI-E to SATA 3.0 Expansion Card, 12 Ports, Desktop Computer Internal SSD Adapter Card, Can Be Used As System Disk, Plug And Play

SKU : 100024650719

Availability : In stock
4.7
Weight : 0.1 kg
Length : 14.6 cm
Height : 2.4 cm

GHS 580.39

GHS 626.82

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

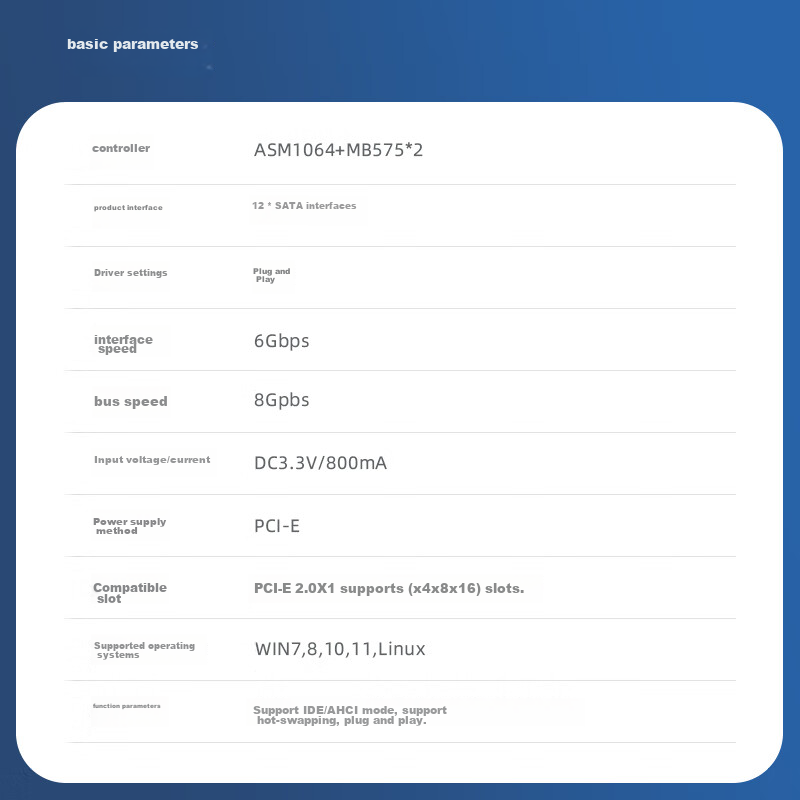

Specifications:

Brand: EB-LINK

Model: PCI-E to SATA3.0 Twelve-Port Expansion Card

Main Control Chip: ASM1064+JMB575*2

Product Interface: 12*SATA interfaces

Driver Setup: Plug and Play

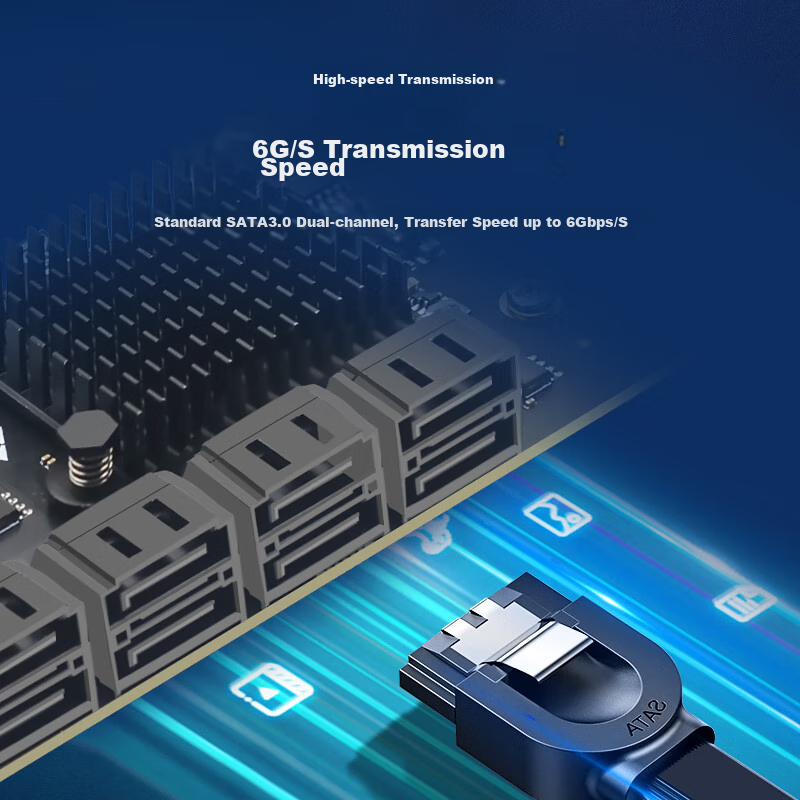

Interface Rate: 6Gbps

Bus Rate: 8Gbps

Input Voltage: DC3.3V

Input Current: 800mA

Power Supply: PCI-E

Applicable Slot: PCI-E 3.0 X1 support (X4, X8, X16) slots

Operating Environment: 0°C~60°C (use), 20~80°C (storage)

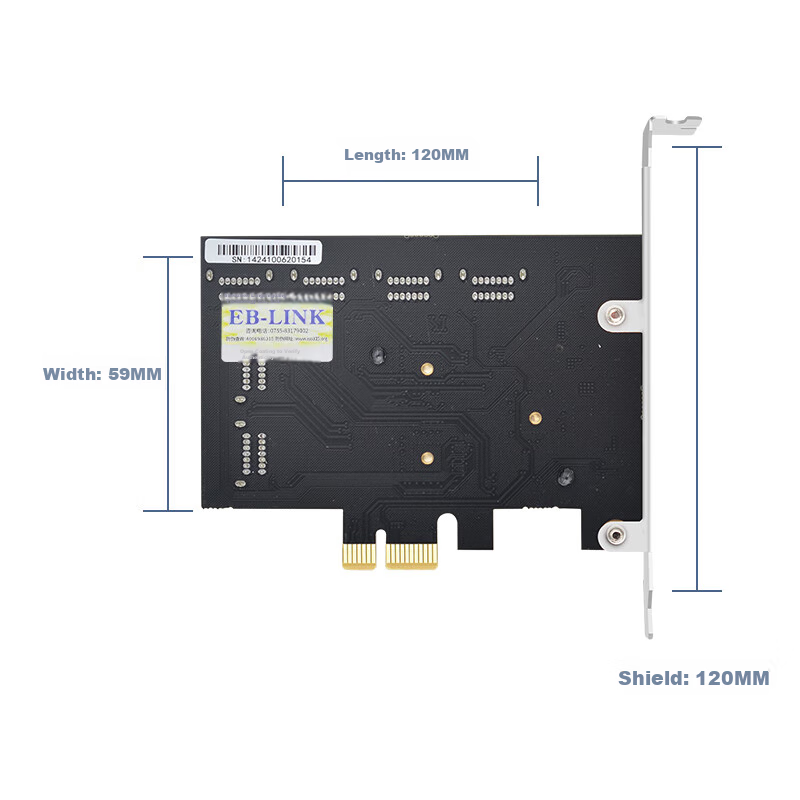

Product Dimensions: Bracket 120mm * Length 120mm * Width 59mm

Supported Operating Systems: Windows 7, 8, 10, 11, Linux

Functional Parameters: Supports IDE/AHCI mode, hot-swappable, plug and play

Note: It is prohibited to install the adapter card in a PCI slot, as misplacement may cause damage to the card, hard drive, and motherboard. The PCI-E slots on 915, 945, G31/G41 series motherboards are only 1.0 version, providing a speed of 200M and cannot be accelerated. The card features 12 SATA3.0 interfaces for expanding up to 12 hard drives, LED monitoring indicator lights, and a durable design with thick gold fingers for stable and efficient data transmission.
