EB-LINK PCIe 3.0 X4 to M2 Expansion Card with Four M.2 Interfaces, NVMe Adapter Card for SSD, 4-Bay without Need for Motherboard Disassembly, Fiber Channel Card

SKU : 100078460248

Availability : In stock
4.7
Weight : 0.16 kg
Length : 23 cm
Height : 2.8 cm

GHS 980.71

GHS 1,059.17

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** EB-LINK

**Product Name:** PCIe x4 to 4-port NVMe SSD Adapter Card

**Model:** THENETWORKCARD

**Features:**

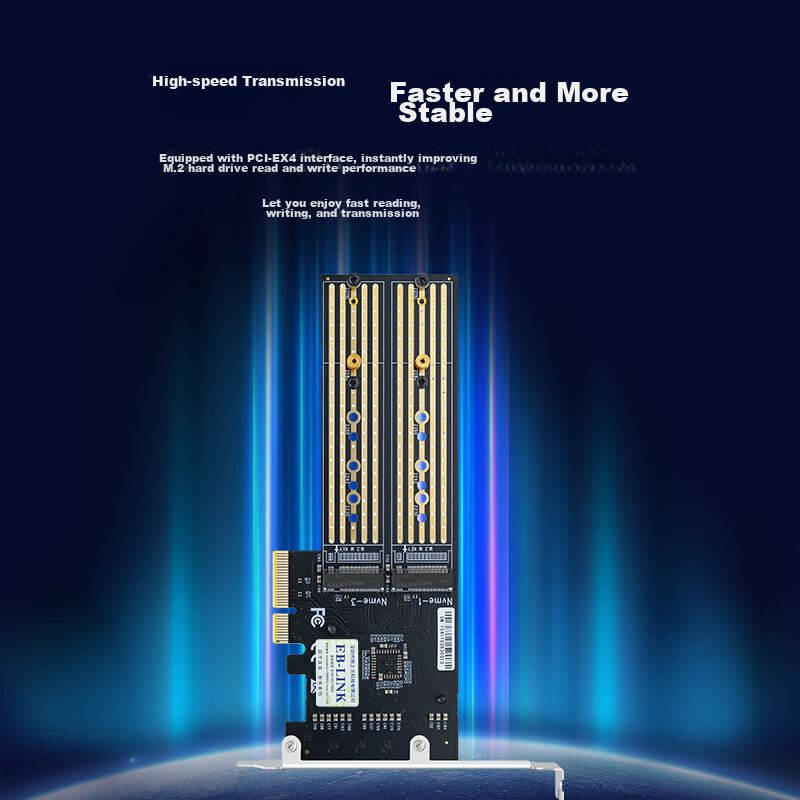

- PCIe 3.0 x4 to 4-port M.2 adapter

- PCI-EX4 interface with 16Gbps data transfer rate for high-speed expansion and performance boost

- No need for motherboard support for PCIe slot splitting

- Easy installation, high-speed data transfer, stable performance

**Benefits:**

- Solves issues related to slow boot times, program loading, system crashes, and overall system performance

**Chipset:** ASM2806

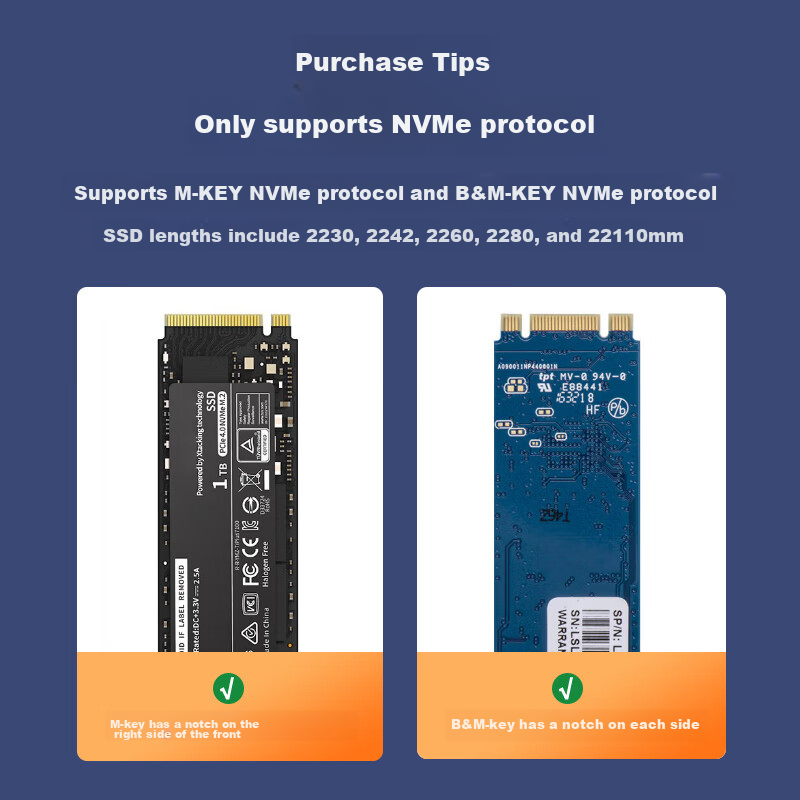

**Compatibility:** Supports 4 NVMe SSDs (2230, 2242, 2260, 2280, 22110)

**Interface Specifications:**

- NVMe Gen3 x1 * 4

- Data Rate: 8Gbps

- Speed: Up to 830MB/s

**Bus Specifications:**

- PCI Express 3.0 x4 (compatible with x4/x8/x16)

- Bus Rate: 16Gbps

**Power Supply:** PCI-E, DC 12V, 4A

**Certifications:** FCC, CE, RoHS

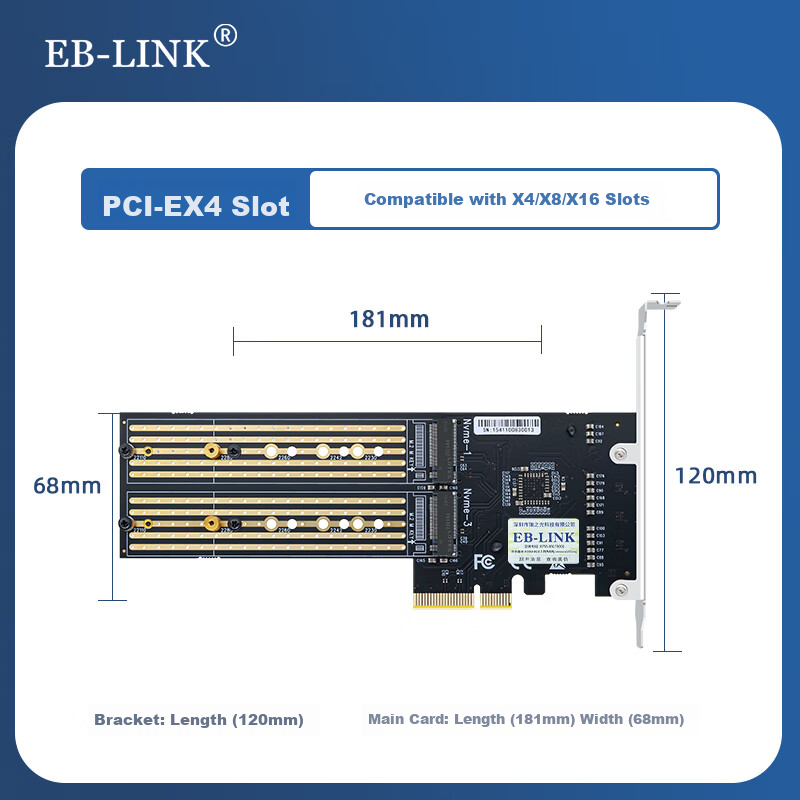

**Dimensions:** Main Card (181mm x 68mm), Bracket (120mm)

**Temperature:** Operating (0°C to 60°C), Storage (-0°C to 80°C)

**Supported OS:** Windows 7, 8, 10, 11, Linux

**Installation Steps:**

1. Insert M.2 SSD into the slot

2. Secure the SSD with screws

3. Tighten the screws at the back

4. Insert the adapter card into the PCIe interface and secure the bracket with screws

For more detailed information, please visit the EB-LINK website.
