EB-LINK PCIE X1 Gigabit Dual-Port Server Network Card, I350-T2V2 Electrical Port Network Adapter, Machine Vision Industrial Camera, Intel I350AM2 Chip

SKU : 100020712351

Availability : In stock
4.7
Weight : 0.5 kg
Length : 25.1 cm
Height : 3 cm

GHS 690.57

GHS 745.82

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** EB-LINK

**About Us:** EB-LINK is a professional provider of Ethernet card solutions with over 11 years of industry experience. We offer a wide range of products with global coverage and services. Our company has been dedicated to overcoming challenges in the network card industry and has provided products to over 50,000 customers worldwide.

**Product Series:** Our products include original Intel 1350-AM2 chips, Gigabit dual-port server network cards supporting adaptive rates, full-duplex and half-duplex operation, and RJ45 interfaces for easy installation.

**Features:**

- Original Intel 1350-AM2 chip for stable performance

- Supports Gigabit speed with RJ45 interface

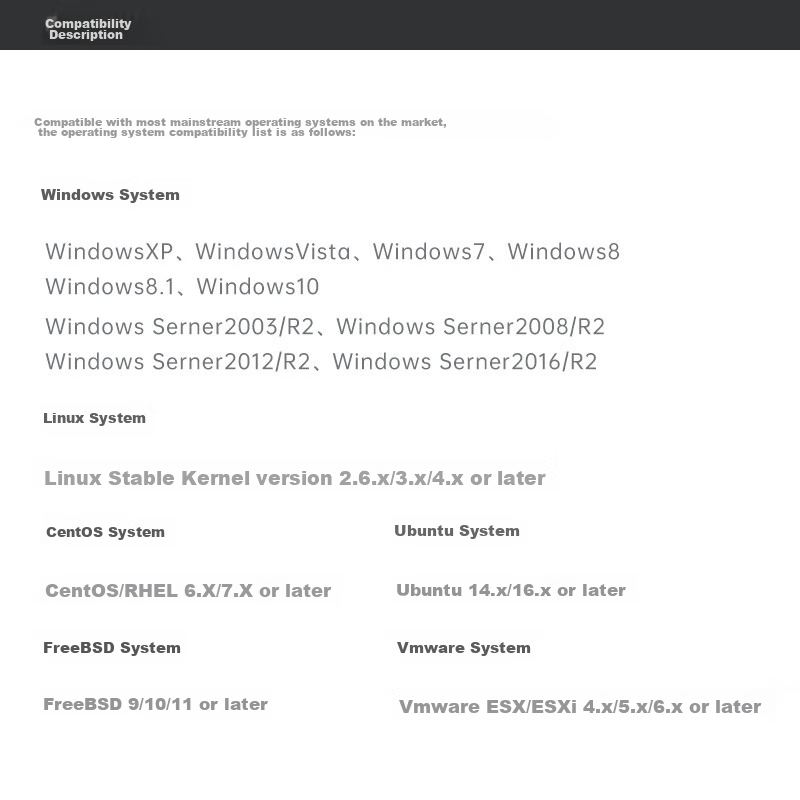

- Wide compatibility with various operating systems

- Efficient heat dissipation with alloy material heatsink

- Gigabit speed of 1.25Gbps for fast and stable data transfer

**Technical Parameters:**

- Main Control Chip: Intel original 1350-AM2 chip

- Interface: 2 x RJ45 ports

- Port Rate: 10M/100M/1000Mbps adaptive

- Bracket Height: Half-height and full-height compatible

- Application: Servers

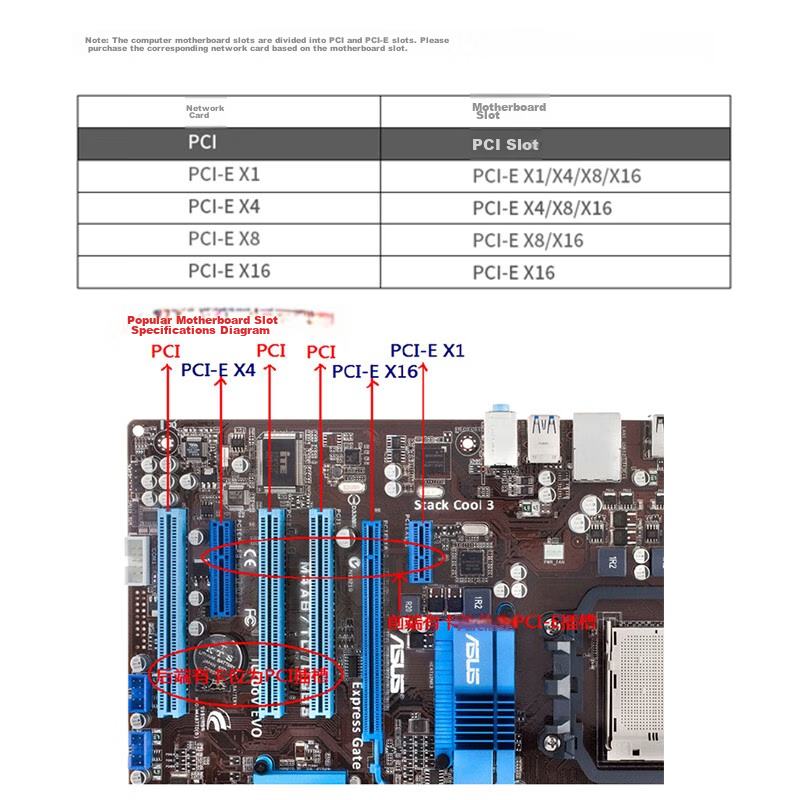

- PCIe Bus: PCI Express v2.1 (2.5GT/s) X1 slot

- Power Consumption (max): 2.0W

- Virtual Machine Device Queue: Supported

- PCI-SIG/SR-IOV and RSS support

- PXE, Jumbo Frame, and Ethernet Power Management support

- Operating Temperature: 0°C to 55°C (32°F to 131°F)

- Storage Temperature: -40°C to 70°C (-40°F to 158°F)

- Storage Humidity: 35% to 90% non-condensing

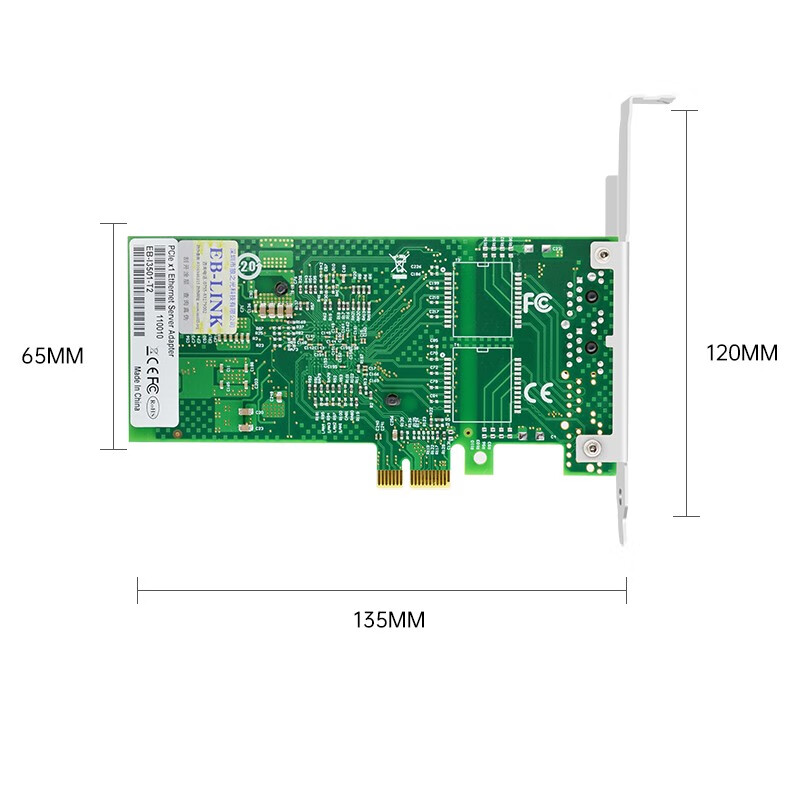

- Product Dimensions: Bracket (120mm), Board (135mm x 65mm)

*Note: Dimensions are manually measured and may have slight errors.*
