EB-LINK USB to 485/232 Converter, Nine-Pin Serial Data Cable, Computer COM Port Debugging Module, Communication Cable Adapter

SKU : 100030996032

Availability : In stock
4.7
Weight : 0.02 kg
Length : 13 cm
Height : 1 cm

GHS 77.03

GHS 83.19

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

Specifications:

Brand: EB-LINK

Intelligent CH340 main control chip

USB to RS-485/232 converter

TSV transient suppression protection

Compact and portable design

Easy to use

Widely compatible

Stable signal transmission

Space-saving

Compatible with RS485/232 devices

Transmission distance of approximately 1200 meters

Compact and lightweight design

Compatible with various devices such as laptops, desktop computers, cash registers, PLCs, CNC machines, access control systems, industrial control machines, scanners, barcode printers, external modems, tax control machines, temperature control devices, LED displays, programmers, touch screens, and industrial instruments

Intelligent main control chip for stable long-distance transmission

Built-in CH340 main control chip driver for data conversion

Supports long-distance transmission of RS485/232 protocol devices

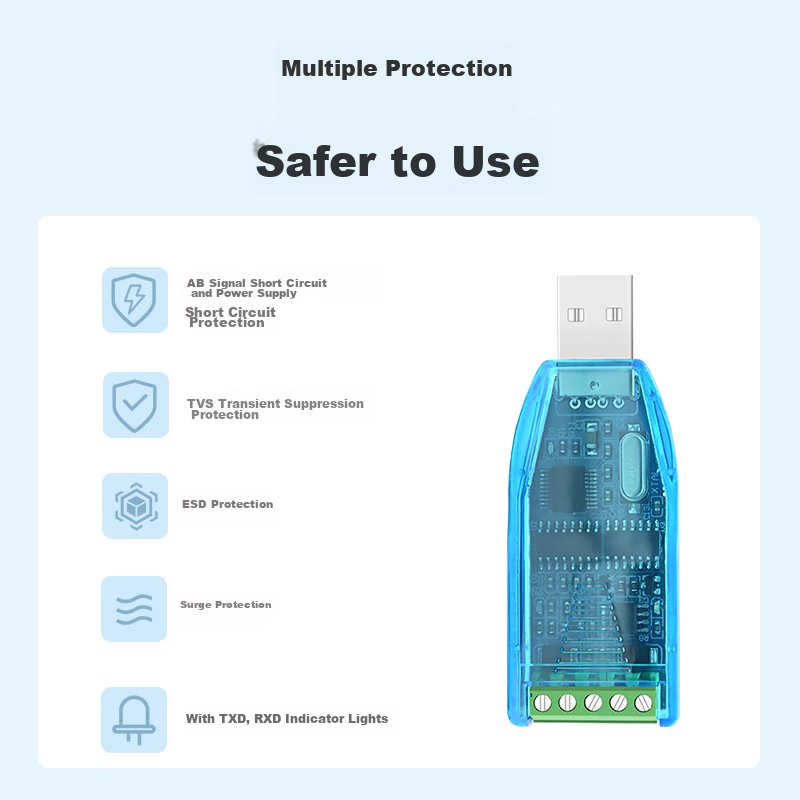

Multiple protections for safety including AB signal short-circuit protection, CD, CID short-circuit protection, TVS transient suppression protection, ESD protection, surge protection

Features TXD and RXD indicator lights

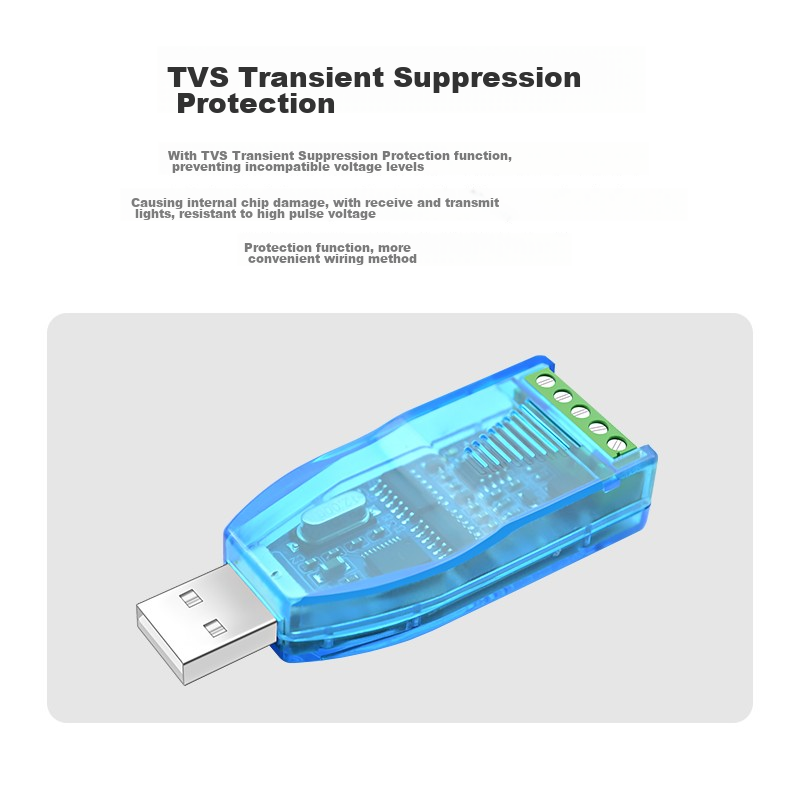

TVS transient suppression protection to prevent internal chip damage due to incompatible voltage levels

Convenient wiring method

Overvoltage transient protection against lightning strikes, surge impacts, and transient disturbances caused by power system switches

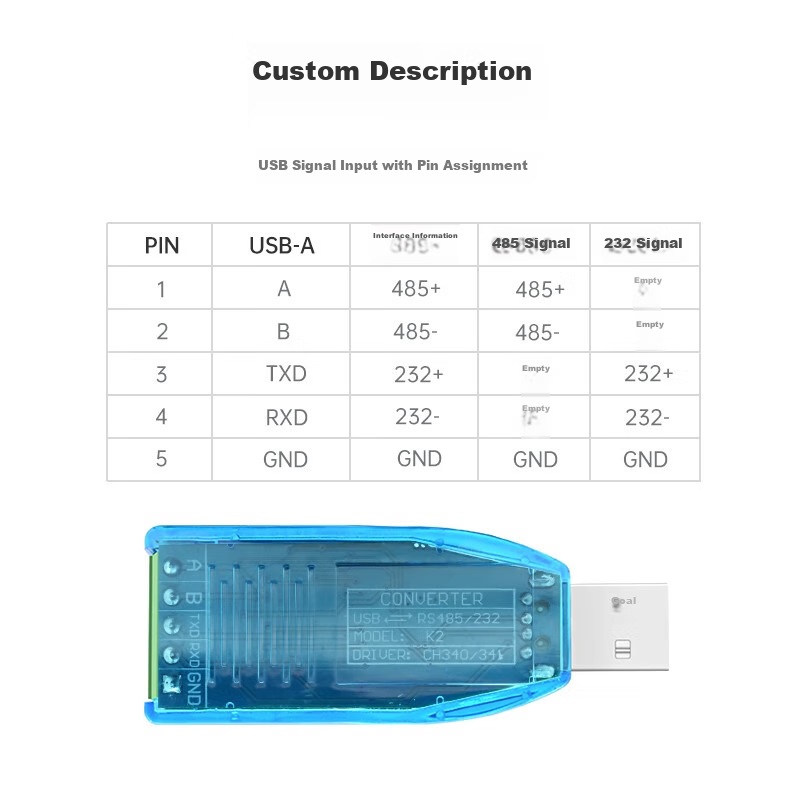

Customizable USB signal input pin assignment

Compatibility with most mainstream operating systems including Windows XP, Vista, 7, 8, 2002, 2003, 2008, Linux, and Mac

Technical Parameters:

- Product Name: USB to RS-485/232 Converter

- Interface: Standard USB-485-232 interface

- Interface Protection: TVS transient suppression protection

- Transmission Distance: Tested up to 1200 meters, actual distance may vary depending on environmental conditions

- Operating Mode: Universal USB to 485 converter, compatible with any 485 device

- Cable Material: Transparent PVC

- Product Dimensions: 70*25*14mm

- Maximum Baud Rate: 115200

- Operating Environment: Temperature -40°C to 85°C, relative humidity 5% to 95%

- Processor Chip: CH340

- Product Certification: CE, FCC

Note: Dimensions are manually measured and may have slight errors.
