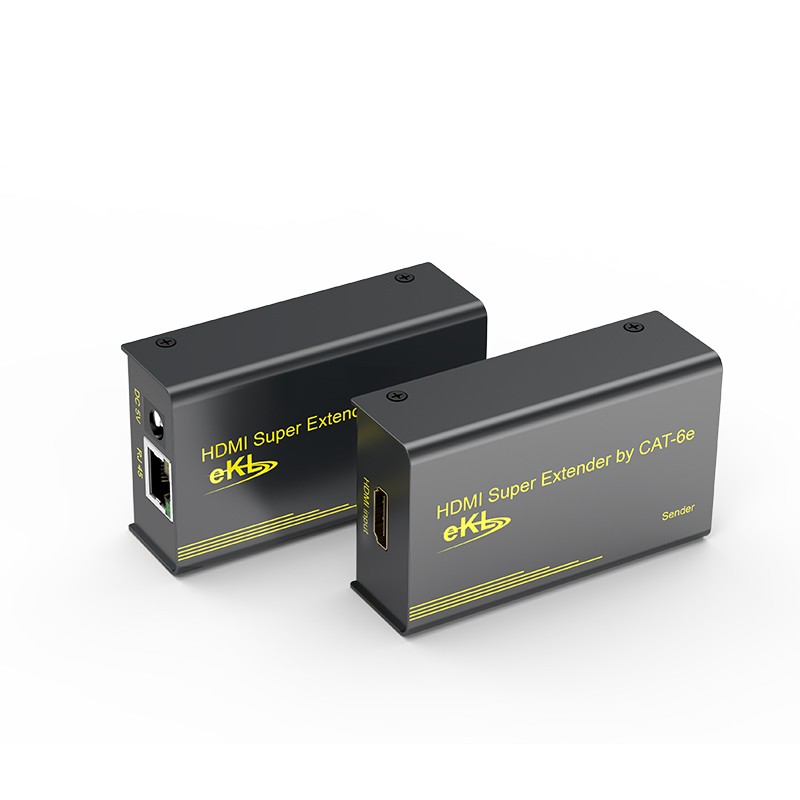

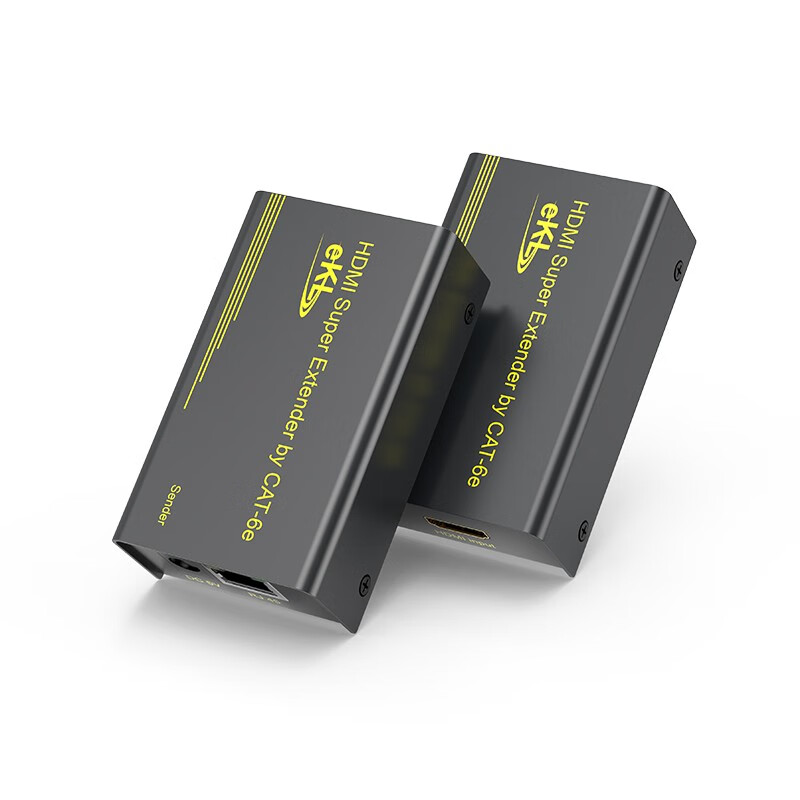

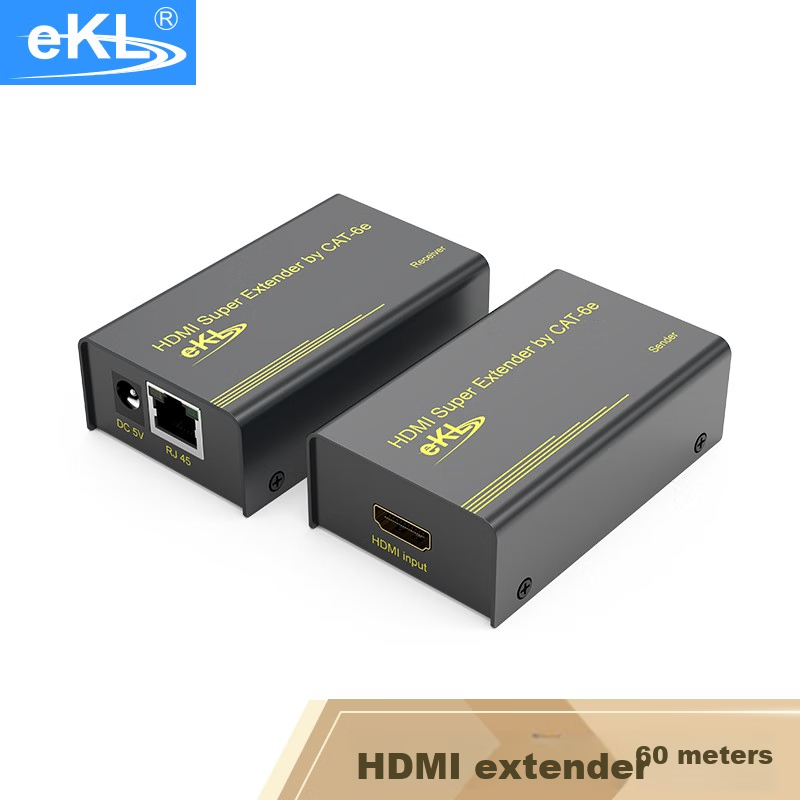

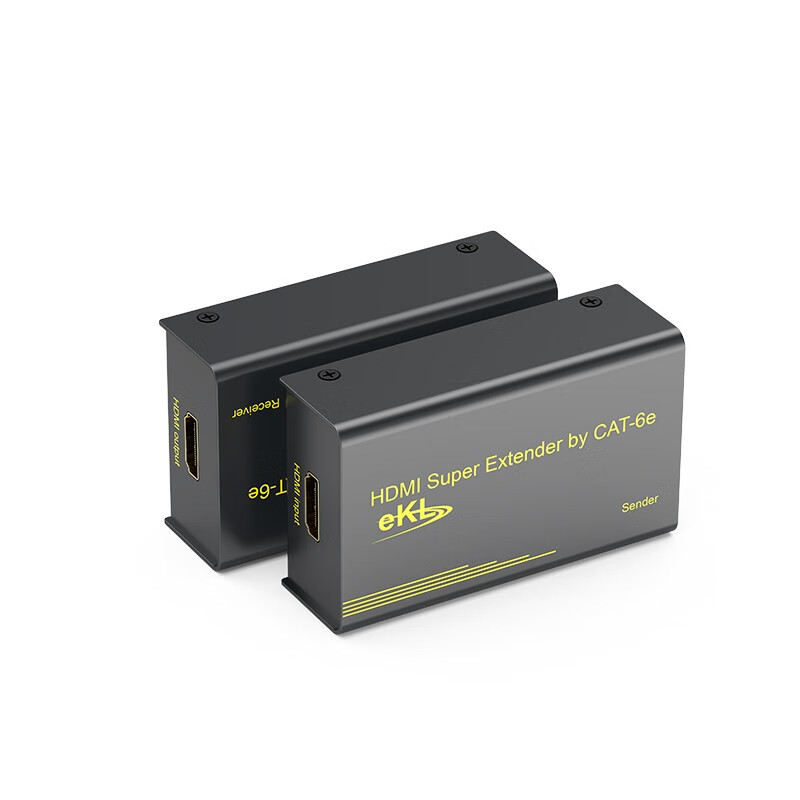

EKL HDMI Extender 60 Meters, Single Network Cable HDMI Signal Amplifier to RJ45 High-Definition Video Transmitter HE60

SKU : 5631970

Availability : In stock
4.7
Weight : 0.585 kg
Length : 20.5 cm
Height : 5.8 cm

GHS 576.49

GHS 622.61

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** eKL

**Product Name:** HDMI Single Network Cable Extender

**Model:** HE60

**Power Supply:** Supports POC

**Transmitter:** HDMI*1, RJ45 Interface*1

**Receiver:** HDMI*1, RJ45 Interface*1

**Input/Output Requirement:** Standard CAT6 cable specification

**Resolution:** 1080P@60/50/30Hz, 1080i/720P/480P@60Hz

**Input/Output Cable Length:** ≤10M A WG26 HDMI 1.4 standard cable

**HDMI Version:** HDMI 1.3 HDCP 1.2/Adaptive EDID

**HDMI Bandwidth/Rate:** 340MHz/10.2Gbps

**HDMI Video Compression Format:** H.264

**Input Video Signal:** 0.5~1.5 Volts p-p

**Output DDC Signal:** 5 Volts p-p (TTL)

**Maximum Operating Current:** 400mA

**Operating Humidity/Temperature:** 5~85% RH (non-condensing)/0~70°C

**Power Adapter Specifications:** AC Input (50-60Hz)/100V-240V/Direct Output 5V/1A

**Weight:** 270g

**Product List:**

HE60 Machine (Transmitter) ×1

HE60 Machine (Receiver) ×1

Power Adapters ×2

Warranty Card ×1

User Manual ×1

**Features:**

Supports up to 60 meters of long-distance transmission over a single network cable

High-definition video and audio synchronization

Compatible with various devices such as monitors, TVs, projectors, etc.

Easy plug-and-play installation, no driver required

Durable metal casing for better heat dissipation and protection

Compatible with Windows, Mac, Linux, Android, etc.

**Applications:**

Ideal for security monitoring, outdoor LED screens, broadcast TV transmission, video conferencing systems

**Product Dimensions:**

HE60 Machine (Transmitter): 25mm (W) x 47mm (H) x 82mm (L)

**Connection Diagram:**

HDMI Cable, PC, PS4 (Transmitter)

HDMI Super Extender by CAT-6e (Sender), Power Input, Network Cable, HDMI Super Extender by CAT-6e (Receiver), Power Input, HDMI Cable

**Note:**

1. It is recommended to use Category 6 shielded network cables for reduced interference, with pure copper cables providing better performance.

2. The extender does not support switch connections; it is designed for direct point-to-point transmission.

3. The HDMI extender follows the EIA/TIA-568B wiring standard for network cable connections.
