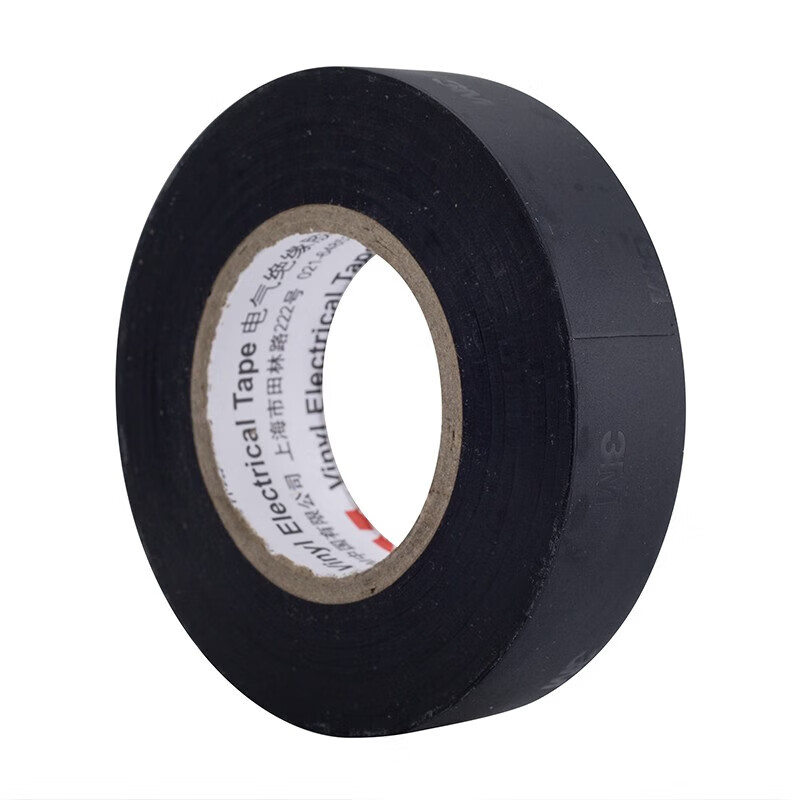

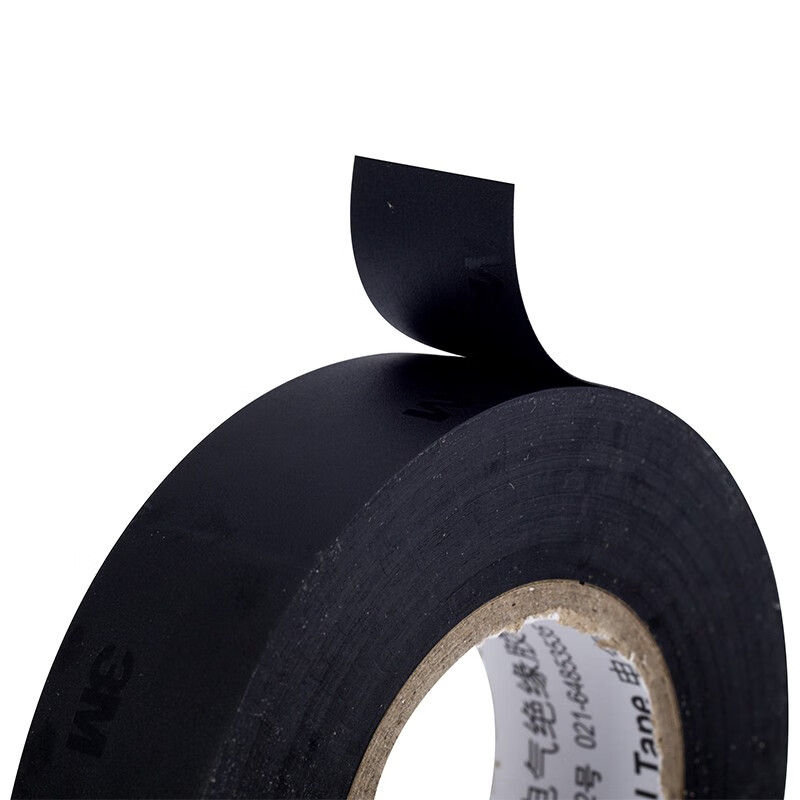

Electrician's Insulation Tape, Automotive Wiring Harness Tape, Lead-Free Wear-Resistant Moisture-Proof Tape for Home Improvement, Black, Ten Rolls, 1600#

SKU : 100120678704

Availability : In stock
4.7
Weight : 0.8 kg
Length : 18.4 cm
Height : 7.6 cm

GHS 124.05

GHS 133.98

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** 3M

**Slogan:** Science. Improving Lives.

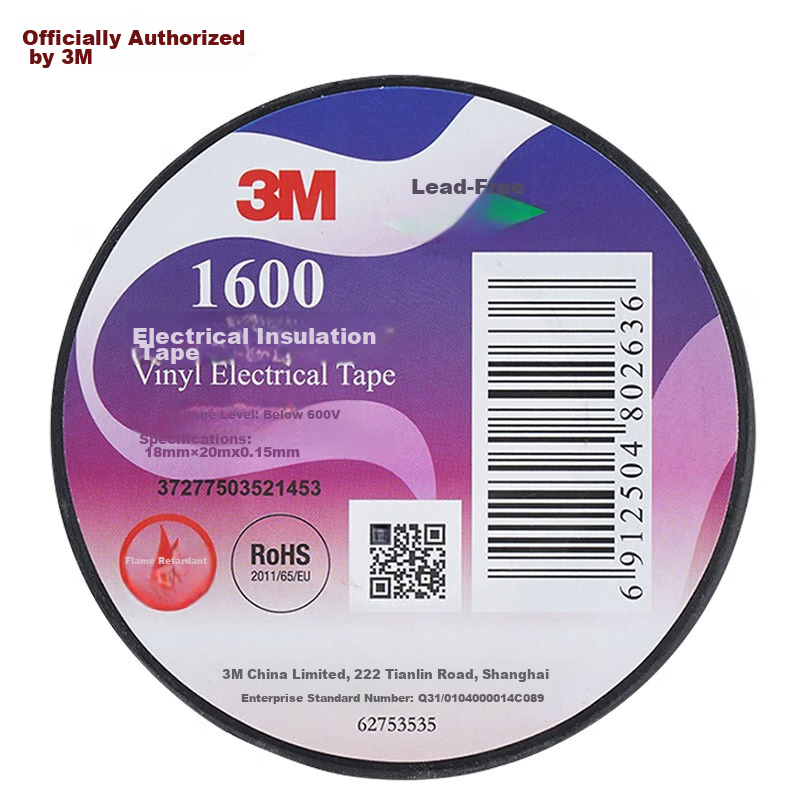

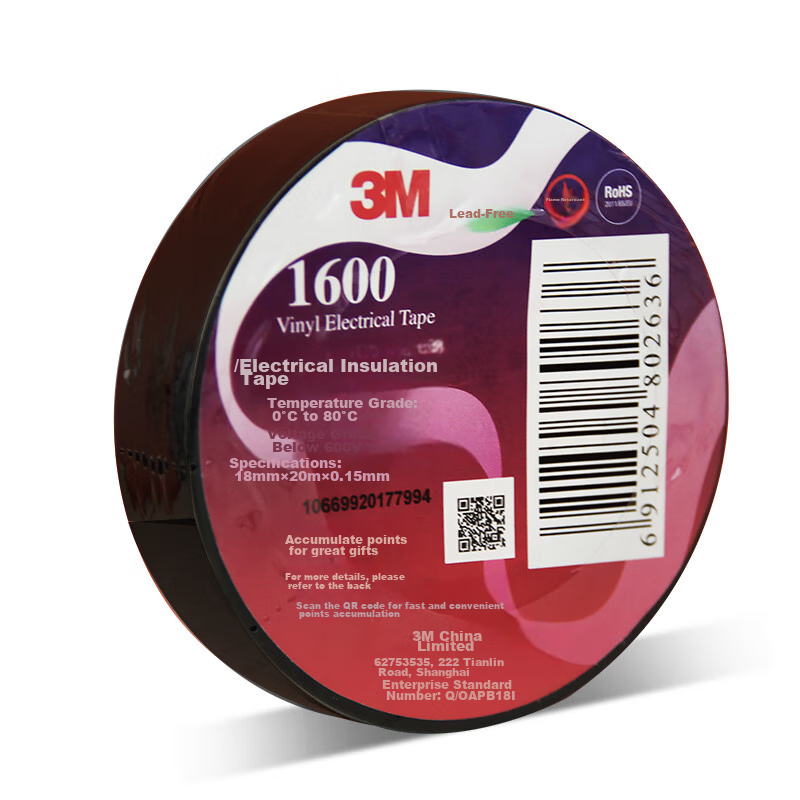

**Product:** 3M TM1600 General Purpose Electrical Insulation Tape

**Features:**

- Over 20 years of quality assurance

- Lead-free and durable

- Excellent adhesion, no edge curling

- Flame retardant, anti-counterfeiting

- SGS tested, report number: SHAEC2206800201

**Performance:**

01. Good adhesion, stable quality

02. Strong tensile strength, easy tear

03. Sufficient quantity, no shortage

04. High thickness, not easily torn

**Materials:**

- Premium raw materials, no recycled materials

- Flame retardant, passed UL510 and UL94 tests

**Applications:**

- Electrical insulation up to 600V

- Wire and cable bundling

- Home renovation and electrical maintenance

- Repair of damaged phone and headphone cables

- Protection of camera lens covers

- Mountain bike handlebars

**Technical Parameters:**

- Mechanical Performance:

- Temperature range: 0°C to 80°C

- Colors: Black, Red, Yellow, Blue, Green, White, Yellow-Green

- Size: 20m (L) x 18mm (W) x 0.15mm (T)

- Maximum elongation: 150%

- Break strength: 16 Ibs/in

- Adhesion to steel plate: 18oz./in

- Adhesion to backing: 18oz./in

- Electrical Performance:

- Voltage rating: Up to 600V

- Dielectric strength: >39.37kV/mm (1000V/mil)

- Insulation resistance: >10^12Ω

**Q&A:**

- Q: Is higher adhesion better for electrical tape? Why does 3M Electrical Insulation Tape not feel very sticky?

- A: Adhesion suitability is measured based on the surface the tape adheres to, not just the tactile feel. 3M products are designed with the right adhesive balance to prevent issues like oozing and hardening.

**Product Range:**

- **3M Electrical Insulation Tape Series:**

- **Product** | **Length (m)** | **Performance** | **Temperature Rating** | **Certifications** | **Origin** | **Colors**

- Super33+ | 20 | ★★★★ | -18°C | UL, CSA | USA | Various

- 35# | 20 | ★★★★★ | -10°C | UL, CSA | USA | Various

- 1712 | 20 | ★★★★ | 0°C | UL | China | Various

- 1600 | 20 | ★★★★ | 0°C | UL | China | Various

- 1500 | 10 | ★★★★ | 0°C | UL | China | Various

**Note:** All data provided are typical values and not product specifications. Testing method: ASTMD-1000.
