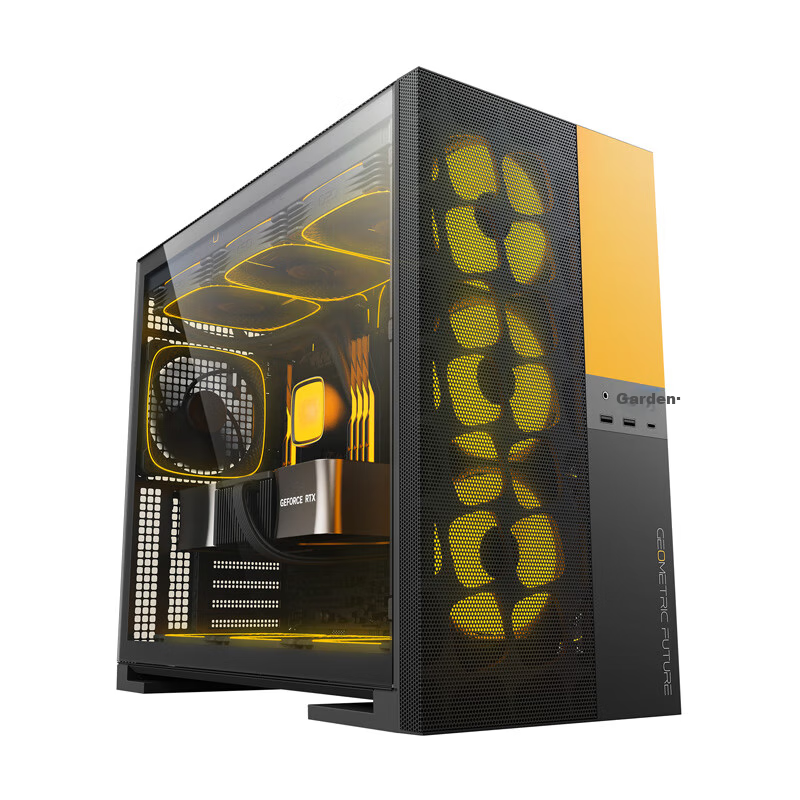

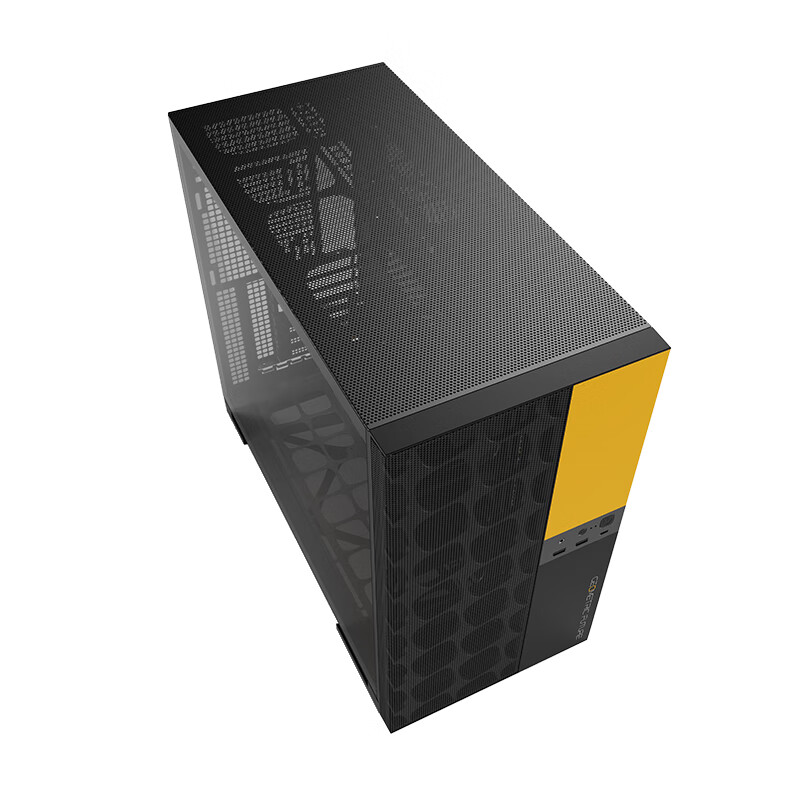

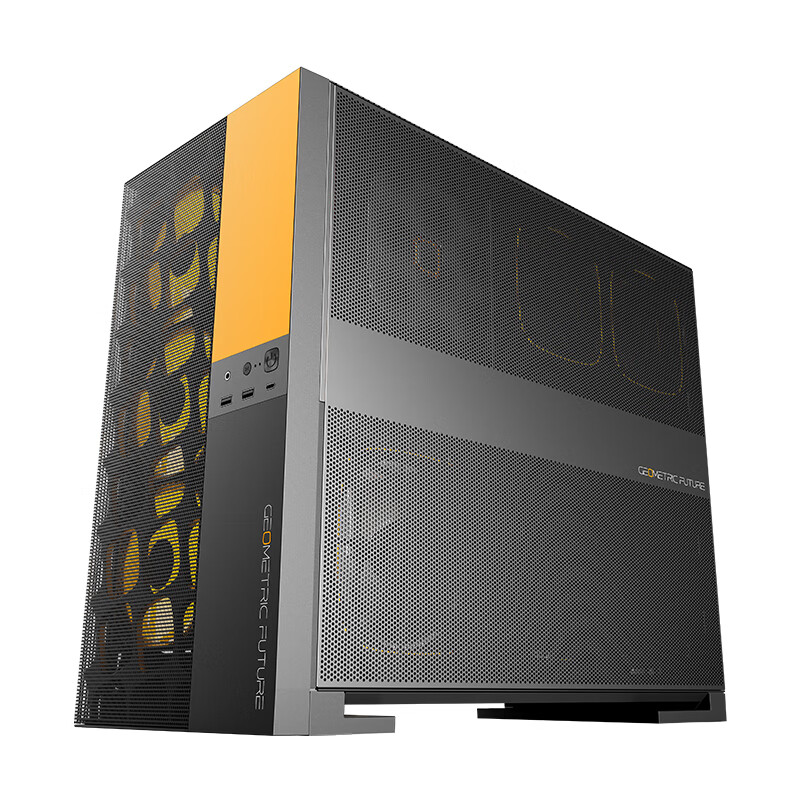

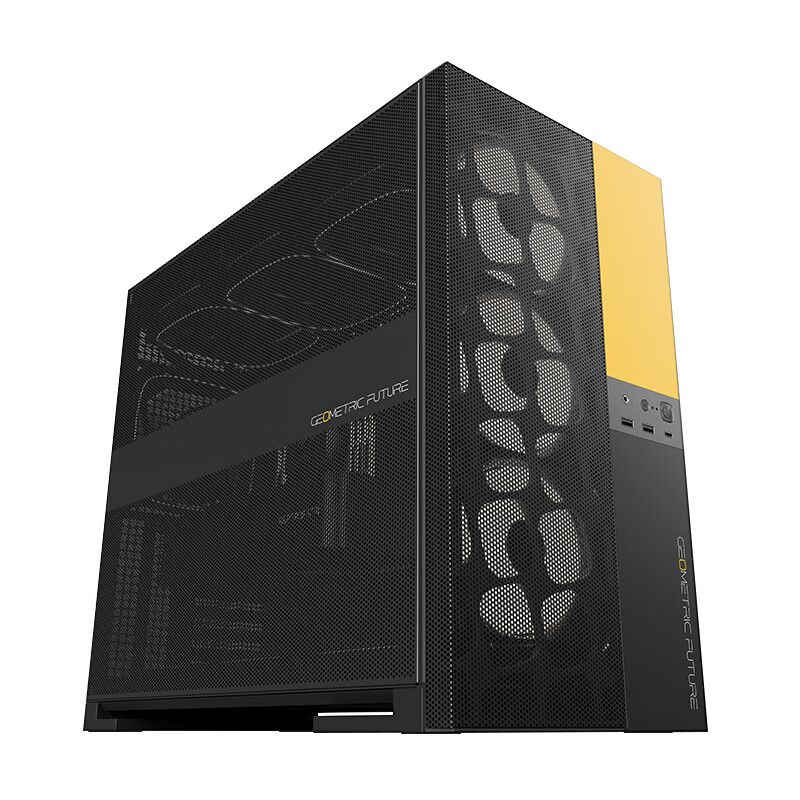

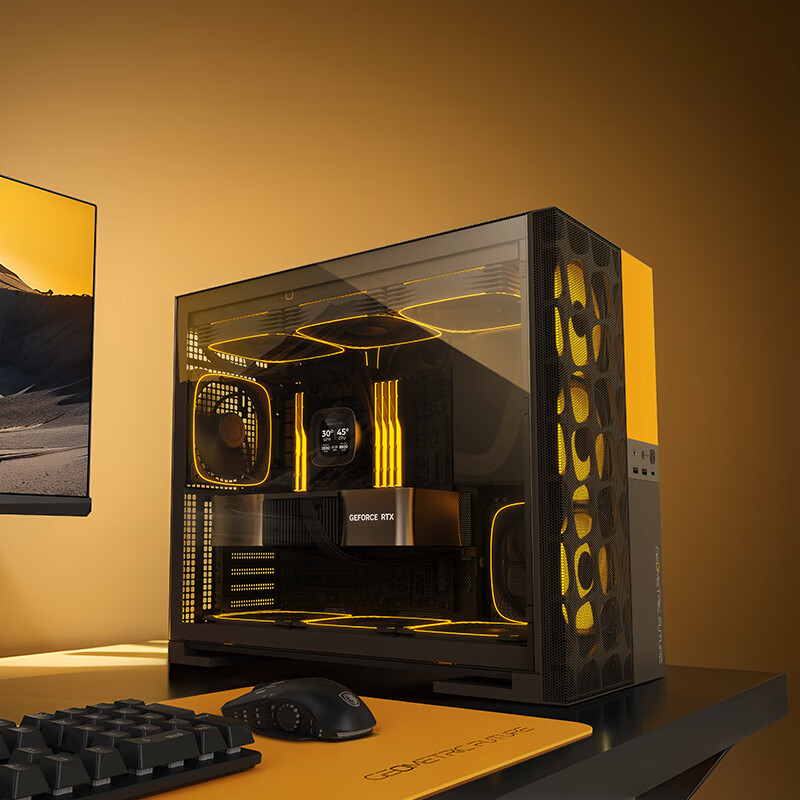

GeometricFuture Model5 Iron Fan Computer Case, Black And Yellow (Supports EATX Motherboard, 50 Series Graphics Card, 420/360 Radiator, Good Cooling, Type-C Port)

SKU : 100111593327

Availability : In stock
4.7
Weight : 10.16 kg
Length : 58 cm
Height : 30.8 cm

GHS 808.88

GHS 873.59

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** GeometricFuture

**Model:** M5 Series Chassis

**Color:** Black/Yellow, White

**Material:** 0.8-1.2mm thick galvanized steel plate

**Dimensions:** 505 (including front panel) x 242 x 440mm / 19.9" x 9.5" x 17.3"

**Type:** Mid Tower Chassis, Mesh Version

**Motherboard Compatibility:** E-ATX (12" x 11"), ATX, M-ATX, ITX

**Maximum GPU Length:** 430mm

**Maximum CPU Cooler Height:** 180mm

**Maximum PSU Length:** <160mm (recommended for fully modular PSUs)

**Expansion Slots:** Horizontal GPU PCIe x7: Length <460mm, Width <180mm; Vertical GPU PCIe x4: Length <460mm, Width <160mm, Thickness <110mm (can accommodate 2 fans at the bottom)

**Drive Bays:** Up to 2 x 3.5" or 2 x 2.5" slots

**Front I/O Ports:** 2 x USB 3.0, HD Audio (CTIA standard), Type-C 20Gbps

**Cooling Support:**

- Top: Supports 120/140mm fans x3, 360/420mm radiator, 120/140mm fan x1

- Rear: Supports 120/140mm radiator

- Right Front: Supports 120/140/160mm fan x1

- Motherboard Back: Supports 120mm fans x2

- Bottom: Supports 120/140mm fans x3, 360mm radiator (occupies two GPU slots)

- Front: Supports 120mm fans x3/140mm fans x2, 360mm radiator

**Unique Features:**

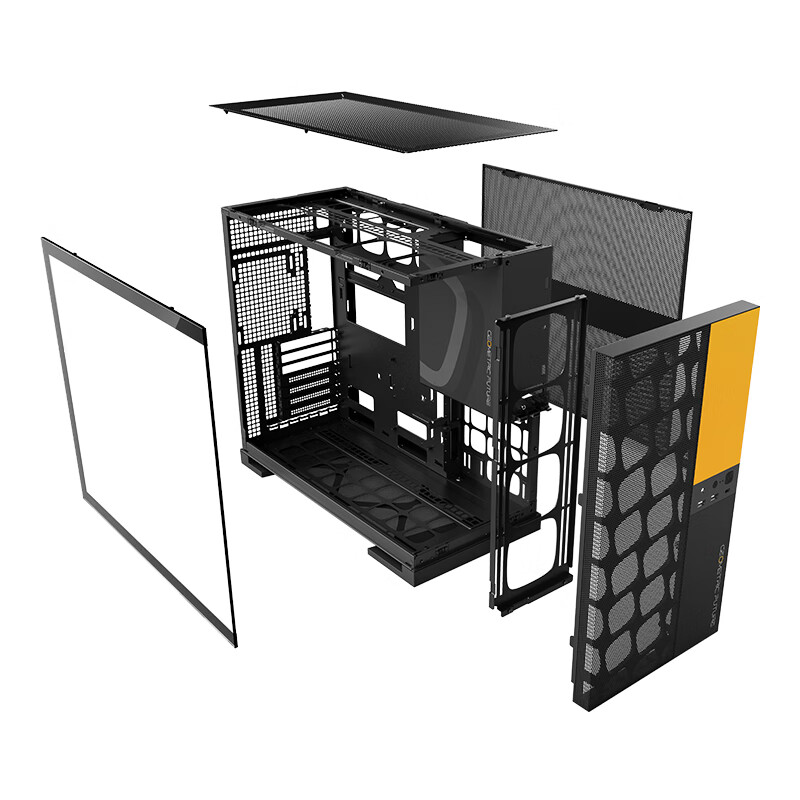

- Tool-less simplified installation

- Striking color design

- Support for full-size GPUs and E-ATX motherboards

- Optimized cable management area

- Hidden GPU support bracket

- Dust-proof mesh filters

**Additional Information:**

- Supports vertical GPU mounting (PCIe riser cable kit sold separately)

- Side intake and top exhaust airflow design

- Supports up to 13 fans for high-performance cooling

- Tempered glass thickness: 4.0mm

- Supports up to 420mm top or 360mm front water cooling

- Supports up to 430mm GPU length with front radiator installed

- CPU cooler height limit: <180mm

**Note:** Specifications subject to change without notice.
