Specifications:
Brand: H3C

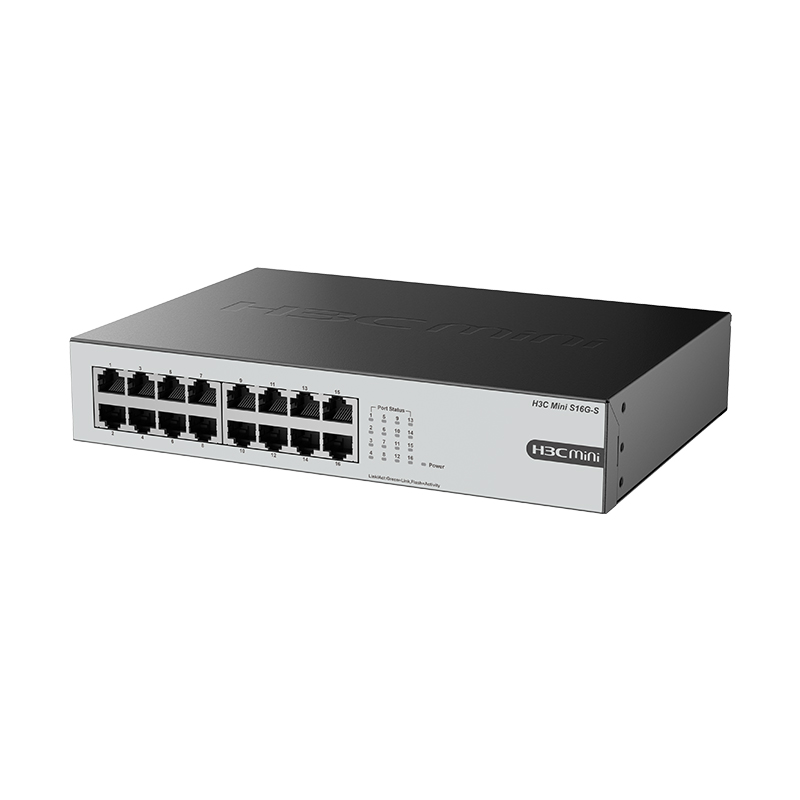

Model: MiniS16G-S
Product Type: Unmanaged Switch
Application Scenarios: Small and medium-sized enterprises, commercial chains, hotels, campuses
Features: Compact size, 16-port Gigabit Ethernet switch

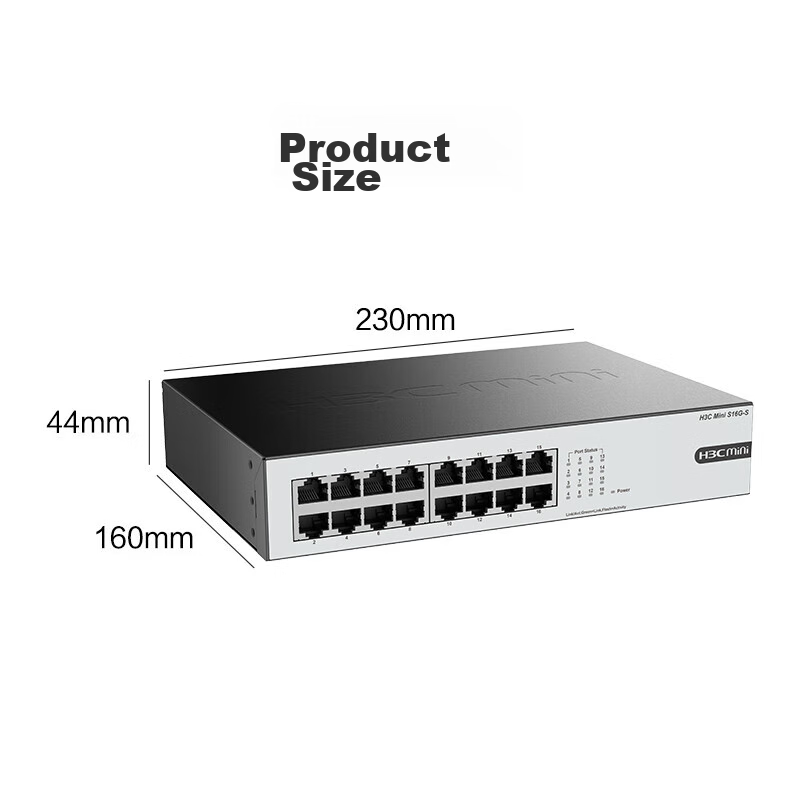

Dimensions (W×D×H): 230mm×160mm×44mm
Fixed Ports: 16 x 10/100/1000Base-T Ethernet ports
MAC Address Table: 8K entries

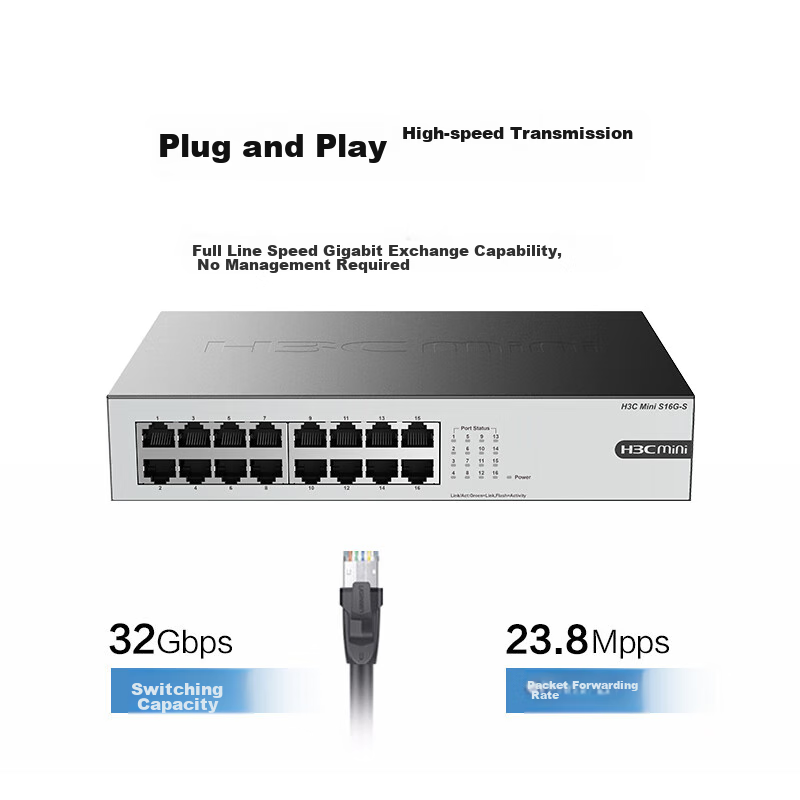

Port Switching Capacity: 32Gbps
Forwarding Rate: 23.8Mpps
Packet Buffer: 2Mb
Switching Mode: Store-and-forward
Power Supply: 100~240VAC
Fan: Fanless design for silent operation
Operating Temperature/Storage Temperature:
Operating Humidity/Storage Humidity: 5%~95% (non-condensing)
Installation: Wall-mountable with included mounting ears, rack-mountable
