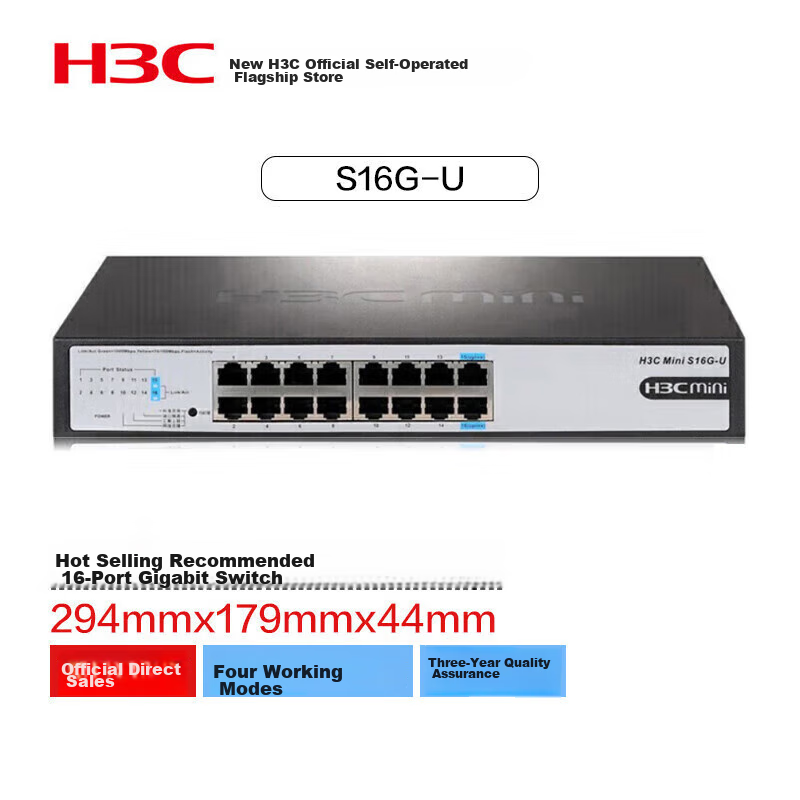

H3C (H3C) 16-Port Gigabit Switch, Unmanaged Enterprise-Grade Switch, Network Cable Splitter, Built-In Mounting Ears, Rack-Mountable, Mini S16G-U

SKU : 4379107

Availability : In stock
4.7
Weight : 1.81 kg
Length : 36.8 cm
Height : 7.5 cm

GHS 758.61

GHS 819.30

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** H3C

**Model:** MiniS16G-U

**Dimensions:** 294mm x 179mm x 44mm

**Fixed Ports:** 16 x 10/100/1000Base-T Ethernet ports

**Switching Capacity:** 32Gbps

**Forwarding Rate:** 23.8Mpps

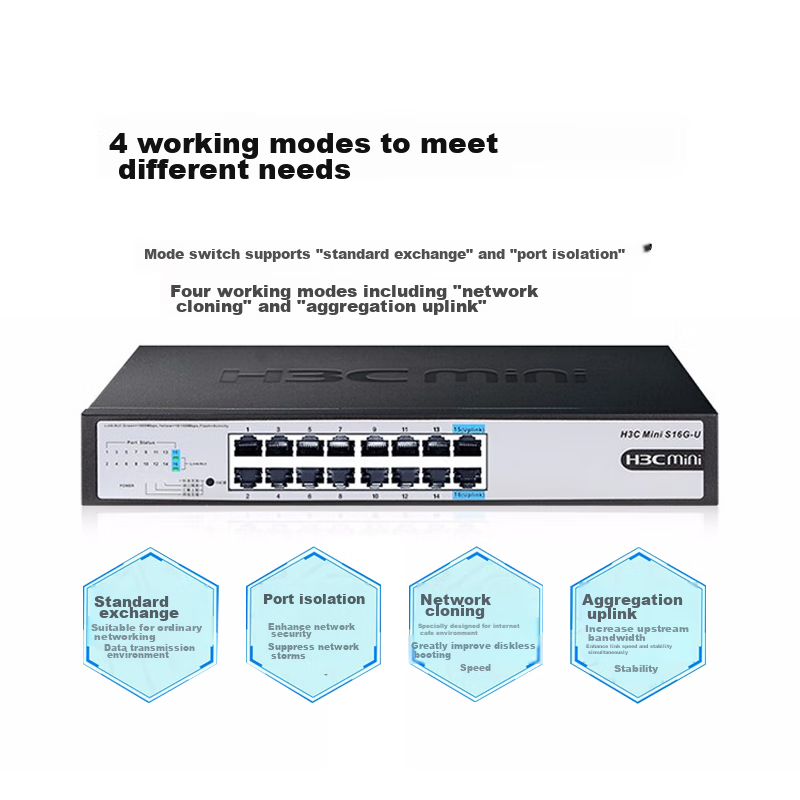

**Switching Mode:** Standard exchange network clone aggregation uplink

**Port Isolation:** Yes

**MAC Table:** 8K entries

**Switching Mode:** Store-and-forward

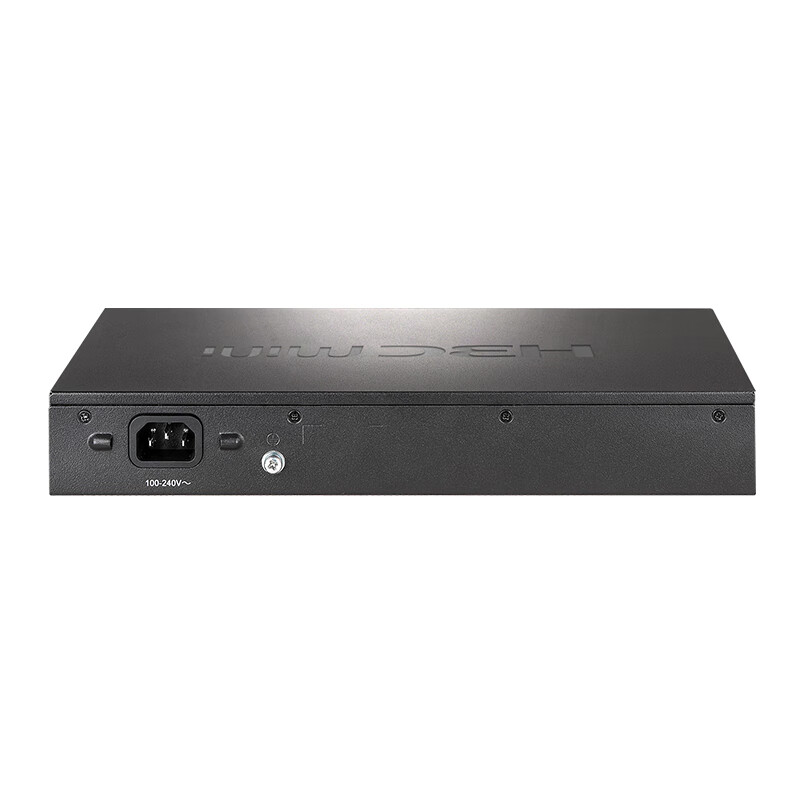

**Power Supply:** 100~240VAC

**Cooling:** Fanless, natural cooling

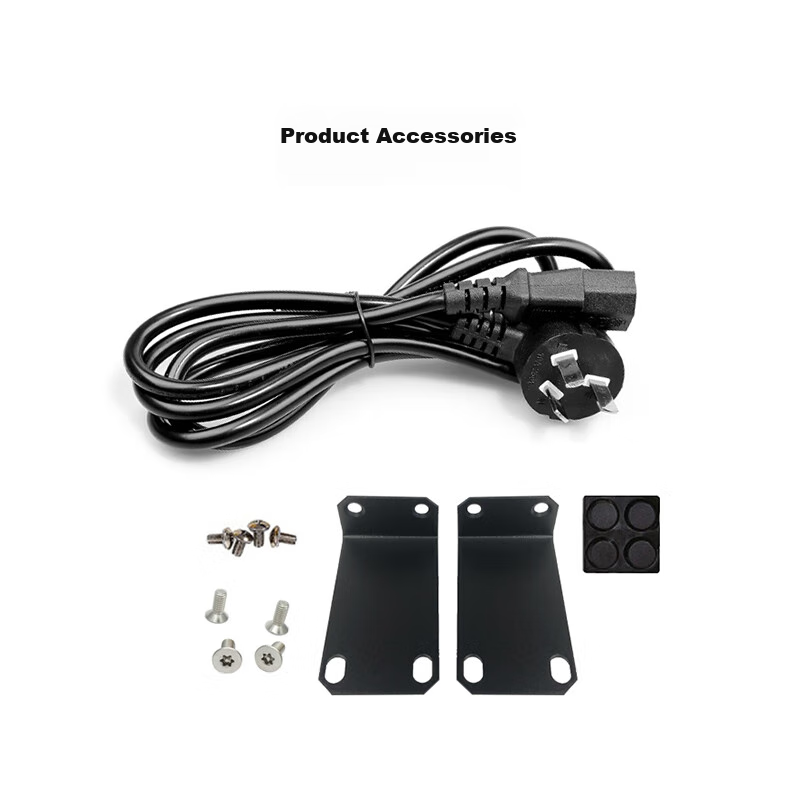

**Installation:** Wall-mountable with included mounting ears, can be rack-mounted

**Troubleshooting for Non-Managed Switches Unable to Connect to the Internet:**

1. Set the DIP switch to "Standard Exchange" mode.

2. Check port indicator lights for normal operation.

3. Perform network testing:

- Check cable connectivity.

- Directly connect a computer to the router using an Ethernet cable to isolate router issues.

- Connect the switch only to the router and computer, remove extra cables to troubleshoot internal network issues.
