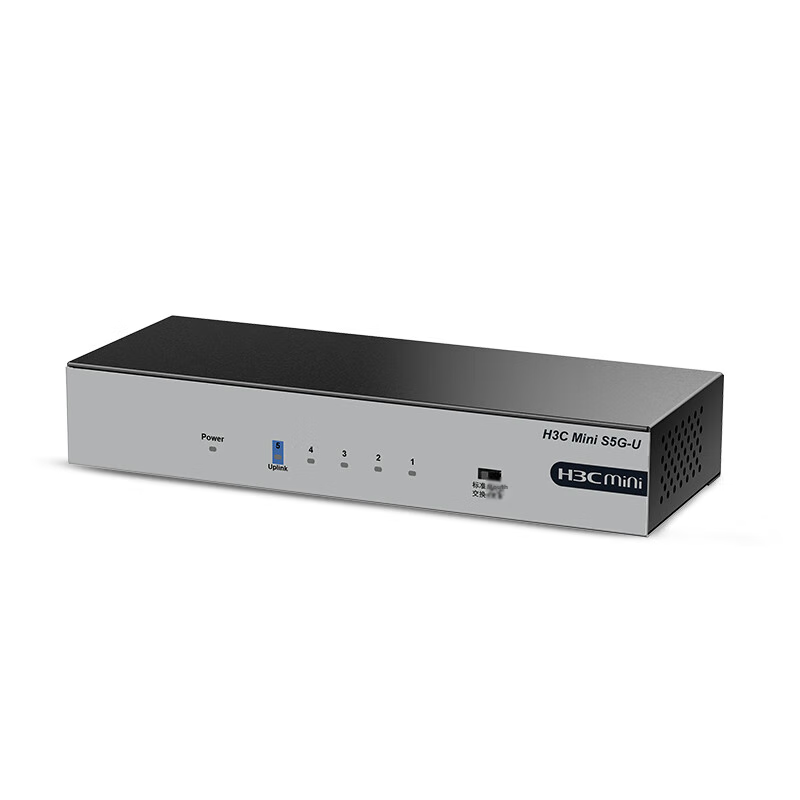

H3C (H3C) 5-Port Gigabit Switch, Unmanaged Enterprise-Grade Switch, Monitoring Network Cable Splitter, Home Dormitory Flow Divider, Mini S5G-U

SKU : 100004348062

Availability : In stock
4.7
Weight : 0.34 kg
Length : 25.5 cm
Height : 3.7 cm

GHS 178.22

GHS 192.48

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** H3C

**Model:** S5G-U

**Description:** 5-port Gigabit Ethernet surge-protected steel shell switch

**Power Supply:** DC54V

**Port Configuration:** 5 Gigabit Ethernet ports

**Features:**

- Supports two working modes: "Standard Switching" and "Port Isolation"

- Green energy-saving design

- 3-year warranty

- Metal body design for stable and quiet operation

**Dimensions:** 155mm x 58mm x 27mm

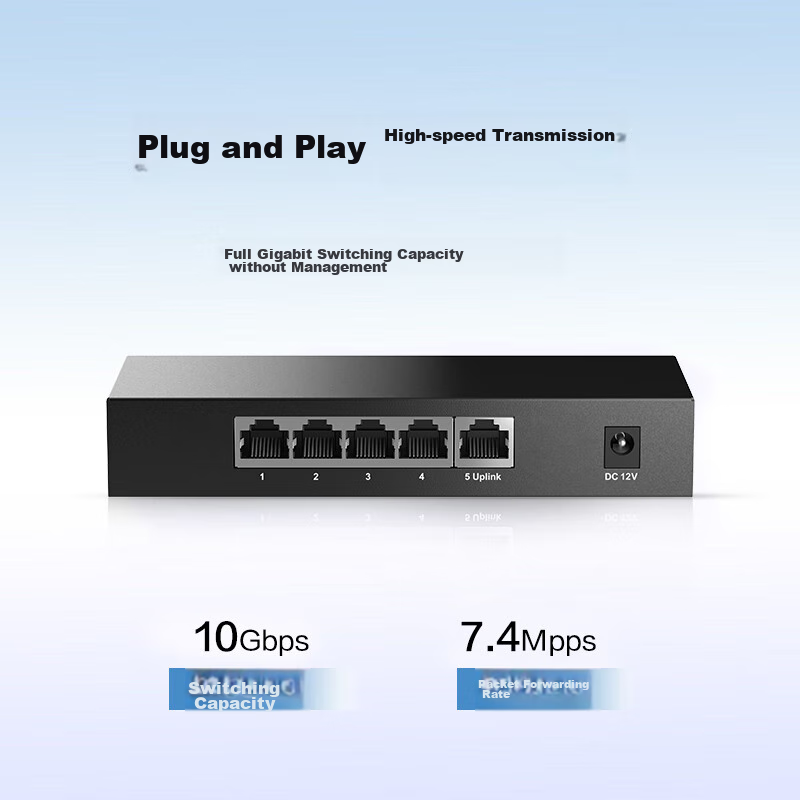

**Fixed Ports:** 5 x 10/100/1000Base-T Ethernet ports

**Switching Capacity:** 10Gbps

**Forwarding Rate:** 7.4Mpps

**MAC Table:** 2K entries

**Power Supply:** 12V/0.5ADC

**Heat Dissipation:** Passive cooling

**Installation:** Desktop

**Usage Scenarios:** Suitable for home, small and medium-sized enterprise offices, factories, hotels, etc.

**Troubleshooting Guide for Non-Managed Switches:**

1. Perform self-loop test by checking port indicator lights.

2. Check cable connectivity and test direct connection to the router.

3. Connect the switch only to the router and computer to isolate internal network issues.

**5-port Switch Selection Guide:**

**Models:** S1E, S1G, S105-U, S5G-U, S5G-P-U

**Port Types:** 5 x Gigabit Ethernet, 5 x Fast Ethernet, 5 x Gigabit Ethernet, 5 x Gigabit Ethernet, Type-C interface

**Switching Capacity:** 1Gbps, 10Gbps, 10Gbps, 10Gbps, 10Gbps

**Forwarding Rate:** 7.4Mpps

**Plug and Play:** Yes

**Management Type:** Port Isolation, Unmanaged, Unmanaged, Type-C powered, supports port isolation, intelligent watchdog

**Power Supply:** 5V/0.6A, 5V/0.6A, 12V/0.6A, 12V/0.6A, 12V/0.6A

**POE Power Supply:** 57W

**Material:** Plastic shell, plastic shell, plastic shell, steel shell, steel shell

**Dimensions:** 100x65x22.5, 120x90x27, 120x90x27, 155x58x27, 155x58x27

**Usage Scenarios:** Small and medium-sized enterprises, home/small businesses, small and medium-sized enterprises, small and medium-sized enterprises

**Heat Dissipation:** Passive cooling

**Form Factor:** Desktop

(Note: Specifications may vary slightly between models)
