H3C (H3C) 8-Port Gigabit Switch, Unmanaged Enterprise-Grade Switch, Monitoring Network Cable Splitter, 8 Gigabit Electrical Ports + 1 Gigabit Optical Port, S1209F

SKU : 6184052

Availability : In stock
4.7
Weight : 0.44 kg
Length : 24 cm
Height : 7.3 cm

GHS 498.26

GHS 538.13

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** H3C

**Model:** H3CS1209F

**Type:** 9-port Gigabit Unmanaged Switch

**Features:** Switching, SFP, VLAN, 8 x Gigabit Ethernet ports, 1 x Gigabit optical port

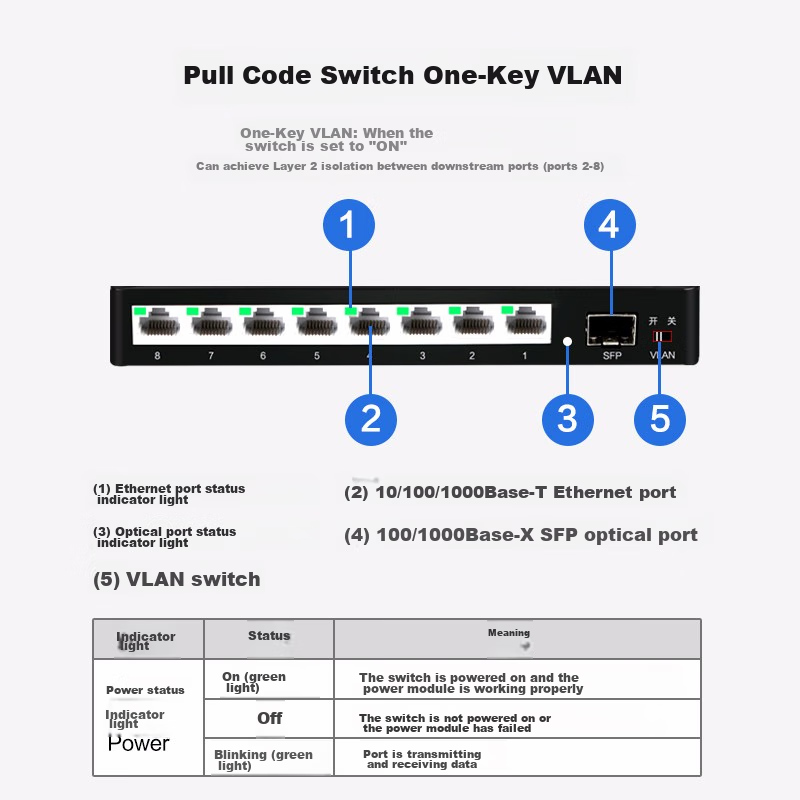

**Key Features:** One-key VLAN, professional lightning protection, shared cache architecture

**Port Configuration:** 8 x Gigabit Ethernet ports, 1 x Gigabit optical port

**Cache Architecture:** Shared cache architecture for enhanced forwarding performance during burst traffic

**Lightning Protection:** Integrated professional-grade lightning protection circuit for network stability

**Switching:** Plug-and-play, one-key VLAN configuration

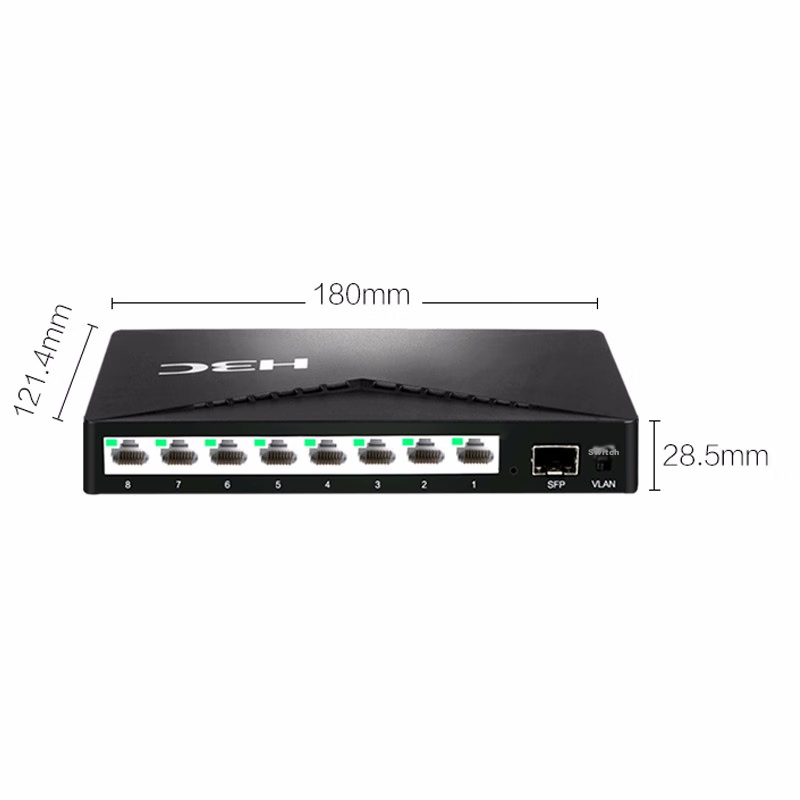

**Dimensions:** 180mm x 121.4mm x 28.5mm

**Port Types:** 8 x 10/100/1000Mbps RJ-45 ports, 1 x 1000Base-X SFP port

**Port Attributes:** Supports half-duplex, full-duplex, auto-negotiation

**Optical Port Attributes:** Supports 1000Mbit/s full-duplex transmission rate

**MAC Table:** 4K

**Packet Forwarding Rate:** 13.4Mpps

**Switching Capacity:** 18Gbps

**Operating Temperature:** 0°C to 40°C

**Storage Temperature:** -40°C to 70°C

**Operating Humidity:** 5% to 95% (non-condensing)

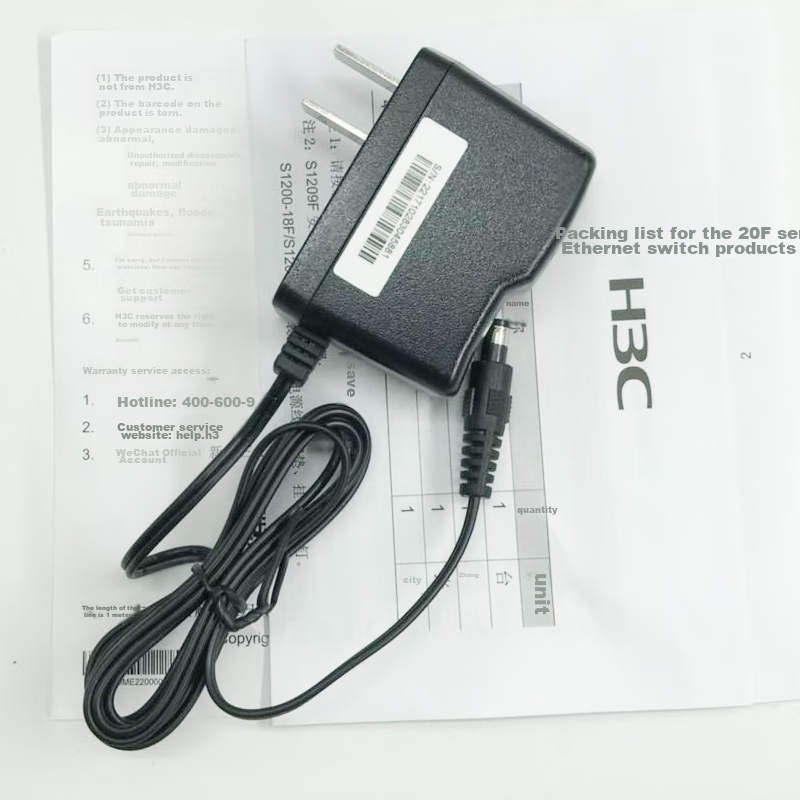

**Input Voltage:** DC 12V/0.5A

**Power Consumption:** <6W

**Cooling:** Fanless, passive cooling

**Material:** Plastic

**Additional Information:** Optical module for the Gigabit optical port needs to be purchased separately

**Comparison with Small Port Switches:**

| Model | Port Type | Dimensions | Power | Material |

|-------|-----------|------------|-------|----------|

| S1E | 5 x 100Mbps | 100x65x22.5mm | 5V/0.6A | Plastic |

| S2E | 8 x 100Mbps | 143.4x91.8x26.4mm | 5V/0.6A | Plastic |

| S1G | 5 x 1Gbps | 120x90x27mm | 5V/0.6A | Plastic |

| S5G-U | 5 x 1Gbps | 105x90x27mm | 12V/0.5A | Metal |

| S2G | 8 x 1Gbps | 158x105x27mm | 12V/0.5A | Plastic |

| S8G-U | 8 x 1Gbps | 155x58x27mm | 12V/0.5A | Metal |

| S1209F | 8 x 1Gbps + 1 x Gigabit optical | 180x121.4x28.5mm | 12V/0.5A | Plastic |

**Note:** All dimensions are in millimeters.
