H3C (H3C) Fiber Optic Transceiver, 100Mbps Single-Mode Single-Fiber Optical-Electrical Converter, 20km SC Interface (Single Unit), FC01-20A

SKU : 100086629797

Availability : In stock
4.7

Write your review

Weight : 0.22 kg
Length : 10.4 cm
Height : 6.7 cm

GHS 116.03

10.71

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

Specifications:

Brand: H3C

Model: H3CFC01-20A

Description: 100Mbps Fiber Optic Transceiver, SC Optical Interface Converter (Single Unit), HBC

Compatibility: H3CFC01-20A is recommended to be used with H3CFC01-20B

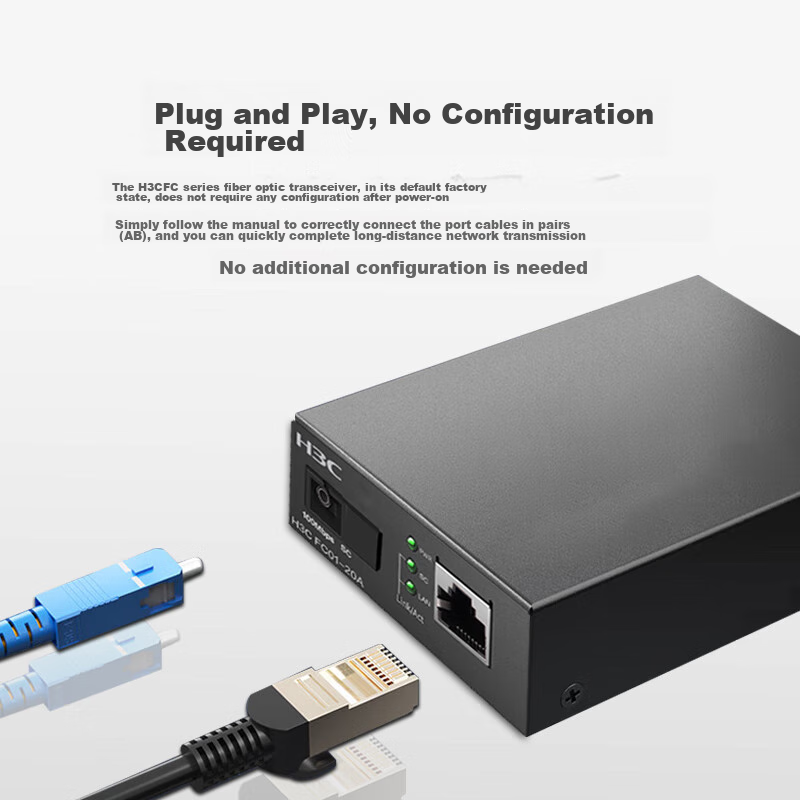

Plug and Play: No configuration required, simply connect the cables according to the manual

Operating Temperature: -20°C to +60°C

Metal Housing: Features a new all-metal casing with distributed ventilation for heat dissipation

Transmission Distance: Supports up to 20km fiber optic transmission

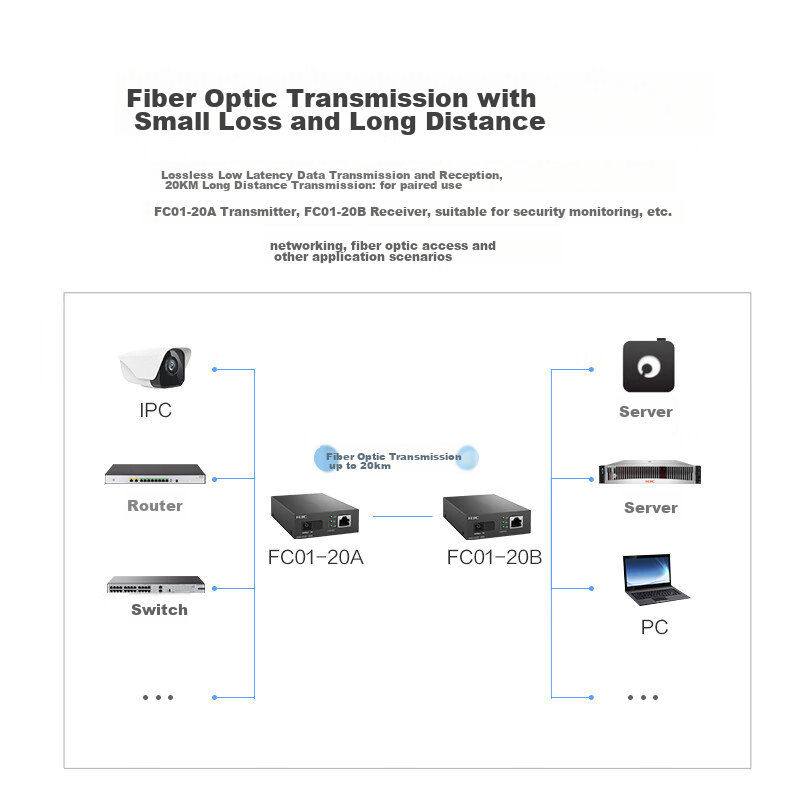

Application: Suitable for security monitoring, wireless networking, fiber optic access, IPC, servers, routers, switches, and PCs

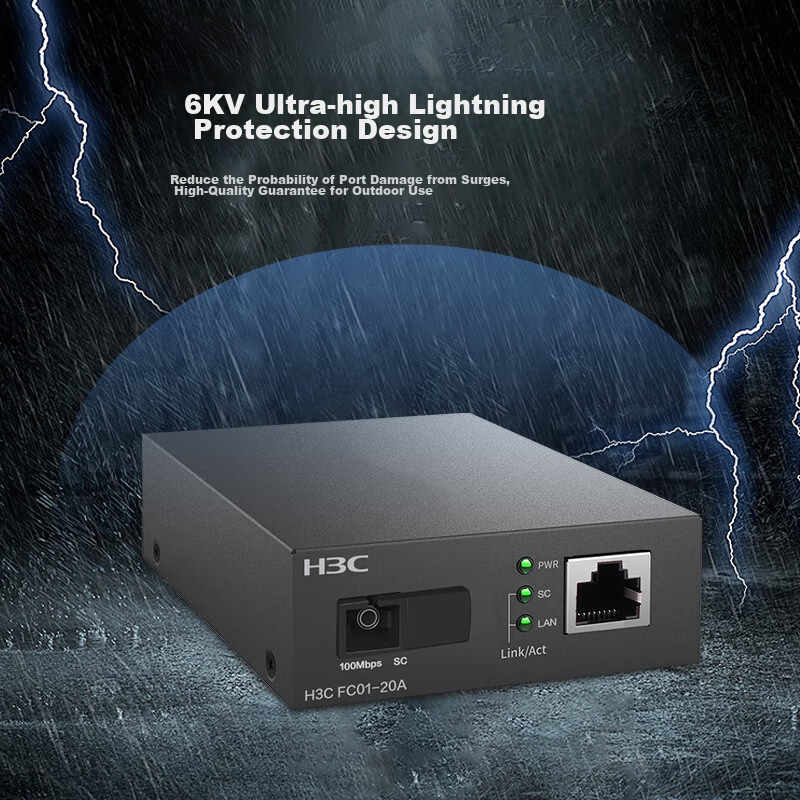

Surge Protection: 6KV high-level lightning protection design

Power Supply: Input 220VAC, 50/60Hz; Output 5VDC, 0.6A

Dimensions: 95×72×26mm

Wavelength: TX 1550nm, RX 1310nm

Humidity: Operating 10% to 90% RH, Storage 10% to 90% RH
