H3C (H3C) Fiber Optic Transceiver, Gigabit Single-Mode Single-Fiber Optical-Electrical Converter, 3 Kilometers SC Interface (Single Unit), FC01G-3B

SKU : 100086629795

Availability : In stock
4.7
Weight : 0.22 kg
Length : 10.3 cm
Height : 6.7 cm

GHS 158.18

GHS 170.83

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

Specifications:

Brand: H3C

Model: H3CFC01G-3B

Description: Gigabit Fiber Optic Transceiver

Interface: SC optical interface converter (single unit)

Compatibility: HBC, Link/Act

Pairing: H3CFC01G-3A is recommended to be used with H3CFC01G-3B

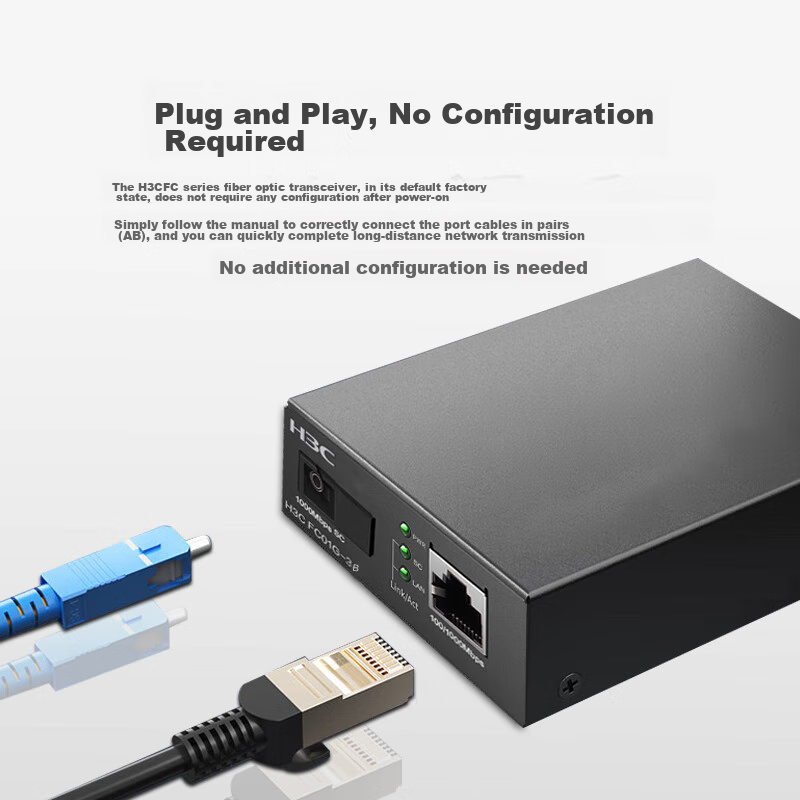

Plug and Play: No configuration needed, simply connect the cables as per the manual

Temperature Adaptability: Operates in harsh environments from -20°C to +60°C

Metal Casing: All-metal housing with distributed ventilation for heat dissipation

Transmission Speed: 1000Mbps SC

Distance: Supports long-distance transmission up to 3km

Low Latency: Minimal data loss and low latency transmission

Application: Suitable for security monitoring, wireless networking, fiber optic access, etc.

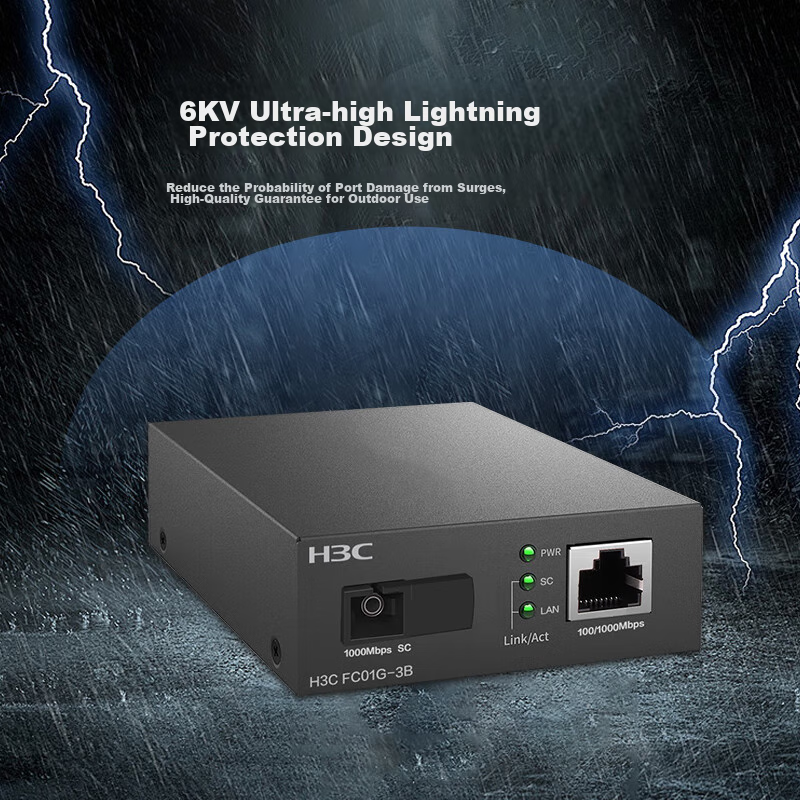

Protection: 6KV lightning protection design for outdoor use

Power Supply: Input - 220VAC, 50/60Hz; Output - 5VDC, 0.6A

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +70°C

Operating Humidity: 10% to 90% RH

Storage Humidity: 10% to 90% RH

Dimensions: 95×72×26 (mm)

Operating Wavelength: TX: 1550nm, RX: 1310nm
