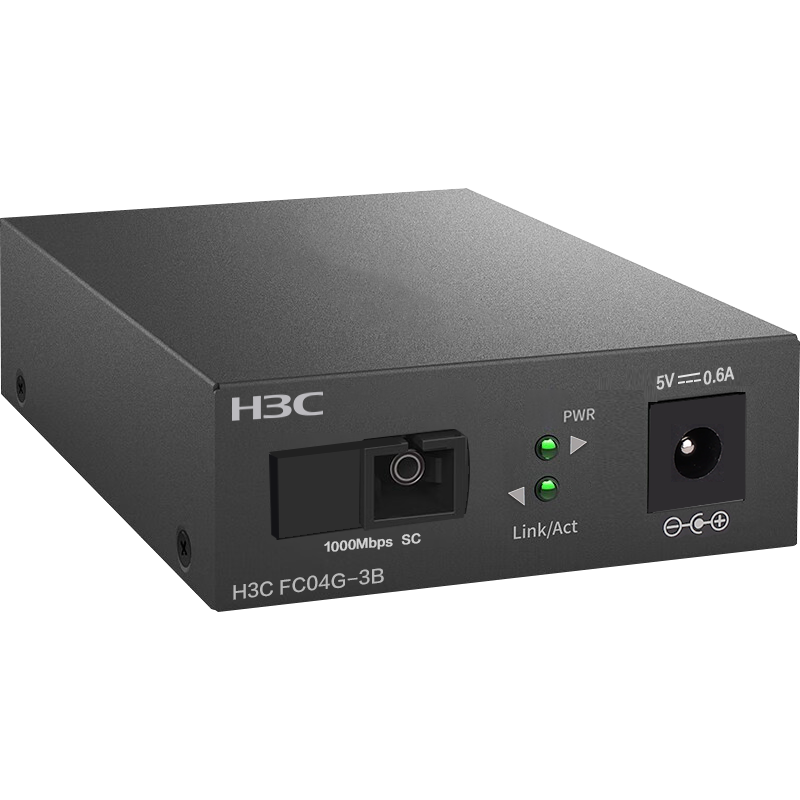

H3C (H3C) Fiber Optic Transceiver, Gigabit Single-Mode Single-Fiber Optical-Electrical Converter, 3km SC Interface One Optical Four Electrical (Single Unit), FC04G-3B

SKU : 100086629781

Availability : In stock
4.7
Weight : 0.246 kg
Length : 10.8 cm
Height : 7 cm

GHS 190.14

GHS 205.35

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

Specifications:

Brand: H3C

Model: H3CFC04G-3B

Product Type: Gigabit Fiber Optic Transceiver

Interface: SC Optical Interface

Compatibility: Compatible with H3CFC01G-3A

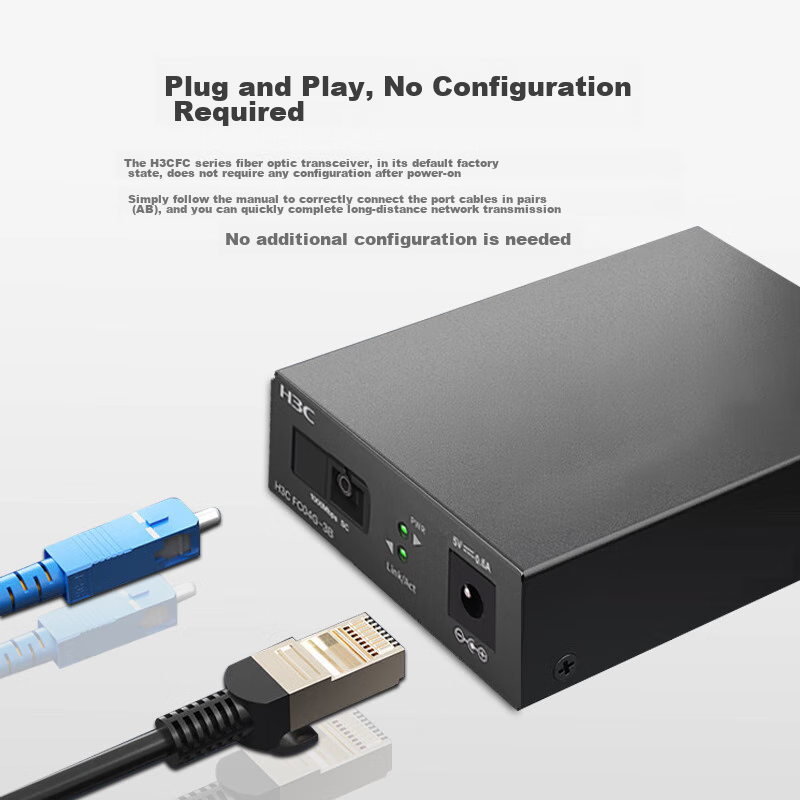

Plug and Play: No configuration required

Operating Temperature: -20°C to +60°C

Transmission Distance: Up to 3km

Data Rate: 100/1000Mbps

Features: Low latency, low loss transmission

Application: Suitable for security monitoring, wireless networking, fiber optic access, etc.

Lightning Protection: 6KV surge protection

Power Supply: Input 220VAC, 50/60Hz; Output 5VDC, 0.6A

Dimensions: 95×72×26mm

Operating Wavelength: TX 1550nm, RX 1310nm

Housing: Metal casing with distributed ventilation for heat dissipation

Humidity: 10% to 90% RH

Storage Temperature: -40°C to 70°C

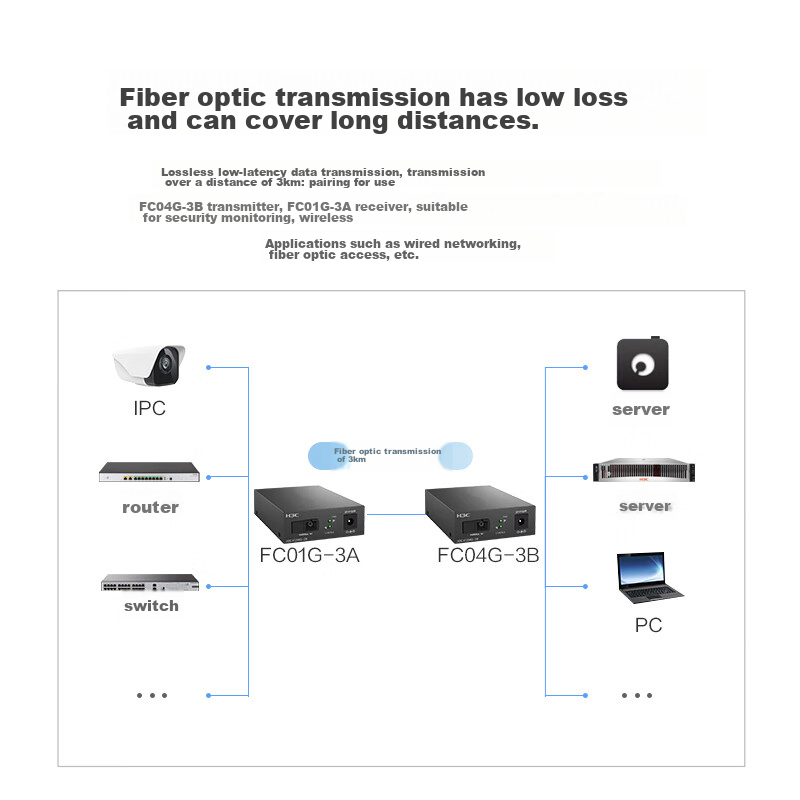

Note: H3CFC04G-3B is recommended to be used in pairs with H3CFC01G-3A for long-distance fiber optic transmission.
