H3C (H3C) S5024PV6-EI, 24 Gigabit Ethernet Ports + 4 Optical Ports, Full Gigabit Layer 2 Fully Managed Enterprise-Grade Network Switch, IPv6/stacking/Aggregation, Replacement for S5024PV5-EI

SKU : 8327080

Availability : In stock
4.7
Weight : 2.84 kg
Length : 53.6 cm
Height : 11.6 cm

GHS 2,039.54

GHS 2,202.70

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** H3C

**Web Interface Login Guide:**

1. Connect the computer's network port to any port on the device (excluding the debug port).

2. Set the computer's IP address to any IP within the same network segment as the device.

3. Enter the device's default IP address (recommended browsers: Google Chrome or Internet Explorer).

**Device Default IP Addresses:**

- Router: 192.168.1.1

- Firewall: 2 ports 192.168.1.1

- Switch: 192.168.0.233

- MINI Wireless AP: 192.168.1.100

- Xiao Bei AP: Connect to the WiFi ending with the last six digits of the MAC address, management address is 10.40.94.1

**Features:**

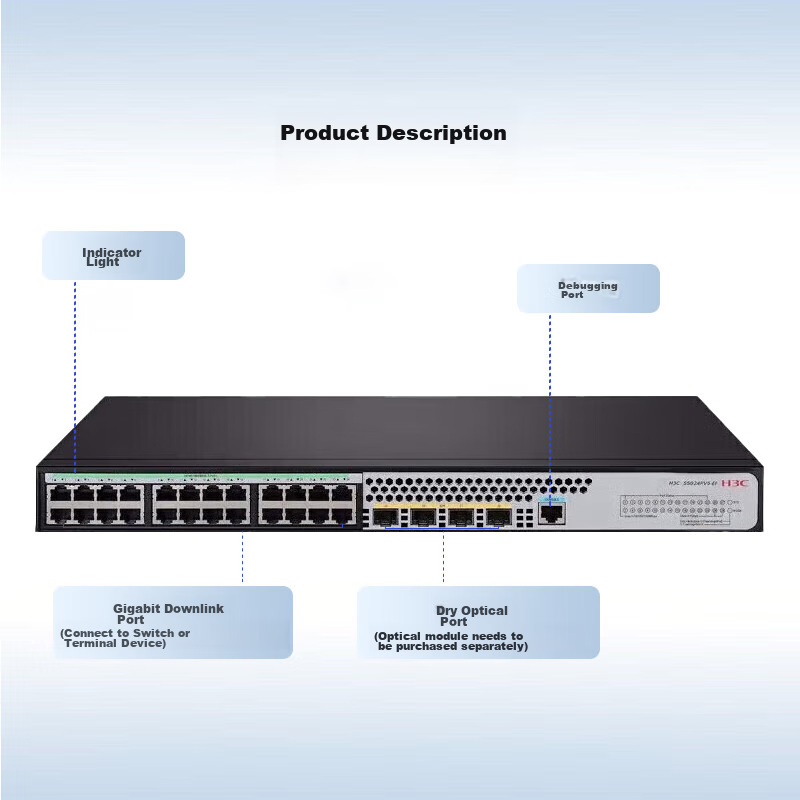

- 24 Gigabit Ethernet ports + 4 Gigabit optical ports

- Layer 2 network management enterprise switch

- Model: S5024PV5-EI

- HSC, easy management, intelligent stacking, security policies, green energy

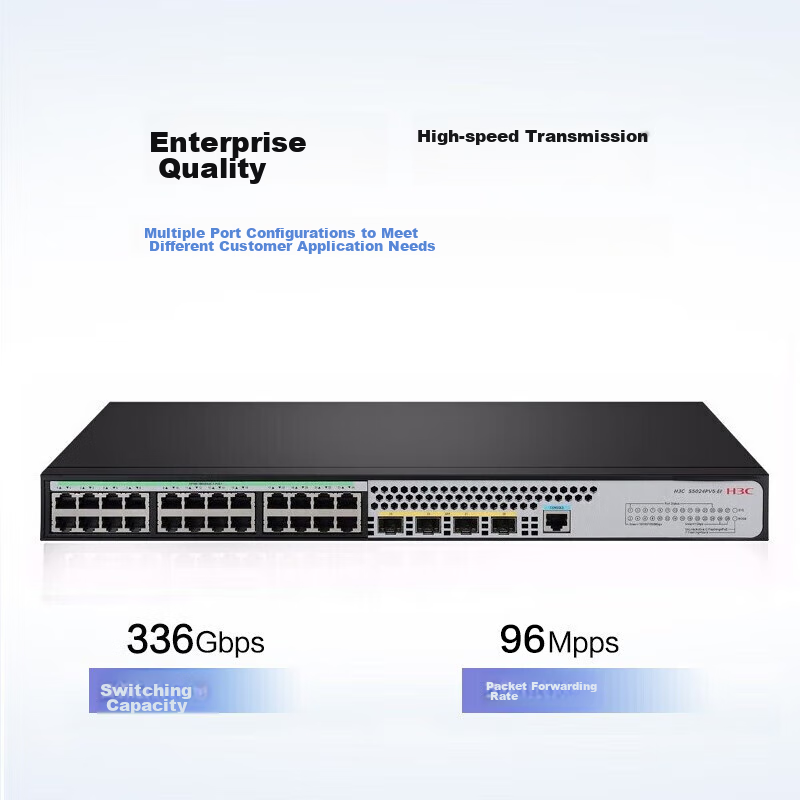

- Switching Capacity: 336Gbps

- Packet Forwarding Rate: 96Mpps

**Management Options:**

- Supports CLI command line, Web management, TELNET

- Supports iMC Intelligent Management Center, OpenView, and other common management platforms

- Console: RJ-45 connector, RS-232 serial port

- Configuration cable: DB-9 connector

- Ethernet port: RJ-45 connector

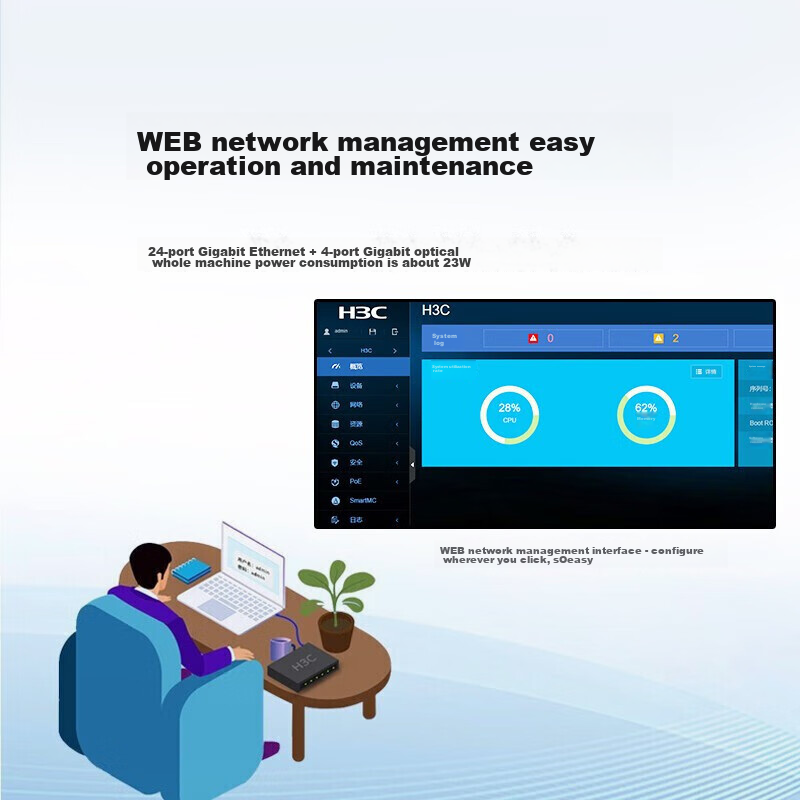

- Web configuration

**Advanced Features:**

- Supports IRF2 technology for intelligent elastic architecture

- Simplifies management and business operations

- High reliability and performance

- Link aggregation, device-level 1:N backup

**Security Policies:**

- ARP intrusion detection

- IP Source Guard, DHCP Snooping

- Port security features

- Authentication policies: 802.1X and MAC authentication

- Client detection, Guest VLAN

**QoS Strategies:**

- Port control, queue scheduling

- Supports IPv6, port rate limiting

- Supports SP, WRR, and various queue scheduling algorithms

**Green Energy Design:**

- Reduces power consumption and failure points

- China Energy Certification

- Complies with GB/T17626 and EN61000-4 & EN61000-6 standards

- ROHS compliant

**Network Applications:**

- Suitable for small office networks, medium-sized enterprise networks

- Supports various network configurations

- Supports multiple management protocols and system logs

**Environmental Specifications:**

- Operating temperature: -5°C to 45°C

- Operating humidity: 10% to 95% (non-condensing)

- Storage humidity: 10% to 95% (non-condensing)

**Compliance:**

- China RoHS, EEE

- Power Consumption: ≤23W

- Weight: ≤2.5kg

- Input Voltage: AC 100V~240V, 50/60Hz

**Dimensions:**

- 440mm x 160mm x 44mm (L x W x H)
