**Specifications:**
**Brand:** HIKROBOT ()
**Features:**
- High cost performance and high code reading efficiency
- Enterprise-level barcode scanner with sensitive recognition
- Capable of reading 1D/2D barcodes, paper, mobile screens, and orange LED aiming
- One-button scanning for easy recognition
- Suitable for various industries such as retail, logistics, supermarkets, convenience stores, bookstores, etc.
- Supports reading of 24 types of barcodes including difficult codes

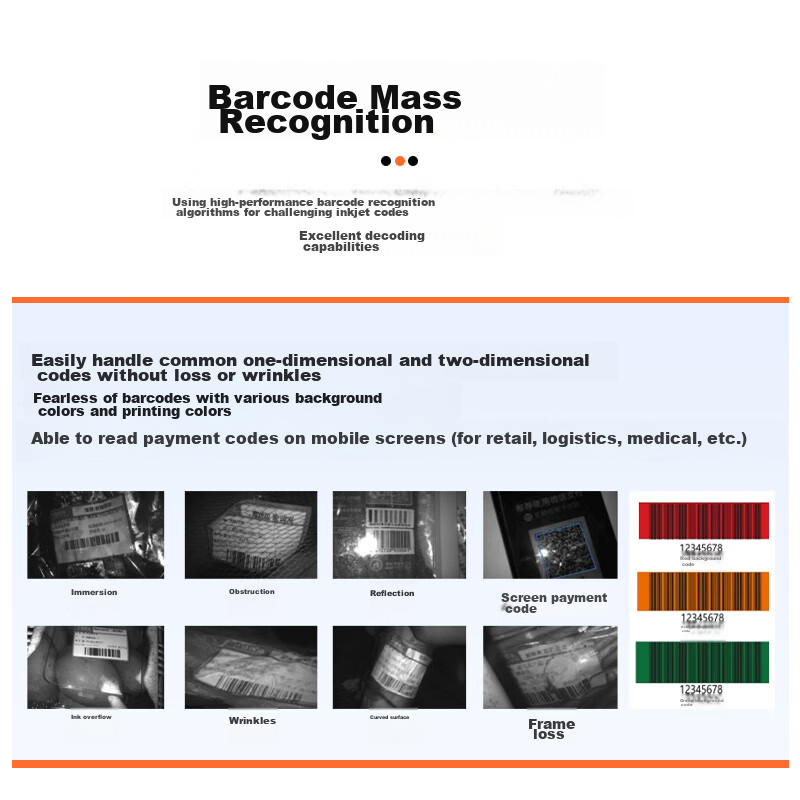

- High-performance barcode recognition algorithm for decoding capabilities
- Can read common 1D/2D barcodes without loss or creases
- Global exposure image sensor with NPU+CPU dual processing for efficient reading
- Industrial-grade design with IP42 protection and 1.5m drop resistance
- Ergonomic and compact design to reduce fatigue during intensive work

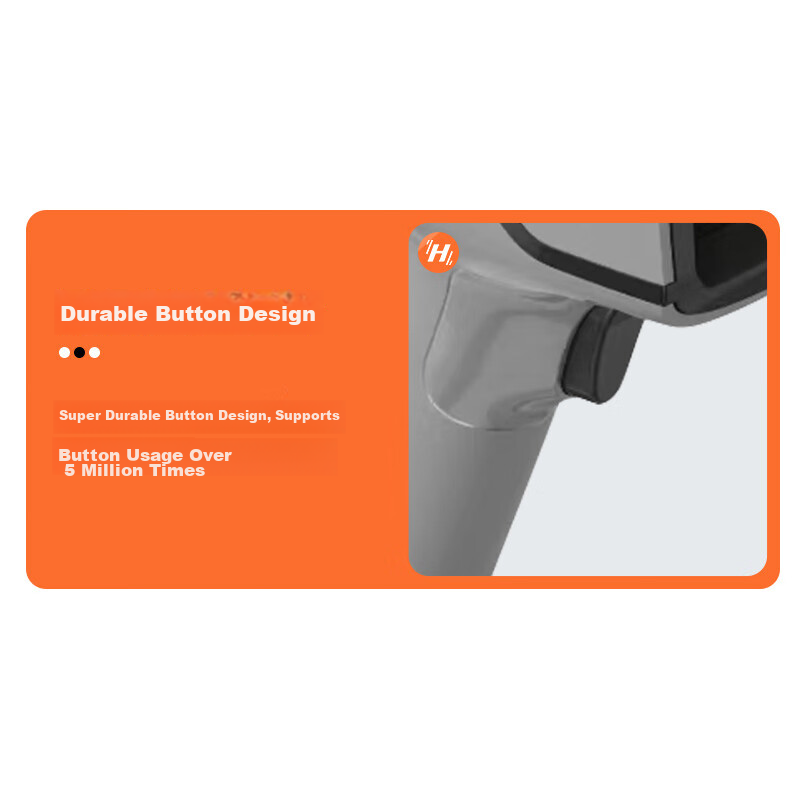

- Durable buttons with support for over 5 million presses
**Technical Specifications:**
- Communication Protocol: SmartSDK, USB (HID/CDC)
- Electrical Characteristics: USB 2.0 interface, 5VDC power supply, maximum power consumption of 2.5W@5VDC
- Structure: Focal length of 3.1mm, M5.0-Mount lens interface
- Environmental Conditions: 0~100000lux ambient light, white light LED source, orange LED aiming, LED indicator lights, buzzer

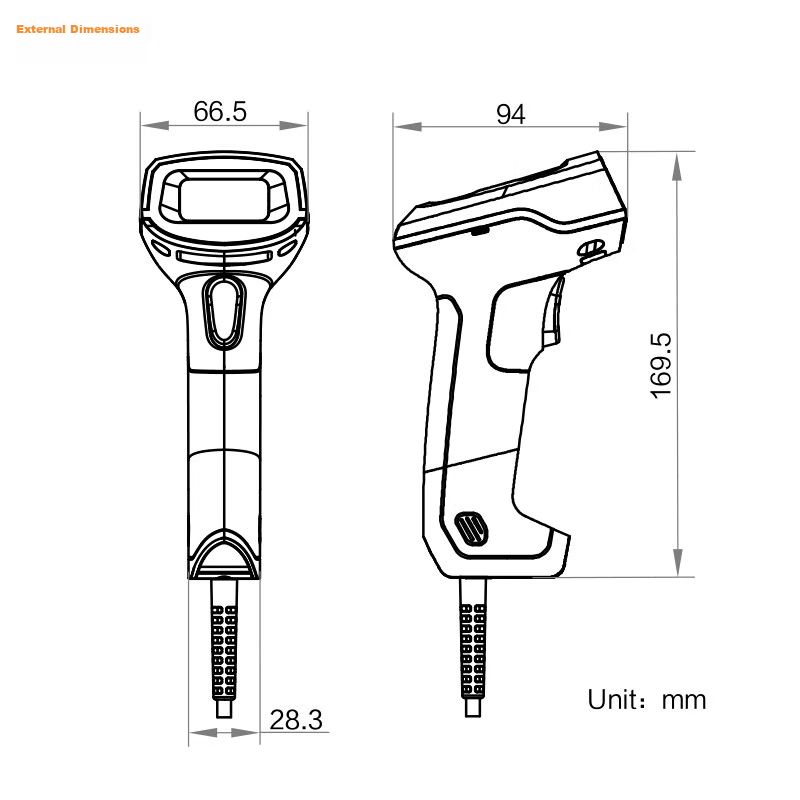

- Dimensions: 66.5mm×94mm×169.5mm

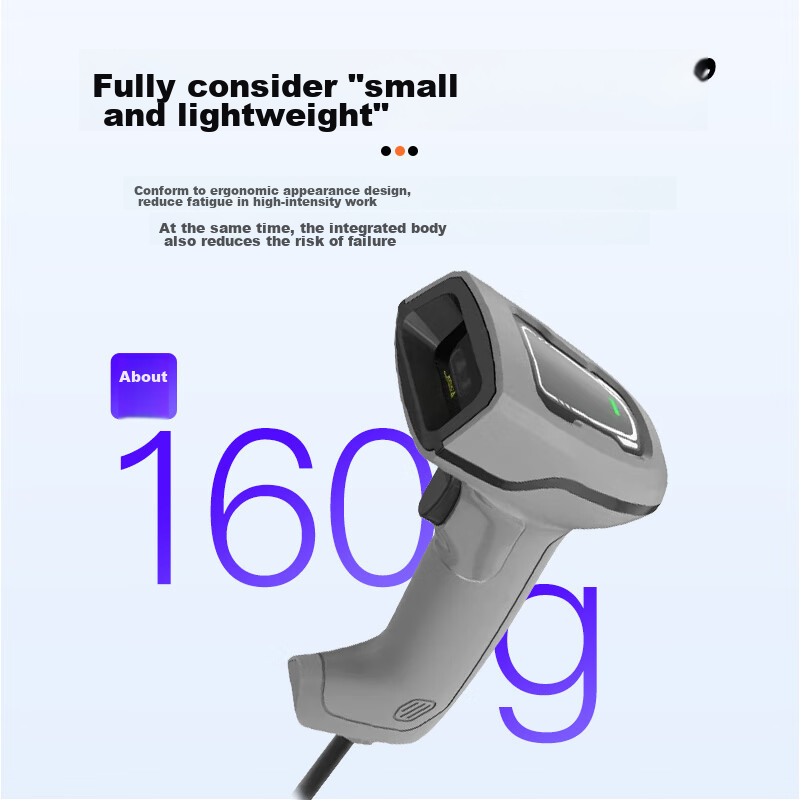

- Weight: Approximately 160g
- IP Protection Level: IP42
- Temperature: Operating temperature of -20~55℃, storage temperature of -30~70℃
- Humidity: 5% to 95% RH non-condensing
- Drop Height: 1.5m for 50 times
**General Specifications:**
- Software: IDMVS
- Certifications: CE, RoHS, KC
- *Testing Conditions: Ambient temperature=25℃; Ambient illuminance=250lux incandescent lamp; Use the test codes provided by the company.
