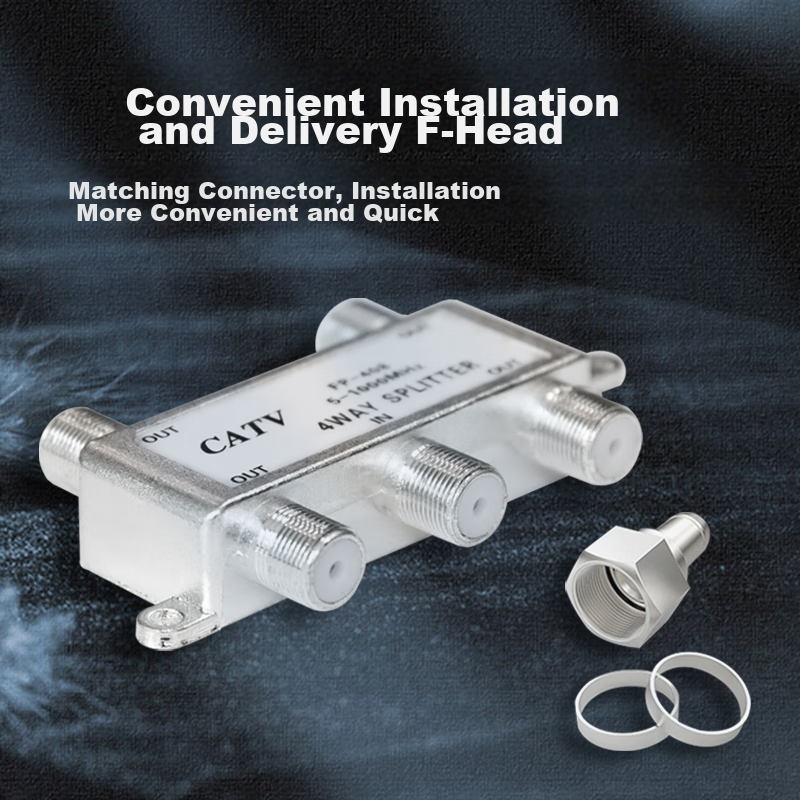

HAILE Video Distributor, 1-To Cable TV Signal Splitter, 408 Splitter, 5-1000MHz, Metric F Connector, FP-4G with Connector

SKU : 100025018566

Availability : In stock
4.7
Weight : 0.06 kg
Length : 7.2 cm
Height : 1.6 cm

GHS 64.14

GHS 69.27

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** HAILE

**Product Name:** 1x4 Video Distributor

**Frequency Range:** 5-1000MHz

**Insertion Loss:** 8dB

**Connector:** 75-5 Metric Connector

**Features:** Low insertion loss, shielded against interference, high-quality transmission

**Signal Stability:** Ensures stable signal and clear picture quality

**Material:** Zinc alloy with nickel-plated surface

**Craftsmanship:** Die-casting process with matte texture

**Compatibility:** Suitable for distributing signals to multiple display terminals (TVs)

**Installation:** Easy and quick installation with F-type connectors

**Dimensions:**

- Diameter: 6mm

- Length: 21.92mm

- Diameter of F Connector: 10.8mm

**Package Contents:** 1x4 Video Distributor, 75-5 Metric Connectors (x5)

**Usage:** Ideal for distributing signals to various display terminals, such as TVs

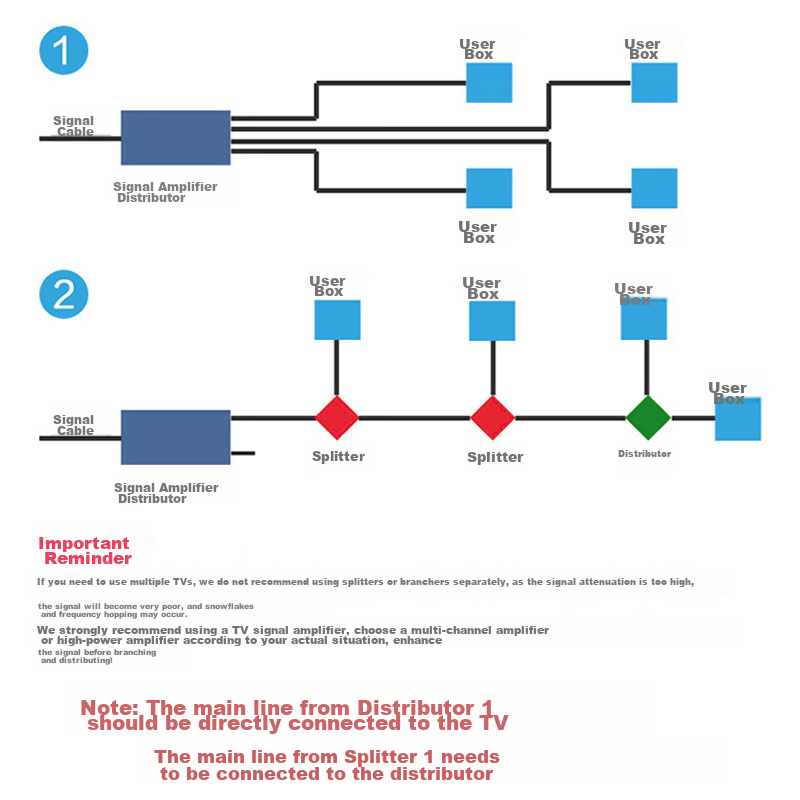

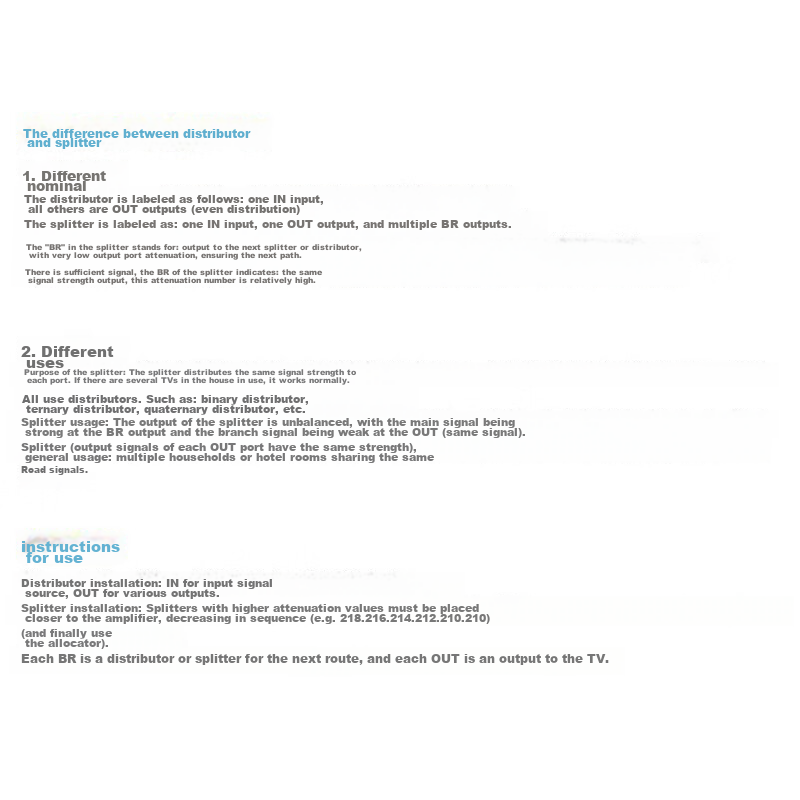

**Difference between Splitter and Tap:**

1. **Nominal Designation:** Splitters have one input (IN) and multiple outputs (OUT) for even distribution, while Taps have one input (IN), one main output (OUT), and multiple branch outputs (BR) with different attenuation levels.

2. **Application:** Splitters are used for distributing signals evenly to multiple devices, while Taps are used for distributing signals with different attenuation levels.

3. **Installation:** Splitters are connected in series for signal distribution, while Taps are placed closer to amplifiers and have decreasing attenuation levels.

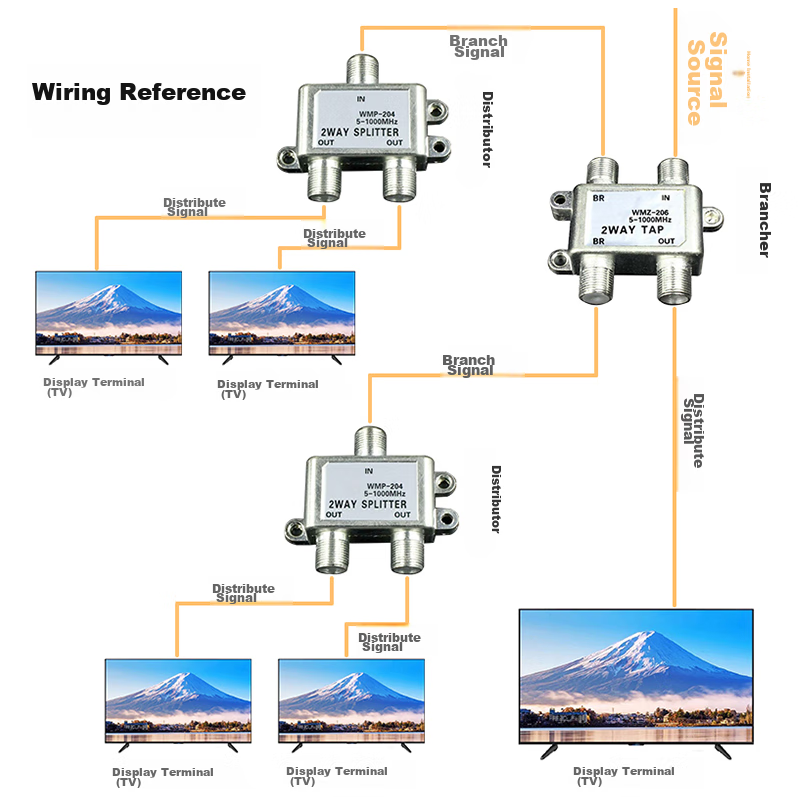

**Installation Instructions:**

- Connect the IN port to the signal source and the OUT ports to the display terminals.

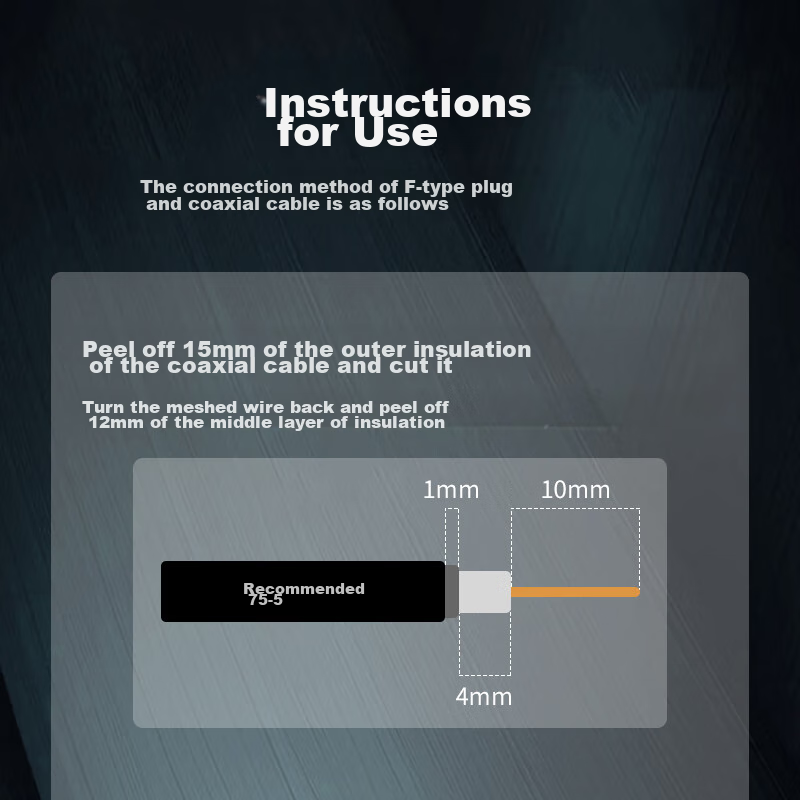

**Connector Installation:**

1. Strip the outer insulation of the coaxial cable by 15mm and remove the braid.

2. Strip the inner insulation by 12mm and expose the center conductor by 4mm.

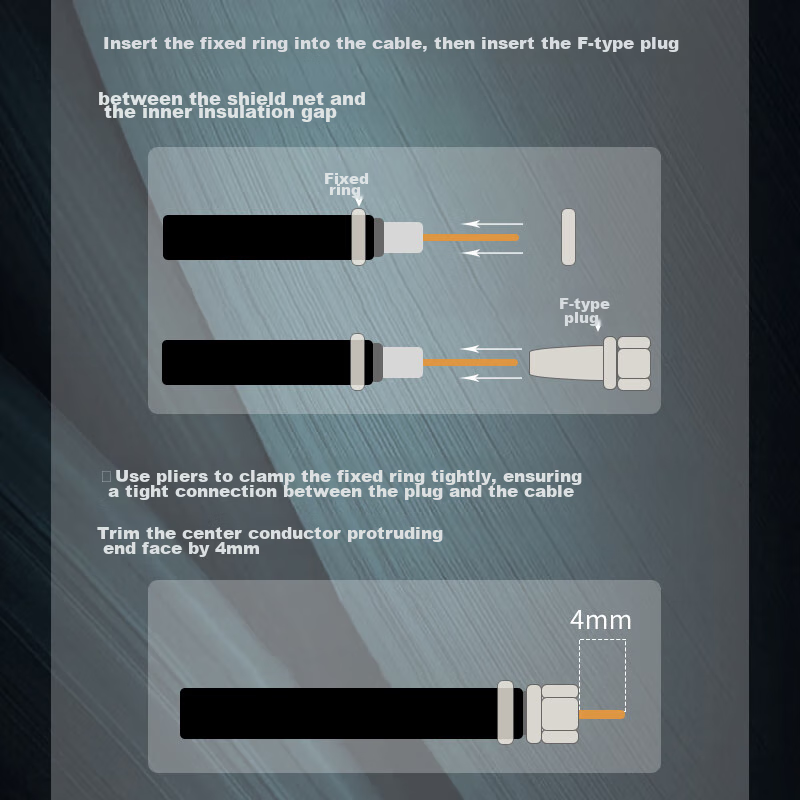

3. Insert the fixed ring into the cable and attach the F-type connector securely.

4. Use pliers to tighten the fixed ring and trim the center conductor to 4mm.

*Note: Manual measurements may have slight discrepancies. Actual product dimensions may vary.*
