HIKVISION, 5-Port 100Mbps POE Switch with Metal Shell for Heat Dissipation, Unmanaged, 100Mbps Extension Network Cable Transmission, Security Monitoring Network Splitter, DS-3E0105P

SKU : 100006600458

Availability : In stock
4.7
Weight : 0.815 kg
Length : 24 cm
Height : 7.1 cm

GHS 316.47

GHS 341.78

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** HIKVISION

**Model:** DS-3E0105P-E

**Interface:** 4 x 100Mbps PoE ports, 1 x 100Mbps Ethernet port

**Interface Type:** RJ45 ports, full duplex, MDI/MDI-X auto-adaptation

**Standards:** IEEE802.3, IEEE 802.3u, IEEE802.3x

**Switching Type:** Store-and-forward

**High Priority Ports:** 1-2

**Long-distance Ports:** 1-4

**MAC Address Table:** 1 K

**Switching Capacity:** 1 Gbps

**Packet Forwarding Rate:** 0.744 Mpps

**Internal Buffer:** 448 Kbits

**Power Supply Standards:** IEEE802.3af, IEEE802.3at

**Power Supply Core:** Supports 8-core power supply, providing power to wires 1/2/3/6 and 4/5/7/8 simultaneously

**PoE Ports:** 1-4

**Per Port Power Output:** 30W

**Total Power Output:** 60W

**Casing:** Metal material, fanless

**Weight:** 0.2kg

**Dimensions:** 105mm x 27.6mm x 83.1mm

**Operating Temperature:** 0°C to 40°C

**Storage Temperature:** -40°C to 85°C

**Relative Humidity:** 5% to 95% (non-condensing)

**Power Specifications:** 48VDC, 1.35A

**Features:**

1. High-speed and stable 100Mbps forwarding

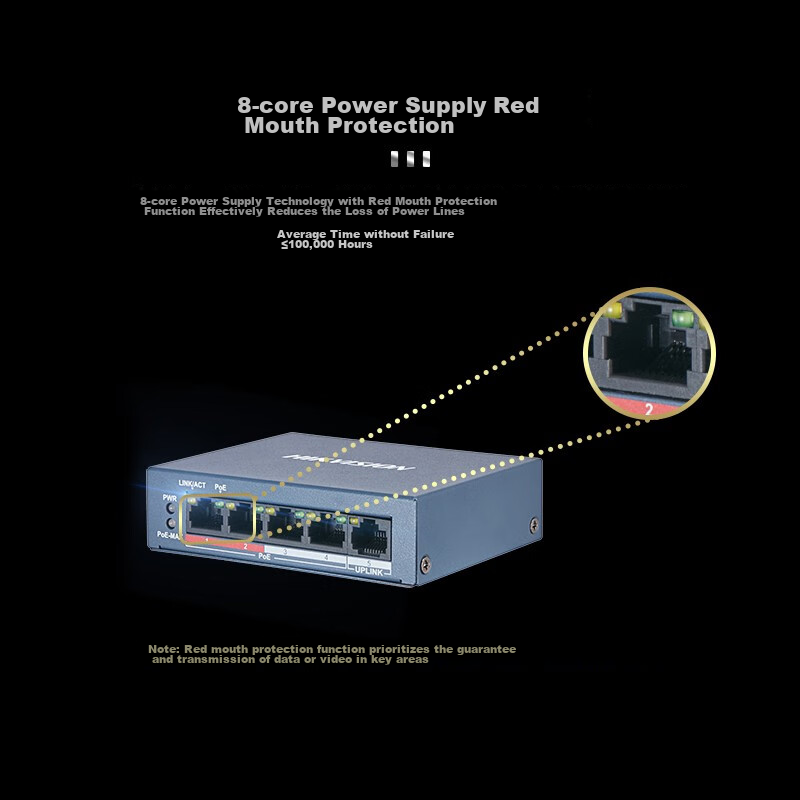

2. 8-core power supply for red port protection

3. Adaptive network port with extended transmission

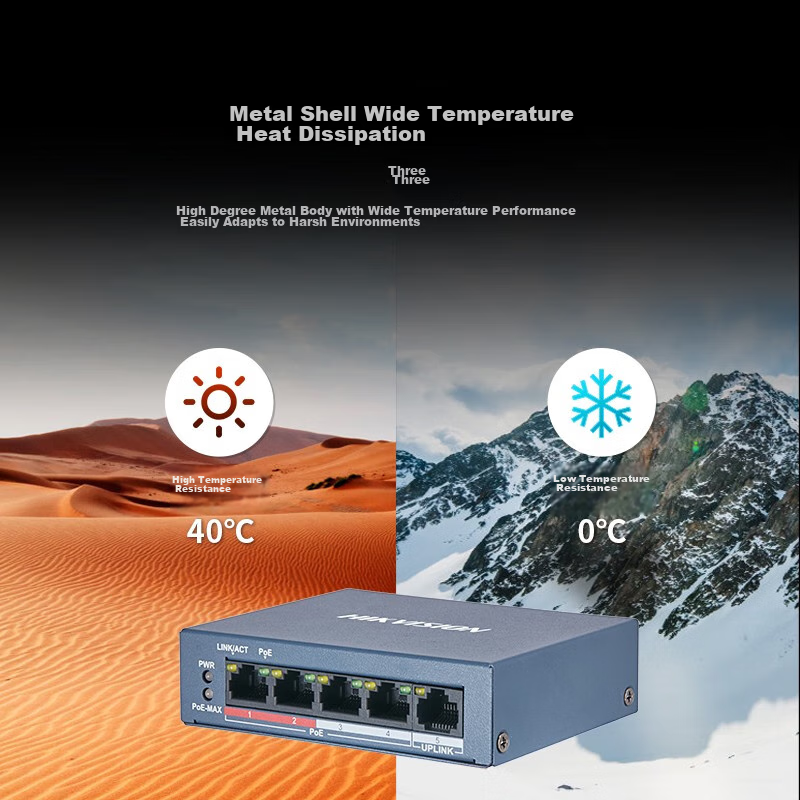

4. Wide temperature dispersion for efficient heat dissipation

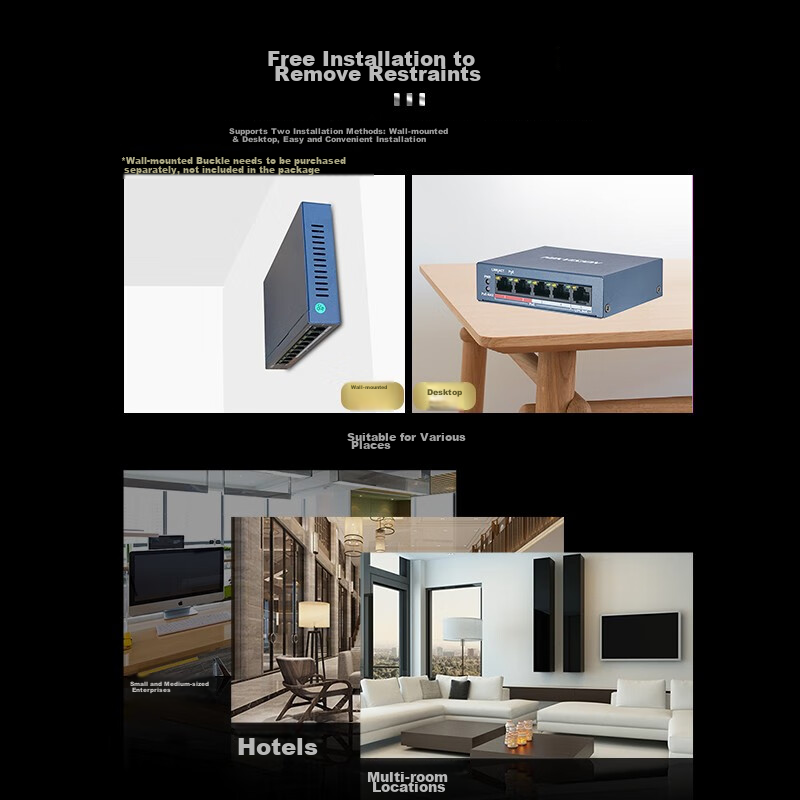

5. Plug and play installation for convenience

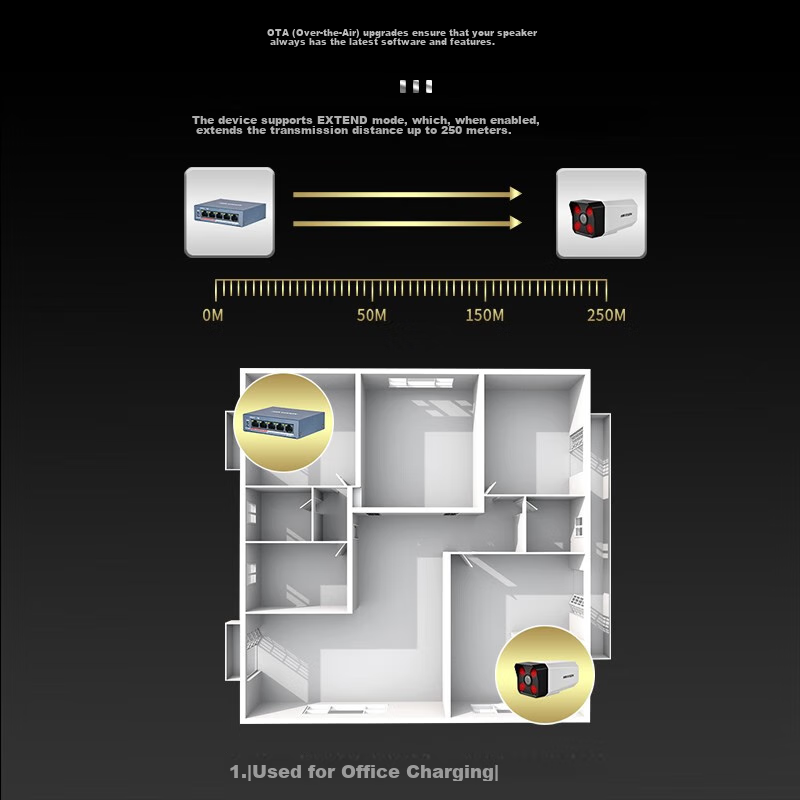

6. Supports Extend mode for long-distance transmission up to 250 meters

7. Stable 100Mbps forwarding performance

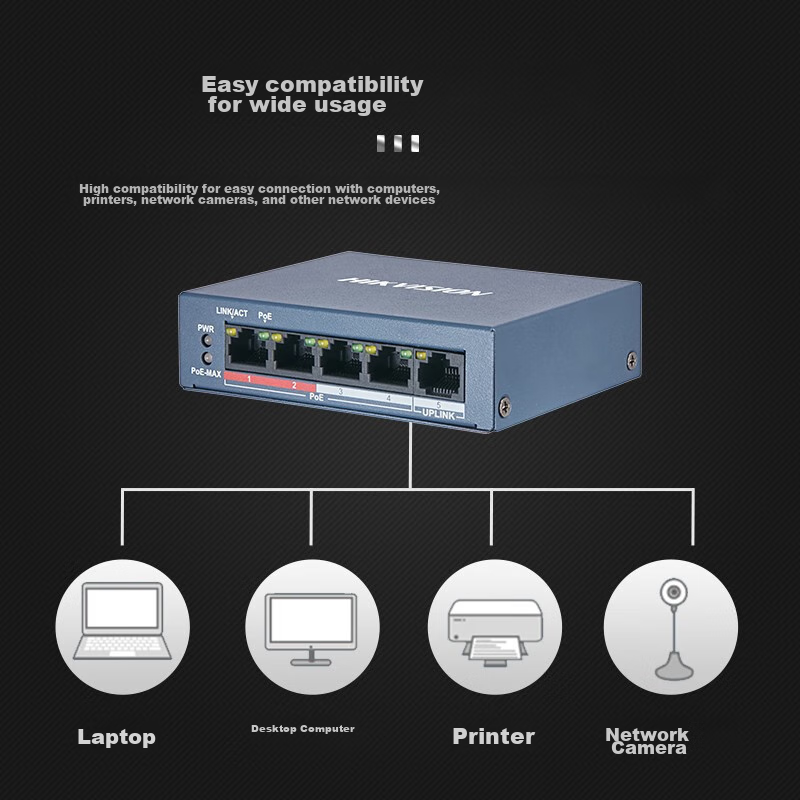

8. Wide compatibility with various network devices such as computers, printers, and network cameras

**Note:** For optimal long-distance transmission, use Category 5e or higher Ethernet cables. Red port protection prioritizes and ensures the transmission of data or video in critical areas.
