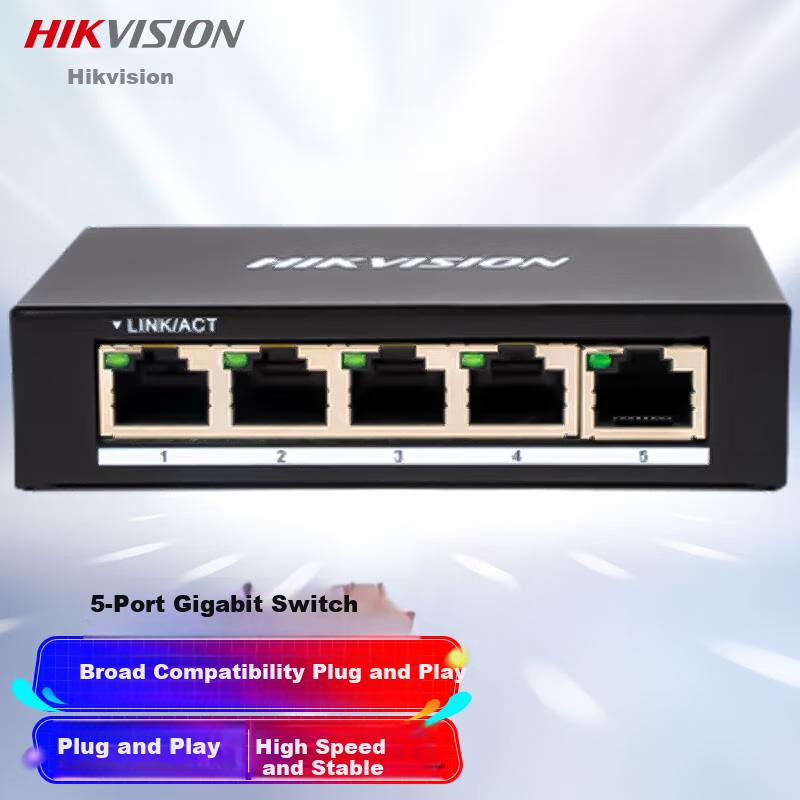

HIKVISION 5-Port Gigabit Unmanaged Switch for Surveillance Network Extension, Metal Housing Heat Dissipation DSW-05

SKU : 100062228178

Availability : In stock
4.7
Weight : 0.24 kg
Length : 11 cm
Height : 6.3 cm

GHS 182.12

GHS 196.69

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** HIKVISION

**Gigabit Switch Buying Guide**

**Models & Appearance:** TTTT, B33331333337, DSW-05, DSW-08, DSW-16M, DSW-24M

**Port Quantity:** 5 ports, 8 ports, 16 ports, 24 ports

**Port Speed:** Gigabit

**Dimensions (mm):** 103.05*25.6*61.1, 145*25.6*68.45, 335*44.5*175.8, 335*44.5*175.8

**Switching Capacity:** 10Gbps, 16Gbps, 32Gbps, 48Gbps

**MAC Address Capacity:** 2K, 4K, 8K, 8K

**Packet Forwarding Rate:** 7.44Mpps, 11.90Mpps, 23.81Mpps, 35.71Mpps

**Buffer:** 1Mbits, 1.5Mbits, 4.1Mbits, 4.1Mbits

**Surge Protection:** 4kV, 4kV, 6kV, 6kV

**Supports Multi-mode Button Switching**

**Operating Modes:** M1 (Standard Switch), M2 (Port Isolation), M3 (Port Aggregation), M4 (Network Clone)

**Operating Temperature:** 0°C~40°C, -5°C~50°C

**Installation:** Desktop, Desktop/Rack-mount (1U high, 13 inches wide)

**Usage:** Non-managed, Plug and Play

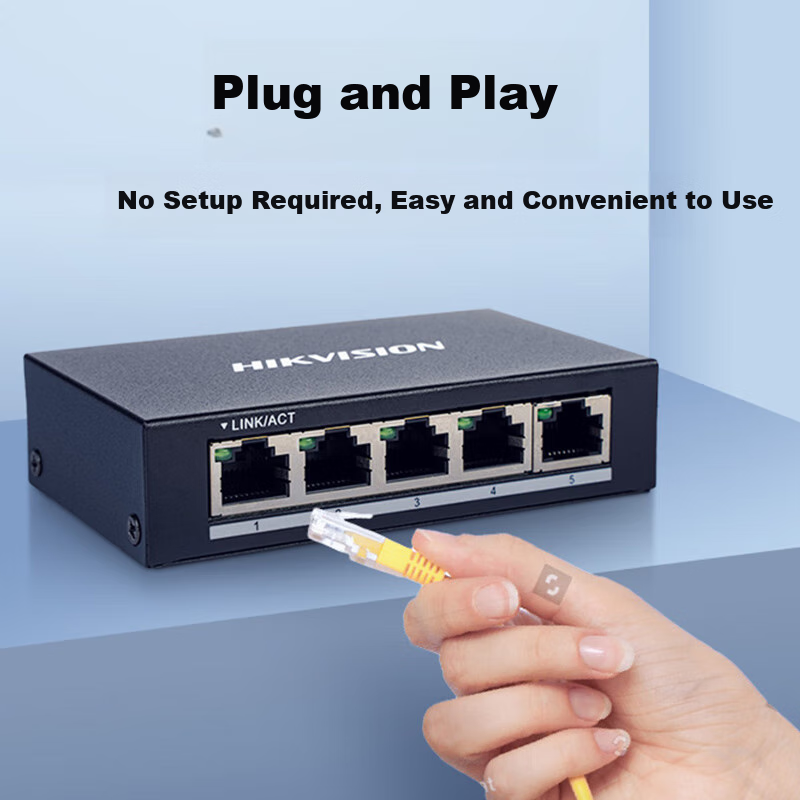

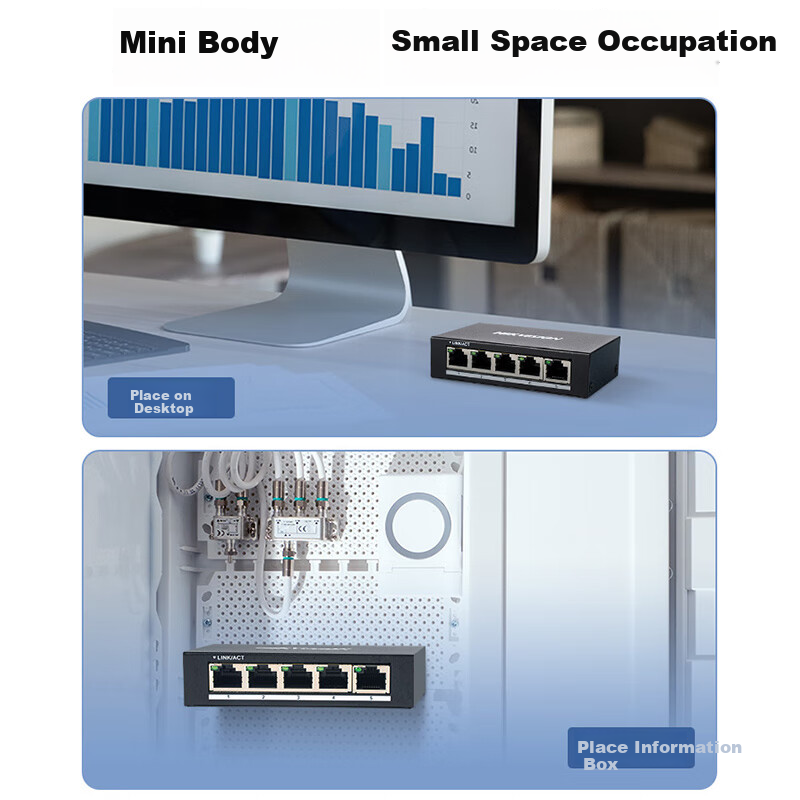

**Features:** Gigabit ports for smooth line-speed forwarding, compact mini body for easy placement on desktops or in information boxes, sturdy metal casing for durability and heat dissipation, plug and play functionality for easy setup, 6KV surge protection for stable transmission, RJ45 port indicator lights for clear network status, suitable for various applications such as office parks, supermarkets, hotels, factories, schools, and villas

**Product Images:** Front view, PWR, PWR, DC5V, Rear view, Left side view, Right side view
