HIKVISION CAT6 Gigabit Ethernet Cable, Engineering Grade Oxygen-Free Copper Box Cable, High-Speed Network Unshielded Twisted Pair Cable for Surveillance And Office Wiring, 305 Meters/box, 1LN6-UE

SKU : 100000502890

Availability : In stock
4.7

Write your review

Weight : 12.66 kg
Length : 40.4 cm
Height : 24.2 cm

GHS 1,435.10

132.46

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

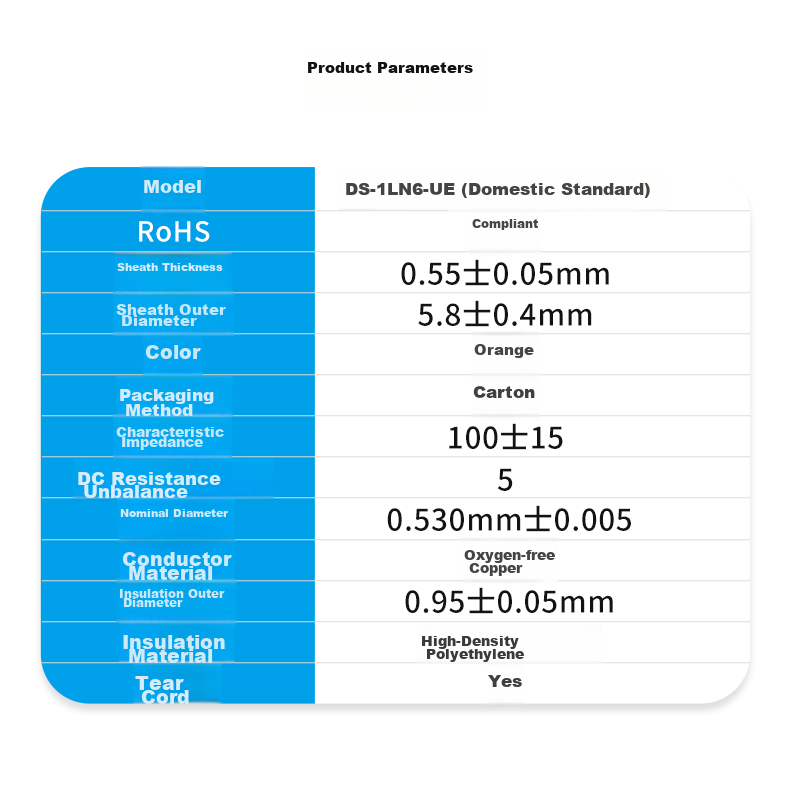

**Product Specifications:**

**Brand:** HIKVISION

**Model:** DS-1LN6-UE

**Cable Type:** CAT.6

**Cable Length:** 305 meters per box

**Outer Jacket Material:** PVC

**Color:** Orange

**Conductor Material:** Oxygen-free copper

**Insulation Material:** High-density polyethylene (HDPE)

**Wire Core Diameter:** 0.53±0.05mm

**Outer Diameter:** 5.8±0.4mm

**Pull Cord:** Yes

**Application:** Suitable for routers, switches, ADSL, computers, etc.

**Features:** PVC outer jacket, HDPE wear-resistant insulation layer, cross skeleton, oxygen-free copper core, tear cord

**Transmission Speed:** Up to 1000Mbps

**Compatibility:** Supports Gigabit Ethernet

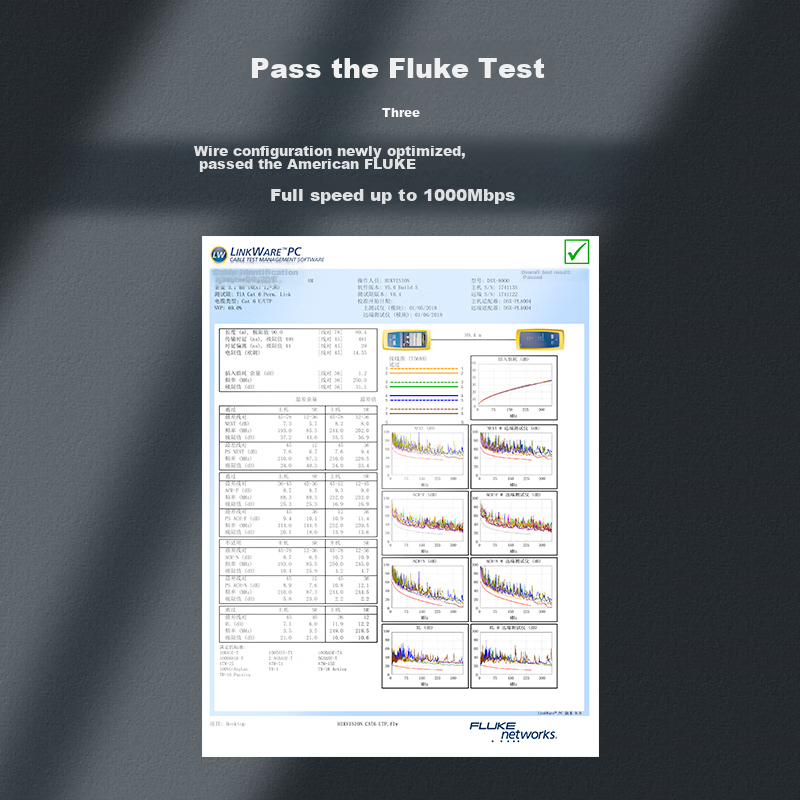

**Quality Assurance:** Fluke tested, CAT.6 performance certified

**Installation Instructions:**

1. Strip the outer skin

2. Remove the outer plastic skin

3. Straighten the exposed wires and arrange them according to TIA568B

4. Trim the front end of the wires

5. Insert the wires into the crystal head in the correct direction

6. Push the wires all the way in, approximately 13mm in length

7. Inspect the front end

8. Press down evenly on the 8 gold pieces with the corresponding tool

9. Ensure the wires are fully inserted into the crystal head

**Usage:** Suitable for various network environments, indoor installations, wiring projects, equipment connections, etc.

**Bending Radius:** Recommended bending radius greater than 5 times the cable diameter

**Tensile Strength:** Short-term tensile strength less than 110N during installation, long-term tensile strength less than 20N during use

**Temperature Range:** Construction temperature: 0~40°C; Operating temperature: -10~60°C

**Recommendation:** To ensure cable longevity, it is advised to use protective conduits during installation

*Note: The above specifications are based on testing data from HIKVISION laboratories. Slight variations in physical appearance are within normal range.*
