HIKVISION Engineering-Grade CAT5e Unshielded Twisted Pair Cable, Oxygen-Free Copper Box Cable, Flame-Retardant, Tested, 305 Meters/box, 1LN5E-S/E

SKU : 100000502902

Availability : In stock
4.7
Weight : 9.18 kg
Length : 35.2 cm
Height : 20.4 cm

GHS 1,131.85

GHS 1,222.40

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** HIKVISION

**Model:** DS-1LN5E-S/E

**Cable Type:** CAT.5E

**Outer Sheath Material:** PVC

**Color:** Grey

**Conductor Material:** Oxygen-free Copper

**Insulation Material:** High-Density Polyethylene (HDPE)

**Cable Length:** 305 meters per box

**Wire Core Diameter:** 0.50±0.05mm

**Sheath Outer Diameter:** 5.0±0.4mm

**Pull Cord:** Yes

**Application:** Suitable for routers, switches, ADSL, computers, etc.

**Transmission Speed:** Up to 100Mbps

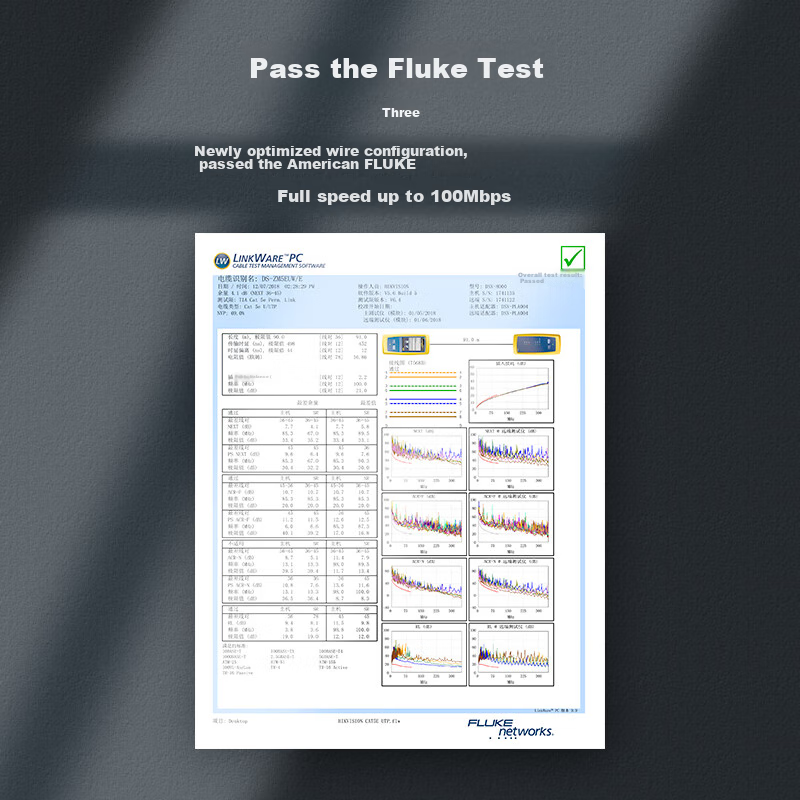

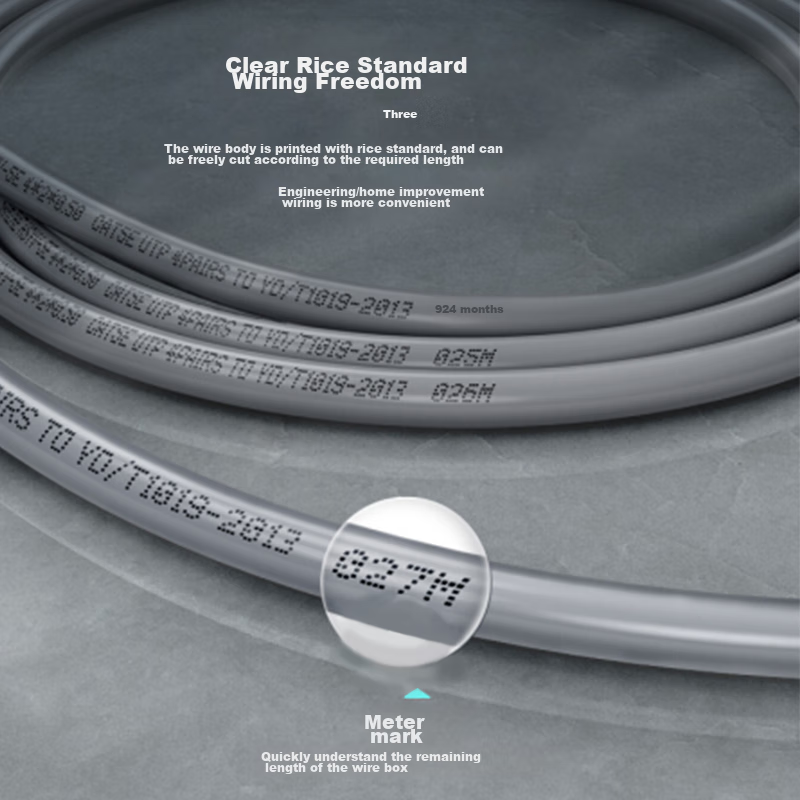

**Features:** Four twisted pairs for reduced signal interference, Fluke tested for performance, flexible PVC for durability, clear length markings for easy installation, suitable for various network environments

**Installation Instructions:** Detailed instructions provided for easy termination and installation

**Usage Scenarios:** Ideal for indoor use in various settings such as offices, internet cafes, server rooms, entertainment venues, and home installations

**Bending Radius:** Recommended bending radius should be greater than 5 times the cable diameter

**Tensile Strength:** Short-term tensile strength should be less than 110N during installation and less than 20N during use

**Temperature Range:** Suitable for installation and use in temperatures ranging from 0 to 40°C during construction and -10 to 60°C during operation

**Additional Information:** To ensure cable longevity, it is recommended to use protective conduits during installation

*Note: All specifications are based on testing conducted by HIKVISION laboratories. Actual product may have slight variances within normal ranges.*
