**Product Specifications**

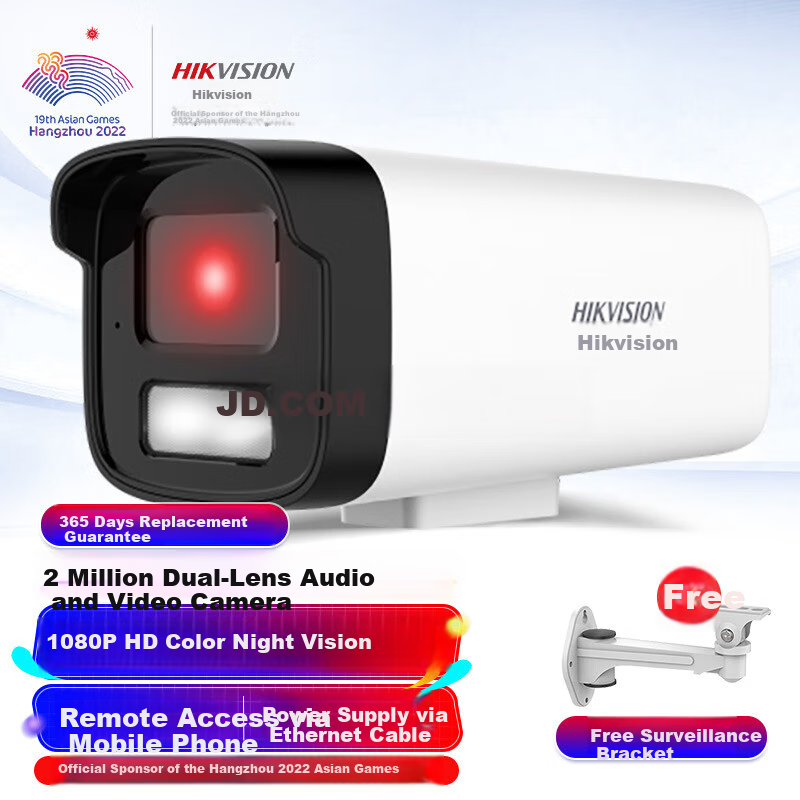

**Brand:** HIKVISION
**Model:** DS-IPC-B12HV3-LA
**Features:** Night vision up to 30 meters, dual-light camera, 2 million pixel dual-light night vision high-definition view
**Functions:** Full-color dual-light, infrared night vision, intelligent full-package, appearance, real-time sound pickup version, two-way intercom version
**Recommended Models:** B12HV3-IA (2MP), B12HV3-LA (2MP), B12HV3-LT (2MP), K12H-LT (2MP), B13HV3-IA (3MP), B13HV3-LA (3MP), B14HV3-LT (4MP), K14H-LT (4MP)
**Power Supply:** Power/POE
**Audio Function:** HD sound pickup, voice intercom + HD sound pickup
**Night Vision:** Infrared night vision, full-color white light, intelligent supplementary light
**Other Functions:** Human detection/motion detection, infrared light up to 30m, soft light up to 30m
**Weather Resistance:** IP67 waterproof and dustproof design
**Camera Parameters:**
- **Sensor Type:** 1/2.7" Progressive Scan CMOS
- **Minimum Illumination:** Color: 0.01Lux @(F1.2, AGC ON), 0 Lux with Light
- **Shutter:** 1/3s~1/100,000s
- **Day/Night Switching Mode:** ICR infrared filter type
- **Wide Dynamic Range:** Digital WDR

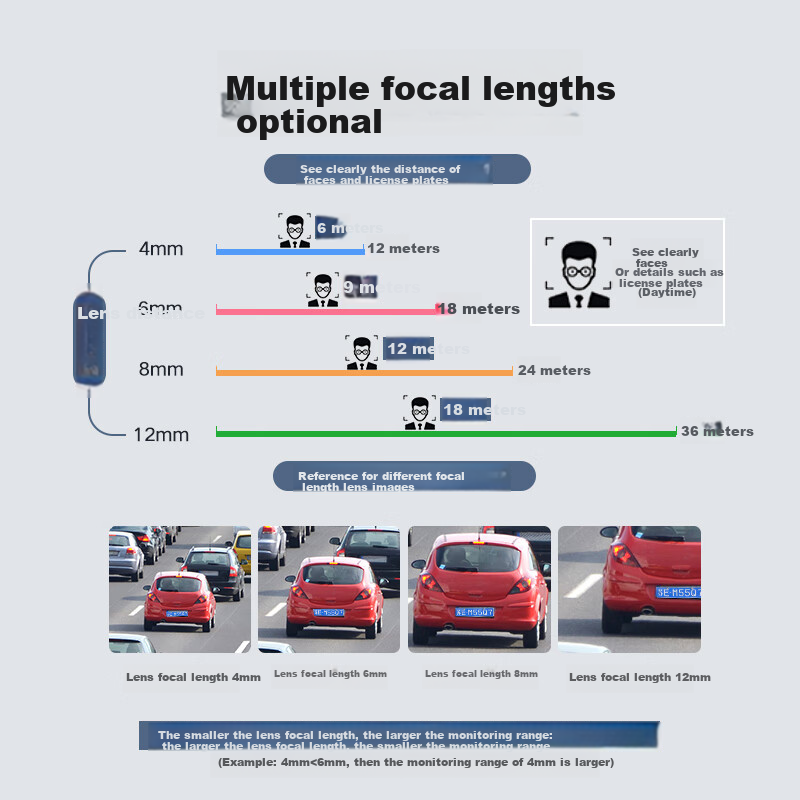

- **Lens:** 4mm, 6mm, 8mm, 12mm
- **Maximum Aperture:** F2.0
- **Lens Interface:** M12
- **Infrared Wavelength Range:** 850nm
**Video:**
- **Maximum Image Size:** 1920 × 1080
- **Main Stream Frame Rate Resolution:** 25fps (1920×1080, 1280×720)
- **Sub Stream Frame Rate Resolution:** 25fps (640×480, 640×360)
- **Video Compression Standard:** H.265/H.264
- **Video Compression Rate:** 32 Kbps~8 Mbps
- **Audio Environment Noise Filtering:** Supported
- **Audio Sampling Rate:** 8 kHz/16 kHz
- **Audio Compression Standard:** G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- **Audio Compression Rate:** 16~64 Kbps (AAC)
