**Product Specifications:**
**Brand:** Honeywell
**Product Advantages and Features:**
- One-touch scanning of most standard 1D barcodes, 2D barcodes, high-density barcodes, and electronic screen barcodes.
- Reliable data collection with omnidirectional reading of 1D and most common 2D barcodes, including low-quality barcodes and mobile phone barcodes (2D decoding only available on specific models).
- Flexible usage as handheld or fixed scanner, with handheld mode for precise scanning and fixed mode for quick and easy operation.
- Adjustable scanning angles for convenience, with the fixed stand upgraded to allow approximately 70° of vertical adjustment.
- Drop-resistant design, capable of withstanding falls from a certain height for added safety.
- Future-proof adaptability, providing cost-effective 2D barcode scanning to meet current and future barcode scanning needs in various industries.
**Product Details:**

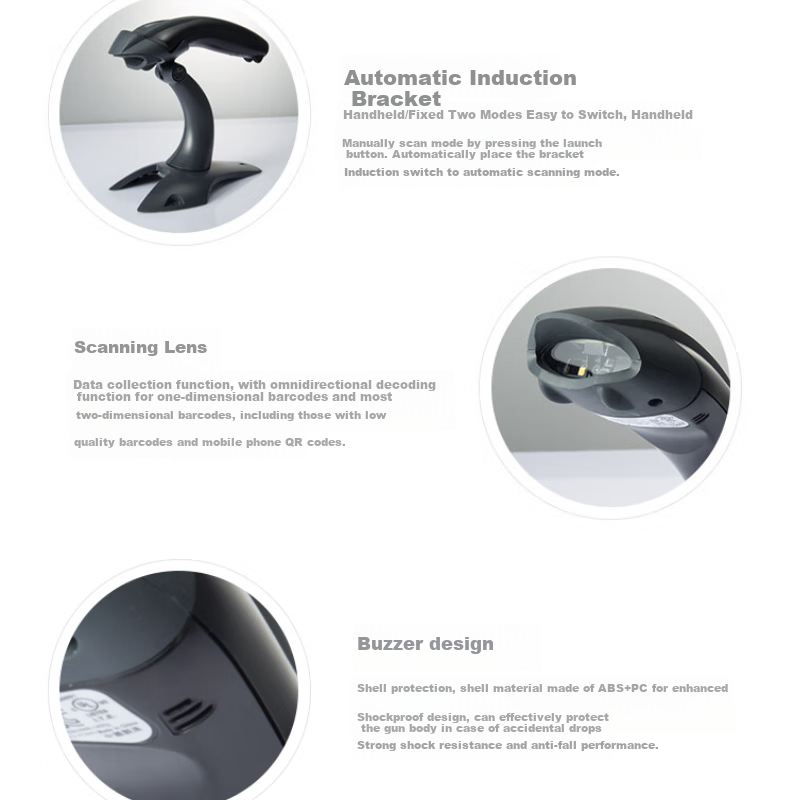

- Automatic sensing stand for easy switching between handheld and fixed modes, with manual scanning mode available by pressing the trigger button in handheld mode.
- Barcode scanning lens with omnidirectional reading capability for 1D and most 2D barcodes, including low-quality barcodes and mobile phone barcodes.
- Durable construction with ABS+PC reinforced shell for shock resistance and protection against accidental drops.
- Ergonomic design with responsive buttons tested for durability and long-lasting key performance.
**Product Information Display:**
- Product and packaging dimensions: 180mm x 240mm x 190mm x 140mm x 120mm x 170mm.
- Made in China, with input voltage of ERC, data cable opening, and CE certification.
- Interface types: USB, serial, and keyboard wedge connections.
- Voyager 1400g parameters:
- Physical parameters: 43mm x 180mm x 66mm (1.7” x 7.1” x 2.6”), weight: 119g (4.2 oz).
- Electrical parameters: Input voltage: 4.0~5.5VDC, operating power: 2W (400mA@5VDC), standby power: 0.45W (90mA@5VDC).
- Host system interfaces: USB, Keyboard Wedge, RS232, 1BM46xx (RS485).
- Environmental parameters: Operating temperature: 0°C~40°C (32°F~104°F), storage temperature: -40°C~60°C (-40°F~140°F), humidity: 0% to 95% RH non-condensing, drop resistance: withstands drops from approximately 1.5m to concrete.
- Scanning performance: 2D image scanning (640×480 resolution), motion tolerance: scans 13mil UPC codes moving at 10cm/s, scan angles: horizontal 42.4°, vertical 30.8°, barcode contrast: down to 35% reflectance difference, tilt angles: 60°, 70°, decoding capability: 1400g 1D: all standard 1D barcodes, 1400g PDF: all standard 1D and PDF417 barcodes, 1400g 2D: all standard 1D, PDF417, and 2D barcodes.
- Product photos included.
