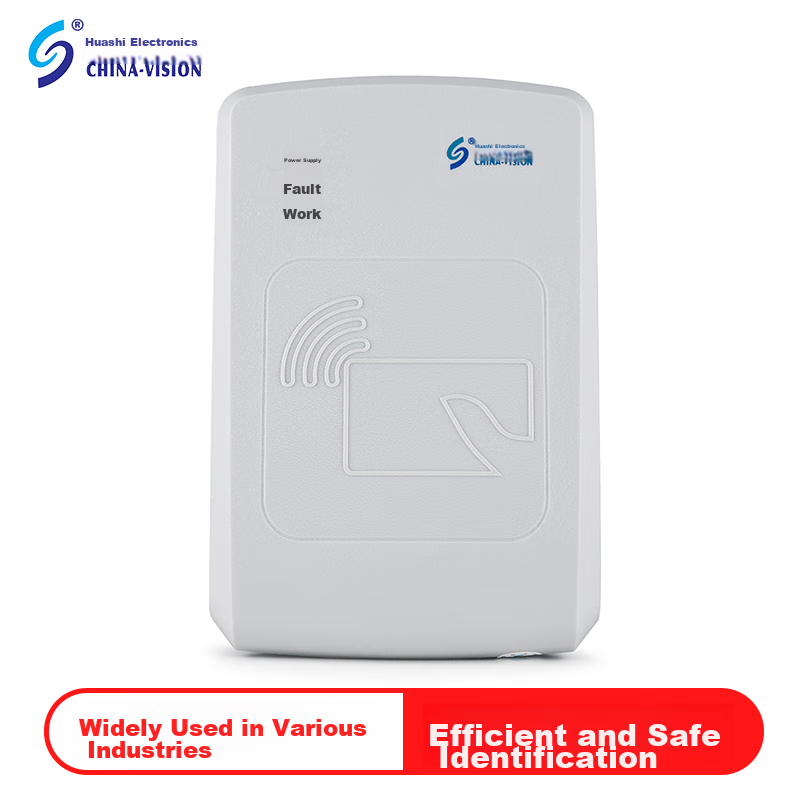

Huashidianzi CVR-100UA ID Card Reader, Identity Reader, Identity Recognition Device, Identity Scanner, Identity Reader

SKU : 8883363

Availability : In stock
4.7
Weight : 0.44 kg
Length : 23 cm
Height : 5 cm

GHS 2,301.73

GHS 2,485.86

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** China-Vision

**Model:** CVR-100UA

**Product Type:** ID Card Reader Device

**Features:**

- Real-time and secure identification of ID cards

- Integration of ID card reading and identity verification

- Support for real-name registration

- Dual electronic power supply for uninterrupted operation

- Fault detection and indication

- Support for 1:1 printing of ID cards

- Card information query and export

- Visitor registration and management

- Free development kit provided

- Compatibility with mainstream operating systems

**Functionality:**

- Verification of ID card authenticity

- Generation of reports and one-click printing and archiving

**Technical Specifications:**

- Compliance with general technical requirements for ID card readers

- Antenna surface electromagnetic intensity (Hmax) ≤ 7.5A/m.rms

- Antenna energy output

- Maximum reading distance electromagnetic intensity in the normal direction of the antenna surface (Hmax ≥ 1.5A/mrms)

- Secure module for ID card verification system

- Reading time: <1s

- Reading distance: 0~3cm

- Operating frequency (fc): 13.56MHz ± 7KHz

- Interface: USB 2.0

- Operating temperature: 0.09~0.0

- Storage temperature: -40℃~60℃

- Relative humidity: 20%~93%

- Atmospheric pressure: 86kpa~110kpa

- Average fault-free operation: >5000h

- Mean Time Between Failures (MTBF)

- Power supply: USB powered

- Supported operating systems: Windows XP/7/8/10

- Development tools: Support for VC/C#/Delphi/VB/Java

- Weight: <0.37kg

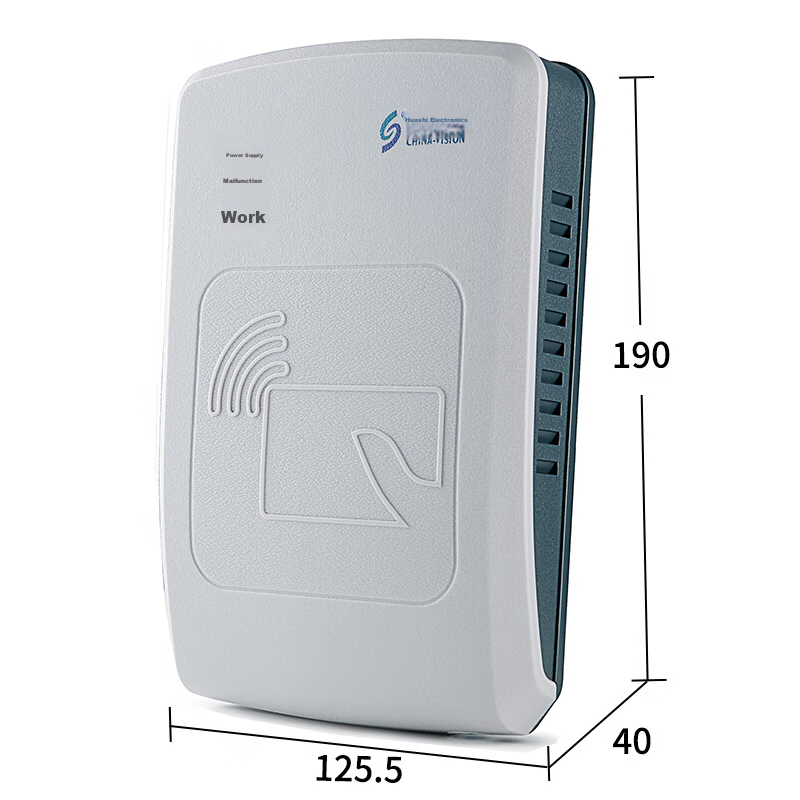

- Dimensions: 190mm (L) x 125mm (W) x 40mm (H)

**Package Contents:**

- 1 x ID Card Reader Device

- 1 x Data Cable

- 1 x User Manual and Warranty Card

**Certifications:**

- National High-Tech Enterprise

- Top 10 Enterprises in China's Card Reader Industry

**Additional Information:**

- Desktop ID card reader device

- User Manual Version 2.3

- Production License Number: X:00-0010

- Professional craftsmanship ensuring brand strength and future-proofing

(Note: Specifications are subject to change without prior notice.)
