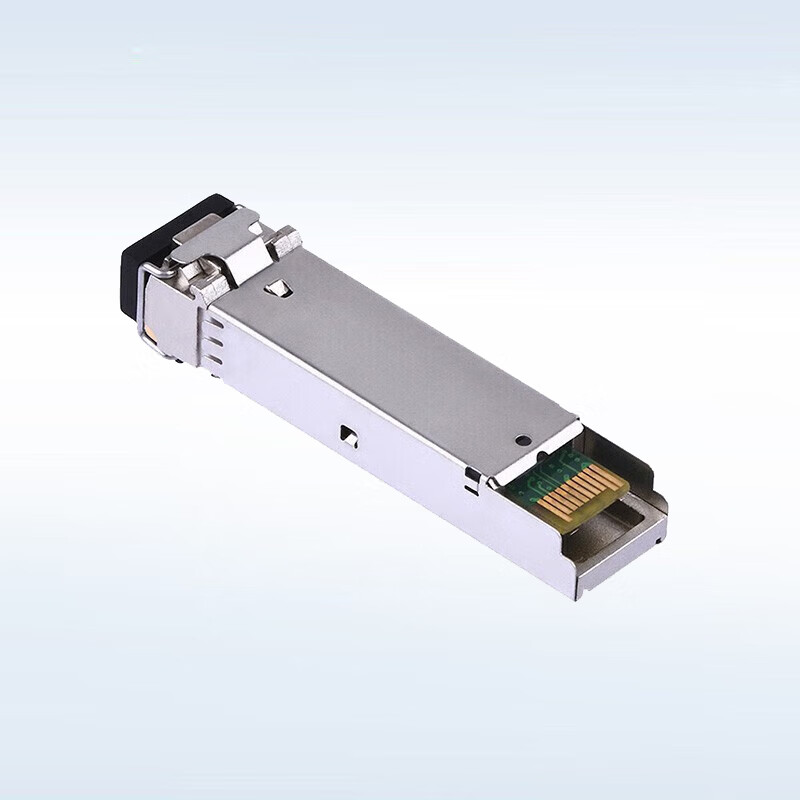

HUAWEI (HUAWEI) eSFP-GE Optical Module, Gigabit Multi-Mode Fiber Optic Module (850nm, 0.55km, LC) [Shipped from Beijing Warehouse]

SKU : 100062186061

Availability : In stock
4.7
Weight : 0.04 kg
Length : 13 cm
Height : 3.2 cm

GHS 392.31

GHS 423.69

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Appearance Structure:**

- Connector: 81

- Label: 51

- Skirt: 7

- Dust Cap: 6

- Shell: 4

- Total: 132

**Product Details:**

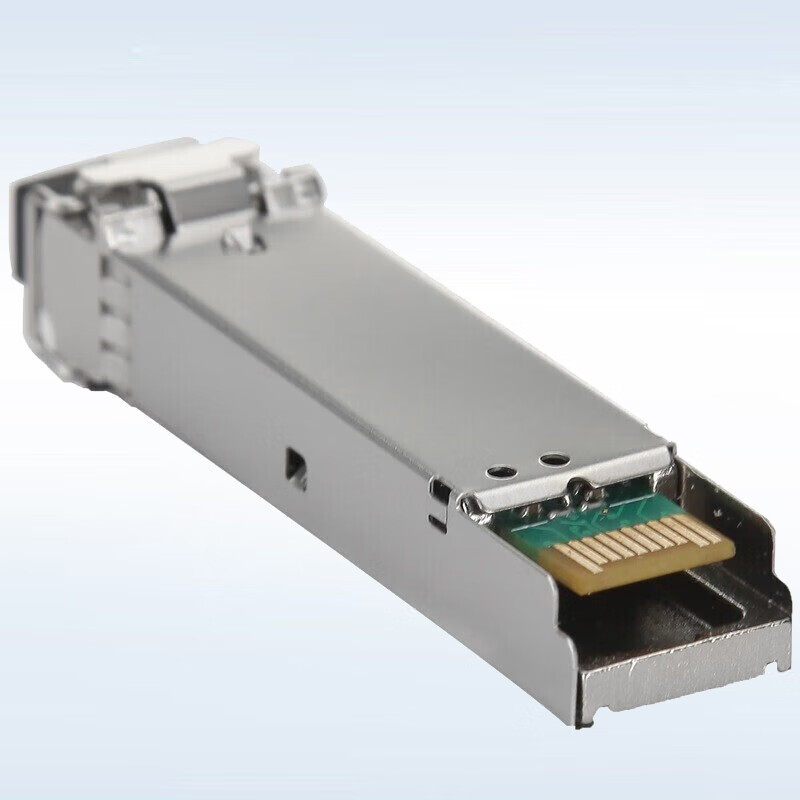

01. Dual LC interface, optical module interface, high precision connection.

02. Gold finger, imported chip, low power consumption for stronger signal.

03. Plug and play connection, hot-swappable support.

**Product Parameters:**

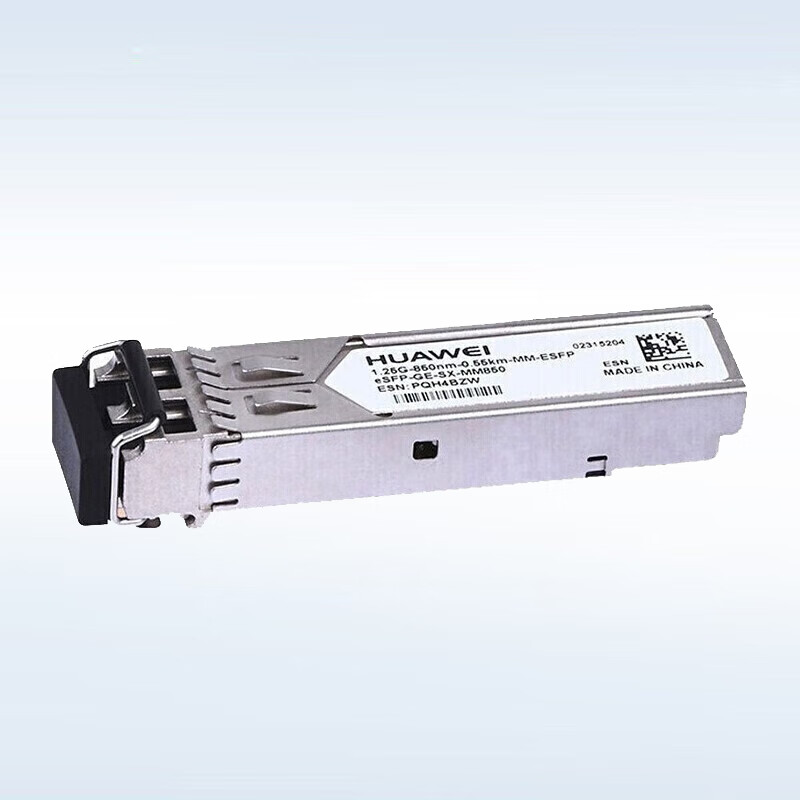

- Module Name: Optical Module-eSFP-GE-Multimode Module (850nm, 0.55km, LC)

- Part Number: 02315204

- Model: eSFP-GE-SX-MM850

- Package: eSFP

- Interface Standard: 1000BASE-SX

- Connector Type: LC/DLC

- Fiber Type: MMF

- Operating Temperature: -20°C to +85°C

- Transmission Rate: 1 Gbit/s

- Target Transmission Distance: Multimode fiber: 0.55km

- Sending End Optical Parameters: Center Wavelength: 850nm, Max Sending Power: -2.5dBm, Min Sending Power: -9.5dBm, Min Extinction Ratio: 8P6

- Receiving End Optical Parameters: Receive Sensitivity: -17dBm, Overload Optical Power: 0dBm

**Product Specifications:**

- Independent packaging with original factory seal, module and white box with the same SN code.

- Reminder: Use optical (electric) modules certified by HUAWEI for switch equipment. Non-certified modules may lead to unstable operations.

**Certification:**

- HUAWEI certifies optical modules for switch usage, ensuring quality through comprehensive functional verification.

**Optical Module Categories and Corresponding Relationships:**

- (See detailed table for various encapsulation types, rates, and standards)

**Core Capabilities:**

- Low power consumption, stable performance, imported chips.

- Safe materials, low power consumption, precise craftsmanship.

- Gold-plated hard gold for reliable connections.

- Imported chips for high-performance, low-power module solutions.

**Additional Information:**

- HUAWEI ensures quality through rigorous testing and superior craftsmanship.

- Imported chips guarantee stable and fast signal transmission.

- Gold finger inspection, precise circuit board assembly, and metal shell components for optimal performance and aesthetics.
