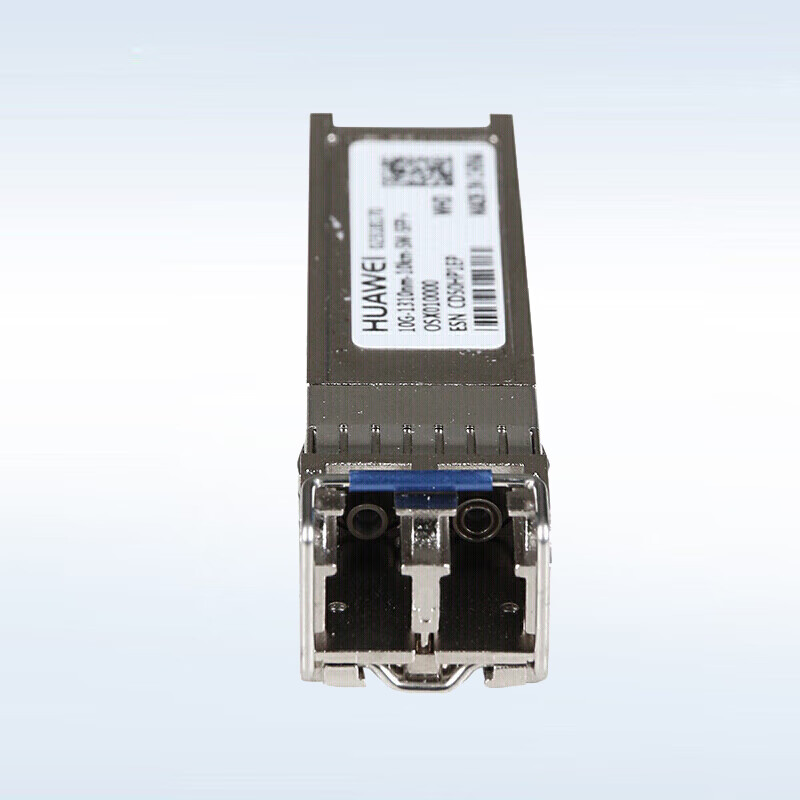

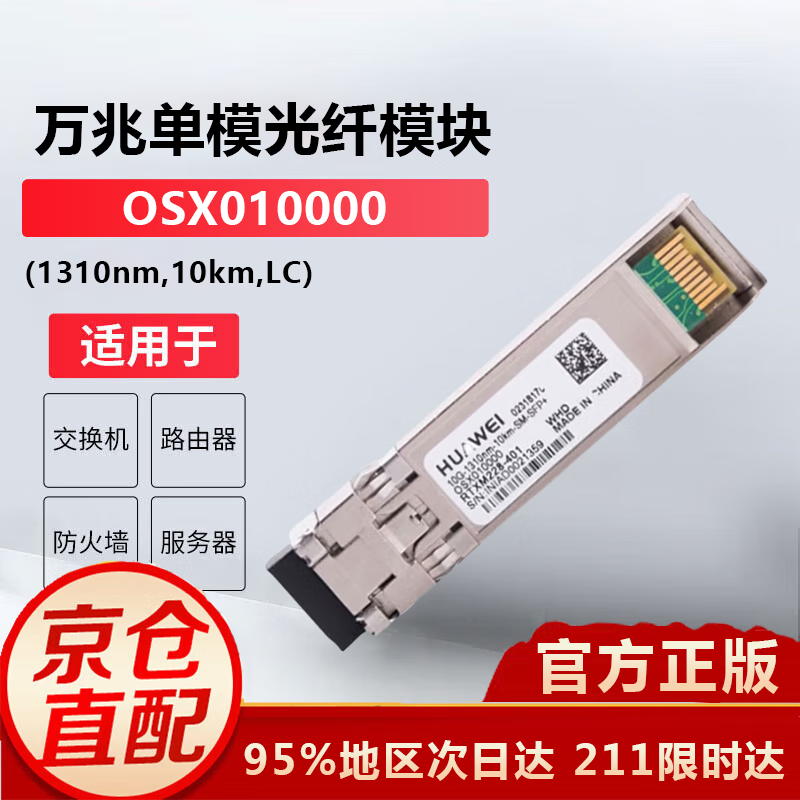

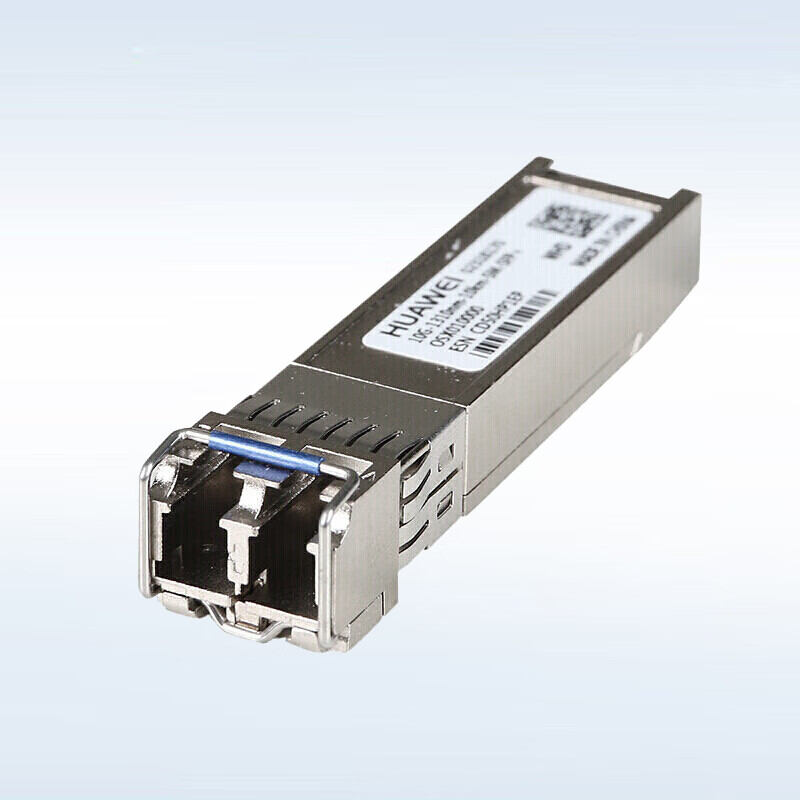

HUAWEI (HUAWEI) OSX010000 HUAWEI Optical Module - SFP+ - 10G - 10 Gigabit Single-Mode Module (1310nm, 10km, LC) [Shipped from Beijing Warehouse]

SKU : 100057589650

Availability : In stock
4.7

Write your review

Weight : 0.04 kg
Length : 13.5 cm
Height : 3.3 cm

GHS 918.74

84.8

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Appearance and Structure:**

- Joint: 81

- Label: 51

- Skirt: 7

- Dust Cap: 6

- Shell: 4

- Length: 132

**Product Details:**

1. Double LC interface, optical module interface, high precision connection.

2. Gold finger, imported chip, low power consumption for stronger signal.

3. Plug and play connection, hot-swappable support.

**Product Parameters:**

- Module Name: SFP+ 10G Single-mode Module (1310nm, 10km, LC)

- Part Number: 02318170

- Model: OSX010000

- Package: SFP+

- Interface Standard: 10GBASE-LR

- Connector Type: LC/DLC

- Fiber Type: SMF

- Operating Temperature: 0.0°C to 70°C

- Transmission Rate: 10 Gbit/s

- Target Transmission Distance: Single-mode fiber: 10km

- Sending End Optical Parameters: 1310nm wavelength, 0.5 dBm max sending power, -8.2 dBm min sending power, 3.5dB min extinction ratio

- Receiving End Optical Parameters: -12.6dBm receiving sensitivity, 0.5dBm overload power

**Product Specifications:**

- Independent packaging with original factory seal, module in original box with matching SN code.

- Reminder: Use HUAWEI certified optical modules for reliable performance.

**Certification Information:**

- HUAWEI certifies optical modules for quality and reliability.

- Theoretical data provided may vary in different environments.

**Optical Module Categories and Corresponding Relationships:**

- SFP, FE, 100BASE-FX (IEEE 802.3u), for up to 2km transmission.

- eSFP, FE, 100BASE-LX (IEEE 802.3ah), for up to 80km transmission.

- GE, 1000BASE-SX (IEEE 802.3z), for up to 1km transmission.

- GE, 1000BASE-LX/LH (IEEE 802.3u), for up to 40km transmission.

- GE, 1000BASE-ZX (IEEE 802.3), for up to 100km transmission.

- SFP+, 10GE, 10Gbase-USR (IEEE 802.3), for up to 100m transmission.

- XFP, 10Gbase-SR (IEEE 802.3ae), for up to 10km transmission.

- QSFP+, 40GE, 40Gbase-SR4 (IEEE 802.3ba), for up to 400m transmission.

**Core Capabilities:**

- Low power consumption, stable performance, imported chip.

**HUAWEI Product Code:** 02315200

**Country of Origin:** MADE IN CHINA
