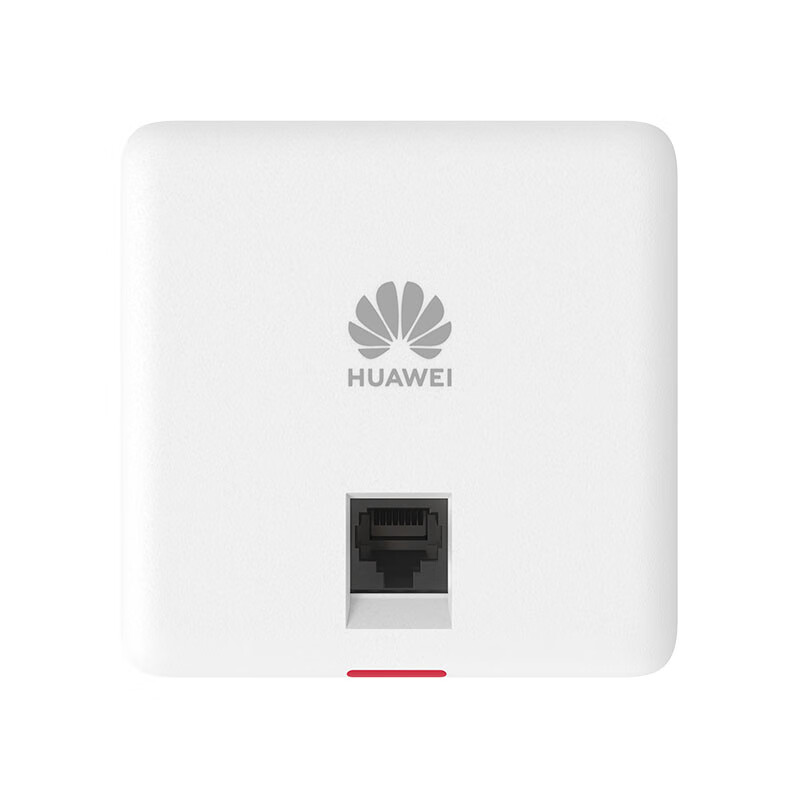

HUAWEI WiFi 6 Wireless AP Panel, Dual GE Ports, 11ax Indoor Model, Dual-Band Gigabit 2+2, 5G Home And Enterprise-Grade 3000M Smart Antenna Seamless Roaming Networking

SKU : 100040797734

Availability : In stock
4.7

Write your review

Weight : 0.243 kg
Length : 11.7 cm
Height : 7 cm

GHS 1,724.05

159.13

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** HUAWEI

**Model:** 11ax Indoor 2+2 Dual-band Smart Antenna

**Upstream:** 1x Gigabit Ethernet

**Downstream:** 1x Gigabit Ethernet

**Wi-Fi Standard:** Wi-Fi 6 (802.11ax)

**Features:**

- Dual-band support

- Built-in smart antenna

- Supports FIT/FAT/LeaderAP/Cloud management modes

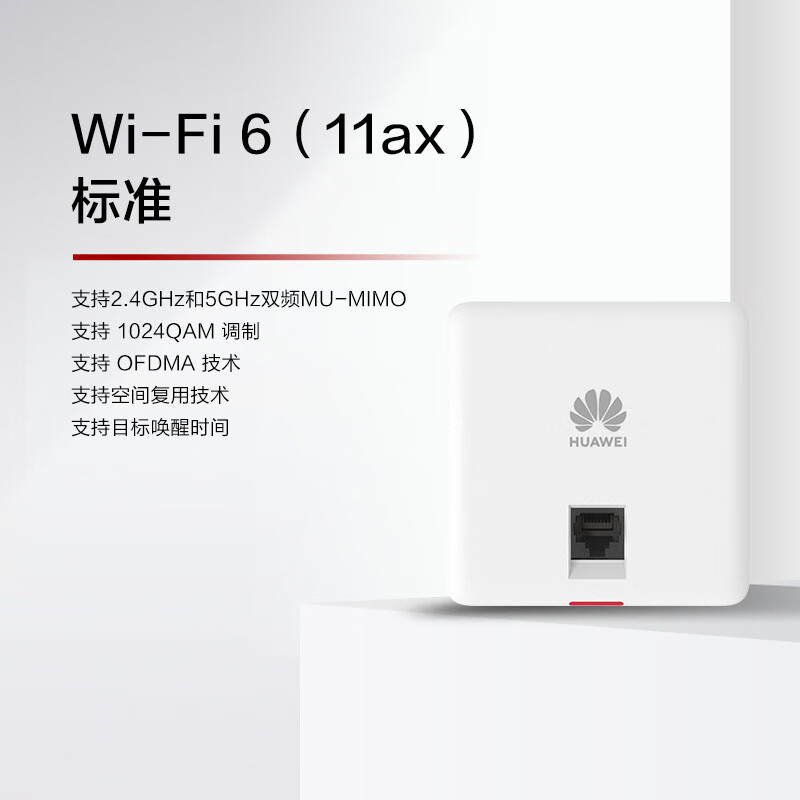

**Wi-Fi 6 (11ax) Standard Features:**

- Supports 2.4GHz and 5GHz dual-band MU-MIMO

- Supports 1024QAM modulation

- Supports OFDMA technology

- Supports spatial multiplexing technology

- Supports Target Wake Time

**High-speed Access:**

- 2.4GHz RF rate up to 0.575Gbps

- 5GHz RF rate up to 2.4Gbps

- Total device rate up to 2.975Gbps

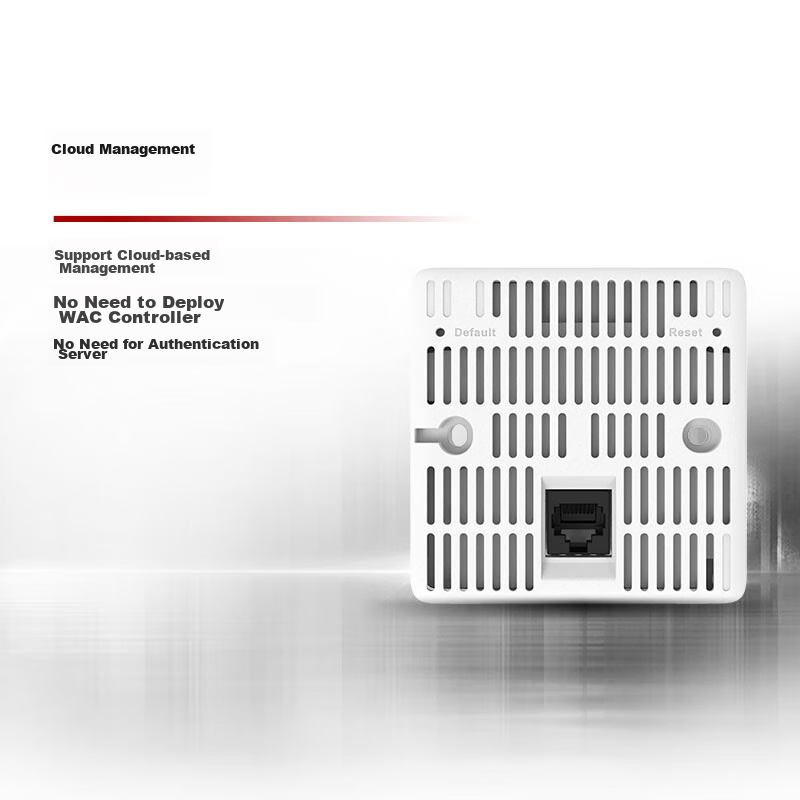

**Cloud Management:**

- Supports cloud-based management without the need for a WAC controller or authentication server

**Security Features:**

- Dual security protection for wired and wireless connections

- Automatic RF optimization

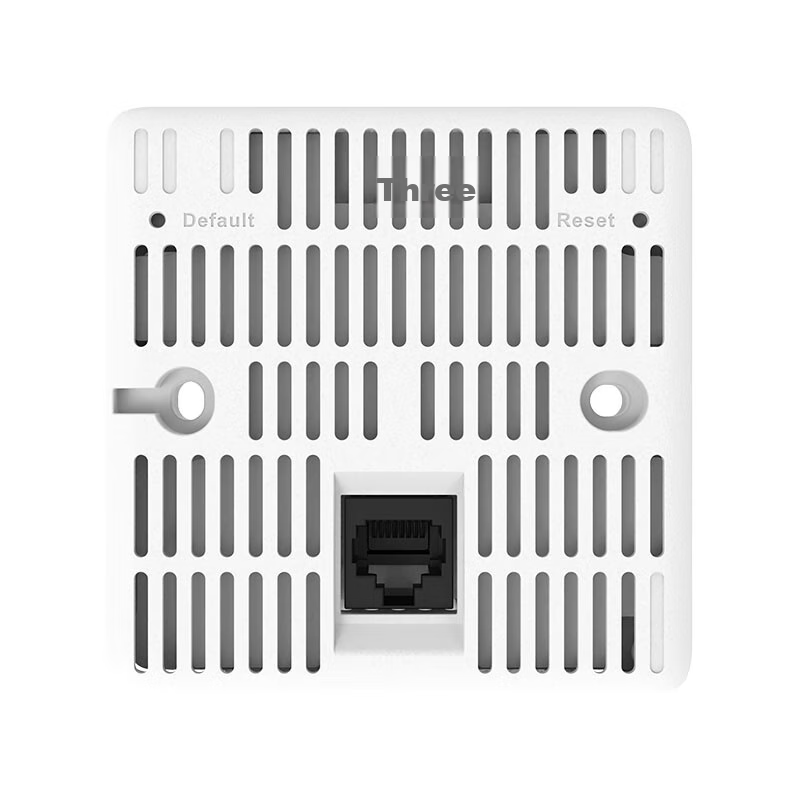

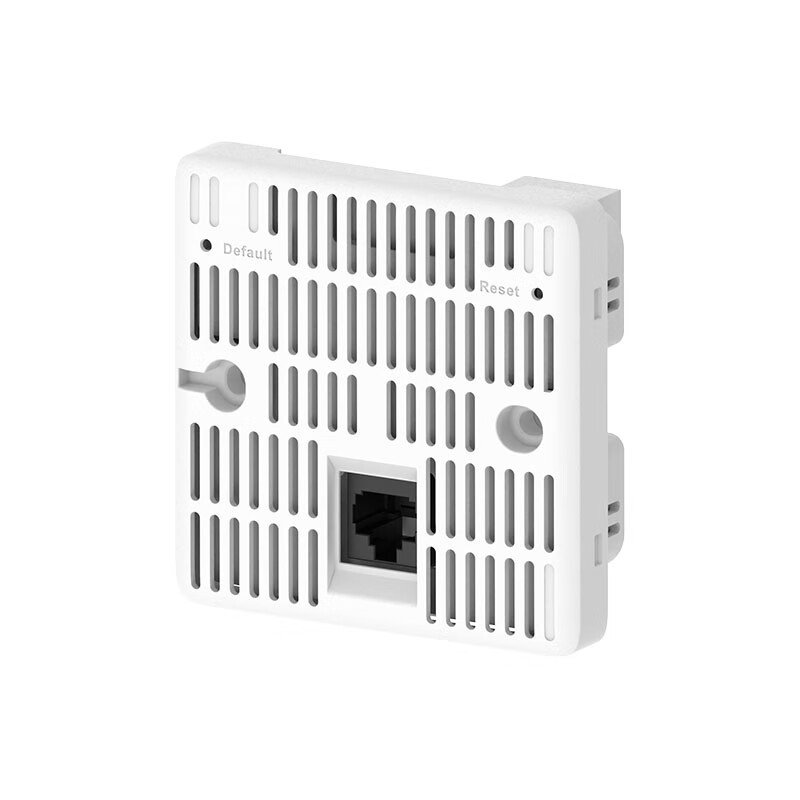

**Physical Parameters:**

- Dimensions: 86 x 86 x 46mm

- Weight: 0.18kg

- Interfaces: 1x 10M/100M/1GE Ethernet port

**LED Indicators:**

- Indicates power status, boot status, operational status, alarms, and faults

**Power Parameters:**

- Power Input: PoE supply, compliant with 802.3af Ethernet power supply standard

- Maximum Power Consumption: 10W

**Environmental Parameters:**

- Operating Temperature: 0°C to +40°C

- Storage Temperature: -40°C to +70°C

- Operating Humidity: 5% to 95% (non-condensing)

- Altitude: -60m to 5000m

- Operating Air Pressure: 53kPa to 106kPa

**RF Parameters:**

- Antenna Type: Built-in smart antenna

- Antenna Gain: 2.4GHz: 2dBi, 5GHz: 3dBi

- Maximum SSID per RF: ≤16

- Maximum Users: ≤256

- Maximum Transmit Power: 2.4GHz: 20dBm, 5GHz: 20dBm

- Power Adjustment Step: 1dBm

**Non-overlapping Channel Maximum Quantity:**

- 2.4GHz: 802.11b/g -20MHz: 3, 802.11n - 20MHz: 3, 40MHz: 1, 802.11ax - 20MHz: 3

- 5GHz: 802.11a - 20MHz: 13, 802.11n - 20MHz: 13, 40MHz: 6, 802.11ac - 20MHz: 13, 40MHz: 6, 80MHz: 3, 160MHz: 1, 802.11ax - 20MHz: 13, 40MHz: 6, 80MHz: 3, 160MHz: 1

**Note:** Specifications may vary based on different countries and regions.
