Product Description

**Product Specifications**

**Brand:** Hui Valley

**Model:** HG-811P

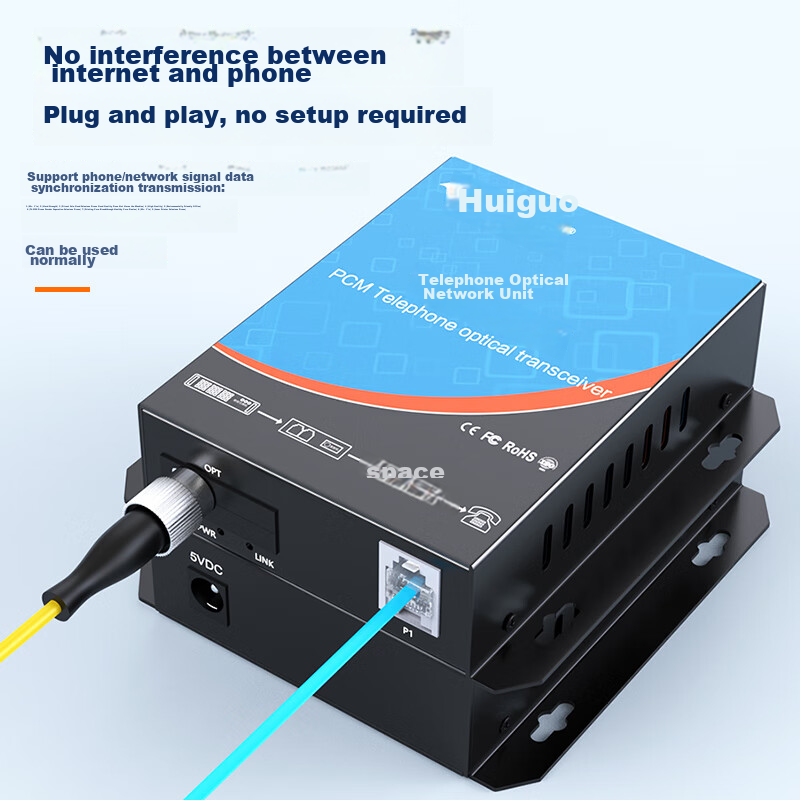

**Description:** 1-channel telephone optical transceiver, PCM telephone transmission device, with longer fiber transmission distance, more stable transmission, stronger anti-interference capability, larger transmission capacity, and clearer lossless communication.

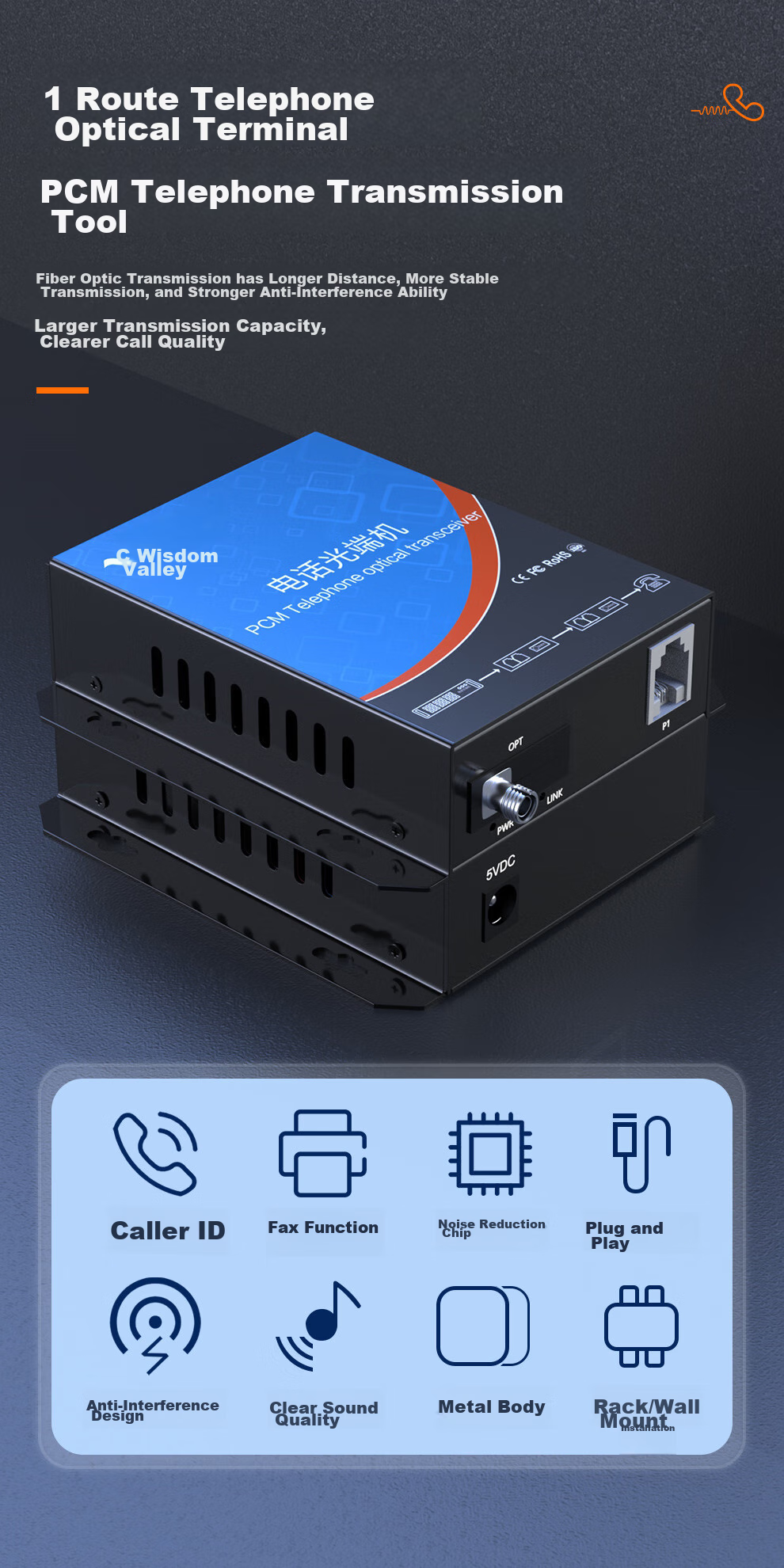

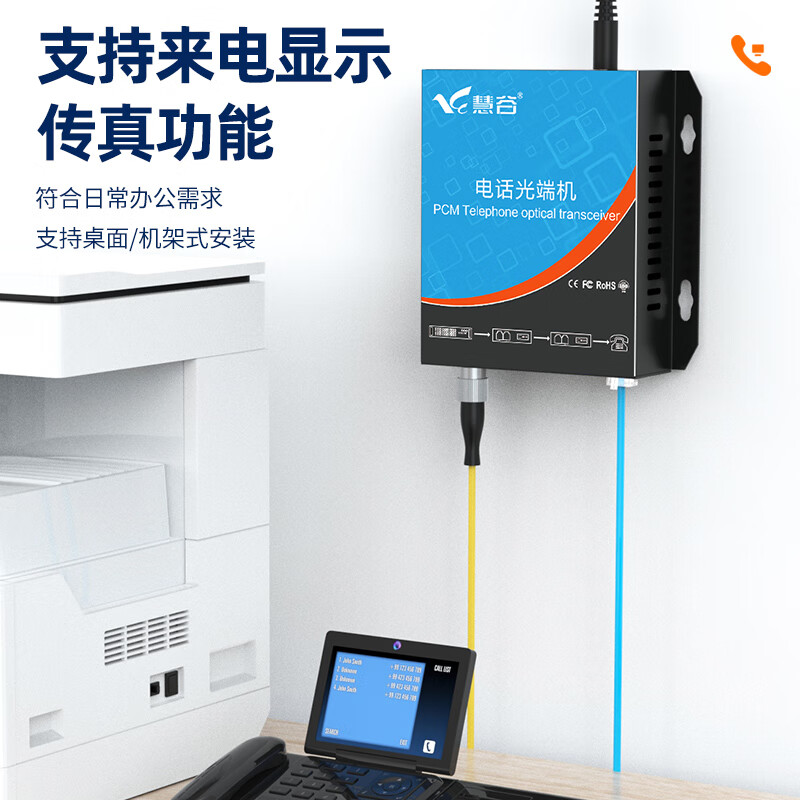

**Features:** Caller ID display, fax function, noise reduction chip, plug and play, anti-interference design, clear sound quality, metal body, rack/wall mountable.

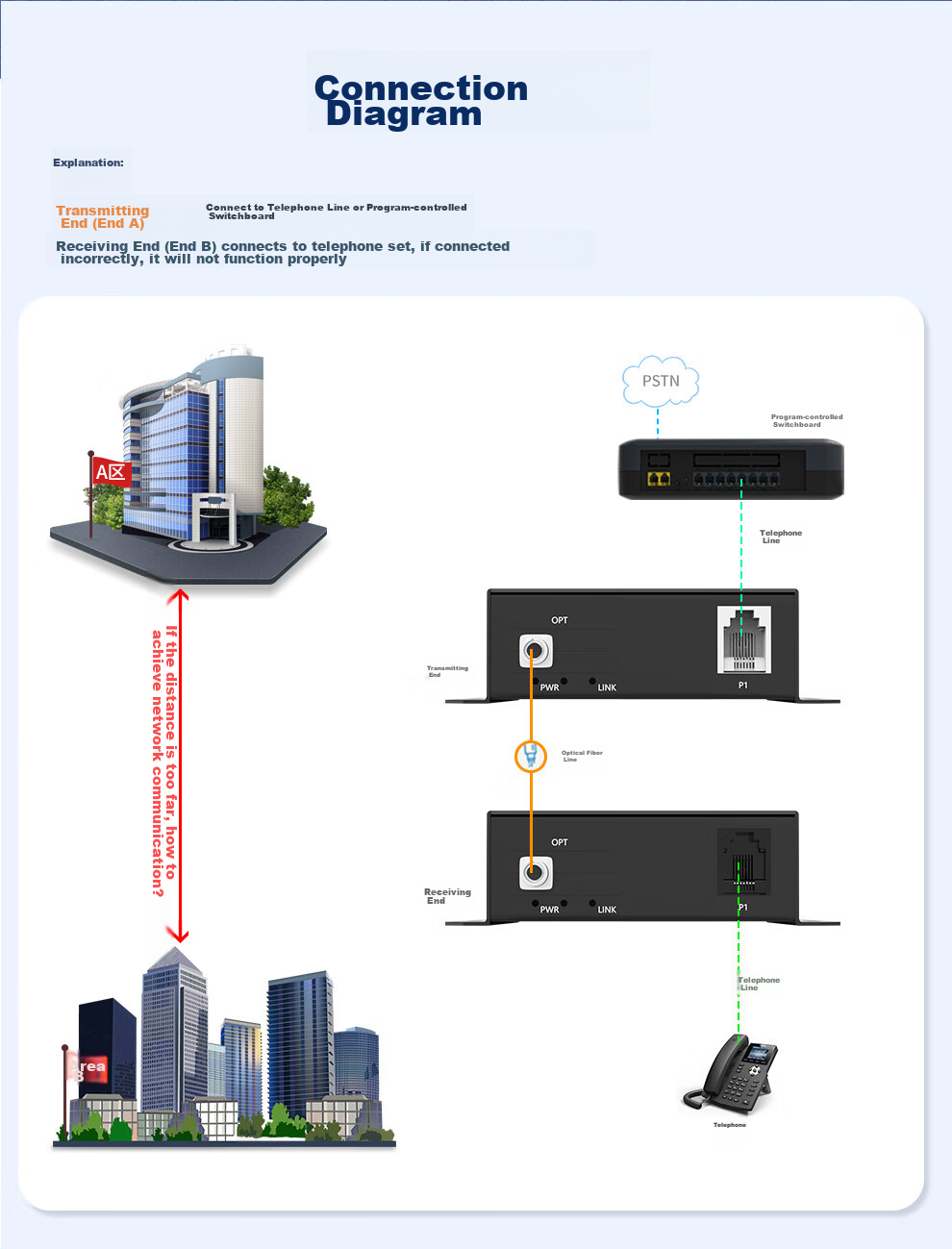

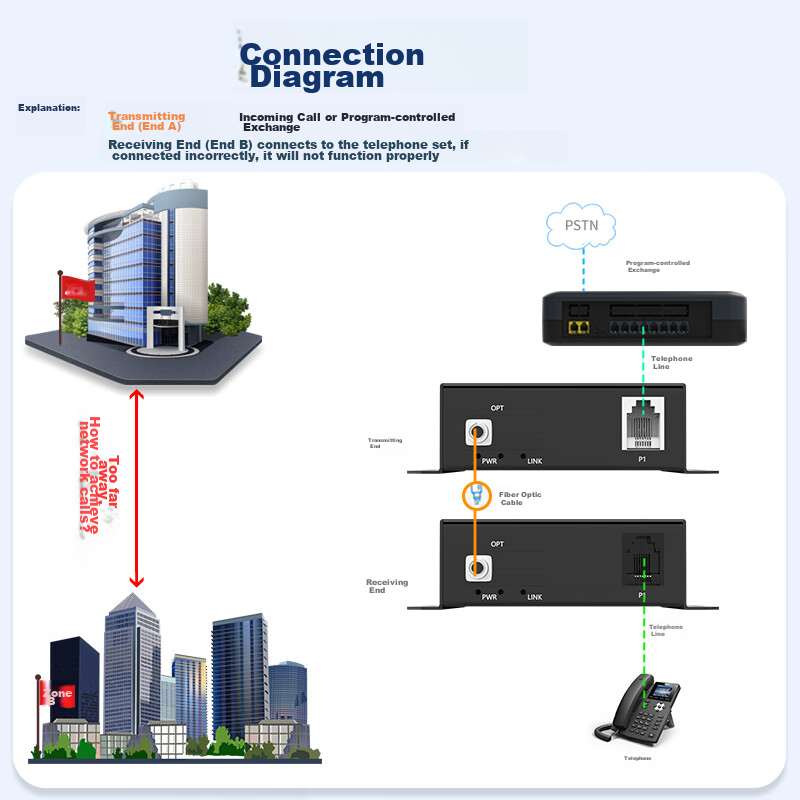

**Installation:** Connection diagram provided. A-end connects to telephone line or program-controlled exchange, B-end connects to telephone set. Incorrect connection will result in malfunction. Supports PSTN, program-controlled exchange, telephone line, and optical fiber transmission.

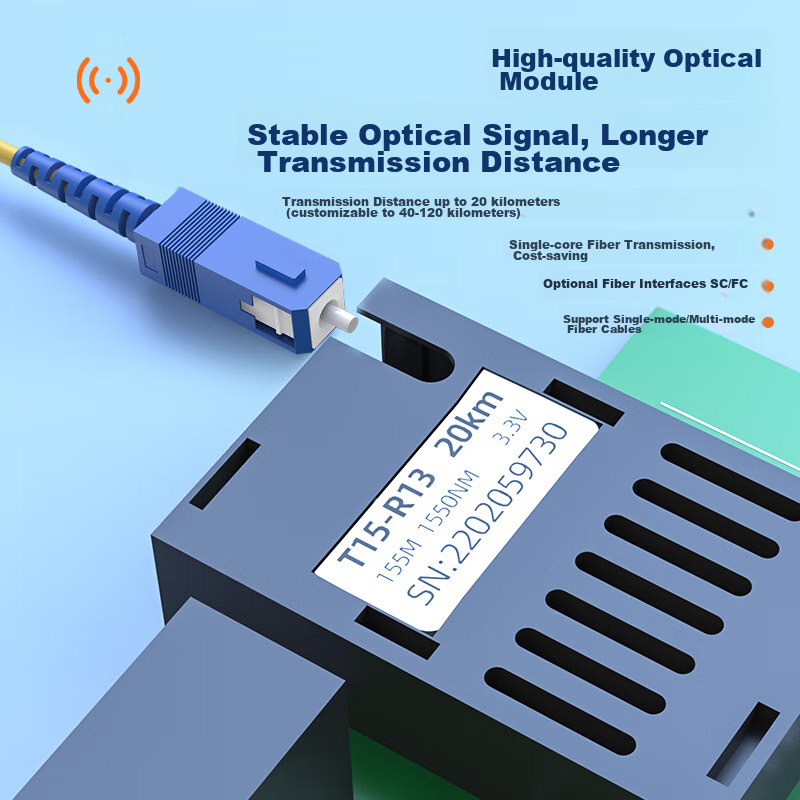

**Optical Fiber Transmission:** Supports long-distance networking with stable optical signal transmission. Transmission distance up to 20km (customizable to 40-120km). Single-core fiber transmission for cost savings. Optional SC/FC fiber interfaces, supports single-mode/multi-mode fiber cables, 15, 155M.

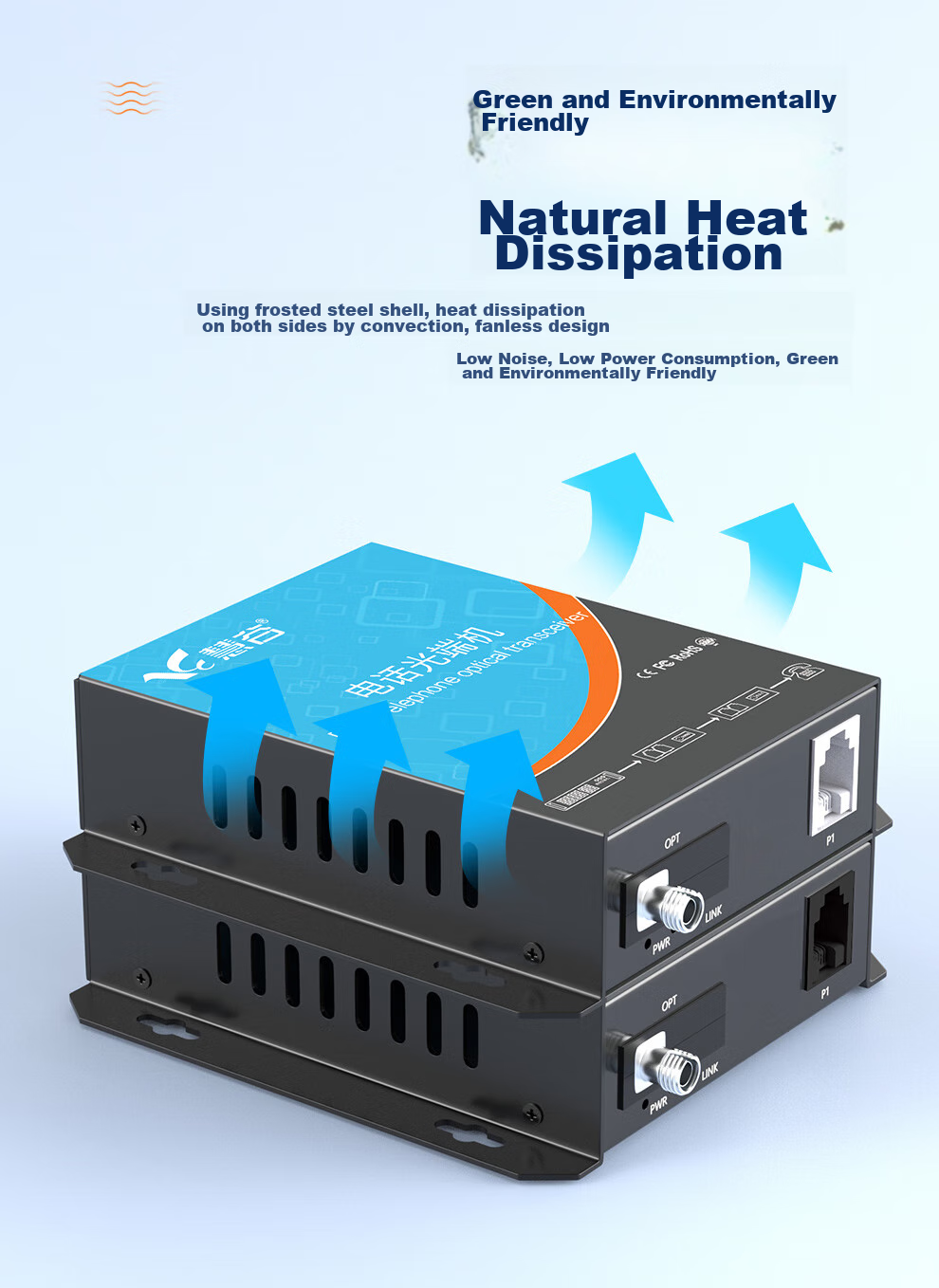

**Additional Features:** Independent voice module for clearer communication, separate from telephone line to ensure call quality. Environmentally friendly design with natural heat dissipation, matte steel casing, fanless design for low noise, low power consumption, and eco-friendliness.

**Compatibility:** Supports caller ID display, fax function, suitable for daily office needs. Can be installed on desktop or wall-mounted.

**Application:** Suitable for various scenarios such as office buildings, factories, workshops, etc., to solve long-distance telephone transmission issues.

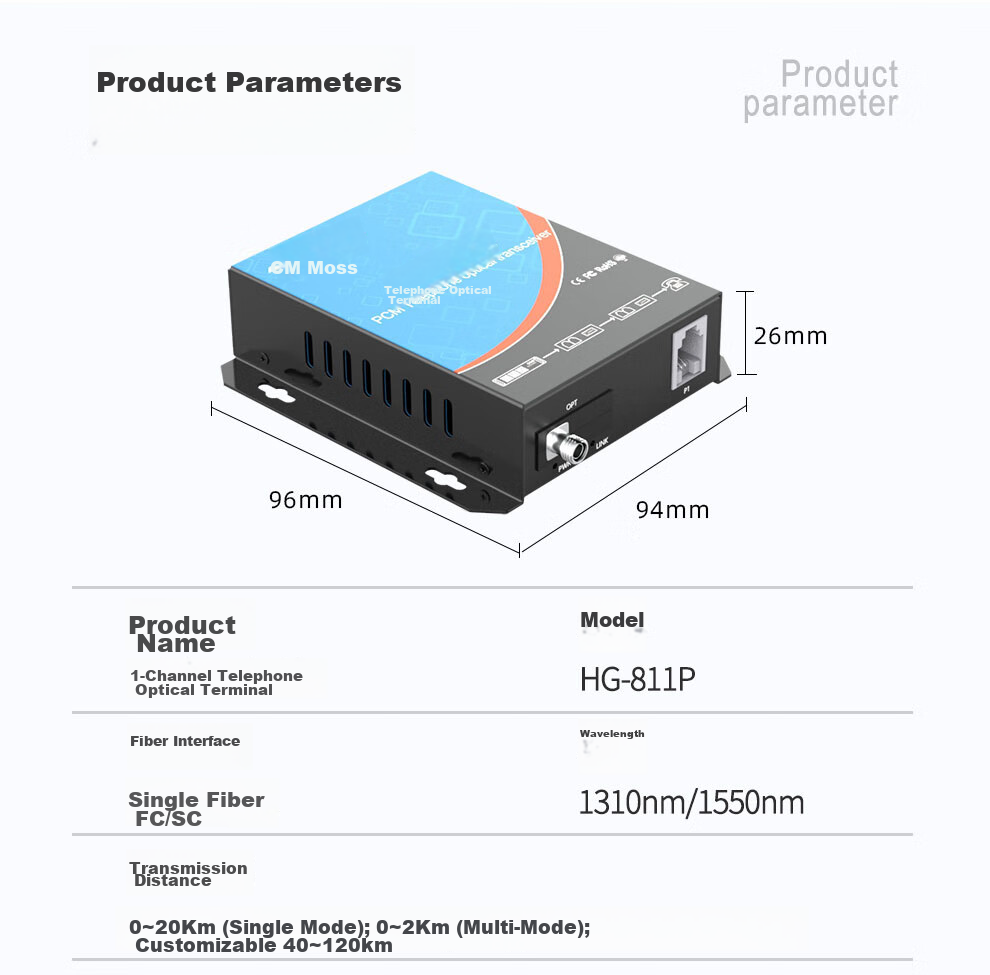

**Product Parameters:**

- Dimensions: 26mm x 96mm x 94mm

- Fiber Interface: Single fiber FC/SC, Wavelength 1310nm/1550nm

- Transmission Distance: 0-20km (single-mode); 0-2km (multi-mode); customizable 40-120km

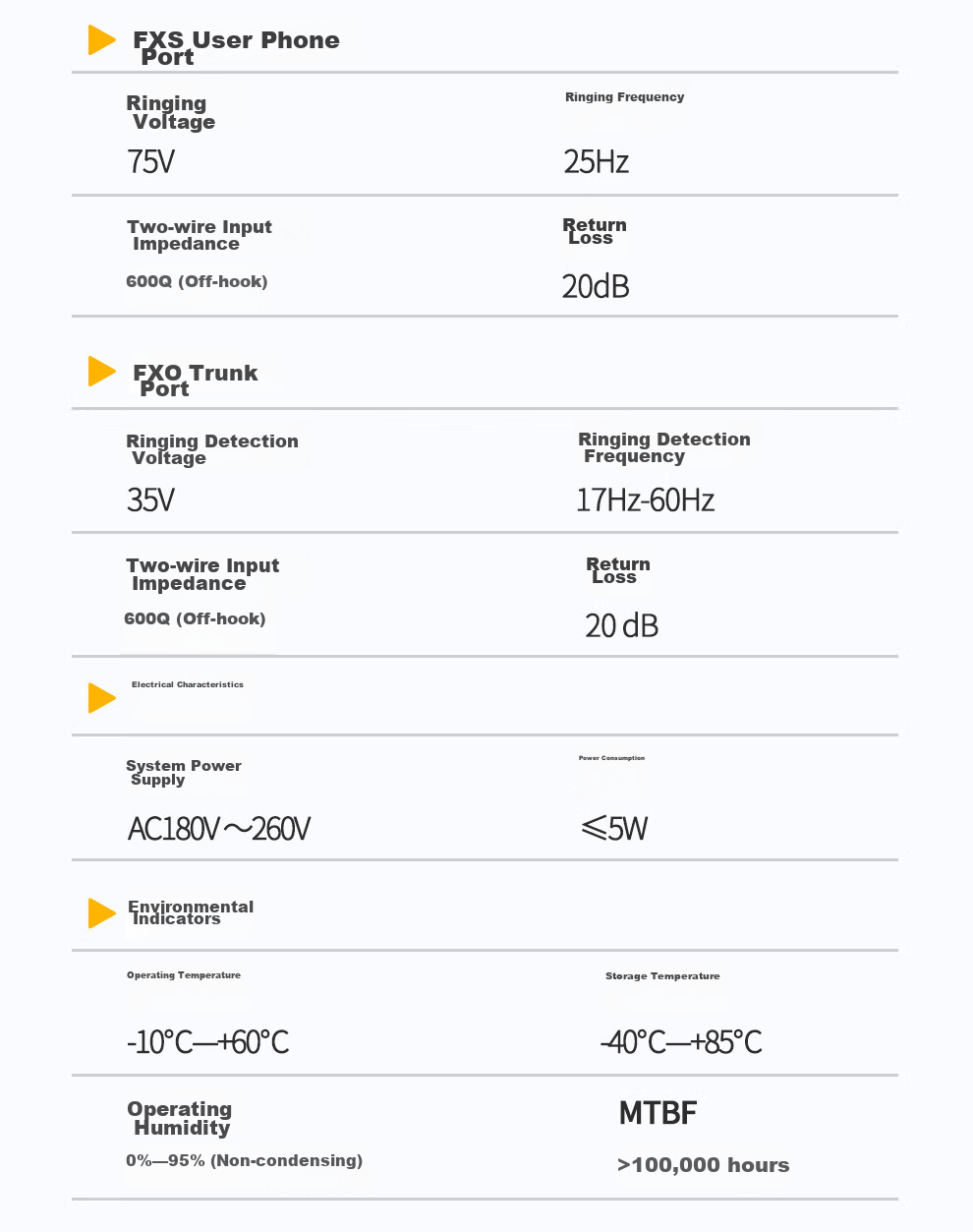

- FXS User Telephone Port: Ringing voltage 75V, Ringing frequency 25Hz, Impedance 600Ω

- FXO Trunk Port: Ringing detection voltage 35V, Ringing detection frequency 17Hz-60Hz, Impedance 600Ω

- Electrical Characteristics: AC power supply, Power consumption ≤5W

- Environmental Conditions: Operating temperature -10°C to +60°C, Storage temperature -40°C to +85°C, Operating humidity 0%-95% (non-condensing), MTBF >100,000 hours

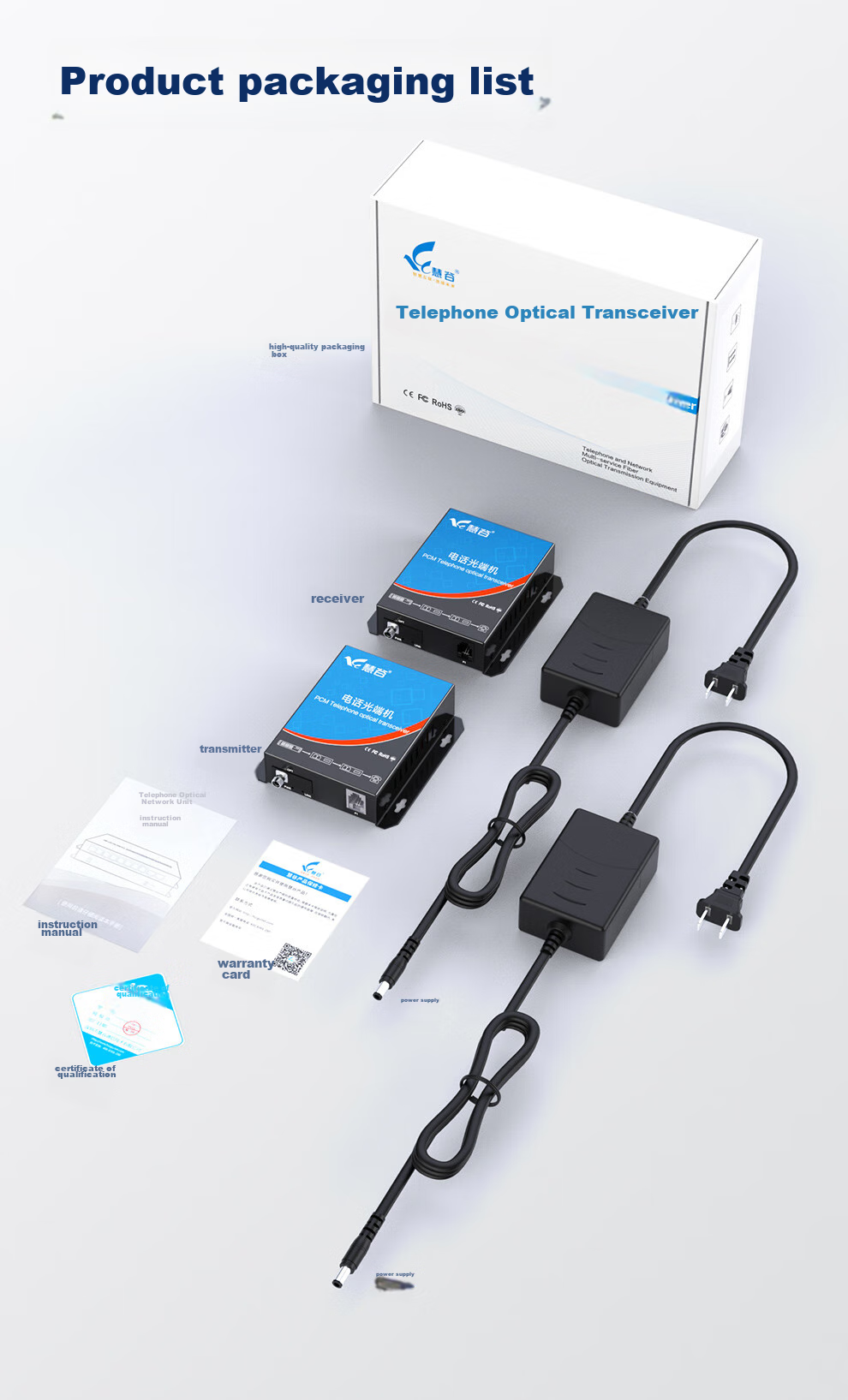

**Packaging:** High-quality packaging box with CE, FCC, RoHS certifications. Includes receiver end, transmitter end, telephone optical transceiver, user manual, warranty card, compliance certificate, power supply.

**Applications:** Suitable for office building communication, road traffic engineering, community networking projects, and data center construction.
