Huigu Telephone Optical Terminal, 4-Channel Telephone PCM Voice Optical Terminal, Telephone Fiber Optic Transceiver Extender, SC Interface, HG-814P

Huigu Telephone Optical Terminal, 4-Channel Telephone PCM Voice Optical Terminal, Telephone Fiber Optic Transceiver Extender, SC Interface, HG-814P

SKU : 100026485035

Availability : In stock

4.7

Weight : 0.84 kg

Length : 22.5 cm

Height : 7 cm

GHS 638.46

GHS 689.54

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

GHS 638.46

GHS 689.54

Order now and get it by 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Product Description

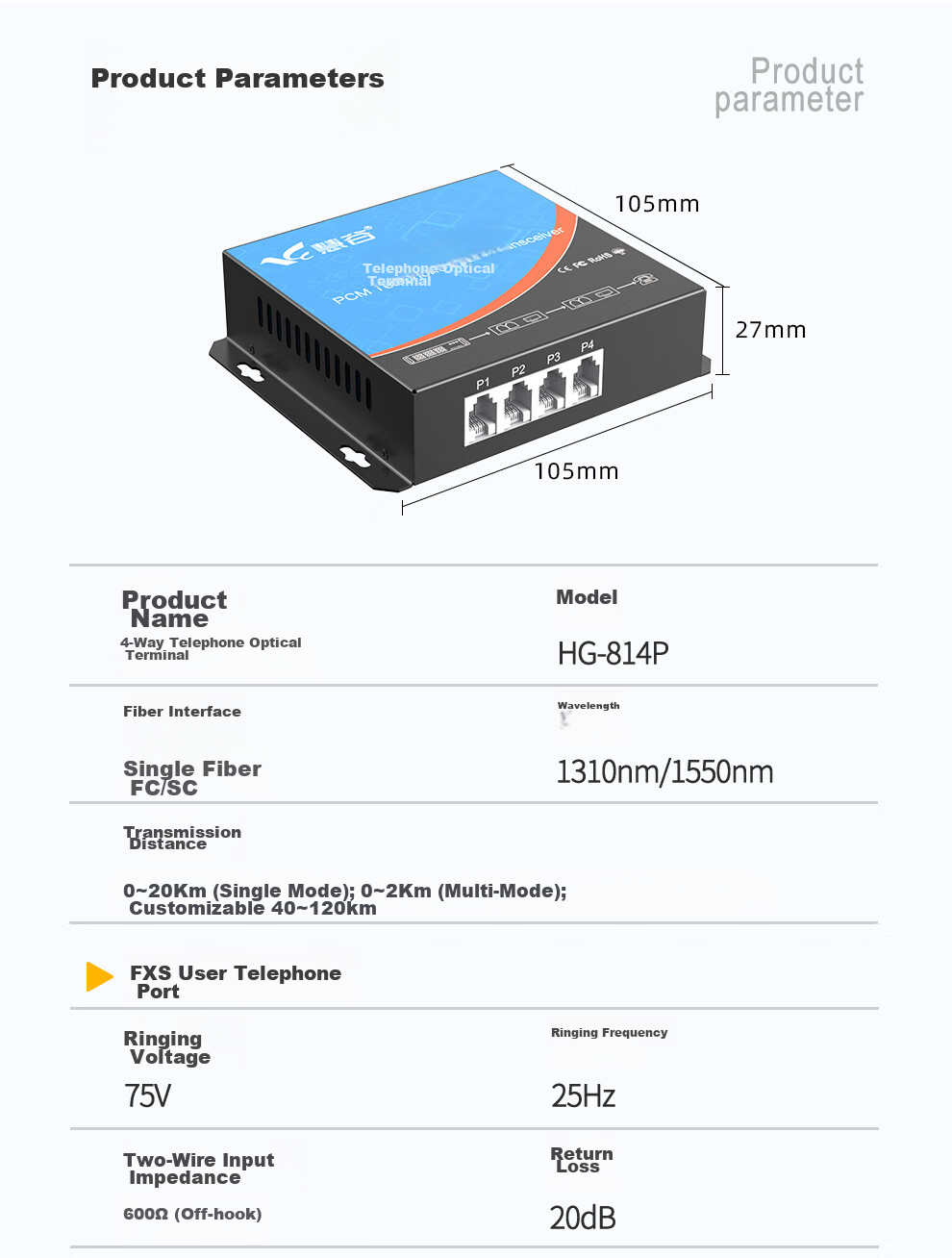

**Specifications:**

**Product Name:** 4-Channel PCM Telephone Optical Transceiver

**Brand:** Hugu

**Model:** HG-814P

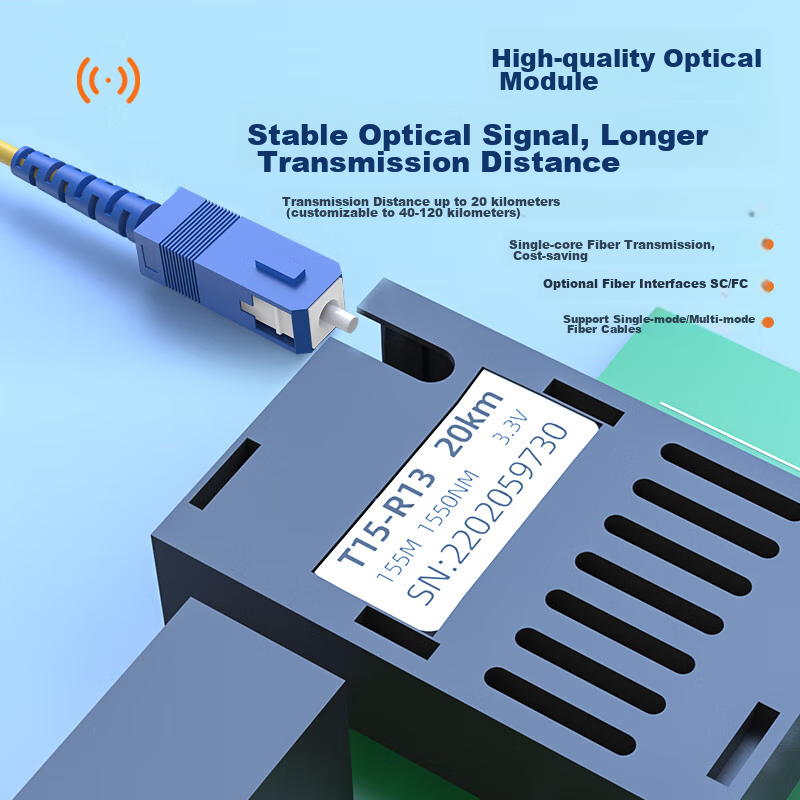

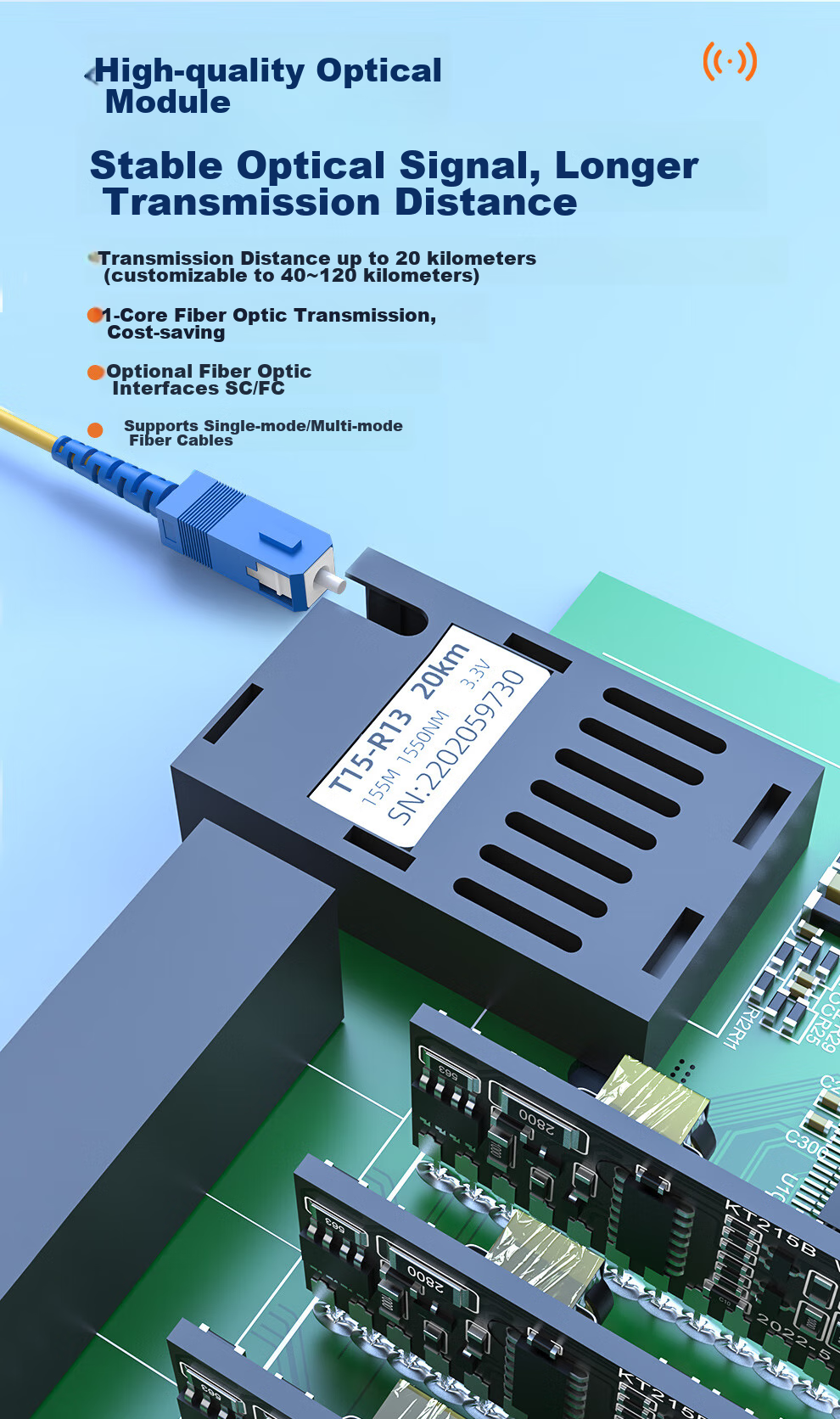

**Optical Interface:** Single Fiber FC/SC, 1310nm/1550nm

**Transmission Distance:** 0~20km (Single Mode); 0~2km (Multi Mode); Customizable to 40~120km

**FXS User Phone Port:** Ring Voltage 75V, Ring Frequency 25Hz, Impedance 600Ω (Off-hook), Return Loss 20dB

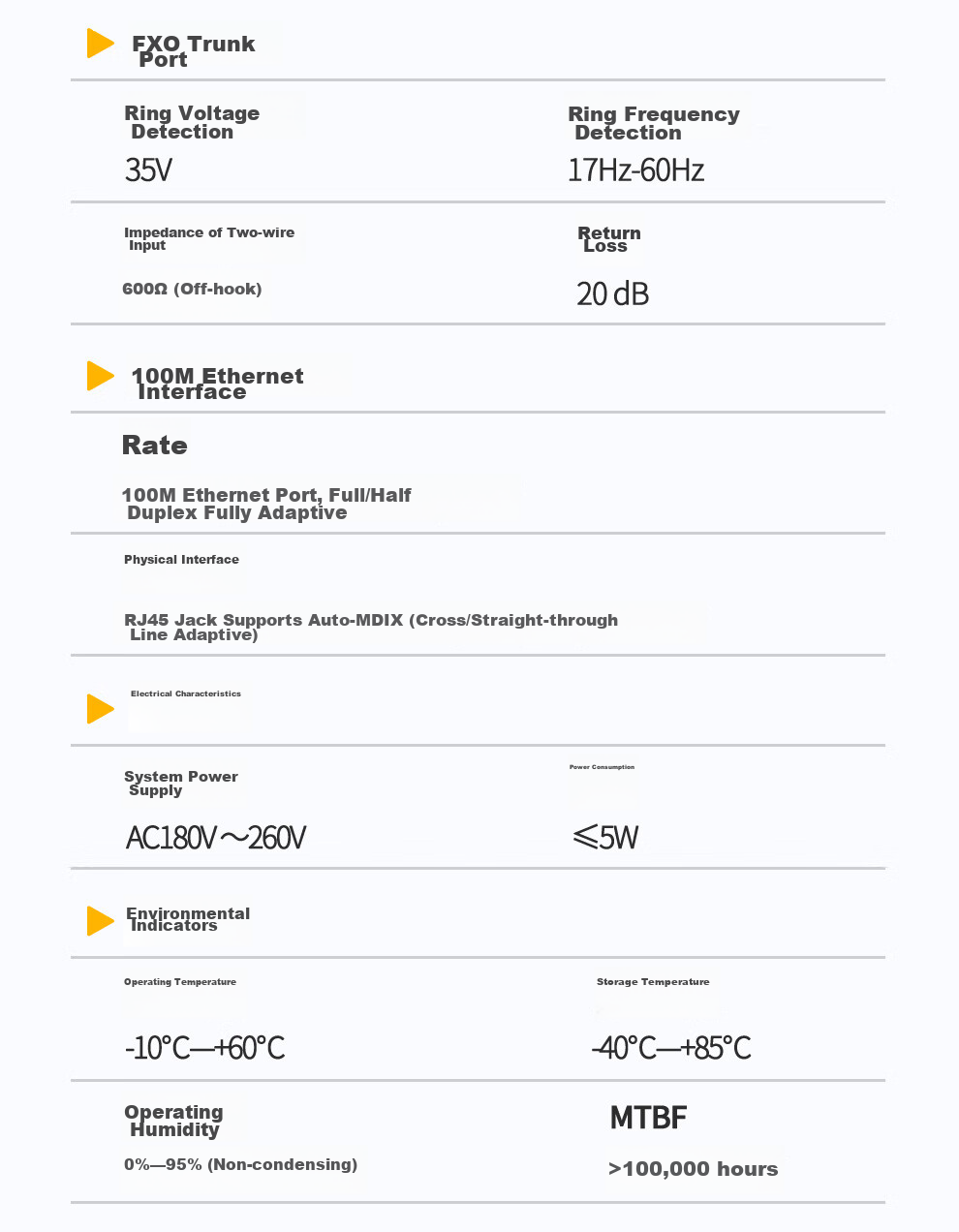

**FXO Trunk Port:** Ring Detection Voltage 35V, Ring Detection Frequency 17Hz-60Hz, Impedance 600Ω (Off-hook), Return Loss 20dB

**100M Ethernet Interface:** Rate 100M, Full/Half Duplex Adaptive, RJ45 Socket supporting Auto-MDIX

**Power Supply:** AC180V~260V, ≤5W

**Environmental Conditions:** Operating Temperature -10°C—+60°C, Storage Temperature -40°C—+85°C, Operating Humidity 0%—95% (Non-condensing), MTBF >100,000 hours

**Certifications:** CCC, MA, ISO9001:2015, FCC, RoHS, CE

**Applications:** Suitable for various scenarios such as office buildings, factories, workshops, etc., solving long-distance telephone transmission issues

**Packaging:** High-quality packaging box includes receiver end, transmitter end, user manual, warranty card, power cord, certificate of conformity

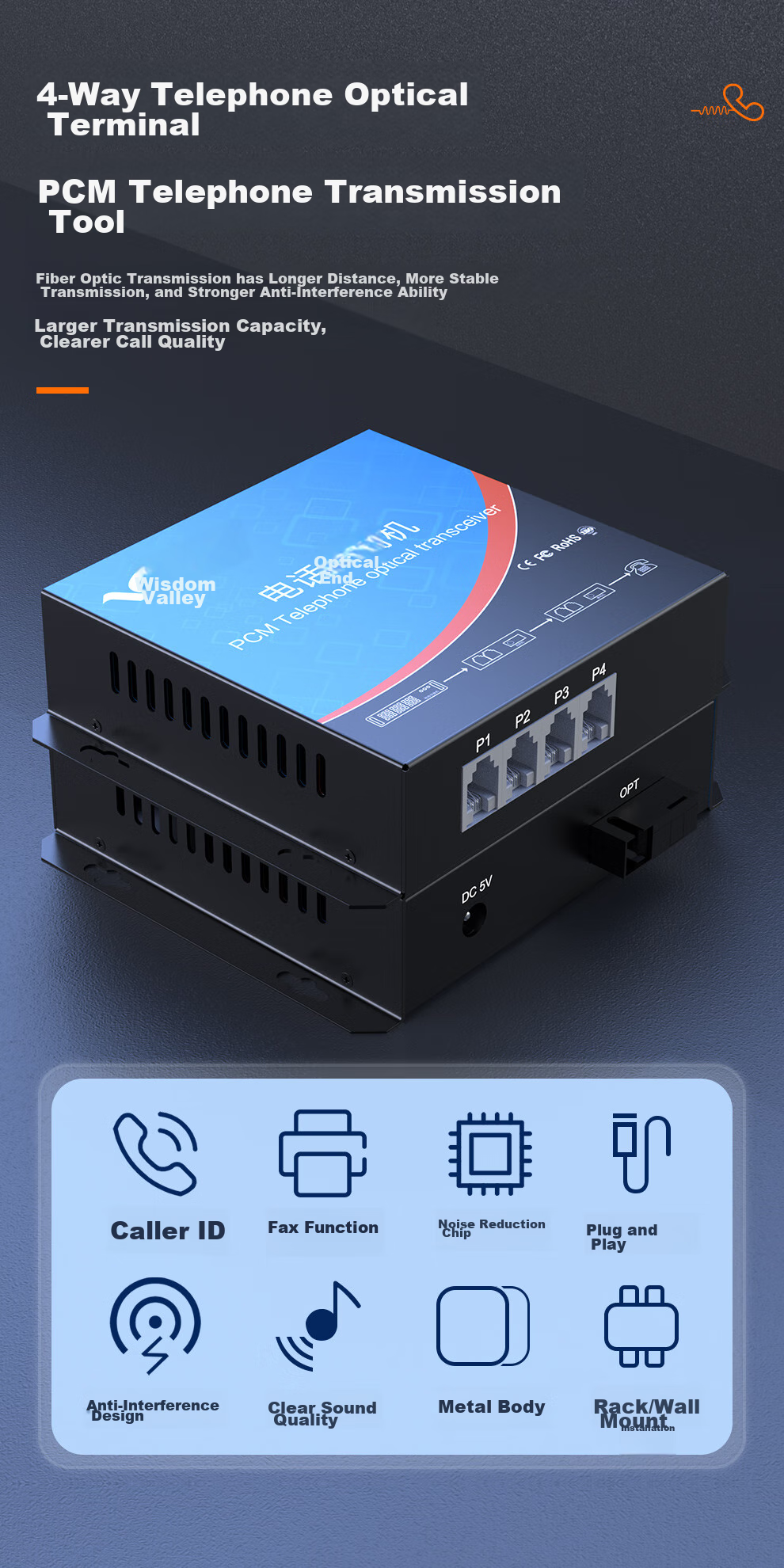

**Features:**

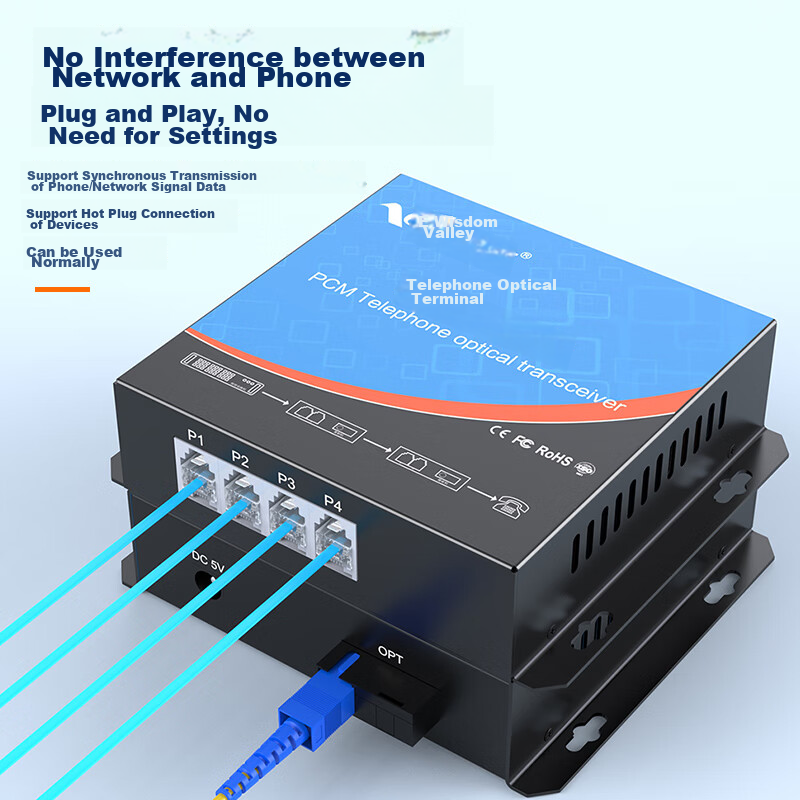

4-channel telephone optical transceiver for clear and stable communication

Supports caller ID, fax function, noise reduction chip, plug and play, and anti-interference design

Green and eco-friendly design with natural heat dissipation

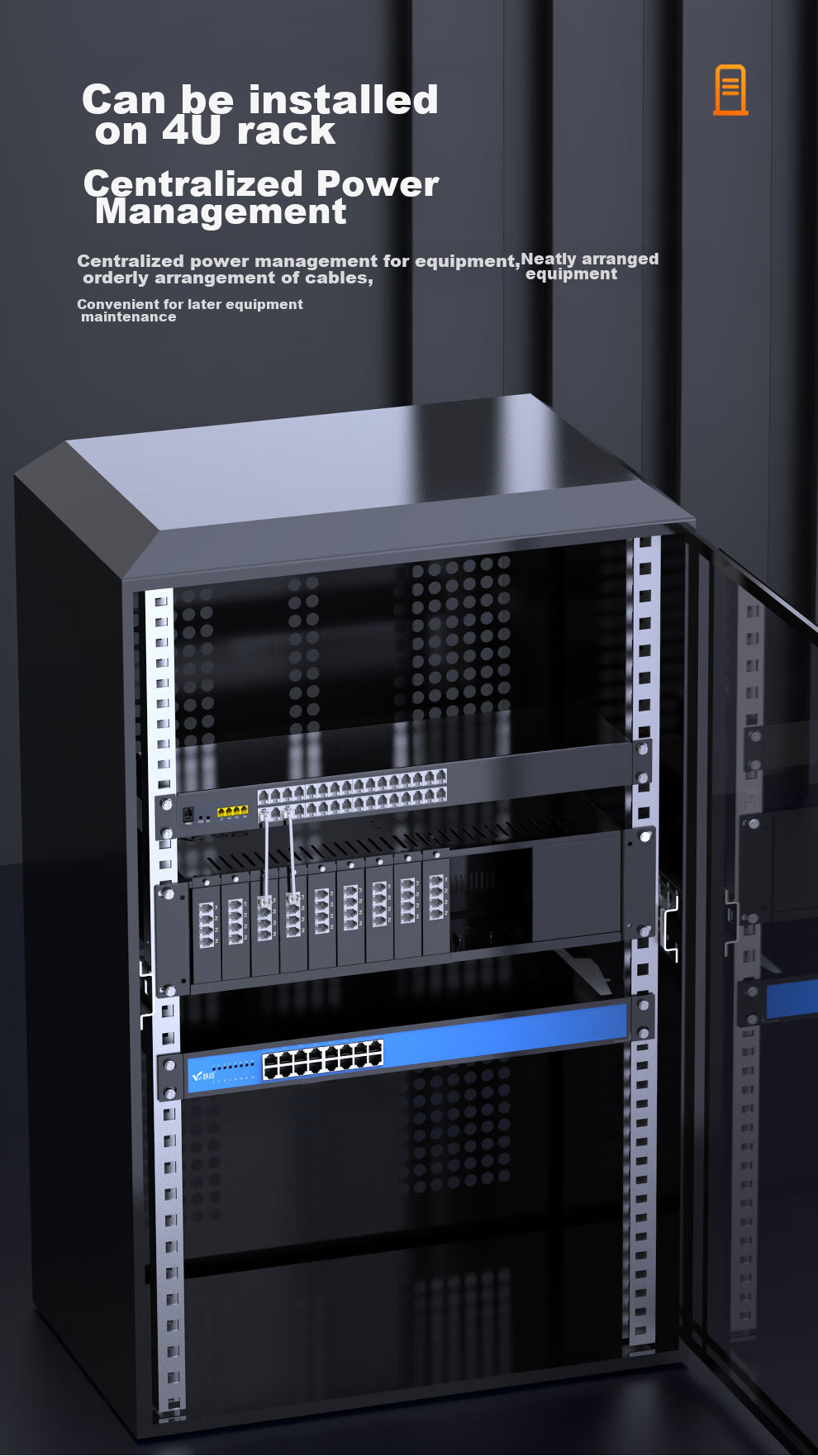

Suitable for desktop or wall mounting installation

Wide adaptability for office buildings, road traffic projects, community networks, and data center setups

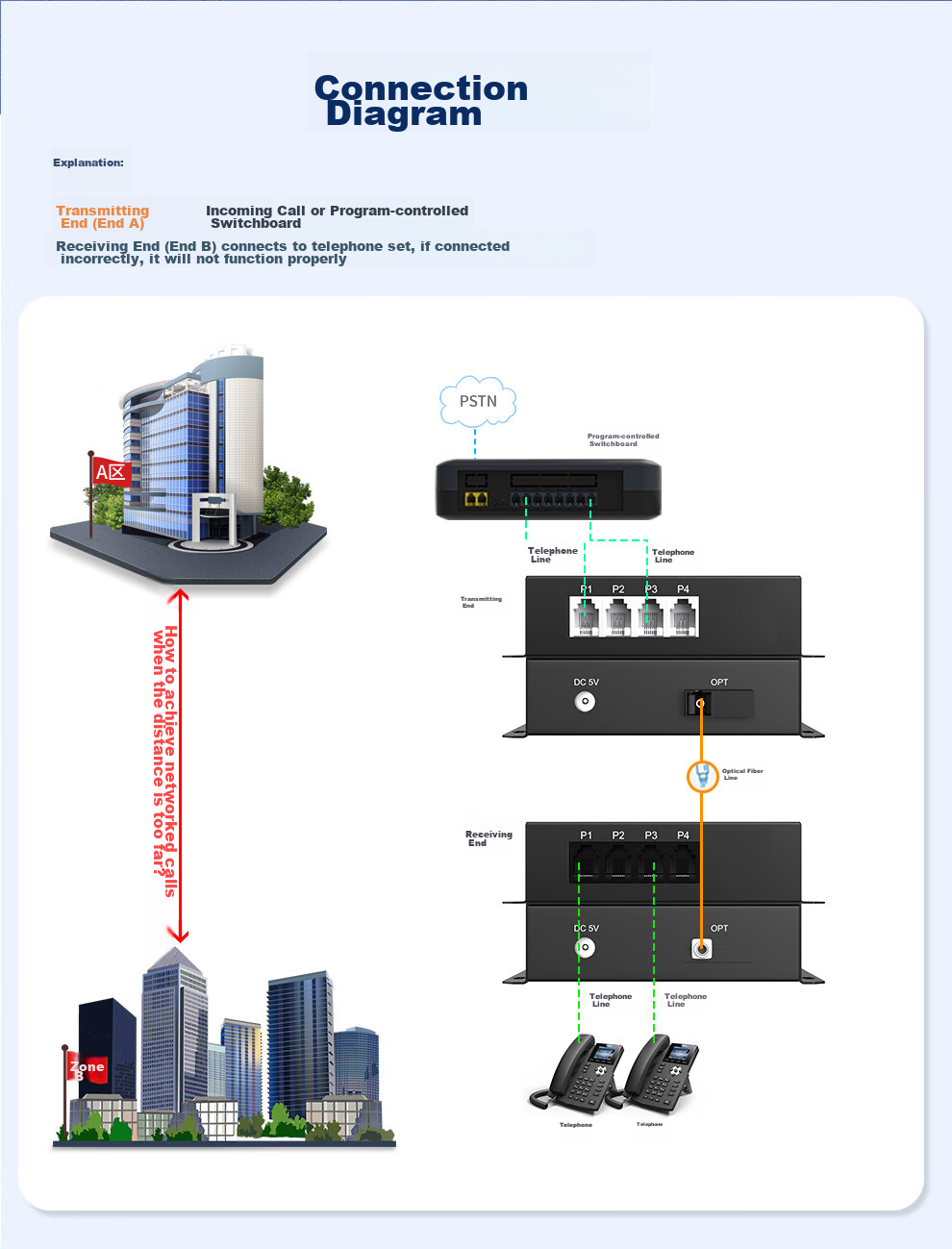

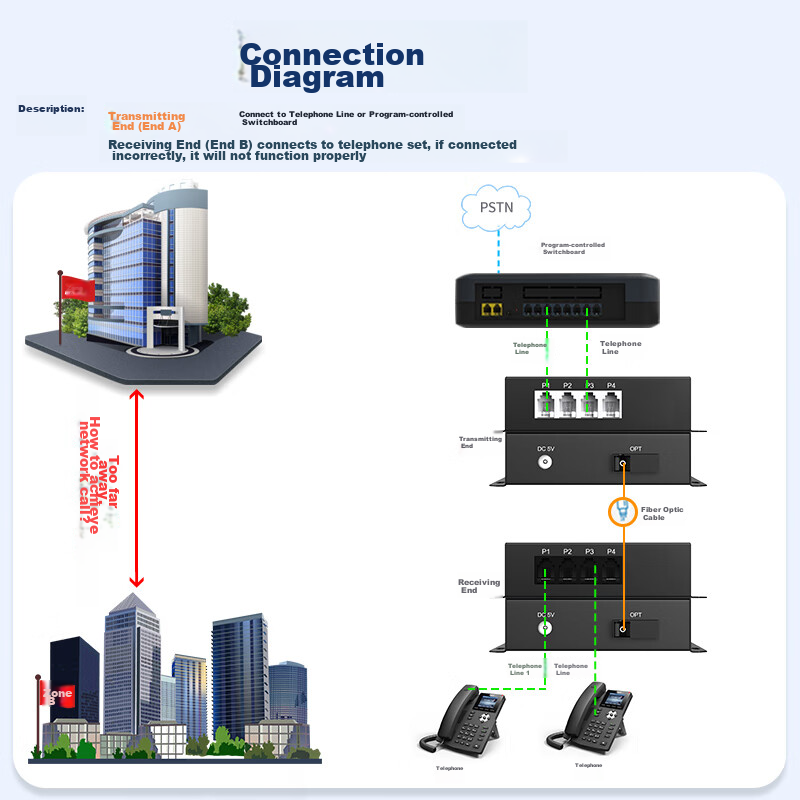

**Connection Diagram:**

A-End: Connects to incoming telephone line or PBX

B-End: Connects to telephone set

Incorrect connection will result in non-functionality

Supports PSTN, PBX, AX, and telephone lines
