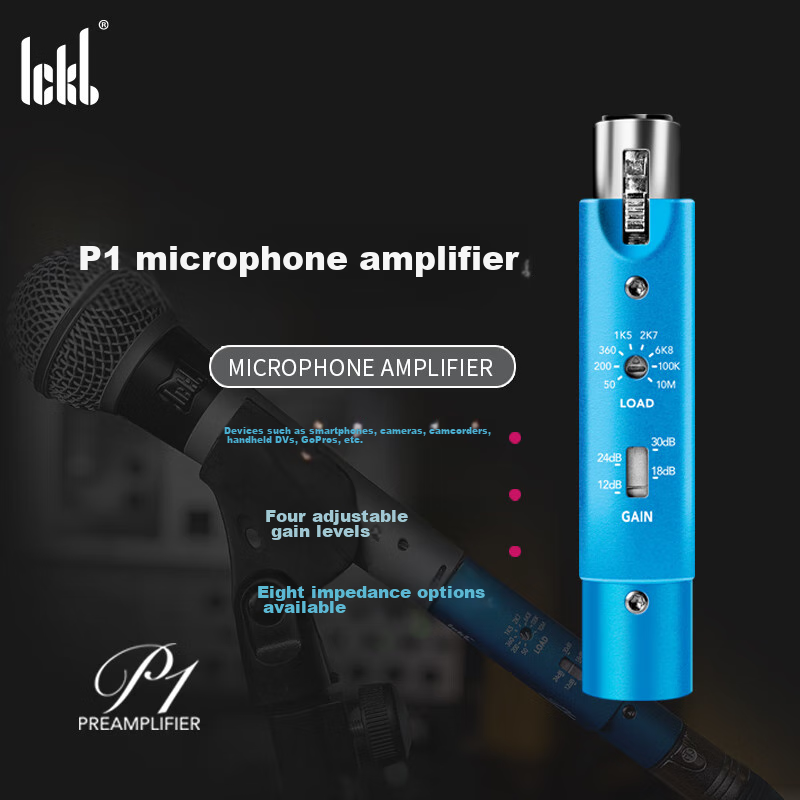

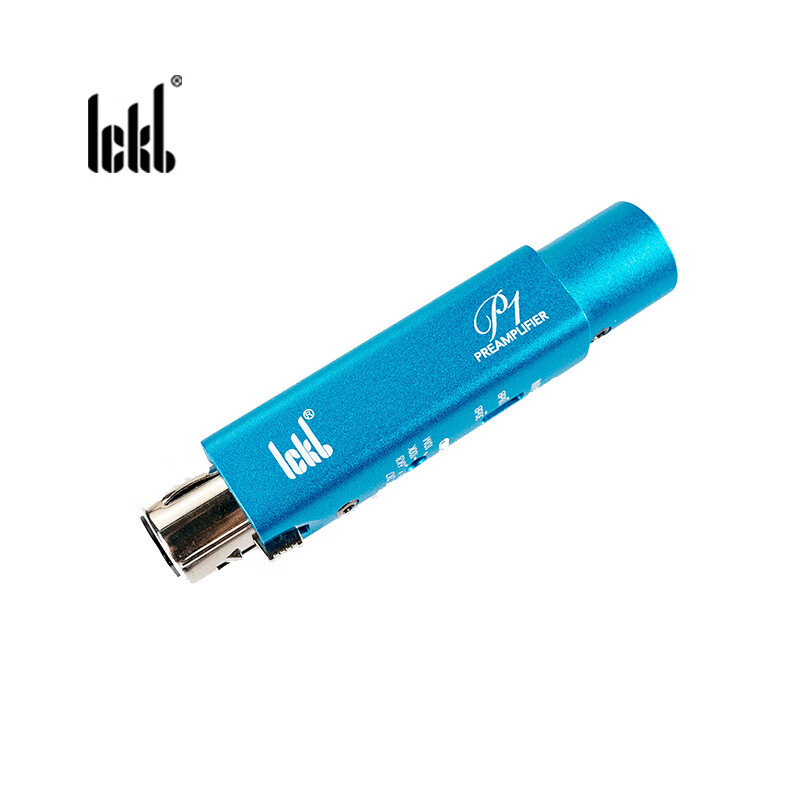

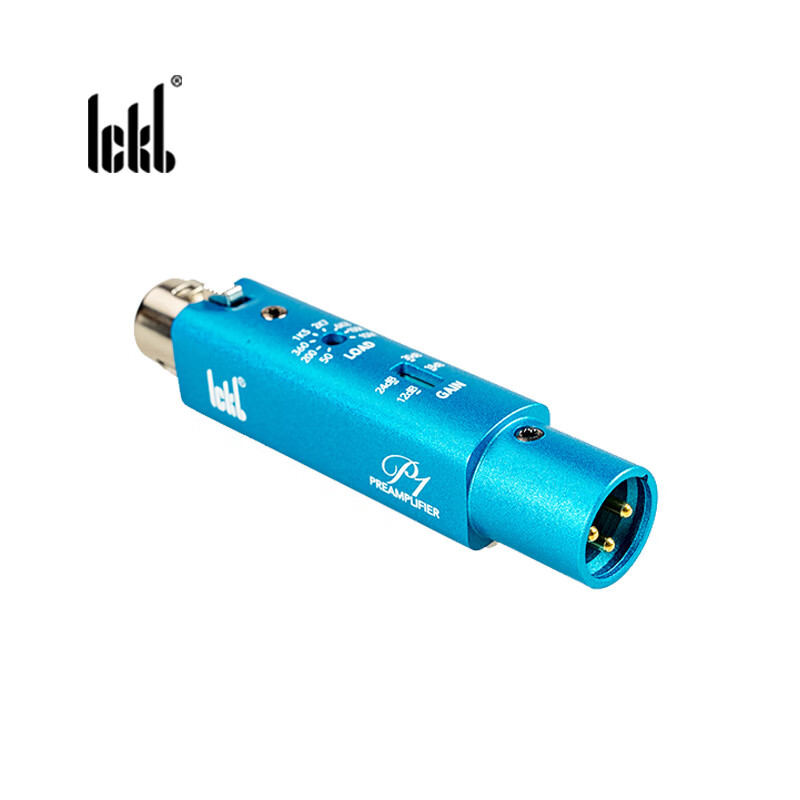

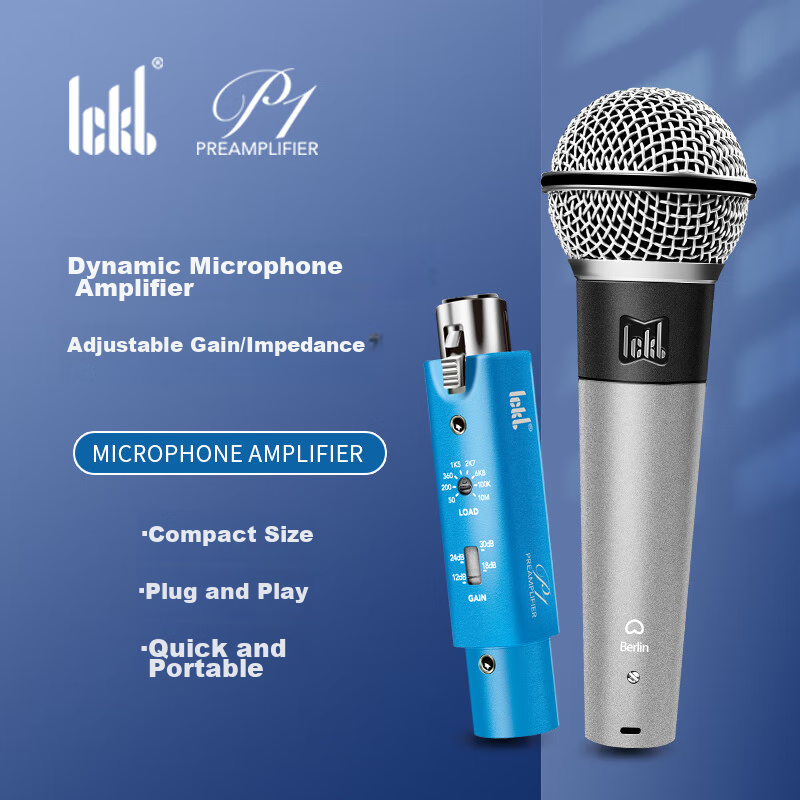

Ickb P1 Adjustable Mic Preamplifier, 5V Stage Microphone, Stage Mic Preamp, Low Noise Reduction, Clean Gain Amplifier

SKU : 100081511464

Availability : In stock
4.7
Weight : 0.27 kg
Length : 17.5 cm
Height : 10 cm

GHS 998.70

GHS 1,078.59

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

Brand: Ickb, Iell, P1

Product Name: Microphone Amplifier

Model: P1

Features:

Essential for dynamic and passive ribbon microphones

Four levels of adjustable gain, eight levels of selectable impedance

Addresses three common issues faced by sound card amplifiers: inability to drive, small waveform, low recording volume

Provides 12dB, 18dB, 24dB, and 30dB of clean gain

A-class amplifier design with A-class transistors for lower output impedance and reduced noise

Supports eight microphone load impedances

Enhances microphone sensitivity and sound characteristics

Suitable for professional recording studios, network karaoke, post-production, mobile and computer live streaming, and entertainment

Compatible with sound cards and TUBE professional live sound cards

Usage Scenario:

Professional recording studios, network karaoke, post-production, mobile and computer live streaming, entertainment

Use with mobile phones, sound cards, and TUBE professional live sound cards

Usage Settings:

Set the P1 impedance (LOAD) to approximately 10 times the microphone's output impedance

Shorter cables result in better overall sound quality

Ensure that the P1 is powered by a +48V phantom power supply

Technical Specifications:

Power Requirement: +48V phantom power (P48 compliant with IEC61938)

Frequency Range: 10Hz-120KHz (-0.3dB)

Gain Levels: 12dB/18dB/24dB/30dB

Load Impedance: 50/200/360/1.5K/2.7K/6.8K/100K/10M (ohms)

Output Impedance: 135 ohms

Connector: 3-pin male/female XLR

Max Output Level: 9.5dBV (3.0V) at 0.5% THD

Usage Notes:

Requires +48V phantom power from a sound card or amplifier

Compatible with dynamic and passive ribbon microphones only

Product Details:

P1 Microphone Amplifier

A-class transistor design

Multiple impedance options

Four levels of gain adjustment

Warranty card, user manual, and certification available at www.ickb.com
