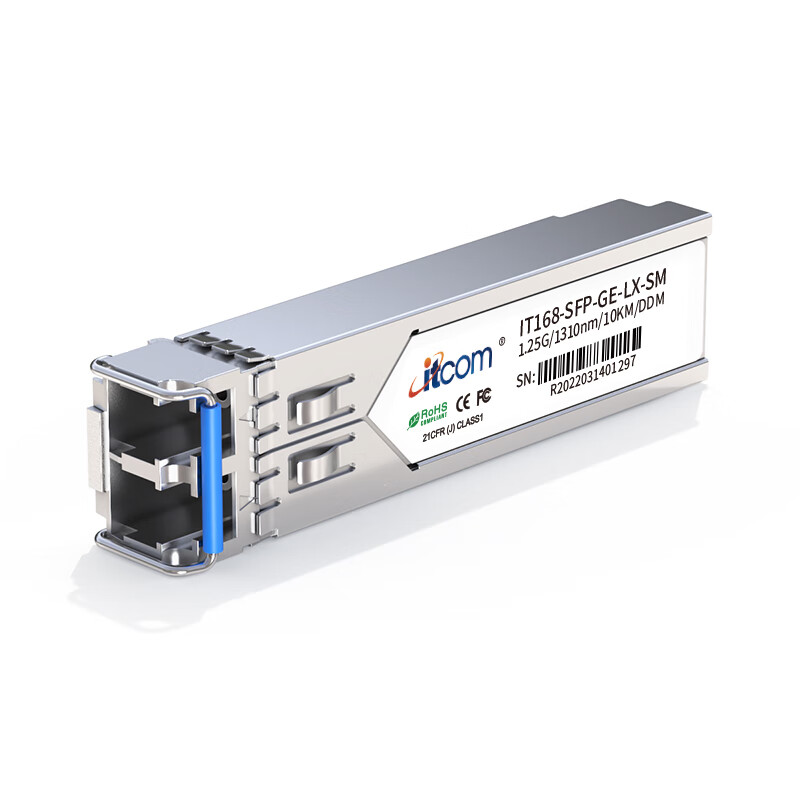

Itcom Gigabit Optical Module SFP Fiber Module 1.25G Single-Mode Dual-Fiber 1310 LC10KM Compatible with Huawei, Huaqiangwei, Pulin And Others IT168-SFP Single Piece

SKU : 100129730306

Availability : In stock
4.7
Weight : 0.06 kg
Length : 14.4 cm
Height : 4 cm

GHS 78.01

GHS 84.25

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

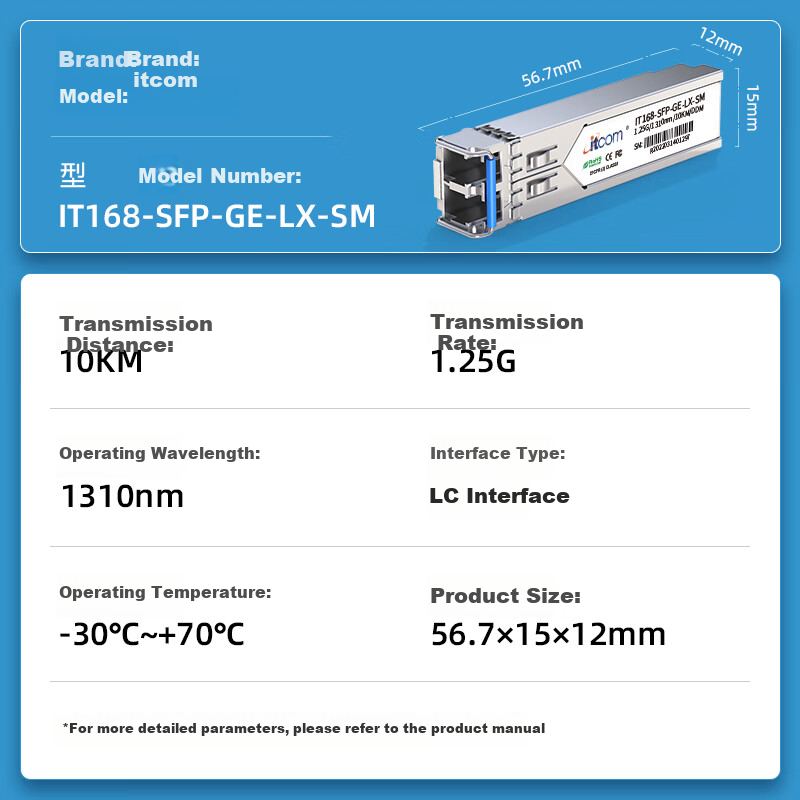

**Product Specifications:**

Brand: itcom

Model: IT168-SFP-GE-LX-SM

Transmission Distance: 10km

Transmission Rate: 1.25G

Operating Wavelength: 1310nm

Interface Type: LC interface

Operating Temperature: -30°C to +70°C

Product Dimensions: 56.7 x 15 x 12mm

DDM (Digital Diagnostic Monitoring) Functionality: Yes

Optical Module Parameter Index:

- IT168-SFP-GE-SX-MM: 850nm, -11~-16 dBm, -21 dBm, LC duplex, 550m, 3.3V

- IT168-SFP-GE-LX-SM: 1310nm, -18~-3 dBm, -22 dBm, LC duplex, 10km, 3.3V

- IT168-SFP-GE-LH20-SM: 1310nm, -6~-1 dBm, -25 dBm, LC duplex, 20km, 3.3V

- IT168-SFP-GE-LH40-SM: 1310nm, -6~-1 dBm, -28 dBm, LC duplex, 40km, 3.3V

- IT168-SFP-GE-LH80-SM: 1550nm, 2~4 dBm, -34 dBm, LC duplex, 80km, 3.3V

- IT168-SFP-GE-LH120-SM: 1550nm, 2~4 dBm, -34 dBm, LC duplex, 120km, 3.3V

- IT168-SFP-GE-LX3-SM-AB: 1310(TX)1550(RX), -8~-3 dBm, -20 dBm, LC simplex, 3km, 3.3V

- IT168-SFP-GE-LX-SM-AB: 1550(TX)1310(RX), -8~-3 dBm, -22 dBm, LC simplex, 10km, 3.3V

- IT168-SFP-GE-LH20-SM-AB: 1310(TX)1550(RX), -5~-2 dBm, -25 dBm, LC simplex, 20km, 3.3V

- IT168-SFP-GE-LH40-SM-AB: 1550(TX)1310(RX), -3~-1 dBm, -25 dBm, LC simplex, 40km, 3.3V

- IT168-SFP-GE-LH80-SM-AB: 1490(TX)1550(RX), -1~3 dBm, -30 dBm, LC simplex, 80km, 3.3V

- IT168-SFP-GE-LH120-SM-AB: 1490(TX)1550(RX), 2~4 dBm, -34 dBm, LC simplex, 120km, 3.3V

*For more detailed parameters, please refer to the product user manual.*
