Jinghua Console Debugging Cable, USB to RJ45 Network Port Cable, Suitable for Cisco, Huawei Servers, Tenda TP-LINK Switches, Conversion Cable, Engineering Version, Black, 1.8 Meters, Z205F

SKU : 100042158831

Availability : In stock
4.7
Weight : 0.13 kg
Length : 12.5 cm
Height : 3.1 cm

GHS 94.04

GHS 101.56

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** JH ()

**Product Name:** USB to RJ45 Console Debugging Cable

**Model:** Z200

**Chip:** High-performance PL2303 chip, imported FT232+SP213 chip

**Shell Material:** PVC shell, alloy shell

**USB Interface:** Nickel-plated craft, gold-plated craft

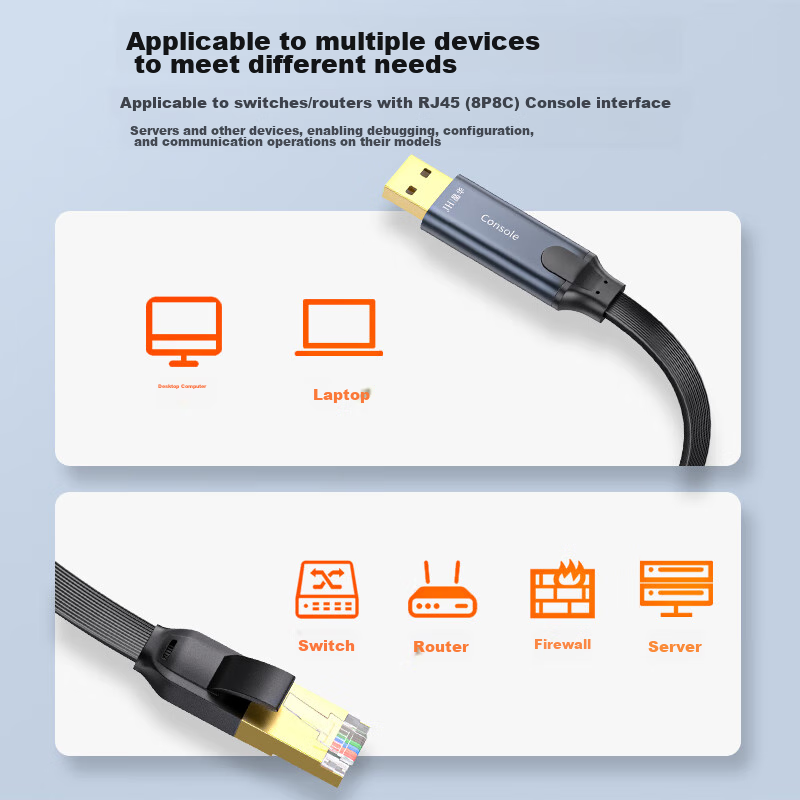

**Features:** USB to RJ45, stable signal transmission, ESD protection circuit, thickened gold-plated contacts, multi-device compatibility

**Compatibility:** Windows XP, Windows 7/8, Vista, Windows 10, MacOS, Linux

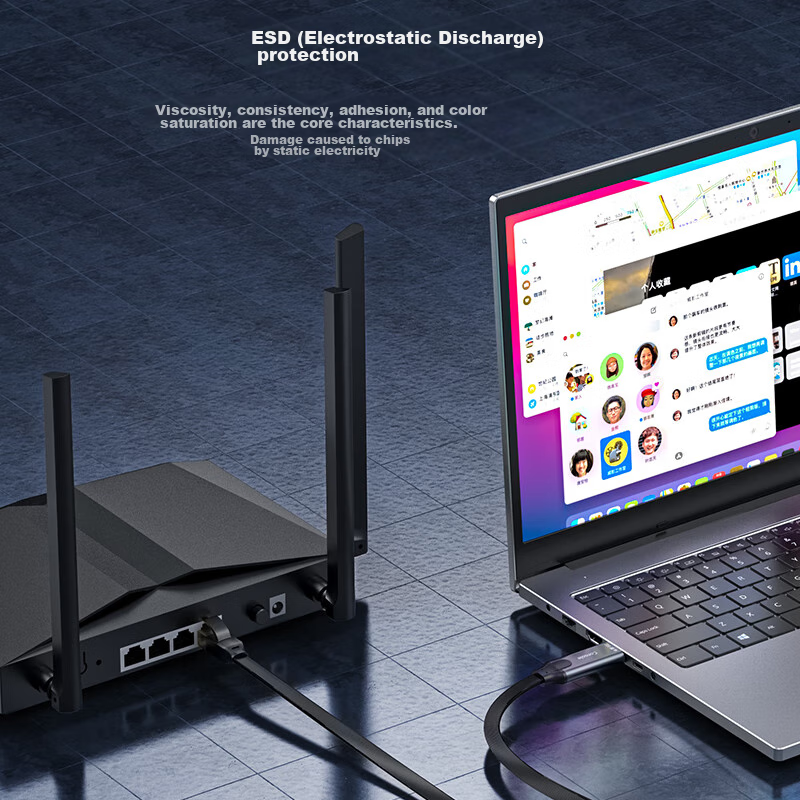

**Design:** Twisted pair structure for stable transmission, ESD static protection, RS232 serial interface support

**Additional Features:** Remote wake-up support, power management, automatic serial handshake protocol support

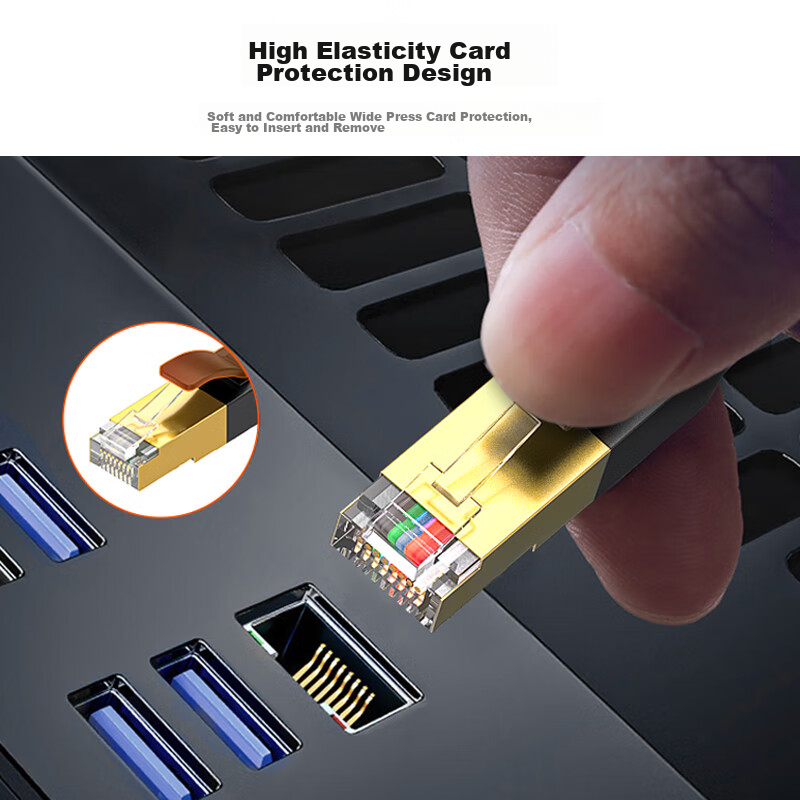

**Design:** High elasticity card design, flat and tangle-free cable design

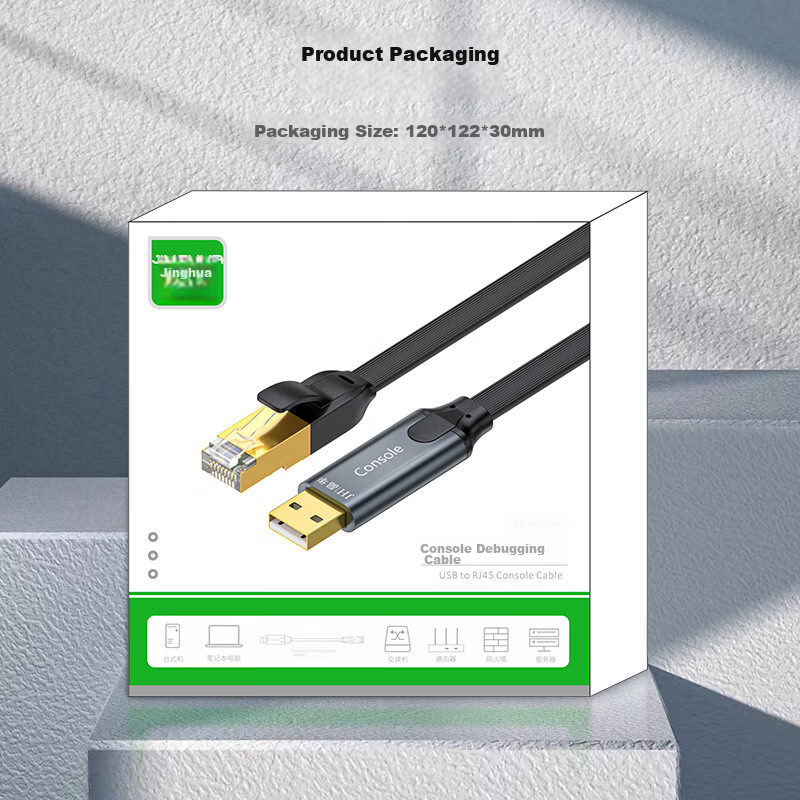

**Package:** Exquisite bag packaging

**Dimensions:** 17mm x 12mm x 58mm (adapter), 40mm x 7mm (card)

**Color:** Black

**Length:** 1.8m/3m

**Note:** Please confirm pin definitions before purchase.

**Troubleshooting:**

If driver installation fails, follow these steps:

1. Uninstall any previous PL2303 drivers.

2. Restart your computer.

3. Install the provided "WIN781011" driver.

**Interface Display:**

Standard USB interface, Consple, ①23④5678

RJ45 (Console) male head wiring definition:

- 1. CTS - Clear to Send (Color: Yellow)

- 2. DSR - Data Set Ready (Color: Orange)

- 3. RXD - Data Receive (Color: White)

- 4. GND - Ground (Color: Blue)

- 5. DCD - Data Carrier Detect (Color: White)

- 6. TXD - Data Transmit (Color: Green)

- 7. DTR - Data Terminal Ready (Color: White)

- 8. RTS - Request to Send (Color: Brown)
