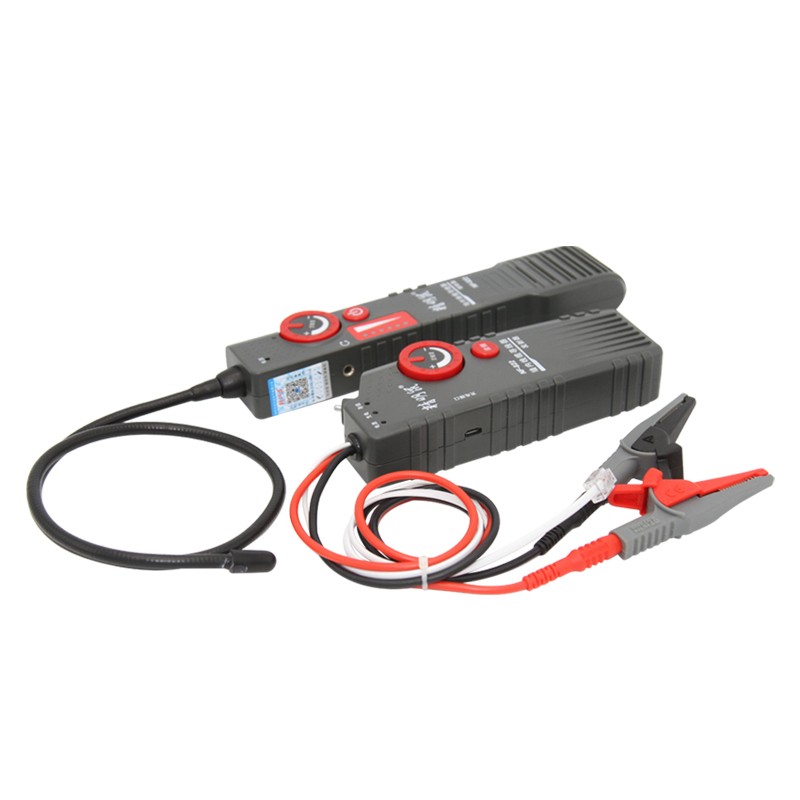

Jingmingshu NF-822 Cable Tracker, High-Sensitivity Anti-Interference Wire Detector for Wall Cables, Can Locate Hidden Power Cables

SKU : 100020683072

Availability : In stock
4.7
Weight : 0.795 kg
Length : 35.3 cm
Height : 5.2 cm

GHS 599.02

GHS 646.94

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Specifications:**

**Brand:** Jingming Shu

**Models:** NF-820, NF-822

**Product Image:** Available

**Tracing Mode:** Non-noise

**Sensing Distance:** NF-820: 0-2m, NF-822: 0.1-0.5m

**Voltage:** 0-380V

**Bendable:** 50cm

**Probe:** Regular, flexible hose probe

**Battery:** Lithium battery charging available

**220V High Voltage Cable Detector**

**NF-820 Features:**

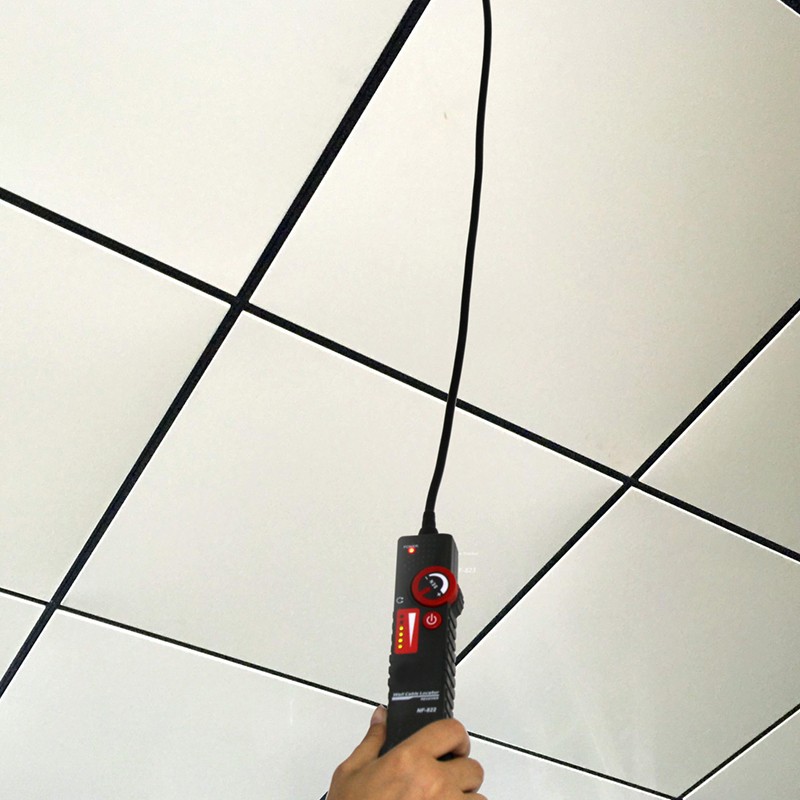

1. Detects the direction and location of hidden cables in walls, floors, ceilings, etc.

2. Detection depth of 2m suitable for buried underground cables.

3. Designed to withstand high voltage, can be directly connected to 220-380V AC without damaging the instrument.

4. Lithium battery charging capability.

**NF-820 Technical Parameters:**

**Product Name:** Anti-interference Non-noise Underground Cable Locator

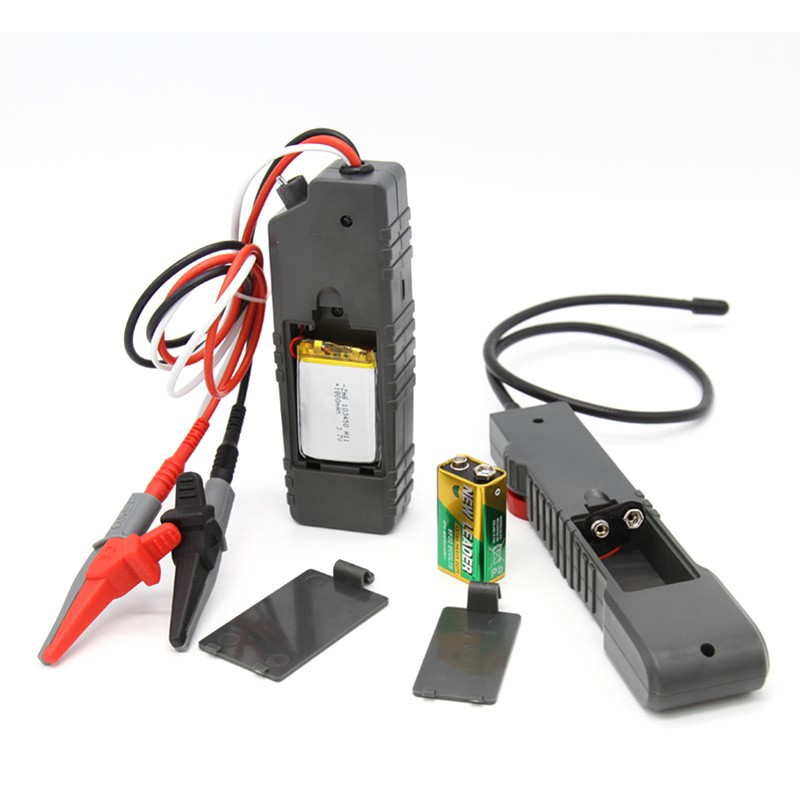

**Power Supply:** DC 3.7V lithium battery

**Transmitter Power:** ≤150mA±10%

**Receiver Power:** ≤80mA±10%

**Low Voltage Warning:** ≤3.5V LED flashing

**Charging Current:** 800mA

**Signal Transmission Format:** Multi-frequency pulse

**Signal Output Level:** 21Vp-p

**Signal Transmission Distance:** ≤10km

**Signal Sensing Distance:** 0-2m

**Transmitter Size:** 152×55×34mm

**Receiver Size:** 252×45×28mm

**Total Set Size:** 270×145×68mm

**Weight:** Transmitter: 0.143kg, Receiver: 0.200kg, Total Set: 0.343kg

**NF-822 Features:**

**Model:** NF-822

**Probe:** Internal wire detector

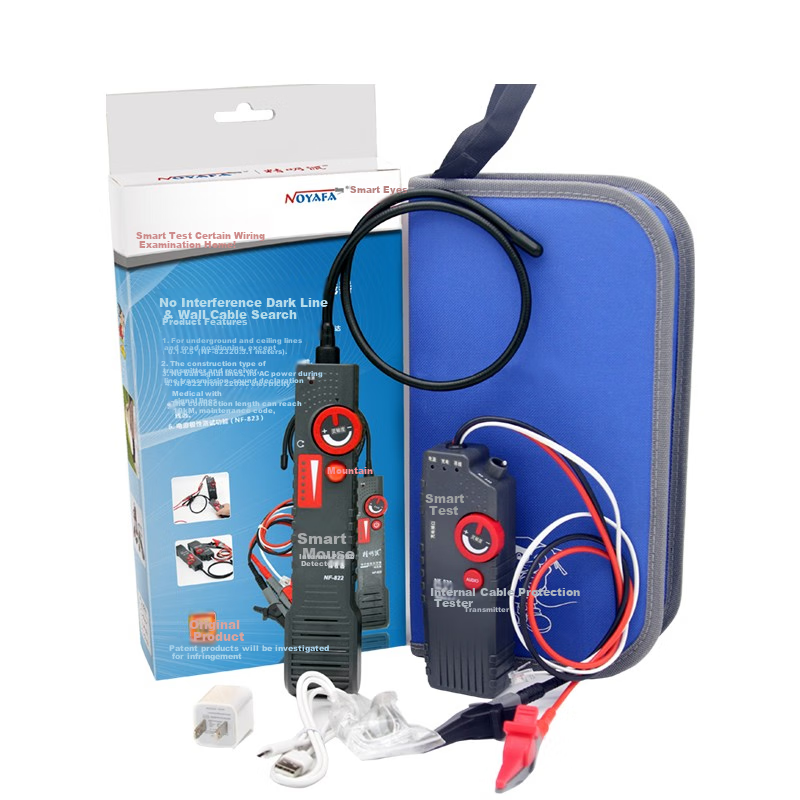

**Package Includes:** Transmitter, Receiver, 3.7V lithium battery (x2), 5V1A charger adapter, USB charging cable, headphones, user manual, tool kit, color box

Jingming Shu - Your expert in tracing hidden and internal cables!
