JONSBO (JONSBO) Songuo D31 MESH Version Black MATX Case (Dual 360mm Radiator Support, ATX Power Supply, Type-C Gen2 10Gbps+, Vertical Airflow, Long Graphics Card)

SKU : 100041626511

Availability : In stock
4.7

Write your review

Weight : 6.96 kg
Length : 53.4 cm
Height : 29.4 cm

GHS 448.64

41.41

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** JONSBO

**Model:** D31 "Pinecone" Series

**Type:** Mesh Panel, All-Metal Compact MATX Case

**Cooling Support:** Supports 360mm Radiator

**Features:**

- Compact M-ATX design, with increased top space for 360/280 radiator support

- Front USB 3.2 Gen 2 Type-C 10Gbps high-speed interface

- Bottom support for 360/240 radiator, compatible with future high-power integrated water-cooled graphics cards and separate player demands

- Dual-directional optional installation for power supply intake, allowing the intake to face the panel direction without interfering with internal airflow in fan-cooled environments

- Side and front panel air intake versions to enhance power supply independent intake and internal supplementary airflow

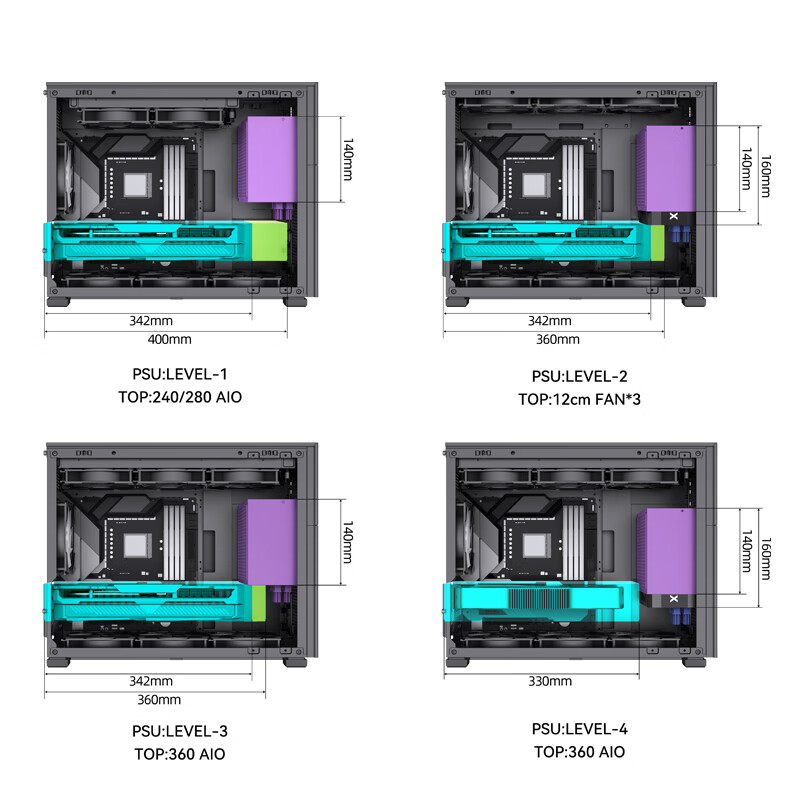

- 4-level height adjustment for power supply installation, providing compatibility adjustments based on hardware configurations for diverse graphics card matching

- Increased internal hardware mounting hole area to improve heat convection efficiency, balancing heat dissipation efficiency and visual aesthetics

- Optimized compatibility of triple-slot graphics card in the second slot PCI-Ex16 when installed with bottom 3.5-inch hard drives and fans

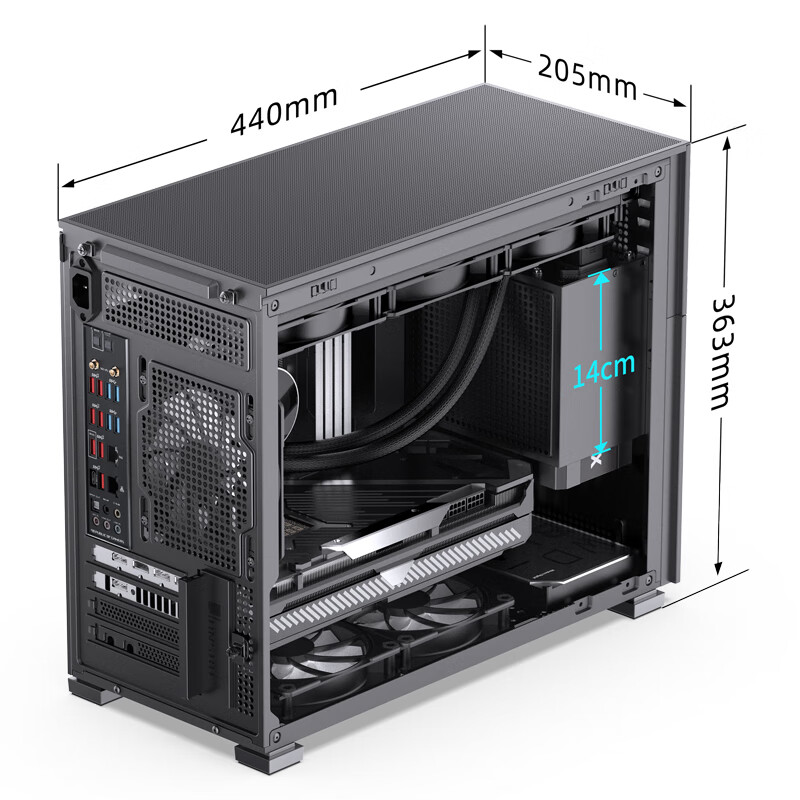

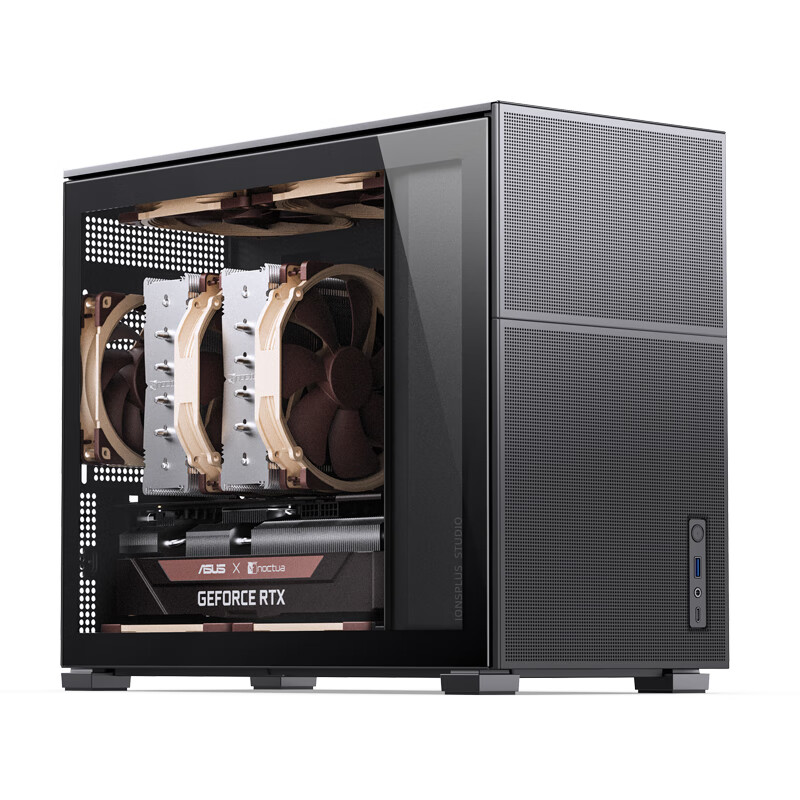

- Supports full-size MATX motherboards, 168mm high-end air coolers, 335-400mm flagship graphics cards, and at least 14cm long PSII power supplies

- Bottom offset 3x120mm or 2x140mm fans, blowing directly onto the graphics card above to form a vertical airflow path within the chassis, effectively reducing high-power GPU temperatures

- Molded detachable nylon magnetic dust filter at the bottom for improved ventilation and dust protection compared to regular PVC dust filters

- Tool-less assembly design for front panel, left/right side panels, top cover, bottom dust filter, and SSD mounting bracket

- Top with up to 92.5% heat dissipation opening area and 12mm space for exhaust airflow buffer zone to alleviate noise and airflow resistance issues

**Cooling Support Specifications:**

- **Fan Support:**

- Top: 120mm*3 or 140mm*2 (optional)

- Rear: 120mm*1 (optional)

- Bottom: 120mm*3 or 140mm*2 (optional)

- Front: 120mm*1 (optional)

- **Water Cooling Support:**

- Top: 120/240/280/360*1

- Rear: 120*1

- Bottom: 120/240/360*1

**Size Comparison:**

- D31 MATX: 407mm height

- D41 ATX: Slight height difference compared to D31

*Images of D31 MATX and D41 ATX cases available for reference.*
