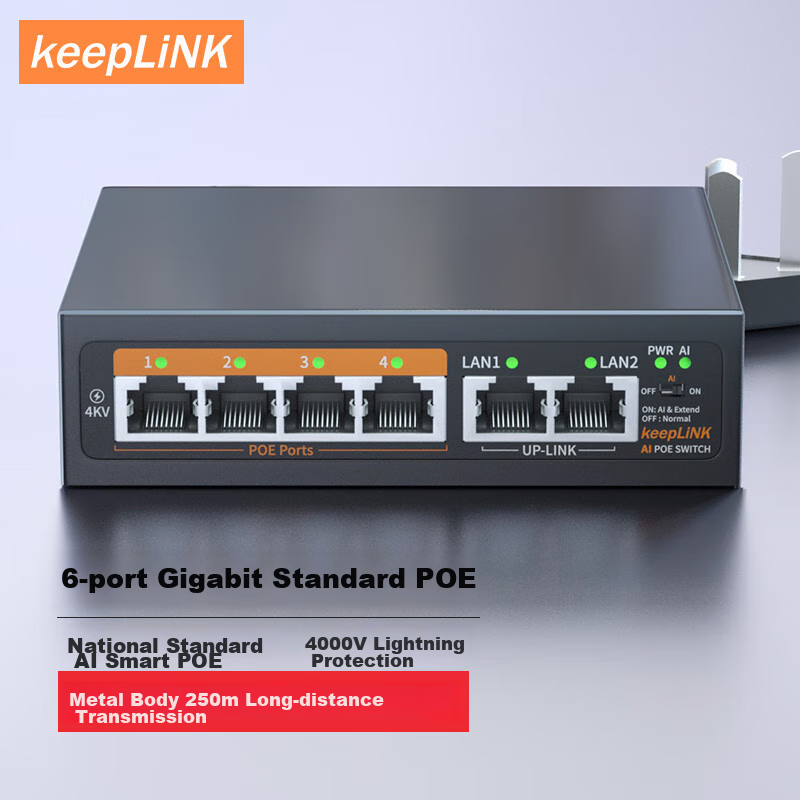

KeepLINK, 100Mbps 6-Port Standard POE Powered Switch, 52W, Camera Surveillance Network Cable Splitter Converter, Separator, Flow Distributor Switch, 204PZ

SKU : 100046899794

Availability : In stock
4.7
Weight : 0.45 kg
Length : 17 cm
Height : 4.4 cm

GHS 92.09

GHS 99.46

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** keepLiNK

**Model:** KP-9000-204PZ

**Features:** AI Intelligence, POE Switch

**AI Intelligence Features:**

- 4000V Lightning Protection

- 250m Long-Distance Transmission

- Watchdog Function

- Single Port Power

- Intelligent Power Supply

- Plug and Play

- 30W Power Output

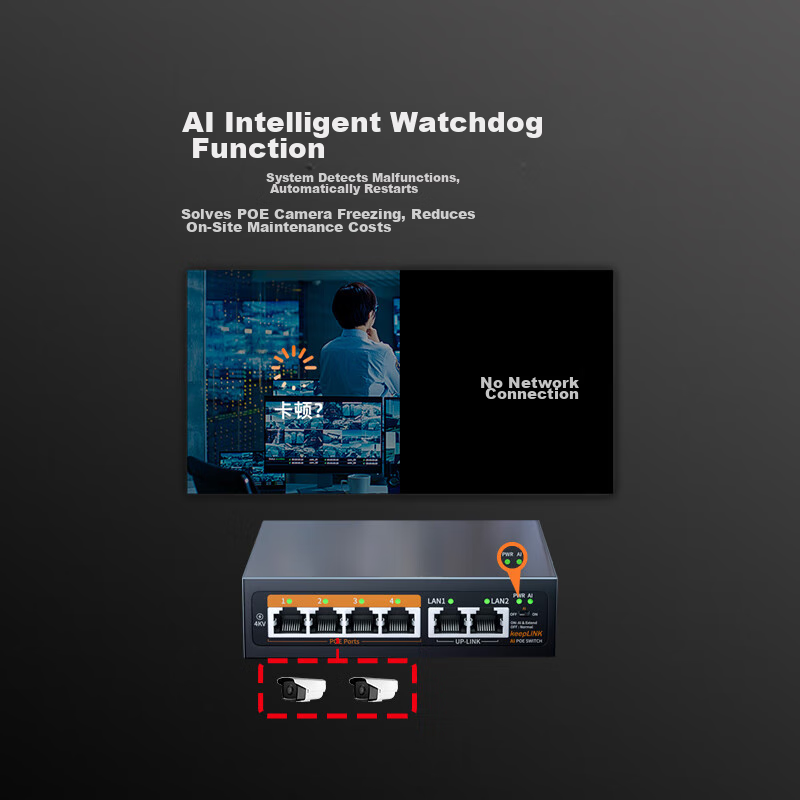

**Watchdog Function:**

- System Fault Detection

- Automatic Reboot

- Reduces Maintenance Costs

**Network Connectivity:** LAN1, LAN2

**Power Supply:** Standard POE, 30W per Port

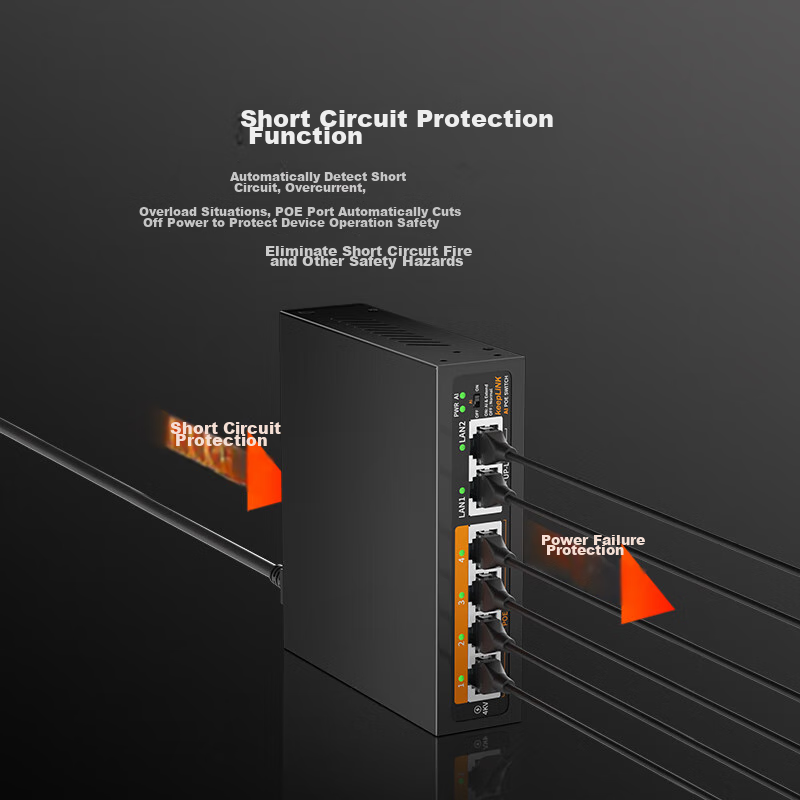

**Protection:** Overload and Short Circuit Protection

**Ease of Use:** Plug and Play, Auto MDI/MDI-X

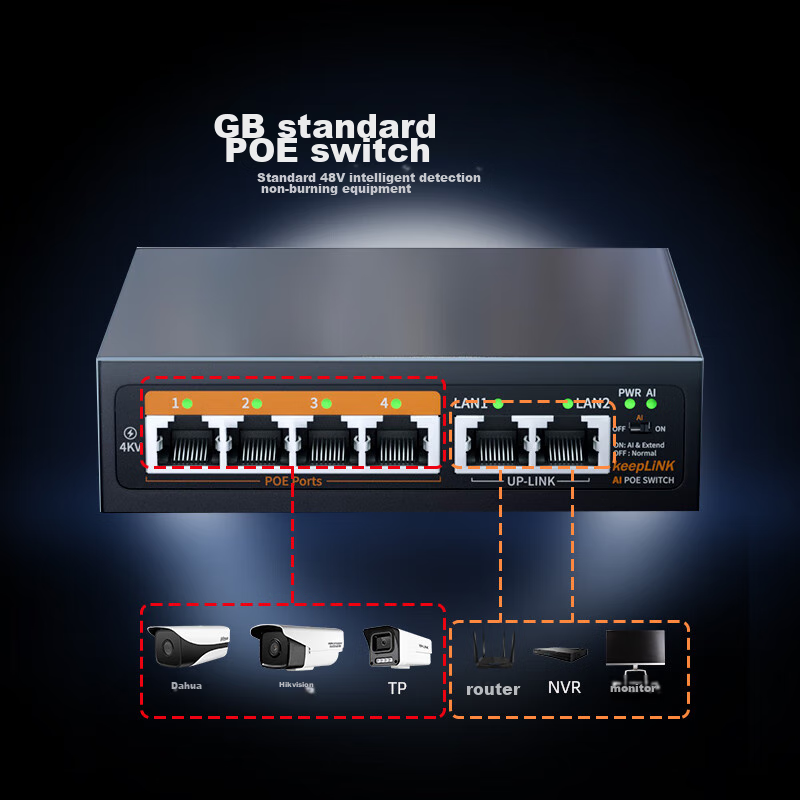

**Application Scenarios:**

1. Home/Villa Networking Solution: Switch, NVR, Display, POE Cameras

2. Enterprise/Supermarket Solution: Switch, NVR, Display

**Basic Specifications:**

- 4x 100Mbps POE RJ45 Ports + 2x 100Mbps Uplink RJ45 Ports

- Backplane Bandwidth: 1.2G

- MAC Address Table: 2K

- Power Input: AC 100-250V, 52W

**Network Media and Transmission Distance:**

- 100Base-TX: Cat5 or higher UTP/STP (≤100m)

- 10Base-TX: Cat5e or higher UTP/STP (≤250m)

**Indicators:** Power, AI Mode, Port Link/Activity

**Software Specifications:**

- IEEE802.3 Ethernet and IEEE802.3U Fast Ethernet Protocol

- IEEE802.3af/at PD Compatibility

- MAC Learning and Aging

- Full/Half Duplex Flow Control

**Data Transfer Rate:**

- Ethernet: 10Mbps Half Duplex, 20Mbps Full Duplex

- Fast Ethernet: 100Mbps Half Duplex, 200Mbps Full Duplex

**POE Performance:**

- IEEE802.3af/at Support

- Peak Power: 30W

- Protection: Overcurrent, Overvoltage, Short Circuit

**Environmental Requirements:**

- Operating Temperature: 0°C to 40°C

- Storage Temperature: -40°C to 70°C

- Operating Humidity: 10% to 90% RH

- Storage Humidity: 5% to 90% RH

**Dimensions/Weight:**

- Device: 125mm x 115mm x 34mm, 0.45KG

- Package (40PCS): 470mm x 360mm x 330mm, 20.5KG

**Packaging:** High-Quality Cardboard Box

**Storage Recommendations:** Clean, Ventilated, Non-Corrosive Environment

**Storage Period:** Up to 2 Years, Recheck Before Use

**Standard POE vs. Non-Standard POE:**

- Standard POE: Handshake Protocol, Intelligent Protection

- Non-Standard POE: No Handshake, Potential Damage Risk

**Price Difference:** Non-Standard POE Usually Cheaper due to Simpler Design

For any inquiries or further details, please contact our customer service.
