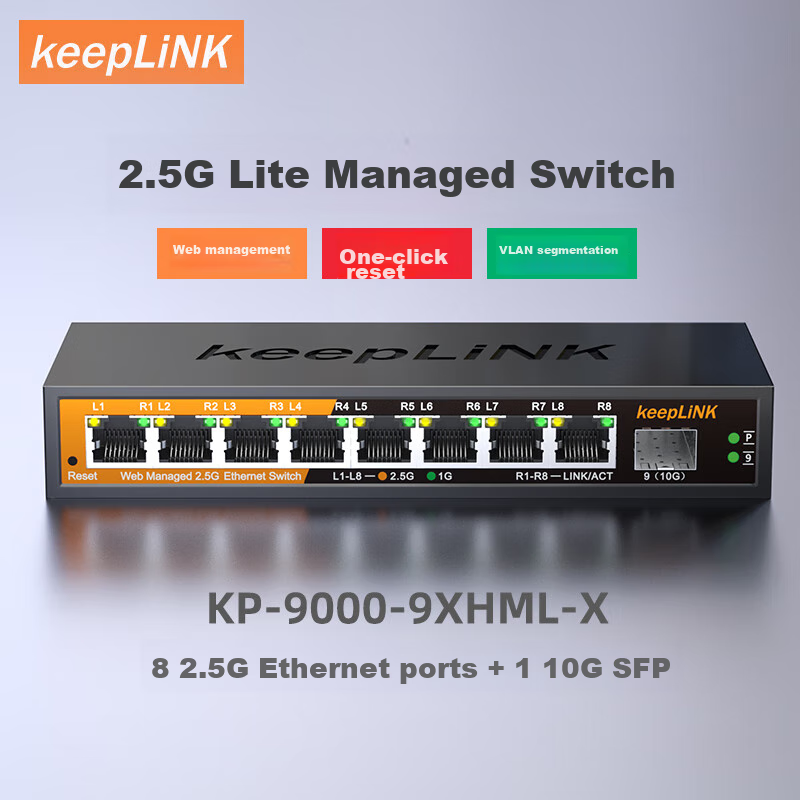

KeepLINK 2.5G Switch, 8 Ports 2.5G + 10G Optical Port, Supports VLAN/Layer Aggregation, Managed Metal Shell, for Home And Enterprise Network Splitter, Supports Modem Stick, 9XHML-X

SKU : 100072559829

Availability : In stock
4.7
Weight : 1 kg
Length : 26.8 cm
Height : 6.8 cm

GHS 478.33

GHS 516.60

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications**

**Brand:** keepLINK

**Model:** switchboard

**Ports:** 1* 10G SFP, 8* 10/100/1000/2500Base-T

**Compatibility:** Supports 1G, 2.5G downward compatibility

**Features:** Non-blocking architecture, high-speed cache

**Design:** Metal body for efficient heat dissipation

**Applications:** Suitable for various scenarios including enterprise offices, hotel management, school dormitories, and personal households

**Product Parameters**

**Interfaces:** 1* 1000/10000Base-X + 8* 10/100/1000/2500Base-T

**LED Indicators:** PWR, SYS, Link/ACT, speed LED

**Cable Types and Distance:** Twisted pair (CAT5e, CAT6) up to 100m, single-mode fiber 20/40/60/80/100KM, multi-mode fiber 550M

**Network Topology:** Ring, star, bus, tree, hybrid

**Electrical Characteristics:** DC12V input voltage, ≤18W power consumption

**Switching Capacity:** 60Gbps

**MAC Address Table:** 4K

**Buffer:** 8.1Mbit

**Forwarding Delay:** <10us

**VLAN Support:** 32

**Management Features:** User management, firmware upgrade, file upgrade, web management

**Security:** Port isolation, storm suppression, device diagnostics

**Environmental Requirements:** Operating temperature -10°C to +55°C, storage/transport temperature -40°C to +85°C, humidity 10% to 90% non-condensing, fanless design

**Mechanical Structure:** Dimensions 175*73*28mm, desktop installation, weight 0.33KG

**Protection:** Surge protection for network ports, ESD contact 8K, air 15K, free fall 0.5m

**Certifications:** MIIT inspection report and network access permit, CE/FCC/ROHS

**Accessories:** Power adapter, dust plug

**Related:** ePLiNK, R8, R7L8, R6L7, R5L6, R4L5, R3, LINK/ACT, R1-R8, O1G, 2.5G, L1-L8, non-blocking architecture, efficient heat dissipation, wide applications, easy network management, various network devices compatibility, suitable for different scenarios such as school dormitories, monitoring, homes, small businesses, enterprise offices, hotel management.
