KeepLINK KP-P103F, 100Mbps PoE Repeater, PoE Switch Extender, 1 Input 2 Output

SKU : 100052746886

Availability : In stock
4.7

Write your review

Weight : 0.15 kg
Length : 15.3 cm
Height : 3.6 cm

GHS 92.09

8.5

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

Product Specifications:

1. Brand: keepLINK

2. Model: KeepLiNK 01

3. Features:

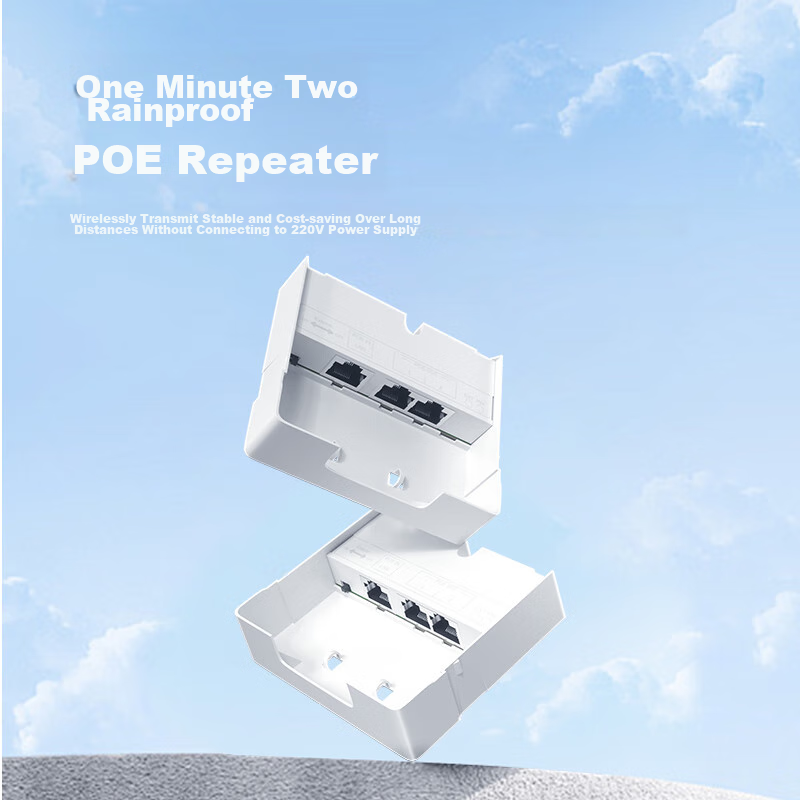

- One-to-two waterproof POE repeater for stable and cost-effective long-distance transmission without the need for a 220V power supply.

- Plug and play, no external power supply required, single-port power up to 30W, automatic recognition and usage.

- Outdoor waterproof design suitable for various scenarios and needs.

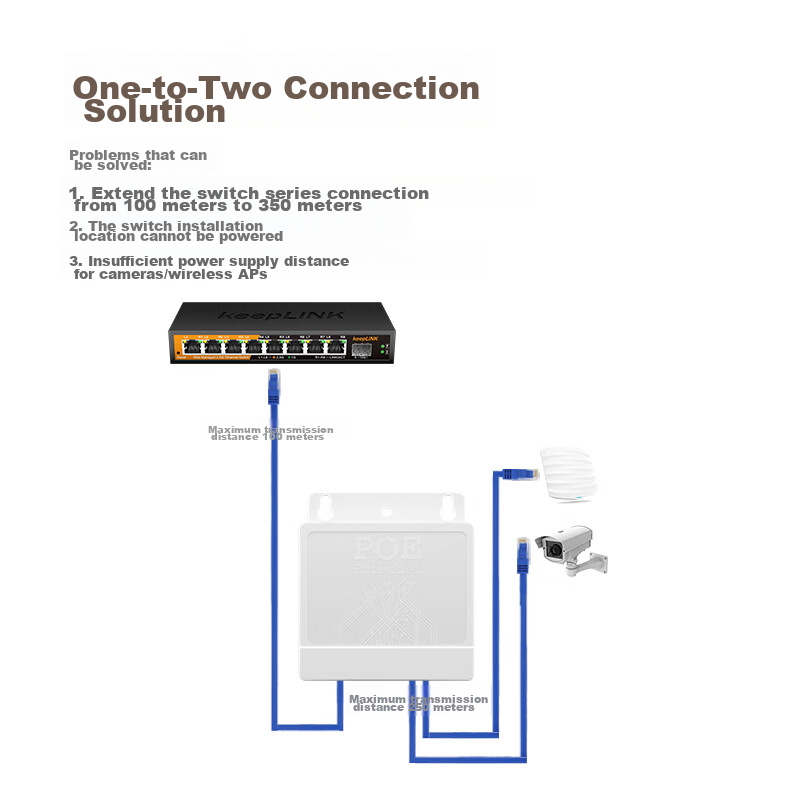

- One-to-two connection solution for extending switch range, overcoming power supply limitations, and extending transmission distance up to 350 meters.

- Suitable for various applications such as elevators, workshops, malls, residential areas, transportation, hotels, etc.

4. Technical Specifications:

- Function switches and indicator light definitions for POEIN, POEOUT, Extend, NO, OFF, LAN.

- Basic specifications include 2 100Mbps POE RJ45 ports + 1 100Mbps powered RJ45 port, 0.6G backplane bandwidth, 2K MAC address table.

- Supports standard POE (12/36 or 45/78), IEEE802.3af/at power supply up to 30W, and transmission distances of up to 100m for 100Base-TX and 250m for 10Base-TX.

- Software specifications compliant with IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards, supporting IEEE802.3af/at PD devices, and basic functions such as MAC learning, flow control, and Ethernet standards.

- POE output performance includes support for IEEE802.3af/at, maximum output power of 30W, and protection features against overcurrent, overvoltage, and short circuits.

- Environmental requirements: Operating temperature of 0°C to 40°C, storage temperature of -40°C to 70°C, operating humidity of 10% to 90% RH non-condensing, and storage humidity of 5% to 90% RH non-condensing.

- Lightning surge protection with 4KV differential mode and 4KV common mode.

- Dimensions: Waterproof box body 96*104*27mm, overall dimensions (neutral packaging) 99*106*29mm, carton dimensions (120PCS/box) 480*395*500mm.
