KSRGB USB to RS485 422 Converter, 9-Pin Serial Port Computer COM Communication Cable, PLC Industrial Control Machine Debugging Cable, FTDI Chip, 1.5 Meters

SKU : 100097393904

Availability : In stock
4.7
Weight : 0.09 kg
Length : 22 cm
Height : 1.2 cm

GHS 158.18

GHS 170.83

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** KSRGB

**Product Name:** USB to 485/422 Serial Cable

**Length:** 1.5m, 3m, 5m

**Transmission Speed:** 0.1Mbps

**Transmission Distance:** Up to 1200m at RS485/422 end (at 9600BPS), not exceeding 5m at USB end

**Transmission Interface:** Standard USB 2.0, DB9 pin

**Working Mode:** RS-232 up to 5m, RS-485K up to 1200m, 2-wire half-duplex, 4-wire full-duplex

**Baud Rate:** 300-15200BPS, automatic signal rate detection

**Supported Systems:** Win98/2000/2003/2008/XP/VISTA7/8/10/11, MacOSX/Linux, etc.

**Operating Environment:** Temperature -40°C to 85°C, relative humidity 5%-95%

**Features:**

Industrial-grade USB to 485/422 converter cable

Dual-chip design for stability and durability

Communication distance up to 1200m

Utilizes high-speed FTDI dual chips from the UK (FT232+SP485)

Supports baud rates from 300bps to 460.8Kbps

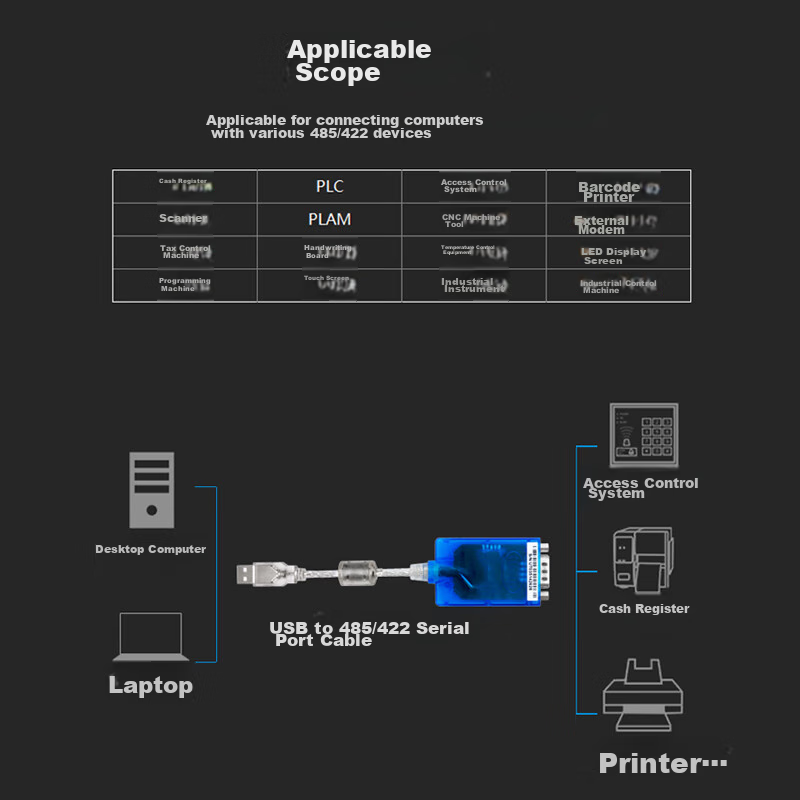

Compatible with various 485/422 devices such as cash registers, PLCs, access control systems, barcode printers, scanners, CNC machines, modems, etc.

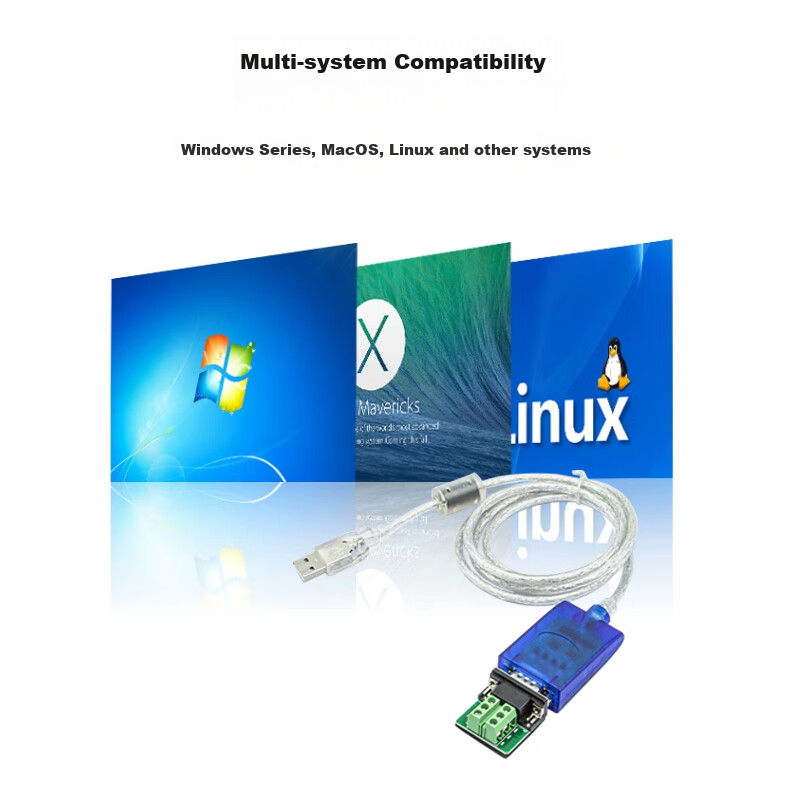

Multiple system compatibility including Windows, MacOS, Linux

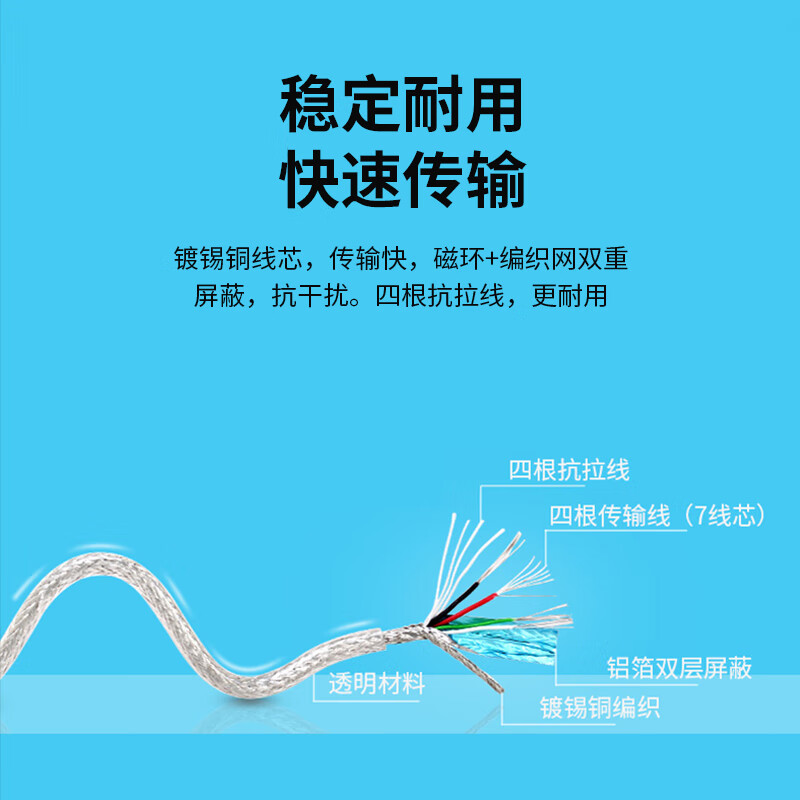

Features data indicator lights and multiple layers of shielding for anti-interference

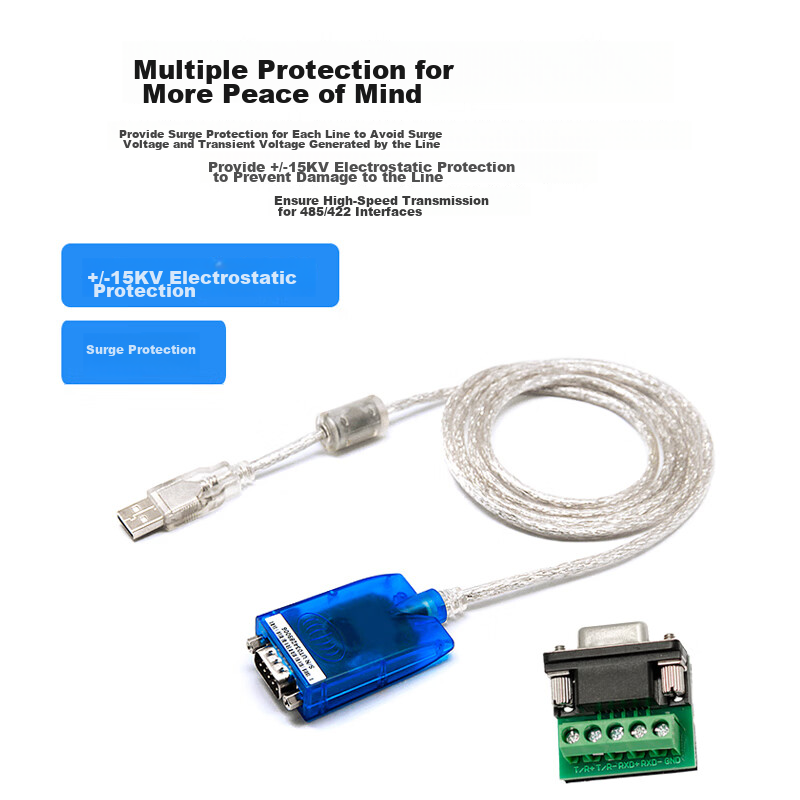

Provides surge protection and +/-15KV electrostatic protection

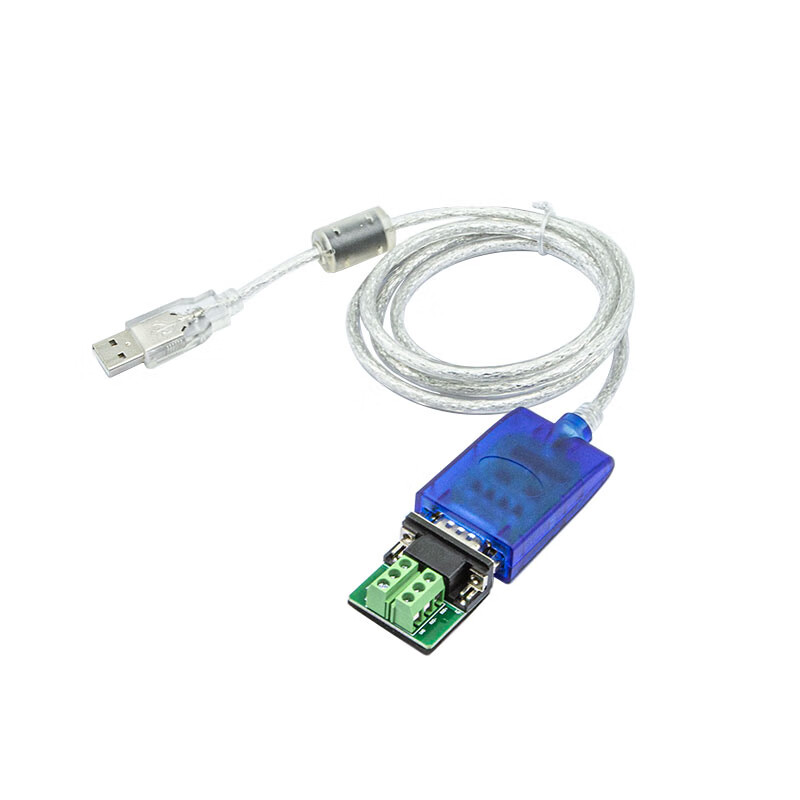

Transparent housing with blue color, standard DB9 male head, and USB-A interface

Multiple protection measures for safe and reliable use

Supports four working modes: full-duplex, half-duplex, point-to-point, and point-to-multipoint

Comes with communication connection diagrams for USB to RS-422 and USB to RS-485 connections

**Applications:**

Suitable for various industrial and commercial applications requiring stable and secure data transmission

**Note:** The above specifications are subject to change without prior notice.
