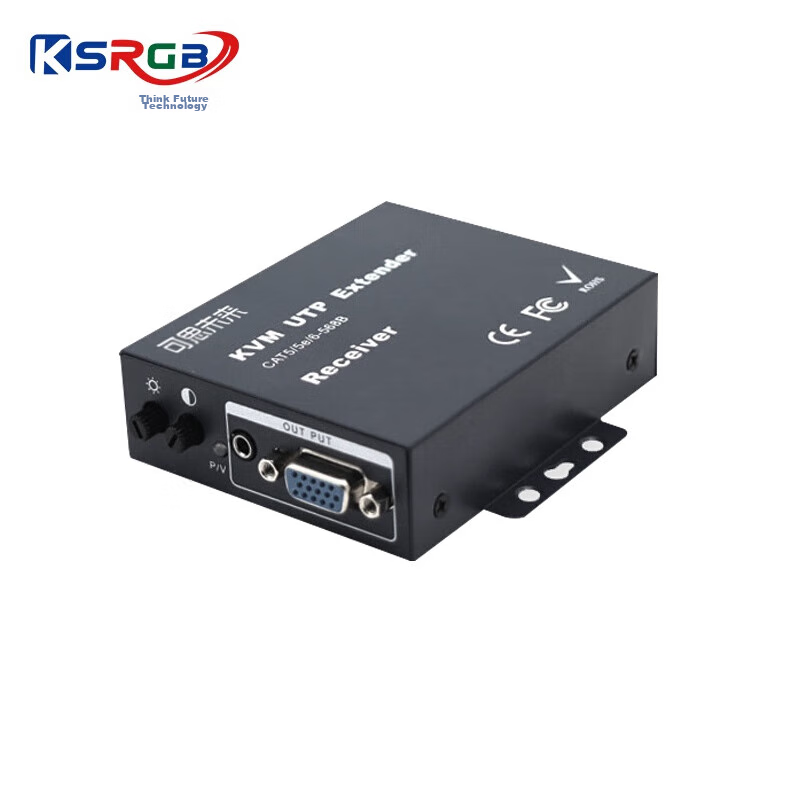

KSRGB VGA Network Cable Extender, KVM VGA to RJ45 Converter, USB Mouse And Keyboard Extension Transmitter, 1080P (200 Meters with KVM), KS-D

SKU : 100033494252

Availability : In stock
4.7
Weight : 0.72 kg
Length : 23.9 cm
Height : 7 cm

GHS 936.72

GHS 1,011.66

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

**Product Specifications:**

**Brand:** KSRGB

**Features:**

- High-definition long-distance transmission

- VGAKVMA network extender with keyboard and mouse transmission

- Available in 100m, 200m, 300m options

- FC, interference-proof, pressure-proof, lightning-proof, fire-proof, high-temperature resistant

- 1080P high-definition picture quality

- Professional technology for high-definition signal conversion and transmission

- Resolution up to 1080P@60HZ

- Excellent color space presentation for clear image details

- High-fidelity, real-time transmission

- Real-time transmission with anti-interference capability up to 300m

- Extender CAT5/5e6-568B

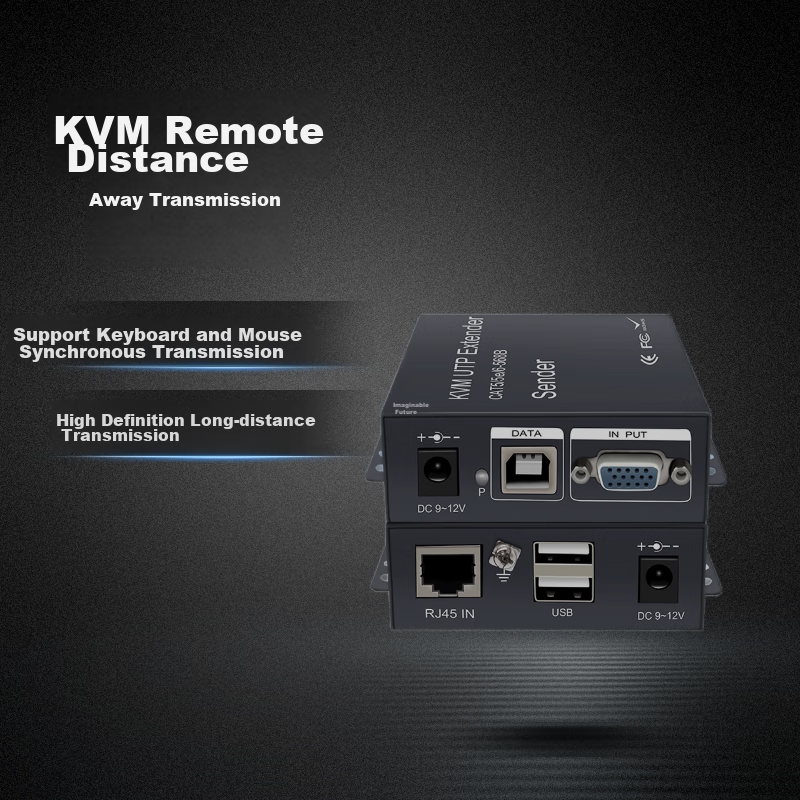

- Sender: DATA INPUT DC9~12V RJ45IN USB DC9~12V n2B

- High-performance digital chip for high-fidelity signal restoration

- Broadcast-level bandwidth balancing transmission technology for strong anti-interference capability

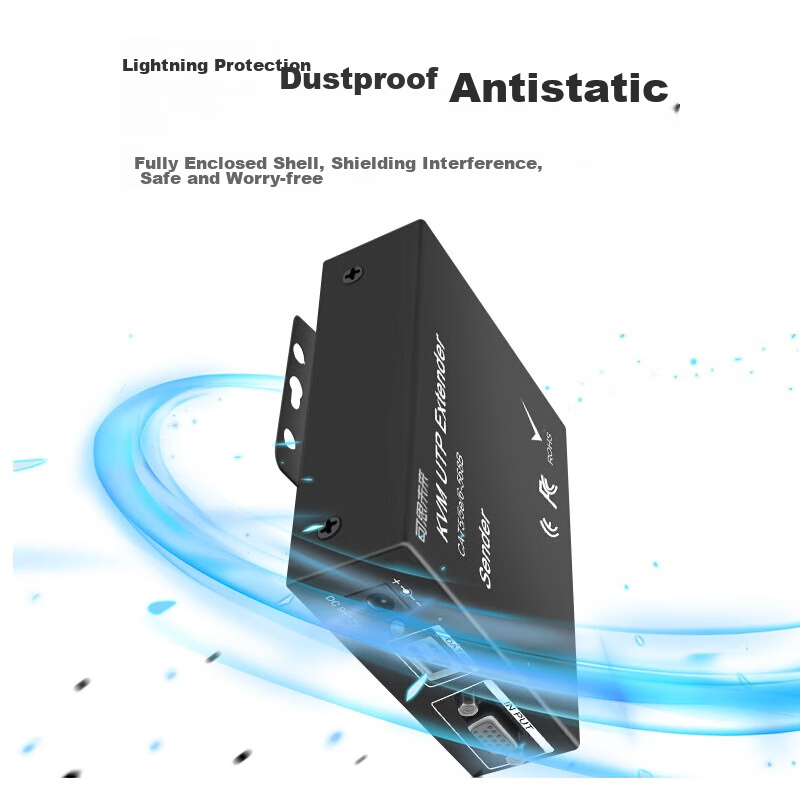

- Lightning-proof, dust-proof, anti-static with fully enclosed shell for worry-free safety

- Plug and play, no operating system restrictions, no software installation or debugging required

- No TCP/IP settings, no firewall settings, no security vulnerabilities

- FC color adjustment for clearer images

- Brightness and contrast adjustment for better display effects

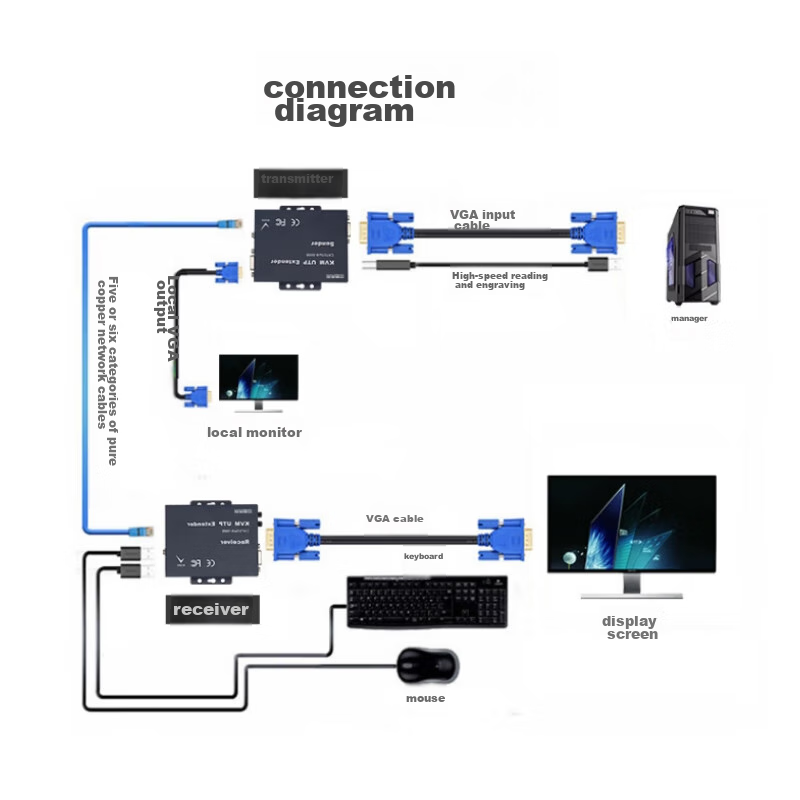

**Interface Diagram:**

- Transmitter: VGA input line, CAT5 or CAT6 pure copper network cable, local VGA output, USB cable, host, local monitor, VGA cable, keyboard

- Receiver: Display screen, mouse

**Dimensions:** 26mm x 96mm x 73mm

**Product Parameters:**

- VGA network extender

- 100m: 350MHz@-3dB video signal bandwidth

- 200m: 500MHz@-3dB video signal bandwidth

- 300m: 680MHz@-3dB video signal bandwidth

- Video signal gain: 6dB@full bandwidth

- Video input impedance: 75Ω

- Best resolution: 1024*768@60Hz-1920*1080@60Hz

- System support: Independent of computer operating systems, no drivers required

- VGA interface: HD15 pin female head, twisted pair interface/network cable RJ45 female head (CAT5E, CAT6 recommended)

- Audio interface: 3.5mm stereo audio socket (Note: KVM devices have no audio interface)

- Keyboard and mouse interface: USB (transmitter, receiver, KVM device)

- Working temperature: -10°C to 60°C

- Protection level: National standard lightning protection

- Fault generation time: ≥30000 hours

- Power supply: DC9V-DC 12V/1A
