LinkStone RS232 to RS485 Passive Converter, Industrial-Grade Serial Bidirectional Conversion Transmission Communication Protocol Surge-Proof Converter

SKU : 100103536028

Availability : In stock
4.7
Weight : 0.08 kg
Length : 14 cm
Height : 3.2 cm

GHS 39.87

GHS 43.06

Order now and get it less than 12-18 days

Pickup from our office at up to 0.00 delivery fee.

Contact Us on 0244133328 for any enquiry or assitance in placing your order

Product Description

Product Specifications:

Brand: LinkStone

Model: C380A

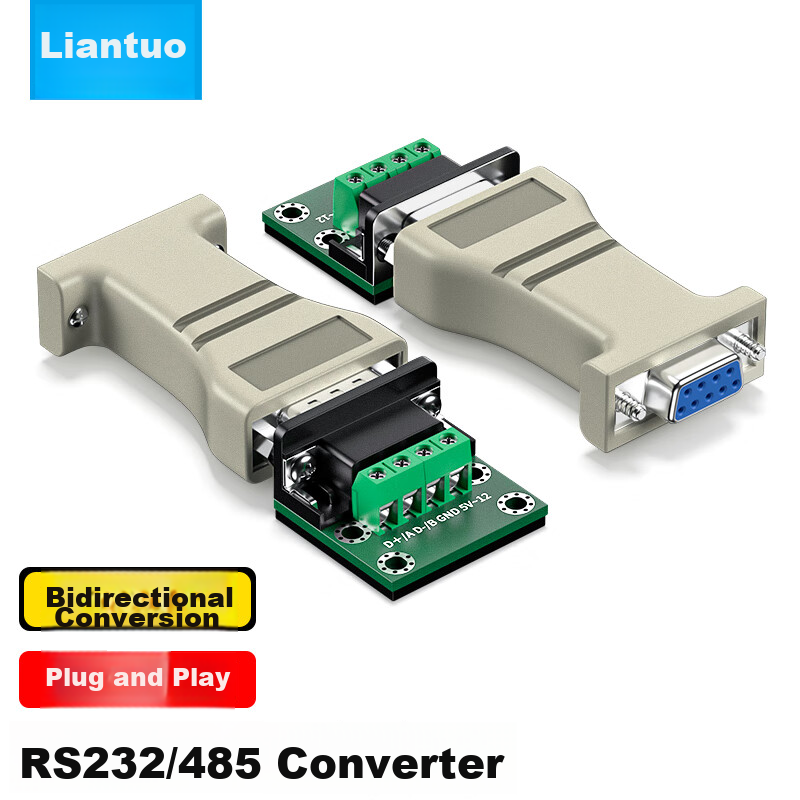

Product Name: RS232 to RS485 Converter

Compatibility: EIA/TLA RS-232C, RS-485 standards

Interface: RS-232 DB9 connector

Electrical Interface: RS-232 DB9 pin connector with distribution terminal block

Transmission Distance: Approximately 5 meters for RS-232, approximately 1200 meters for RS-485

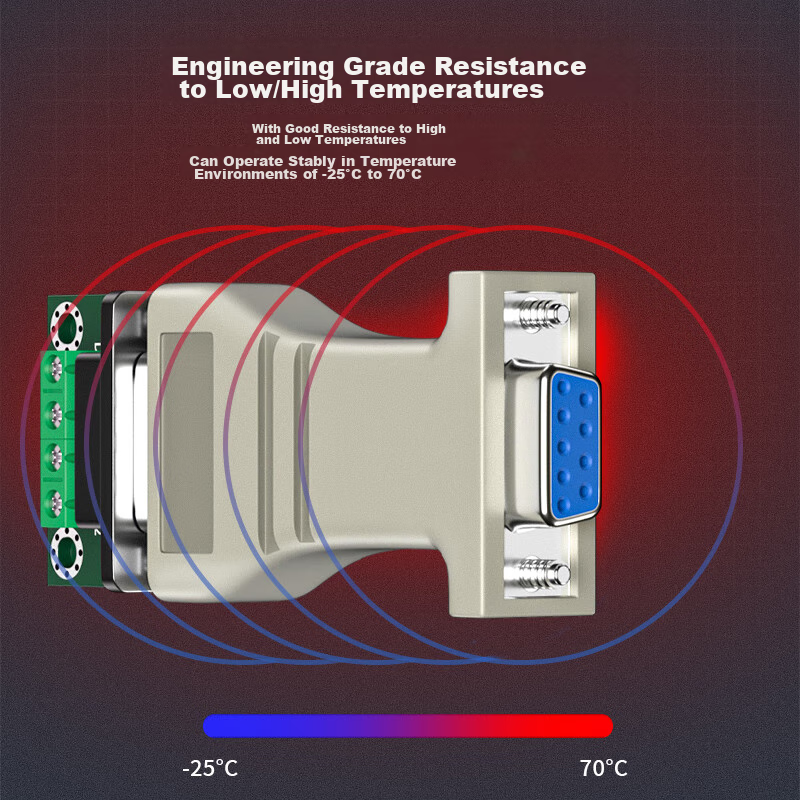

Temperature Range: -25°C to 70°C

Communication Modes:

1. Point-to-point/four-wire full-duplex communication (RS422)

2. Point-to-multipoint/four-wire half-duplex

3. Point-to-point/two-wire half-duplex (RS485)

4. Point-to-multipoint/two-wire half-duplex

Features:

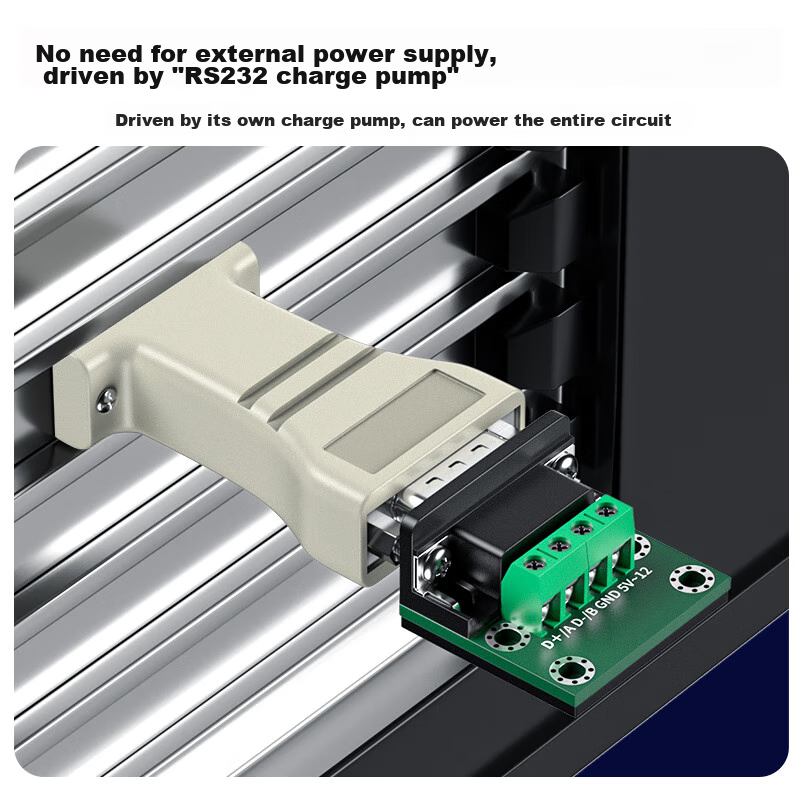

- Bi-directional conversion without external power supply

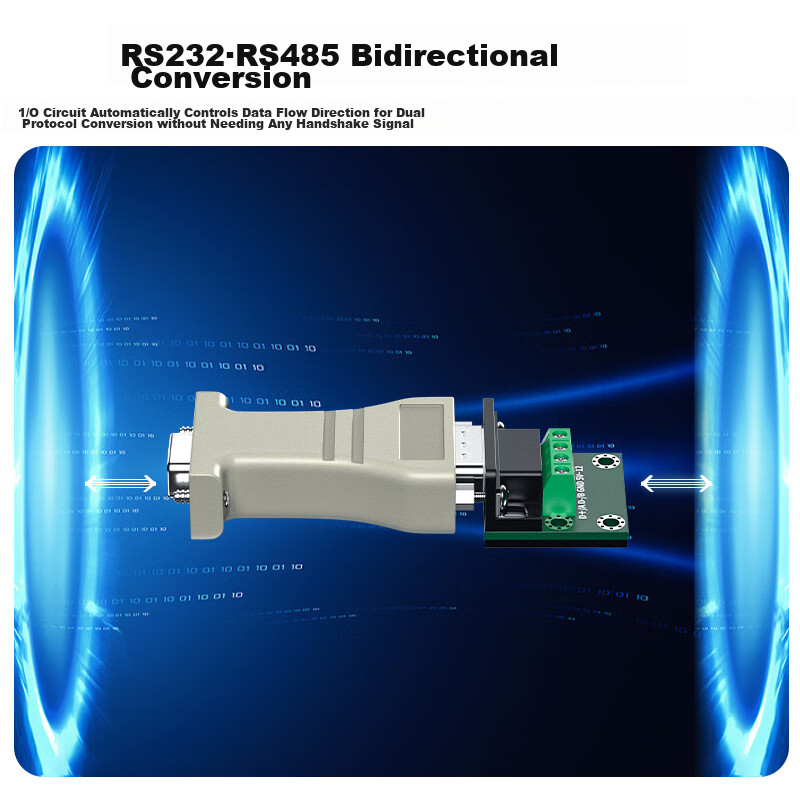

- Automatic data flow direction control

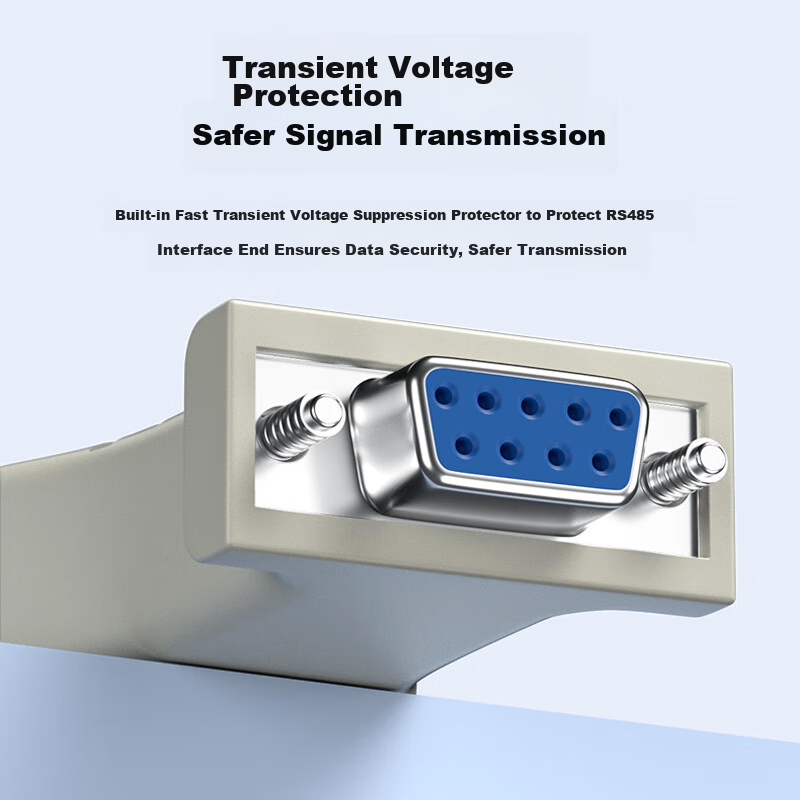

- Transient voltage protection

- 600W surge protection per line

- 5KV electrostatic protection

- 24-hour salt spray test

- 48-hour continuous operation test

- 5000 insertion and removal tests

- 3.48-hour aging test

Dimensions: 21.6mm x 101.2mm x 37.8mm

Warranty: One year

Note: The above data is based on laboratory testing conducted by LinkStone. Please allow for minor discrepancies in measurements due to manual measuring.
